| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_055T01_9000002206_14939cztM0_level2.evt | modeM0/AS1T02_055T01_9000002206_14939cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,779,840 | 87,154,560 |
| Size | 430.9 MB | 83.1 MB |
| Events in quadrant A | 3,209,621 | 560,270 |
| Events in quadrant B | 3,804,085 | 557,817 |
| Events in quadrant C | 3,089,135 | 540,296 |
| Events in quadrant D | 3,145,869 | 535,961 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13303 | 2 |
| B | 0 | 15153 | 1 |
| C | 0 | 13060 | 1 |
| D | 0 | 13606 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 112 | 1.756587% |
| B | 6376 | 247 | 3.873902% |
| C | 6376 | 77 | 1.207654% |
| D | 6376 | 104 | 1.631117% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6378 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7507 | 6378 | 94 | 94 | 1.25% | 1.47% |  |
| C | 7507 | 6378 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6378 | 22 | 22 | 0.29% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 98099 | 613.65 | 795 | 780 | 158.6 |
| A | 3 | 1 | 24923 | 152.23 | 795 | 780 | 158.6 |
| A | 4 | 2 | 13281 | 78.83 | 795 | 780 | 158.6 |
| B | 10 | 16 | 582309 | 3988.28 | 777 | 759 | 145.8 |
| B | 0 | 189 | 65401 | 443.32 | 777 | 759 | 145.8 |
| B | 0 | 219 | 42119 | 283.65 | 777 | 759 | 145.8 |
| C | 3 | 233 | 144675 | 836.16 | 752 | 753 | 172.1 |
| C | 10 | 22 | 7941 | 41.76 | 752 | 753 | 172.1 |
| C | 13 | 61 | 5465 | 27.38 | 752 | 753 | 172.1 |
| D | 7 | 254 | 175867 | 966.84 | 761 | 742 | 181.1 |
| D | 13 | 249 | 42636 | 231.29 | 761 | 742 | 181.1 |
| D | 2 | 234 | 22461 | 119.91 | 761 | 742 | 181.1 |

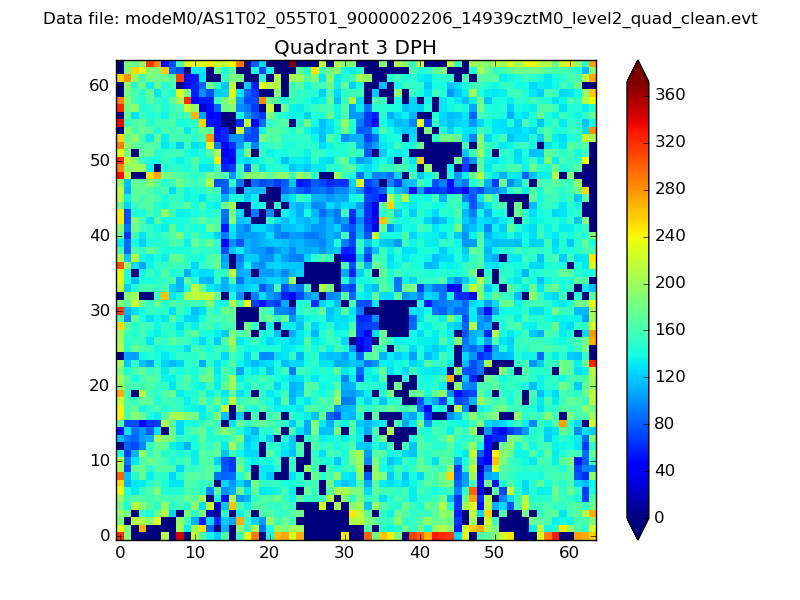

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

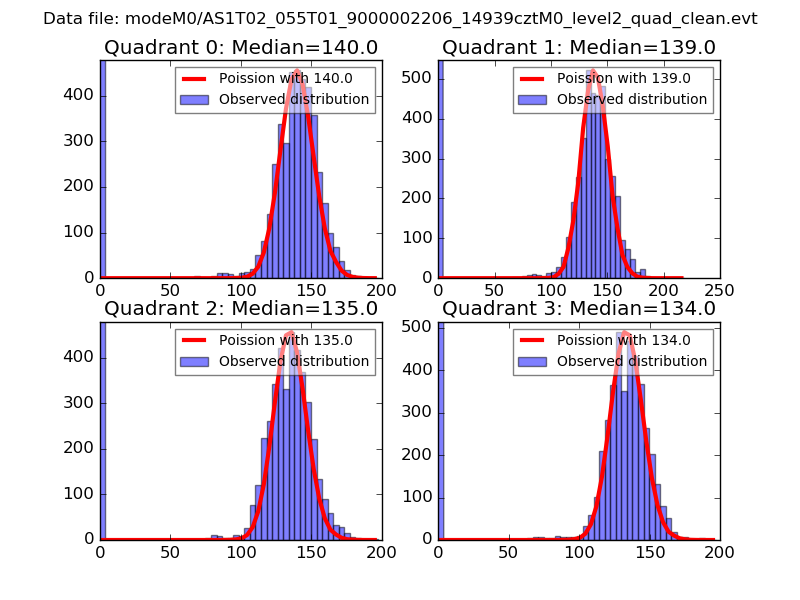

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

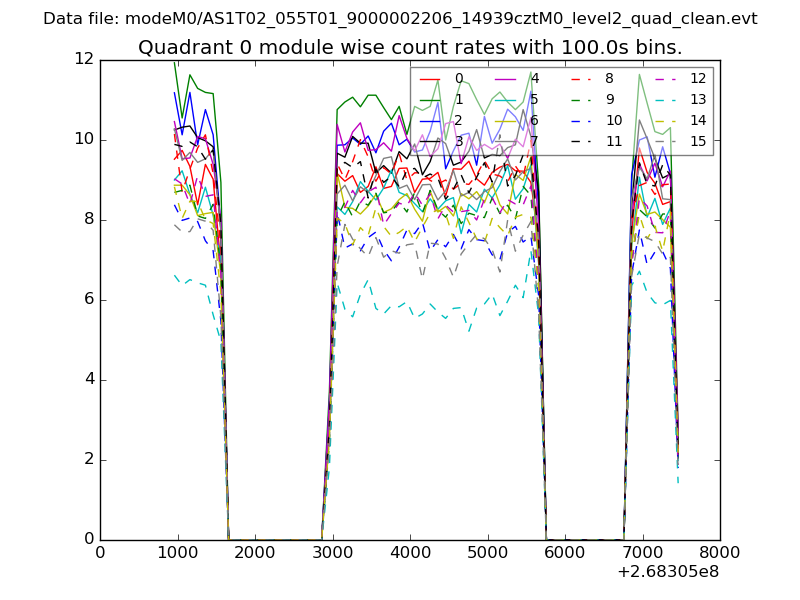

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

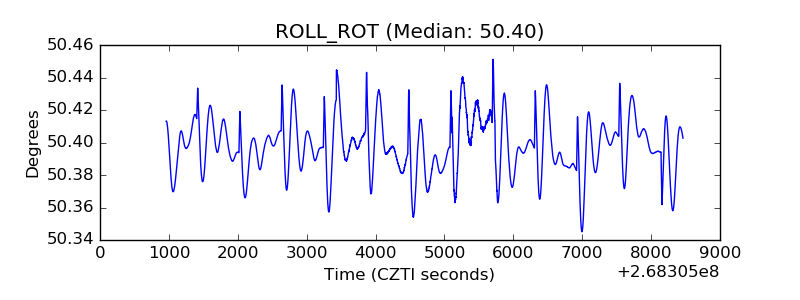

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
