| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_055T01_9000002206_14941cztM0_level2.evt | modeM0/AS1T02_055T01_9000002206_14941cztM0_level2_quad_clean.evt |
| Size (bytes) | 162,463,680 | 20,427,840 |
| Size | 154.9 MB | 19.5 MB |
| Events in quadrant A | 1,108,360 | 117,957 |
| Events in quadrant B | 1,267,243 | 116,076 |
| Events in quadrant C | 1,136,464 | 108,894 |
| Events in quadrant D | 1,249,972 | 109,482 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4703 | 1 |
| B | 0 | 5152 | 1 |
| C | 0 | 4802 | 1 |
| D | 0 | 5250 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2293 | 11 | 0.479721% |
| B | 2293 | 32 | 1.395552% |
| C | 2293 | 15 | 0.654165% |
| D | 2293 | 69 | 3.009158% |

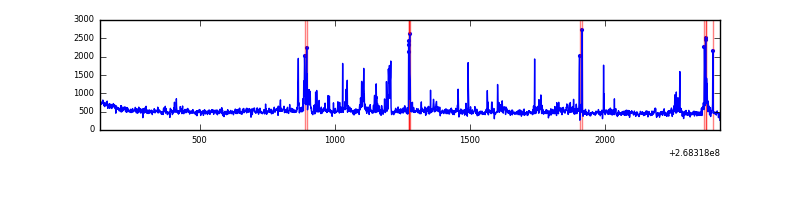

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2294 | 2294 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2294 | 2294 | 12 | 12 | 0.52% | 0.52% |  |
| C | 2294 | 2294 | 7 | 7 | 0.31% | 0.31% |  |
| D | 2294 | 2294 | 50 | 50 | 2.18% | 2.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 23185 | 399.29 | 279 | 273 | 57.4 |
| A | 13 | 252 | 6752 | 112.91 | 279 | 273 | 57.4 |
| A | 3 | 1 | 2494 | 38.71 | 279 | 273 | 57.4 |
| B | 10 | 16 | 99782 | 1843.24 | 275 | 269 | 54.0 |
| B | 0 | 219 | 45062 | 829.68 | 275 | 269 | 54.0 |
| B | 0 | 189 | 20033 | 366.08 | 275 | 269 | 54.0 |
| C | 3 | 233 | 67114 | 1085.64 | 262 | 263 | 61.6 |
| C | 9 | 236 | 44843 | 723.96 | 262 | 263 | 61.6 |
| C | 13 | 61 | 1924 | 26.97 | 262 | 263 | 61.6 |
| D | 10 | 70 | 159106 | 2463.28 | 264 | 255 | 64.5 |
| D | 13 | 249 | 25462 | 390.87 | 264 | 255 | 64.5 |
| D | 7 | 254 | 24314 | 373.07 | 264 | 255 | 64.5 |

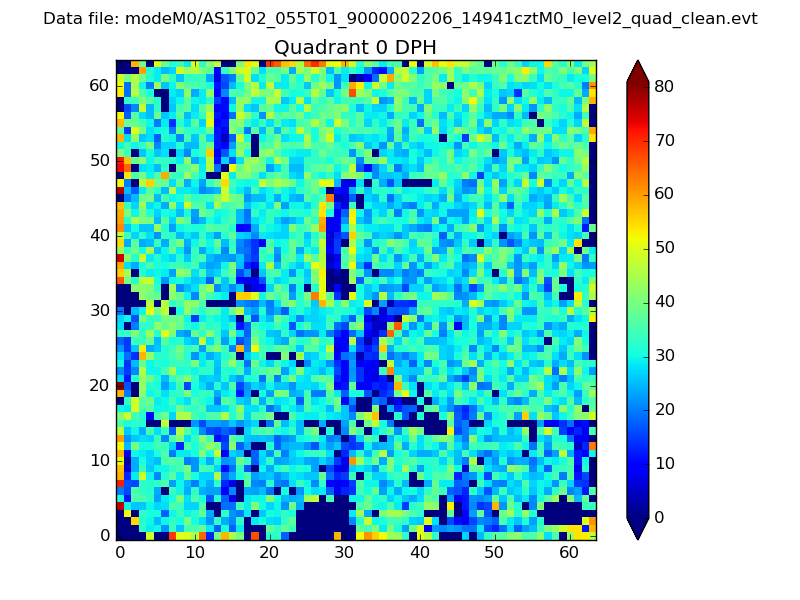

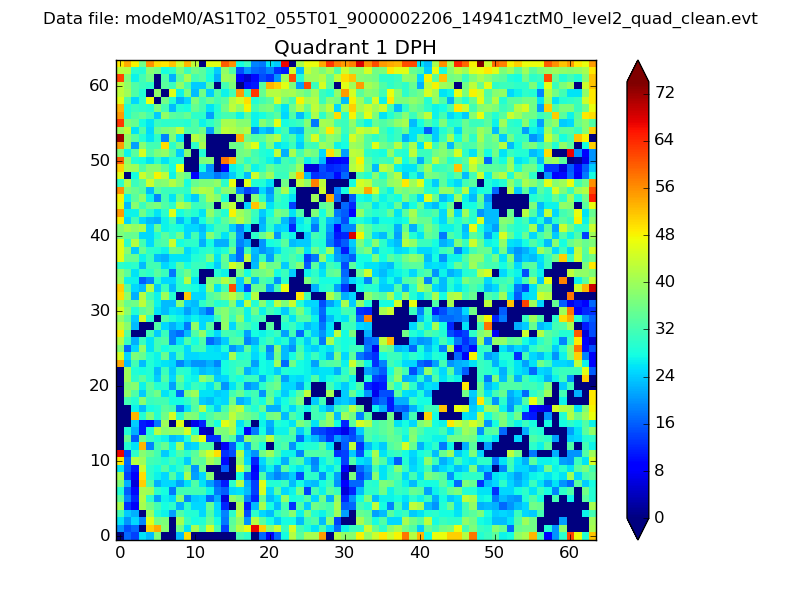

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

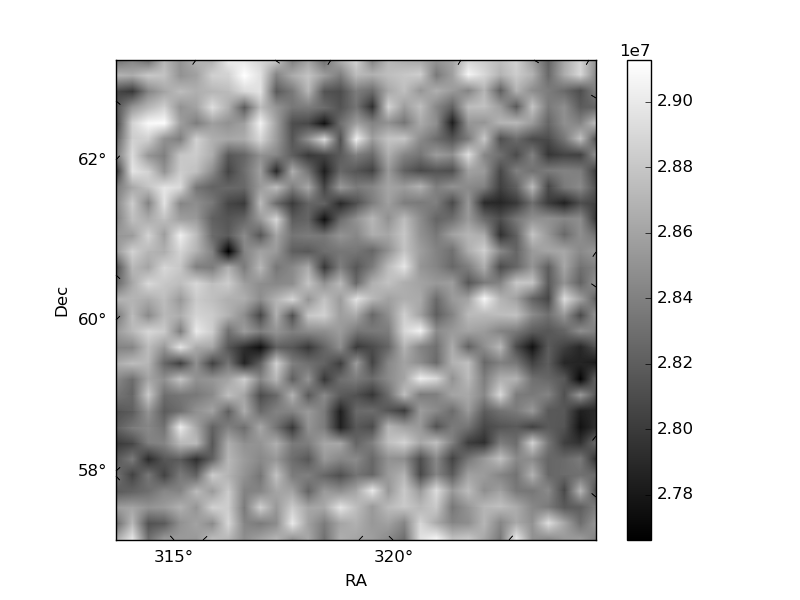

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

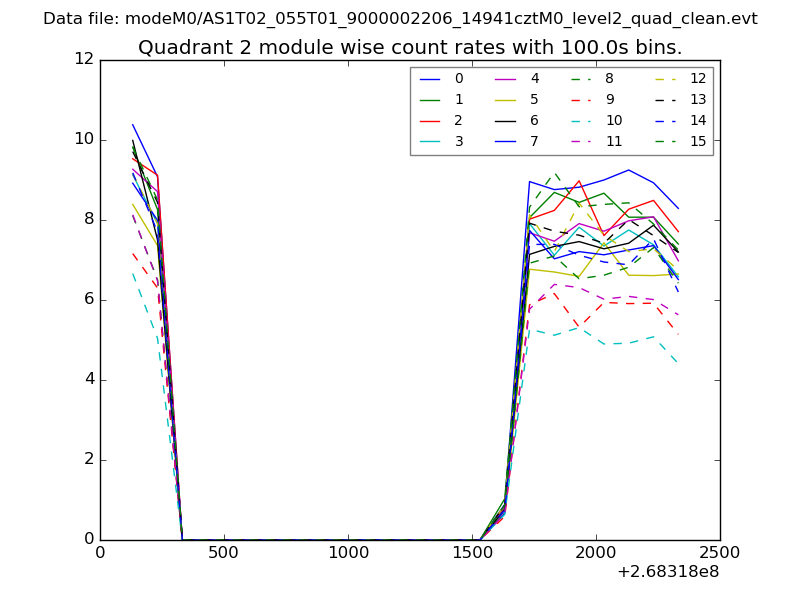

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

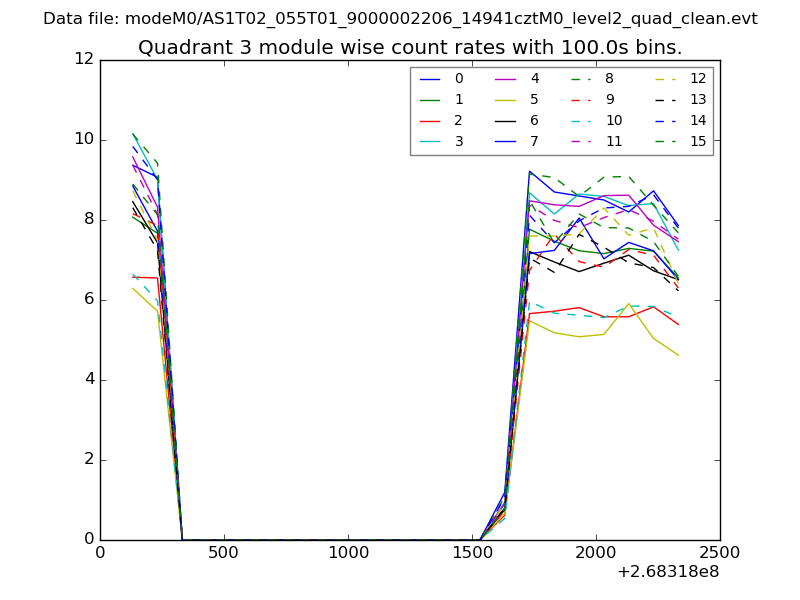

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

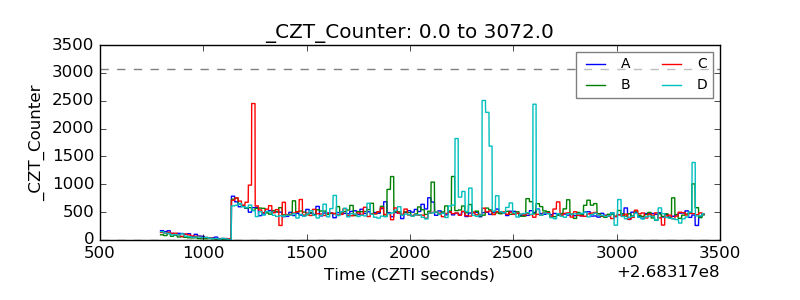

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

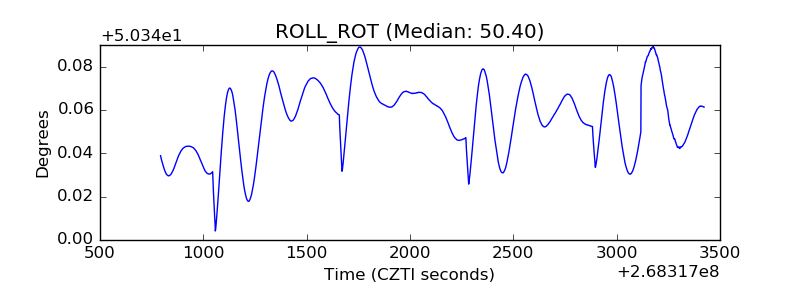

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
