| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_14961cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_14961cztM0_level2_quad_clean.evt |
| Size (bytes) | 802,448,640 | 79,528,320 |
| Size | 765.3 MB | 75.8 MB |
| Events in quadrant A | 3,396,945 | 527,310 |
| Events in quadrant B | 4,212,762 | 516,360 |
| Events in quadrant C | 3,171,102 | 517,598 |
| Events in quadrant D | 13,067,441 | 377,805 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14359 | 3 |
| B | 0 | 16855 | 2 |
| C | 0 | 13675 | 2 |
| D | 0 | 43576 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6712 | 37 | 0.551251% |
| B | 6712 | 211 | 3.143623% |
| C | 6712 | 14 | 0.208582% |
| D | 6712 | 3732 | 55.601907% |

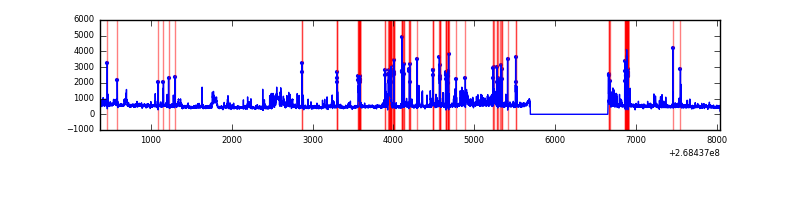

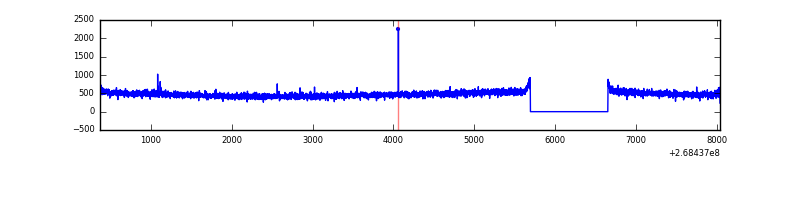

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7673 | 6714 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7673 | 6714 | 122 | 122 | 1.59% | 1.82% |  |
| C | 7673 | 6714 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7673 | 6714 | 3712 | 3712 | 48.38% | 55.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 109866 | 669.02 | 795 | 777 | 163.1 |
| A | 12 | 189 | 68956 | 418.13 | 795 | 777 | 163.1 |
| A | 1 | 178 | 50835 | 307.0 | 795 | 777 | 163.1 |
| B | 10 | 16 | 537209 | 3581.6 | 786 | 766 | 149.8 |
| B | 3 | 64 | 274048 | 1824.59 | 786 | 766 | 149.8 |
| B | 0 | 229 | 101832 | 674.77 | 786 | 766 | 149.8 |
| C | 3 | 233 | 140159 | 773.66 | 773 | 777 | 180.2 |
| C | 7 | 247 | 8499 | 42.86 | 773 | 777 | 180.2 |
| C | 10 | 22 | 6887 | 33.91 | 773 | 777 | 180.2 |
| D | 7 | 254 | 10739862 | 77392.62 | 571 | 555 | 138.8 |
| D | 13 | 249 | 61622 | 440.08 | 571 | 555 | 138.8 |
| D | 10 | 70 | 31865 | 225.63 | 571 | 555 | 138.8 |

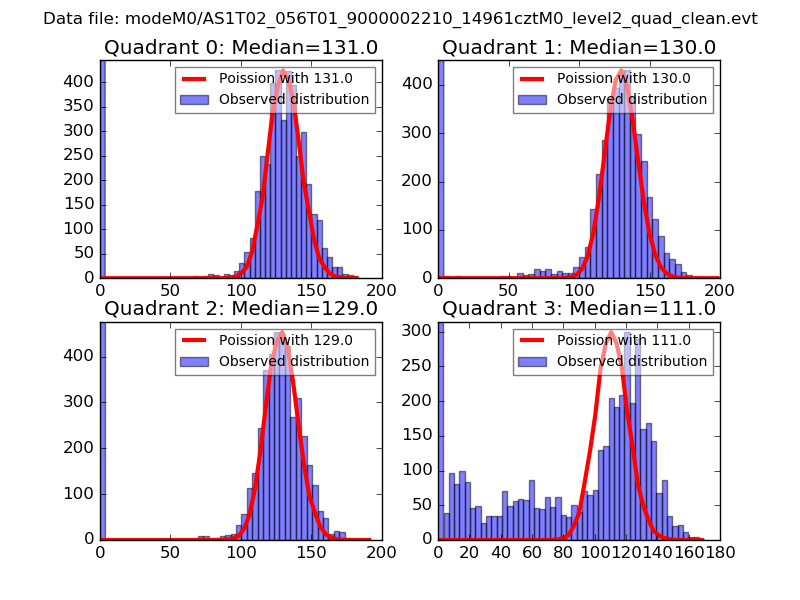

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

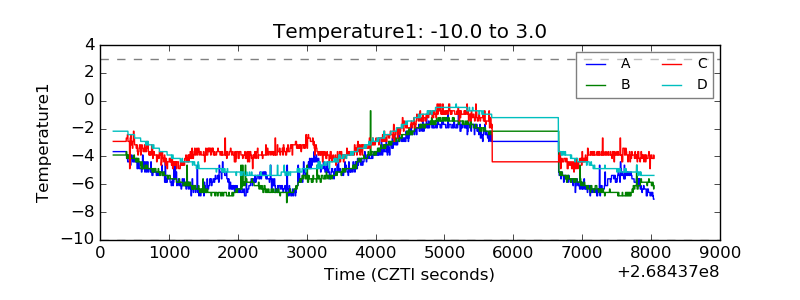

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

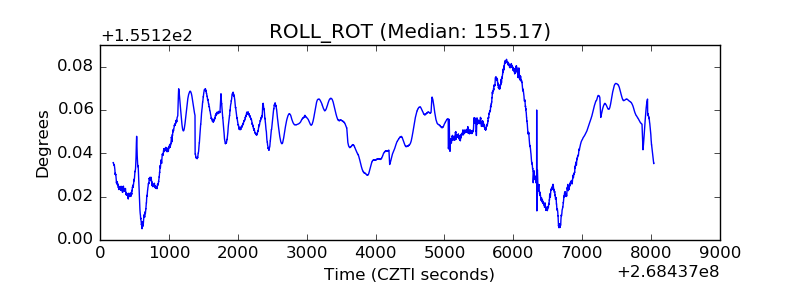

| _ROLL_ROT |  |

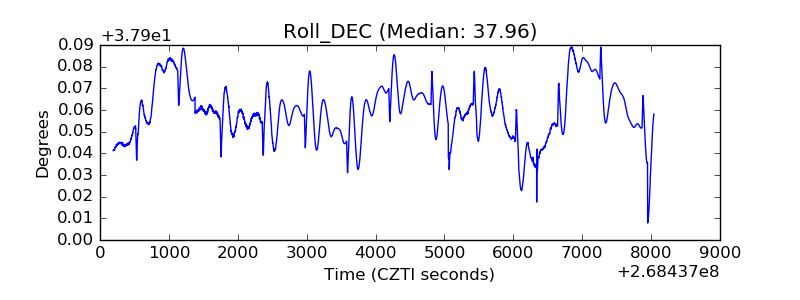

| _Roll_DEC |  |

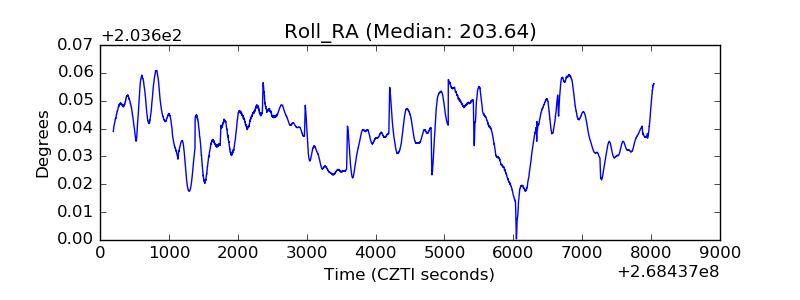

| _Roll_RA |  |

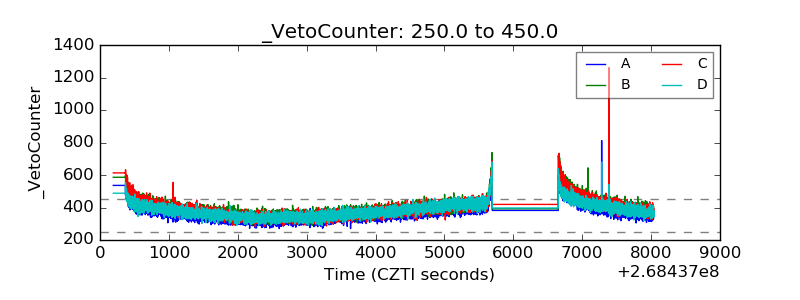

| Veto Counter |  |
