| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_14980cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_14980cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,605,120 | 68,103,360 |
| Size | 459.3 MB | 64.9 MB |
| Events in quadrant A | 3,668,829 | 412,093 |
| Events in quadrant B | 3,760,963 | 414,646 |
| Events in quadrant C | 3,357,992 | 402,061 |
| Events in quadrant D | 3,366,792 | 390,116 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14841 | 3 |
| B | 0 | 14918 | 2 |
| C | 0 | 13623 | 2 |
| D | 0 | 13984 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 96 | 1.512764% |
| B | 6346 | 195 | 3.072802% |
| C | 6346 | 59 | 0.929720% |
| D | 6346 | 98 | 1.544280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7623 | 6349 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7623 | 6348 | 51 | 51 | 0.67% | 0.80% |  |
| C | 7623 | 6349 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7623 | 6349 | 25 | 25 | 0.33% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 97886 | 559.58 | 863 | 847 | 173.4 |
| A | 1 | 162 | 91259 | 521.36 | 863 | 847 | 173.4 |
| A | 1 | 178 | 40363 | 227.87 | 863 | 847 | 173.4 |
| B | 3 | 64 | 285422 | 1781.34 | 856 | 839 | 159.8 |
| B | 0 | 245 | 31068 | 189.22 | 856 | 839 | 159.8 |
| B | 0 | 198 | 27763 | 168.53 | 856 | 839 | 159.8 |
| C | 3 | 233 | 160495 | 854.0 | 819 | 825 | 187.0 |
| C | 13 | 61 | 5946 | 27.39 | 819 | 825 | 187.0 |
| C | 10 | 22 | 3576 | 14.71 | 819 | 825 | 187.0 |
| D | 13 | 249 | 122902 | 617.07 | 821 | 796 | 197.9 |
| D | 7 | 38 | 64577 | 322.32 | 821 | 796 | 197.9 |
| D | 7 | 223 | 33558 | 165.56 | 821 | 796 | 197.9 |

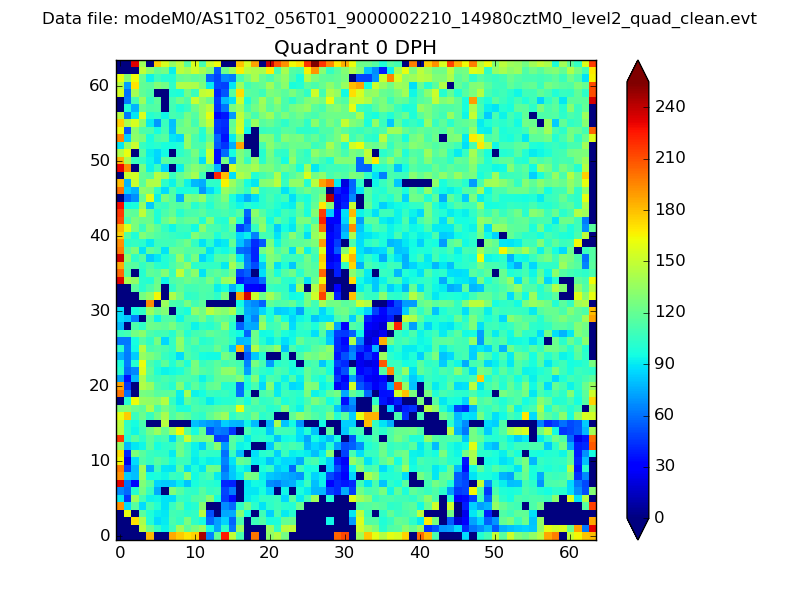

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

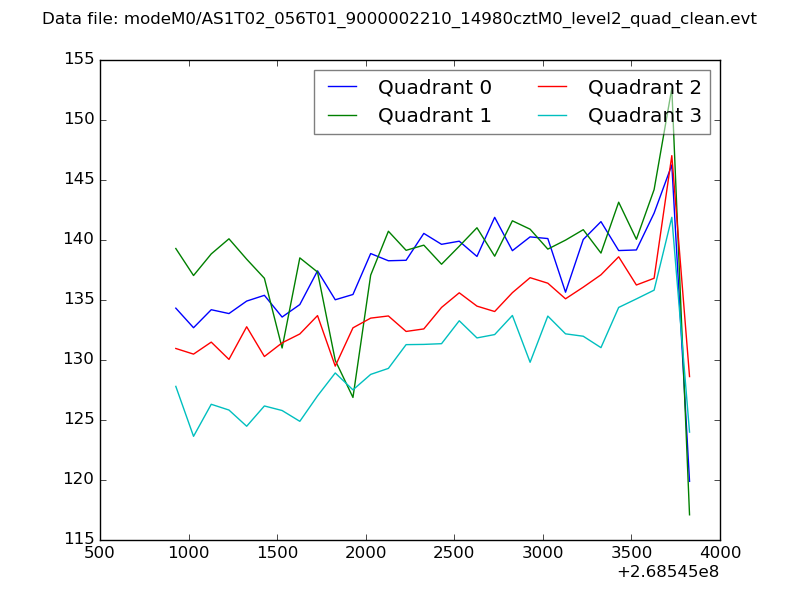

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

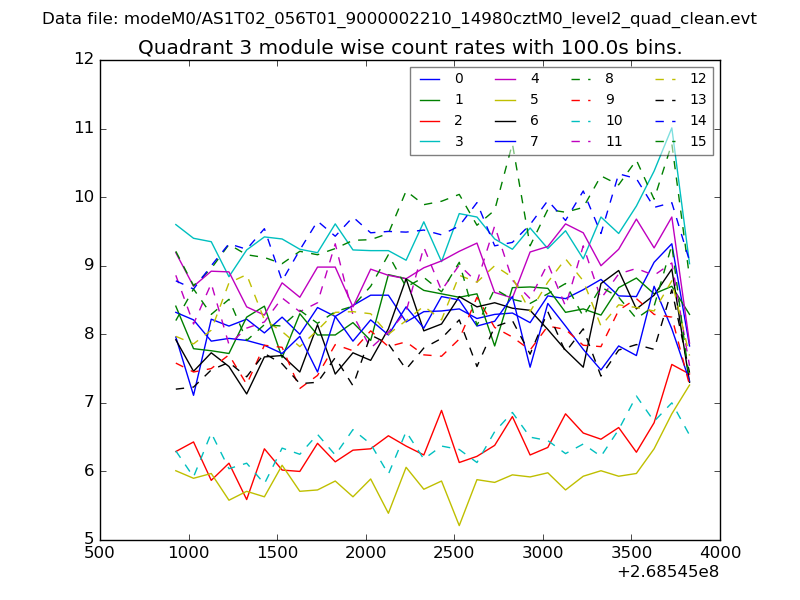

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

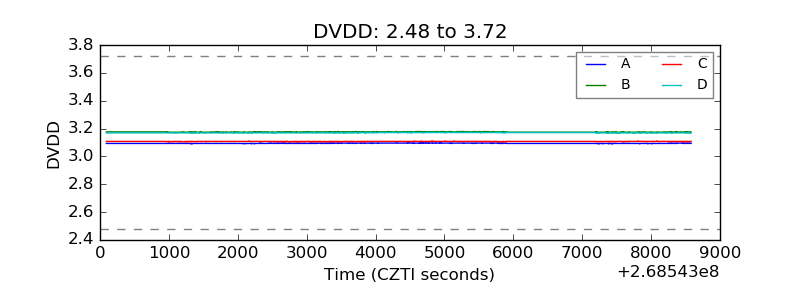

| D_VDD |  |

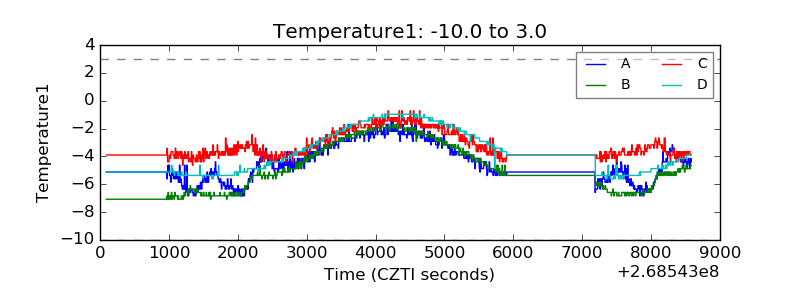

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

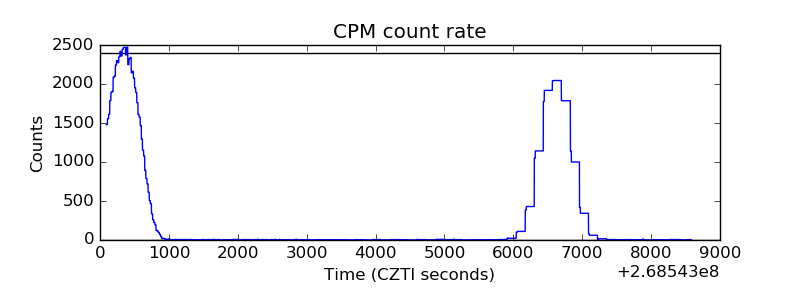

| _CPM_Rate |  |

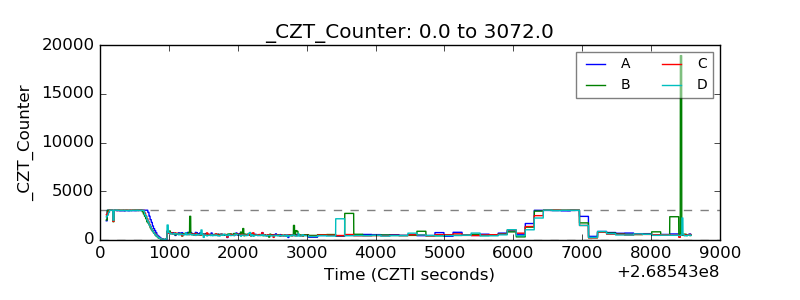

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
