| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_14989cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_14989cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,274,713,920 | 236,399,040 |
| Size | 1.2 GB | 225.4 MB |
| Events in quadrant A | 9,450,072 | 1,499,851 |
| Events in quadrant B | 9,486,342 | 1,499,730 |
| Events in quadrant C | 8,894,964 | 1,477,723 |
| Events in quadrant D | 9,534,226 | 1,419,303 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40084 | 5 |
| B | 0 | 40188 | 4 |
| C | 0 | 37910 | 4 |
| D | 0 | 41336 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18319 | 147 | 0.802446% |
| B | 18319 | 257 | 1.402915% |
| C | 18319 | 58 | 0.316611% |
| D | 18319 | 390 | 2.128937% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

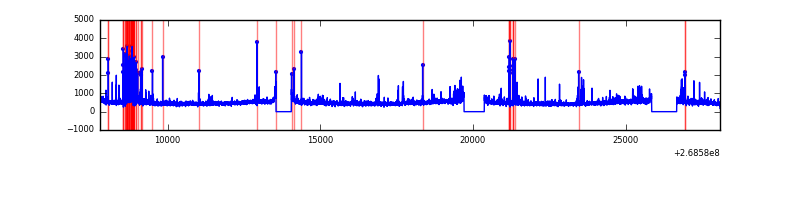

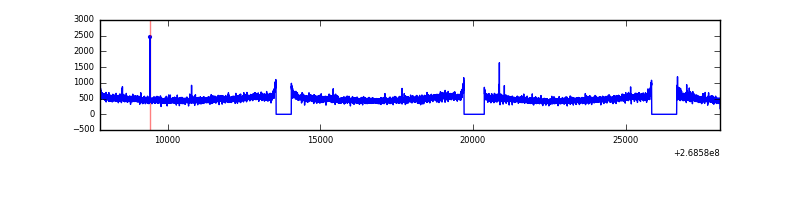

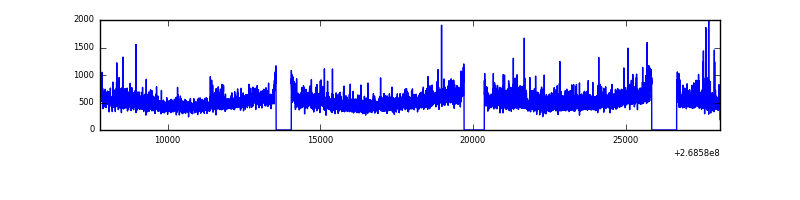

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20305 | 18324 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20305 | 18324 | 93 | 93 | 0.46% | 0.51% |  |
| C | 20305 | 18324 | 1 | 1 | 0.00% | 0.01% |  |
| D | 20305 | 18324 | 297 | 297 | 1.46% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 440445 | 1005.83 | 2149 | 2098 | 435.8 |
| A | 1 | 178 | 207028 | 470.23 | 2149 | 2098 | 435.8 |
| A | 12 | 189 | 183204 | 415.56 | 2149 | 2098 | 435.8 |
| B | 0 | 229 | 233791 | 571.08 | 2144 | 2089 | 405.7 |
| B | 7 | 220 | 203828 | 497.23 | 2144 | 2089 | 405.7 |
| B | 0 | 245 | 165886 | 403.72 | 2144 | 2089 | 405.7 |
| C | 3 | 233 | 686333 | 1429.02 | 2083 | 2095 | 478.8 |
| C | 0 | 207 | 29523 | 57.28 | 2083 | 2095 | 478.8 |
| C | 13 | 61 | 15290 | 27.56 | 2083 | 2095 | 478.8 |
| D | 7 | 38 | 976949 | 1763.42 | 2056 | 2013 | 552.9 |
| D | 13 | 249 | 262019 | 470.29 | 2056 | 2013 | 552.9 |
| D | 4 | 239 | 181522 | 324.69 | 2056 | 2013 | 552.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

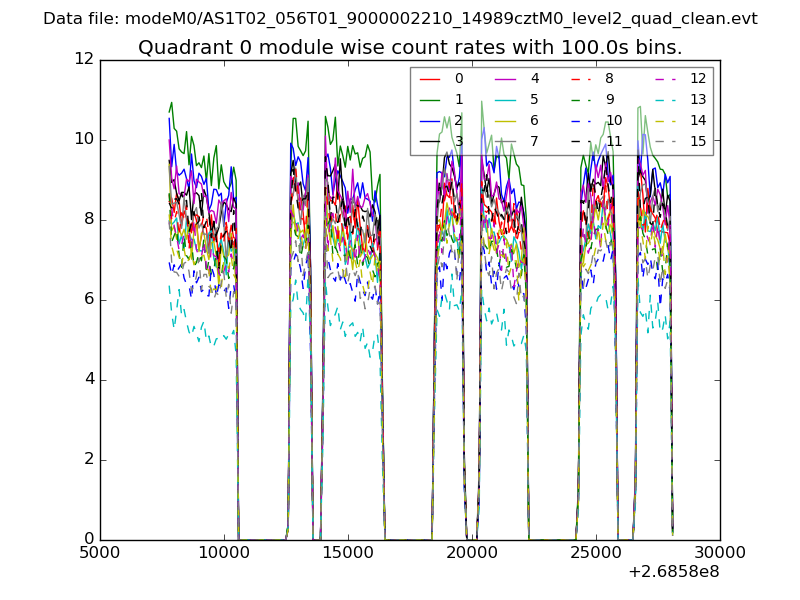

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

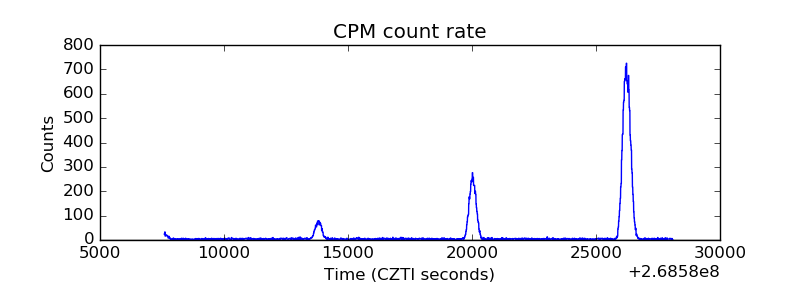

| _CPM_Rate |  |

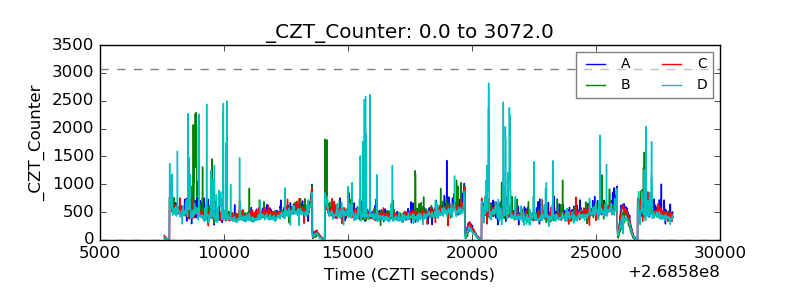

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

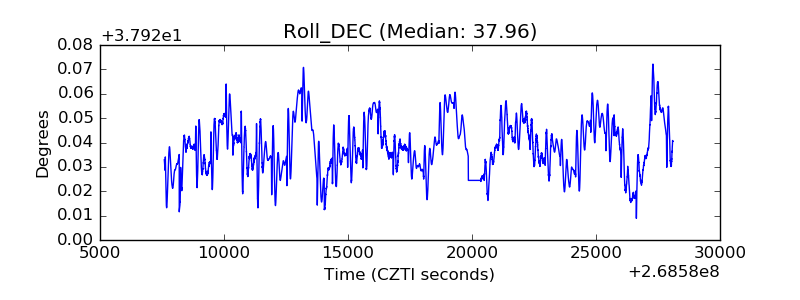

| _Roll_DEC |  |
| _Roll_RA |  |

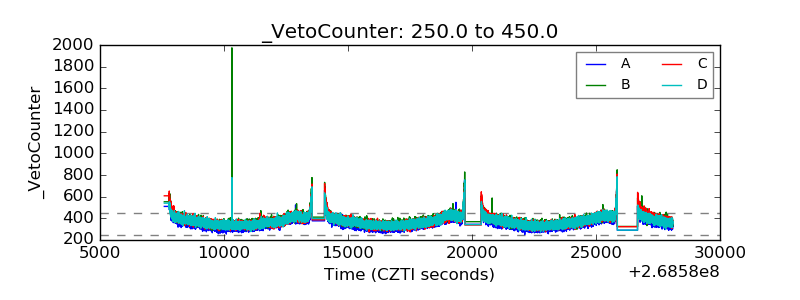

| Veto Counter |  |
