| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_14990cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_14990cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,470,080 | 86,754,240 |
| Size | 428.6 MB | 82.7 MB |
| Events in quadrant A | 3,438,319 | 545,865 |
| Events in quadrant B | 3,337,731 | 554,686 |
| Events in quadrant C | 3,230,380 | 541,080 |
| Events in quadrant D | 3,157,437 | 525,549 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14474 | 3 |
| B | 0 | 14246 | 2 |
| C | 0 | 13677 | 2 |
| D | 0 | 14102 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6598 | 82 | 1.242801% |
| B | 6598 | 53 | 0.803274% |
| C | 6598 | 25 | 0.378903% |
| D | 6598 | 75 | 1.136708% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8409 | 6602 | 23 | 23 | 0.27% | 0.35% |  |
| B | 8409 | 6602 | 3 | 3 | 0.04% | 0.05% |  |
| C | 8409 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8409 | 6602 | 44 | 44 | 0.52% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 137506 | 863.32 | 777 | 759 | 158.4 |
| A | 13 | 248 | 80316 | 502.27 | 777 | 759 | 158.4 |
| A | 1 | 178 | 65019 | 405.69 | 777 | 759 | 158.4 |
| B | 0 | 229 | 204609 | 1372.15 | 782 | 763 | 148.6 |
| B | 12 | 111 | 16991 | 109.24 | 782 | 763 | 148.6 |
| B | 0 | 219 | 14767 | 94.27 | 782 | 763 | 148.6 |
| C | 3 | 233 | 203640 | 1150.71 | 760 | 762 | 176.3 |
| C | 0 | 207 | 42883 | 238.91 | 760 | 762 | 176.3 |
| C | 8 | 128 | 9741 | 50.93 | 760 | 762 | 176.3 |
| D | 7 | 38 | 141829 | 702.86 | 748 | 732 | 200.7 |
| D | 13 | 249 | 86032 | 424.91 | 748 | 732 | 200.7 |
| D | 2 | 234 | 30921 | 150.38 | 748 | 732 | 200.7 |

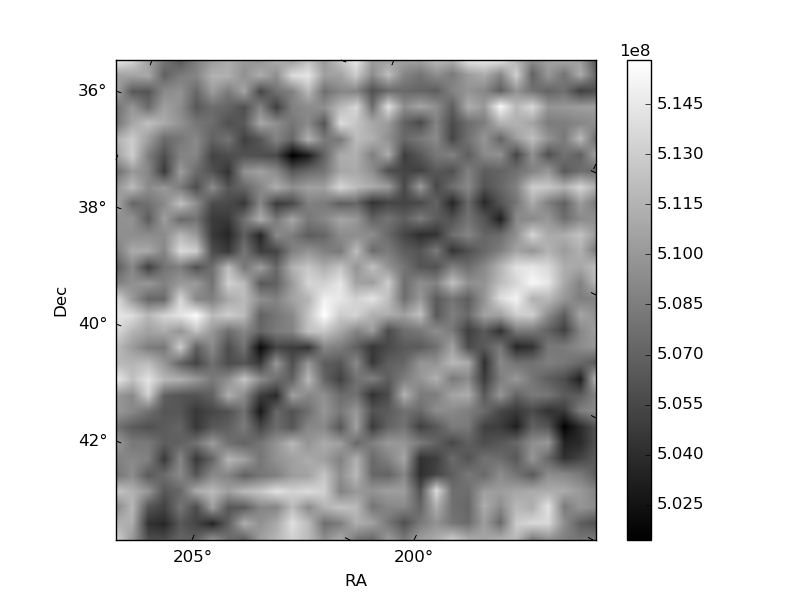

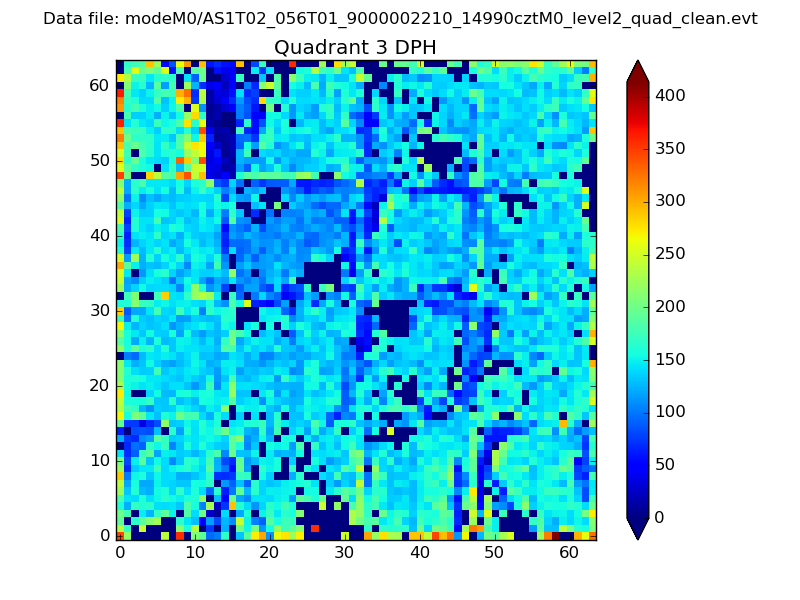

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

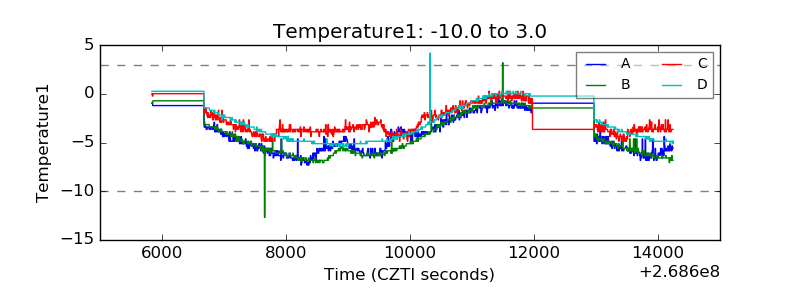

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

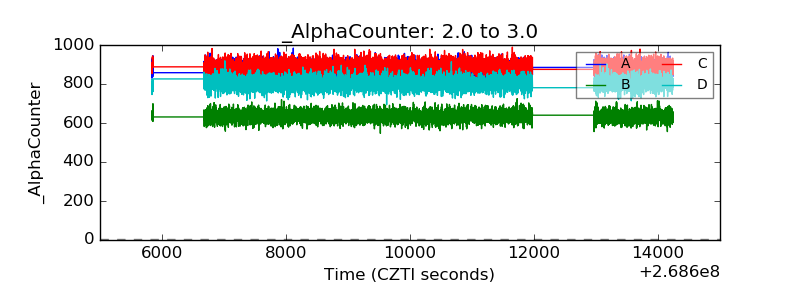

| Alpha Counter |  |

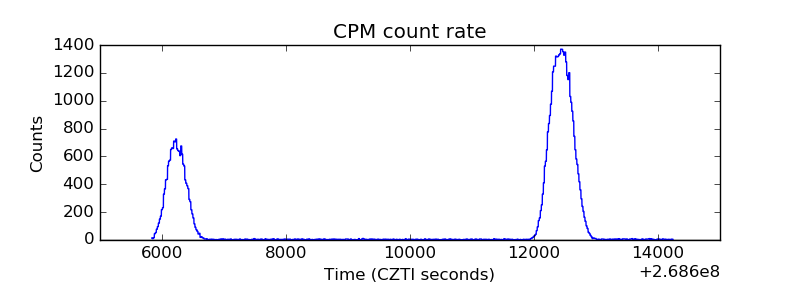

| _CPM_Rate |  |

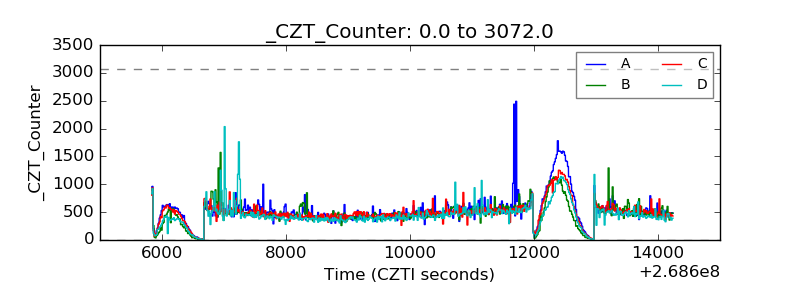

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

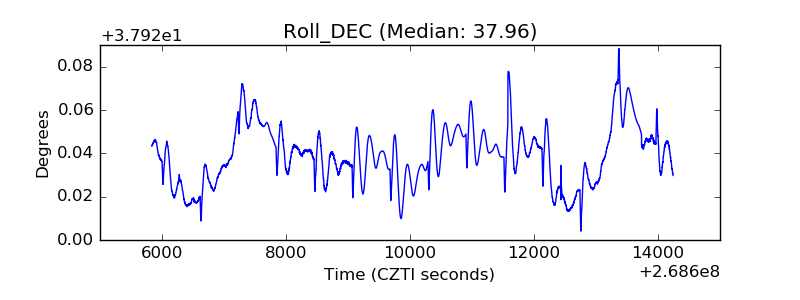

| _Roll_DEC |  |
| _Roll_RA |  |

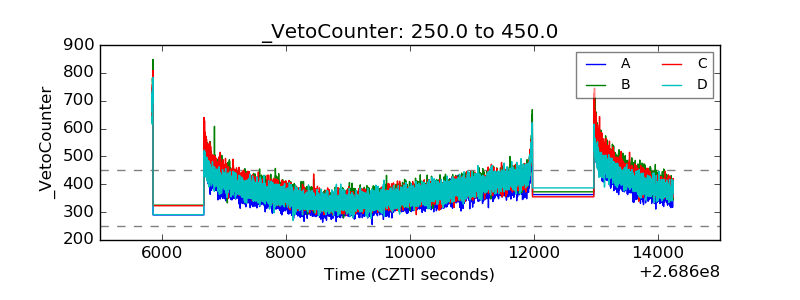

| Veto Counter |  |
