| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_15001cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_15001cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,200,000 | 86,532,480 |
| Size | 487.5 MB | 82.5 MB |
| Events in quadrant A | 3,591,234 | 556,078 |
| Events in quadrant B | 4,499,247 | 526,607 |
| Events in quadrant C | 3,241,442 | 548,270 |
| Events in quadrant D | 3,700,102 | 527,246 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14919 | 2 |
| B | 0 | 17614 | 1 |
| C | 0 | 13696 | 1 |
| D | 0 | 15669 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6620 | 90 | 1.359517% |
| B | 6620 | 471 | 7.114804% |
| C | 6620 | 45 | 0.679758% |
| D | 6620 | 220 | 3.323263% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7031 | 6622 | 7 | 7 | 0.10% | 0.11% |  |
| B | 7031 | 6622 | 362 | 362 | 5.15% | 5.47% |  |
| C | 7031 | 6622 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7031 | 6622 | 155 | 155 | 2.20% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 176652 | 1080.11 | 785 | 769 | 162.8 |
| A | 1 | 178 | 83775 | 509.75 | 785 | 769 | 162.8 |
| A | 12 | 189 | 81095 | 493.29 | 785 | 769 | 162.8 |
| B | 10 | 16 | 968865 | 6664.13 | 758 | 739 | 145.3 |
| B | 3 | 64 | 307992 | 2114.99 | 758 | 739 | 145.3 |
| B | 0 | 229 | 85785 | 585.42 | 758 | 739 | 145.3 |
| C | 3 | 233 | 235745 | 1328.29 | 759 | 764 | 176.9 |
| C | 12 | 4 | 16372 | 88.23 | 759 | 764 | 176.9 |
| C | 10 | 22 | 12218 | 64.75 | 759 | 764 | 176.9 |
| D | 7 | 38 | 624276 | 3043.72 | 753 | 736 | 204.9 |
| D | 10 | 70 | 117651 | 570.7 | 753 | 736 | 204.9 |
| D | 2 | 234 | 31846 | 151.86 | 753 | 736 | 204.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

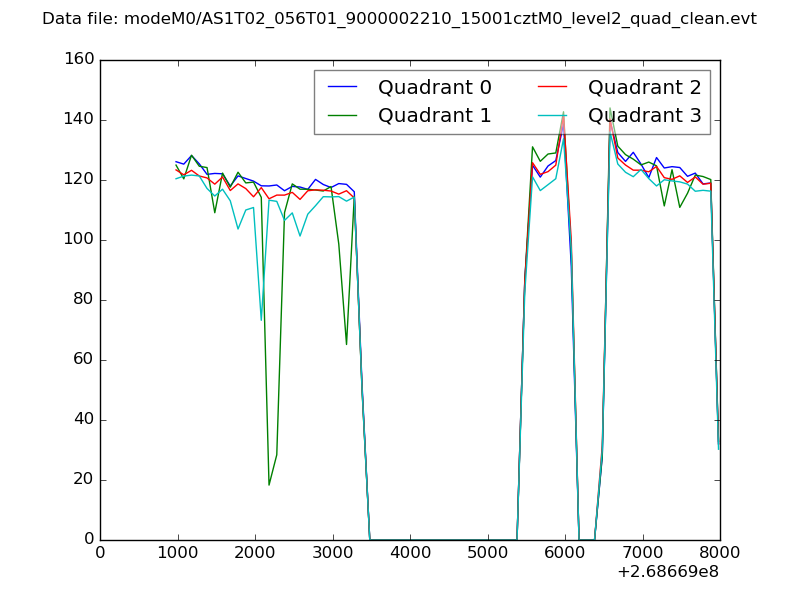

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

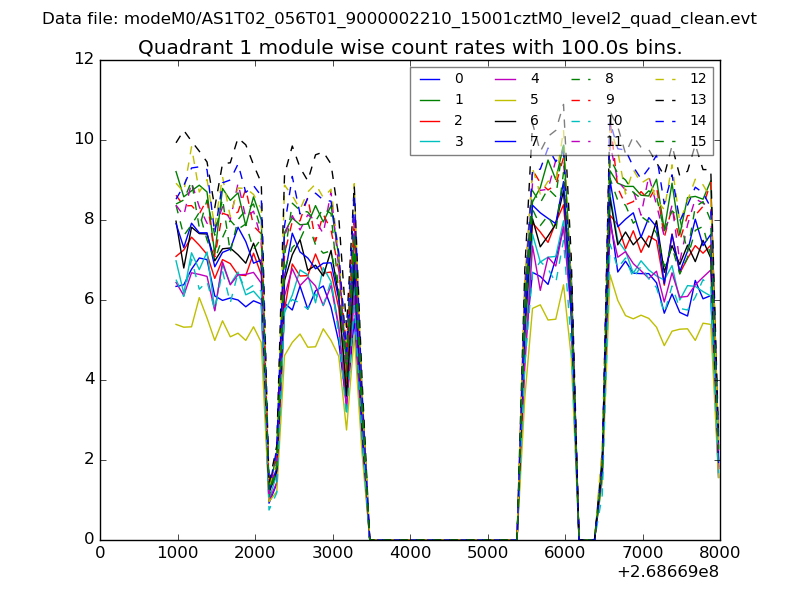

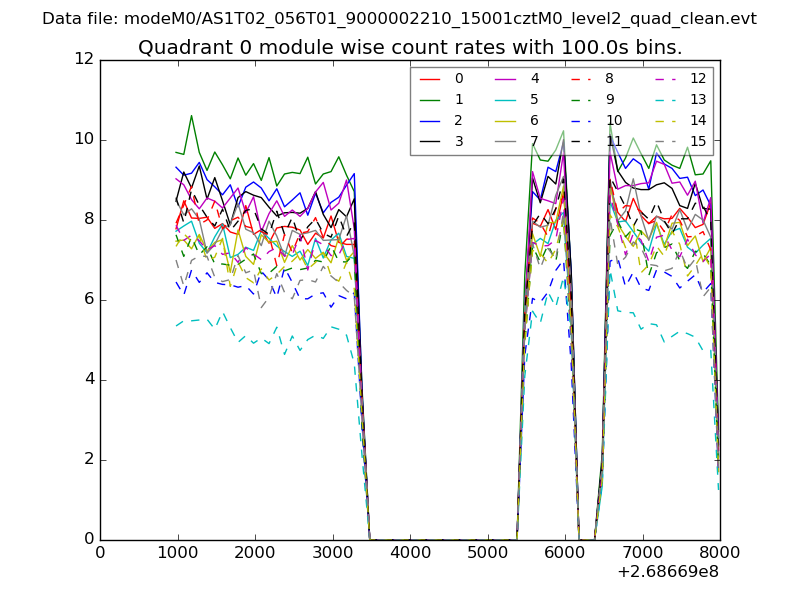

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

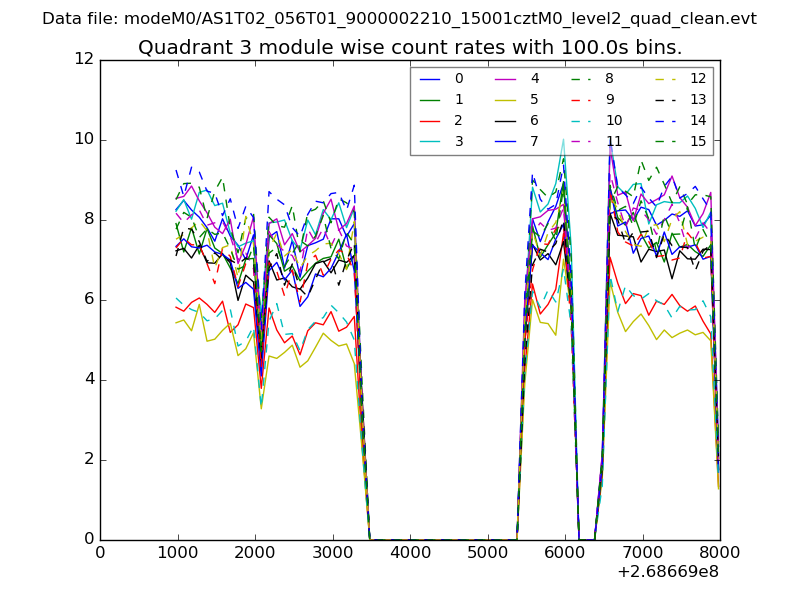

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

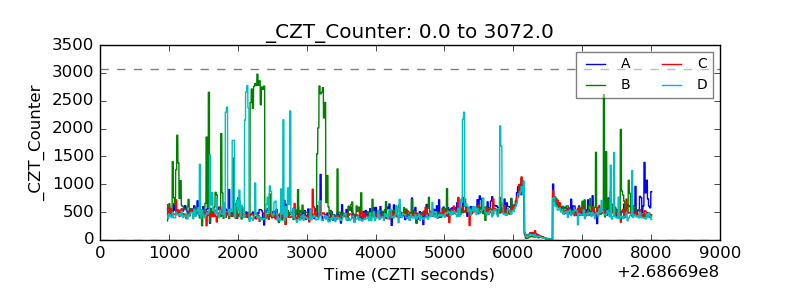

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

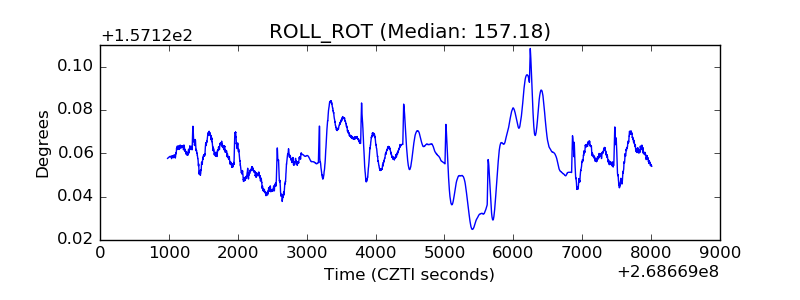

| _ROLL_ROT |  |

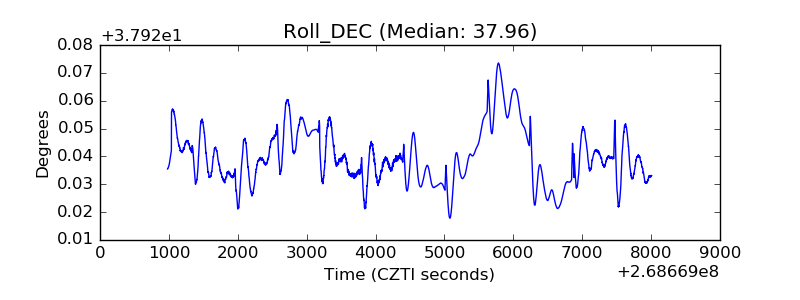

| _Roll_DEC |  |

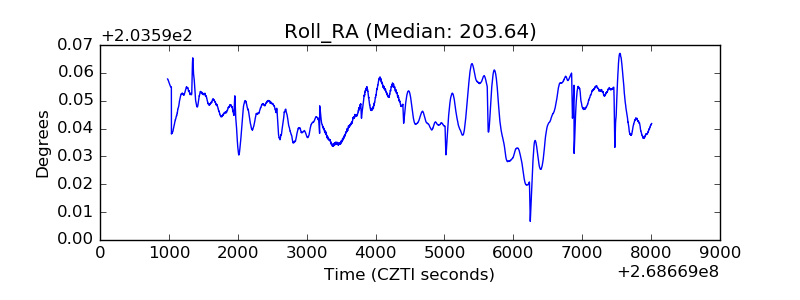

| _Roll_RA |  |
| Veto Counter |  |
