| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_15004cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_15004cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,757,440 | 95,359,680 |
| Size | 472.8 MB | 90.9 MB |
| Events in quadrant A | 3,822,622 | 608,594 |
| Events in quadrant B | 3,852,230 | 610,321 |
| Events in quadrant C | 3,410,597 | 603,653 |
| Events in quadrant D | 3,460,992 | 585,412 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15930 | 3 |
| B | 0 | 15907 | 2 |
| C | 0 | 14374 | 2 |
| D | 0 | 15216 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6880 | 80 | 1.162791% |
| B | 6880 | 164 | 2.383721% |
| C | 6880 | 26 | 0.377907% |
| D | 6880 | 87 | 1.264535% |

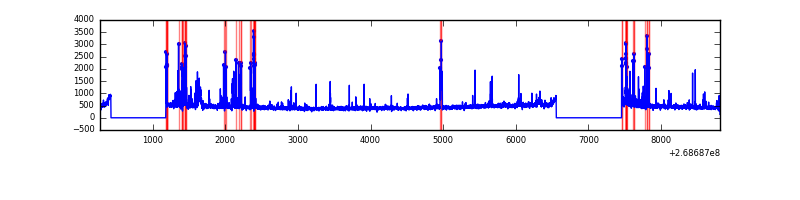

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8537 | 6883 | 16 | 16 | 0.19% | 0.23% |  |
| B | 8537 | 6883 | 81 | 81 | 0.95% | 1.18% |  |
| C | 8537 | 6883 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8537 | 6883 | 57 | 57 | 0.67% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 202403 | 1211.96 | 814 | 796 | 166.3 |
| A | 12 | 189 | 182391 | 1091.66 | 814 | 796 | 166.3 |
| A | 1 | 178 | 94704 | 564.53 | 814 | 796 | 166.3 |
| B | 10 | 16 | 357662 | 2295.81 | 811 | 791 | 155.4 |
| B | 0 | 229 | 134684 | 861.36 | 811 | 791 | 155.4 |
| B | 0 | 219 | 44119 | 278.74 | 811 | 791 | 155.4 |
| C | 3 | 233 | 272766 | 1470.28 | 794 | 799 | 185.0 |
| C | 10 | 22 | 12151 | 61.37 | 794 | 799 | 185.0 |
| C | 8 | 128 | 9481 | 46.94 | 794 | 799 | 185.0 |
| D | 7 | 38 | 328186 | 1535.21 | 785 | 767 | 213.3 |
| D | 10 | 70 | 50322 | 232.35 | 785 | 767 | 213.3 |
| D | 2 | 234 | 30052 | 137.31 | 785 | 767 | 213.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

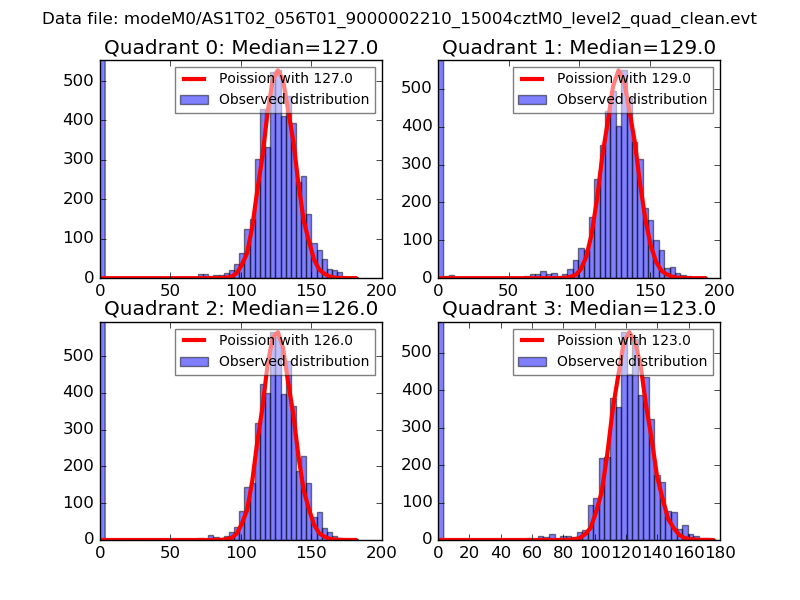

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

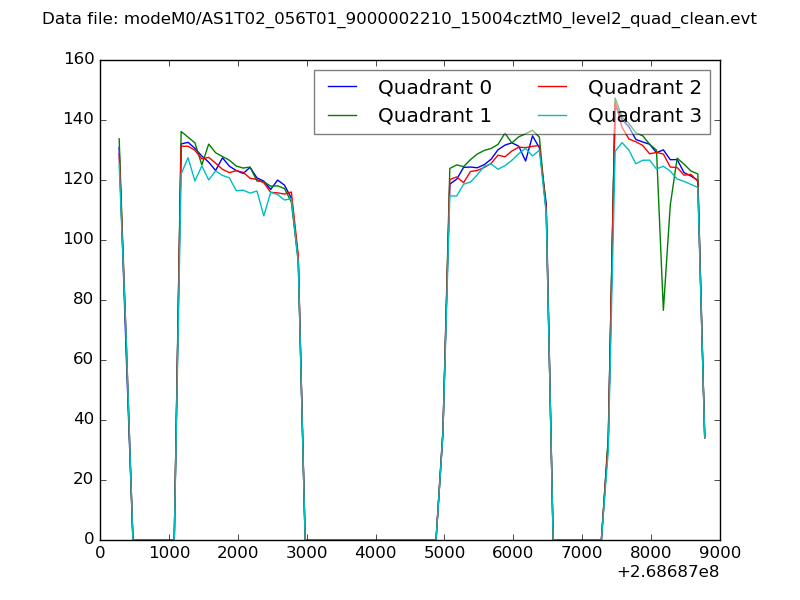

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

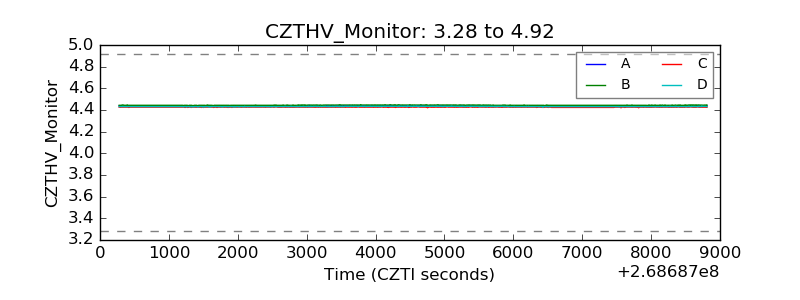

| CZT HV Monitor |  |
| D_VDD |  |

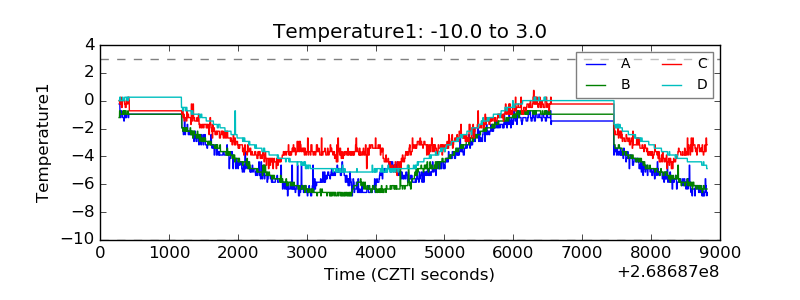

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

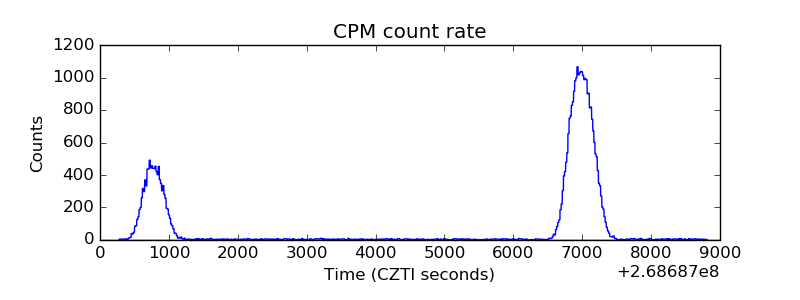

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
