| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_15009cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_15009cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,025,600 | 63,345,600 |
| Size | 416.8 MB | 60.4 MB |
| Events in quadrant A | 3,335,911 | 381,454 |
| Events in quadrant B | 3,388,031 | 388,257 |
| Events in quadrant C | 3,056,637 | 375,425 |
| Events in quadrant D | 3,055,680 | 362,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13565 | 2 |
| B | 0 | 13502 | 1 |
| C | 0 | 12400 | 1 |
| D | 0 | 12703 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5873 | 89 | 1.515410% |
| B | 5873 | 142 | 2.417844% |
| C | 5873 | 42 | 0.715137% |
| D | 5873 | 52 | 0.885408% |

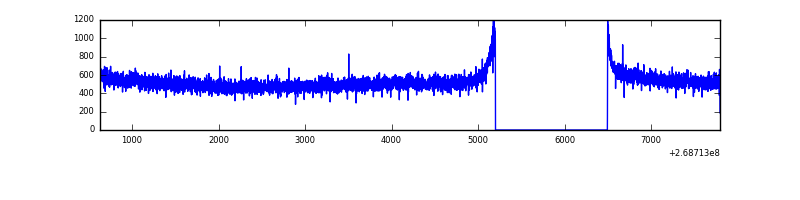

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7169 | 5875 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7169 | 5874 | 42 | 42 | 0.59% | 0.72% |  |
| C | 7169 | 5875 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7169 | 5875 | 10 | 10 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 110691 | 693.6 | 780 | 766 | 158.5 |
| A | 12 | 189 | 73083 | 456.3 | 780 | 766 | 158.5 |
| A | 1 | 178 | 54528 | 339.23 | 780 | 766 | 158.5 |
| B | 3 | 64 | 200348 | 1367.07 | 777 | 759 | 146.0 |
| B | 10 | 245 | 97553 | 662.98 | 777 | 759 | 146.0 |
| B | 0 | 219 | 29386 | 196.08 | 777 | 759 | 146.0 |
| C | 3 | 233 | 161498 | 945.32 | 743 | 750 | 170.0 |
| C | 13 | 61 | 5360 | 27.11 | 743 | 750 | 170.0 |
| C | 3 | 202 | 1697 | 5.57 | 743 | 750 | 170.0 |
| D | 13 | 104 | 122024 | 620.45 | 738 | 726 | 195.5 |
| D | 13 | 249 | 35678 | 178.78 | 738 | 726 | 195.5 |
| D | 2 | 120 | 26371 | 131.18 | 738 | 726 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

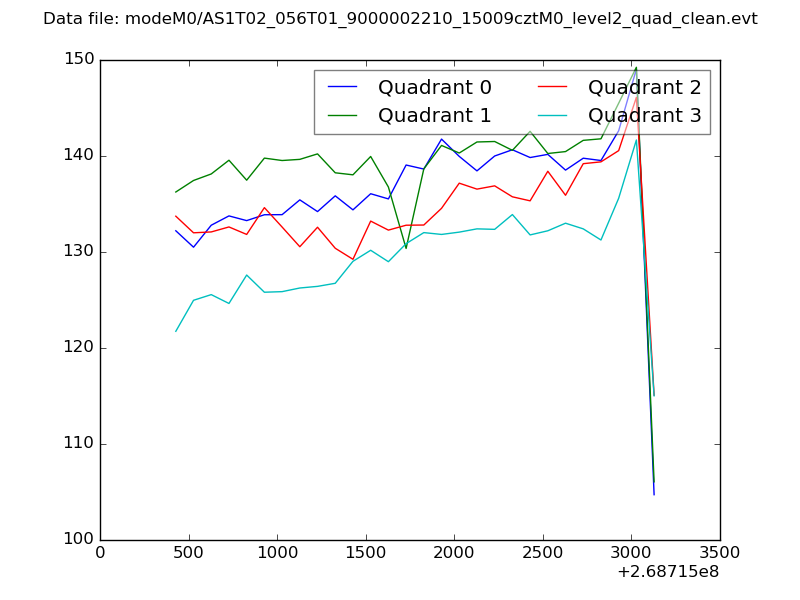

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

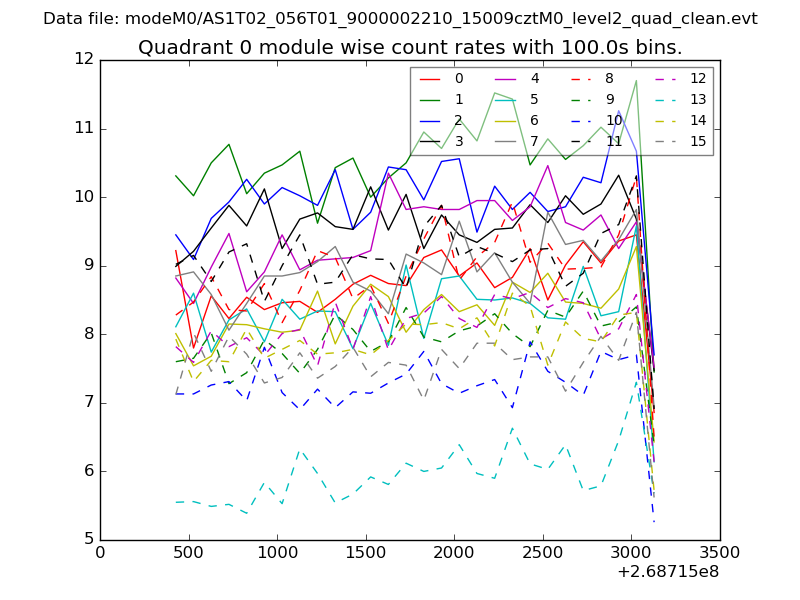

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

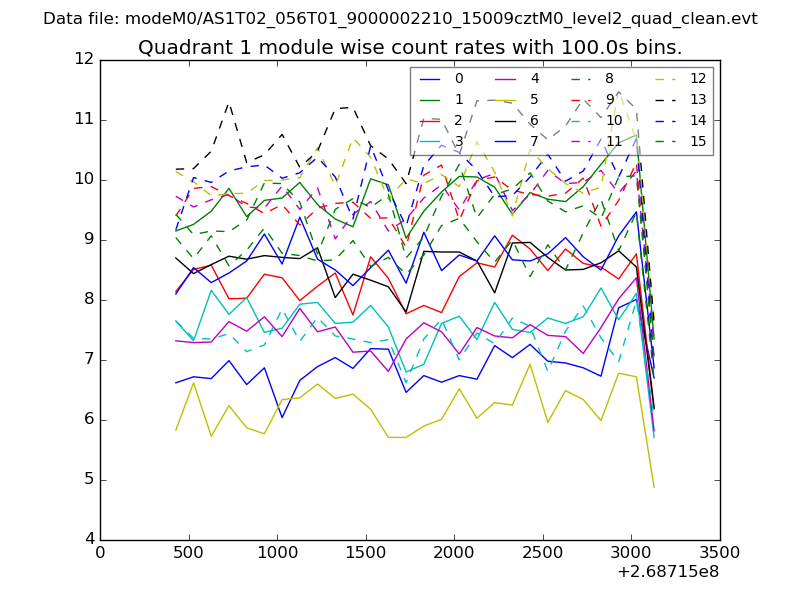

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

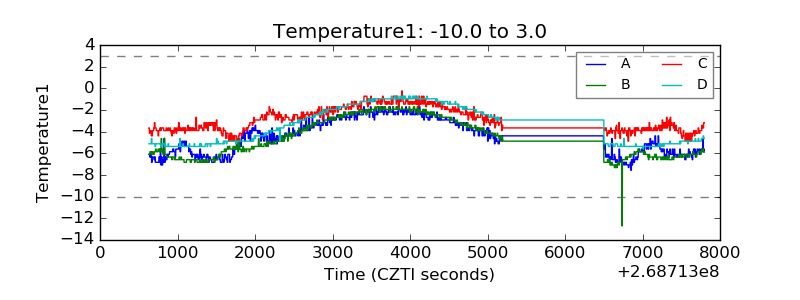

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

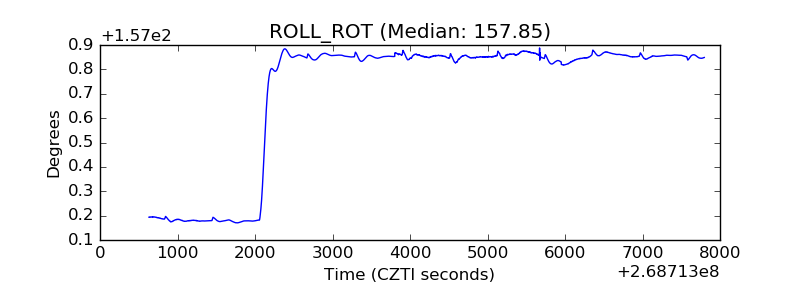

| _ROLL_ROT |  |

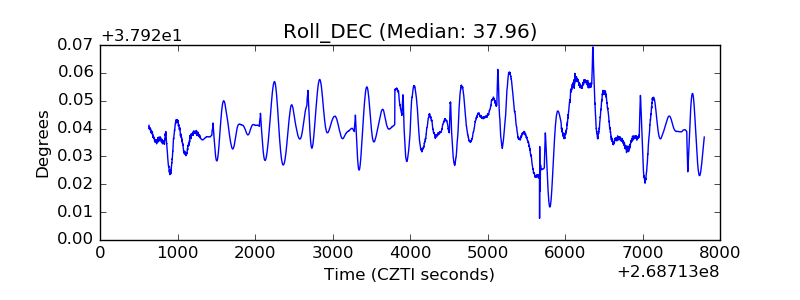

| _Roll_DEC |  |

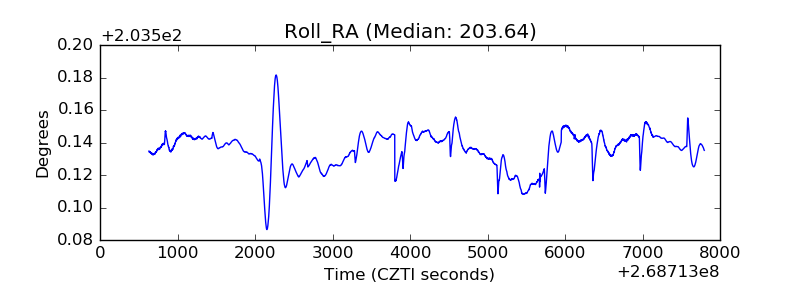

| _Roll_RA |  |
| Veto Counter |  |
