| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_056T01_9000002210_15010cztM0_level2.evt | modeM0/AS1T02_056T01_9000002210_15010cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,912,320 | 71,735,040 |
| Size | 448.1 MB | 68.4 MB |
| Events in quadrant A | 3,666,412 | 441,987 |
| Events in quadrant B | 3,509,308 | 447,685 |
| Events in quadrant C | 3,250,465 | 430,679 |
| Events in quadrant D | 3,383,558 | 418,239 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14880 | 3 |
| B | 0 | 14063 | 2 |
| C | 0 | 13192 | 2 |
| D | 0 | 13911 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6211 | 119 | 1.915956% |
| B | 6211 | 156 | 2.511673% |
| C | 6211 | 55 | 0.885526% |
| D | 6211 | 158 | 2.543874% |

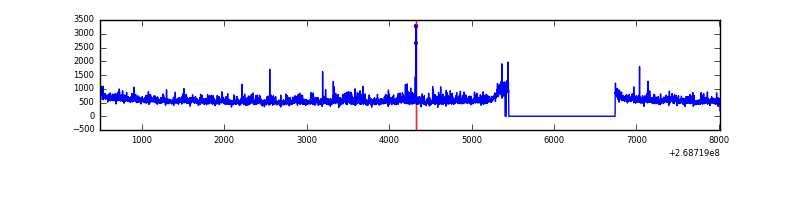

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7517 | 6212 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7517 | 6212 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7517 | 6214 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7517 | 6214 | 95 | 95 | 1.26% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 135709 | 803.18 | 839 | 823 | 167.9 |
| A | 12 | 189 | 108731 | 642.54 | 839 | 823 | 167.9 |
| A | 1 | 178 | 69811 | 410.79 | 839 | 823 | 167.9 |
| B | 3 | 64 | 74339 | 469.6 | 837 | 820 | 156.6 |
| B | 10 | 245 | 65397 | 412.48 | 837 | 820 | 156.6 |
| B | 0 | 229 | 58049 | 365.55 | 837 | 820 | 156.6 |
| C | 3 | 233 | 129613 | 704.62 | 799 | 805 | 182.8 |
| C | 13 | 61 | 5898 | 27.86 | 799 | 805 | 182.8 |
| C | 10 | 22 | 3103 | 12.57 | 799 | 805 | 182.8 |
| D | 15 | 0 | 257454 | 1243.31 | 791 | 776 | 206.4 |
| D | 13 | 249 | 48473 | 231.04 | 791 | 776 | 206.4 |
| D | 13 | 104 | 24262 | 113.76 | 791 | 776 | 206.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

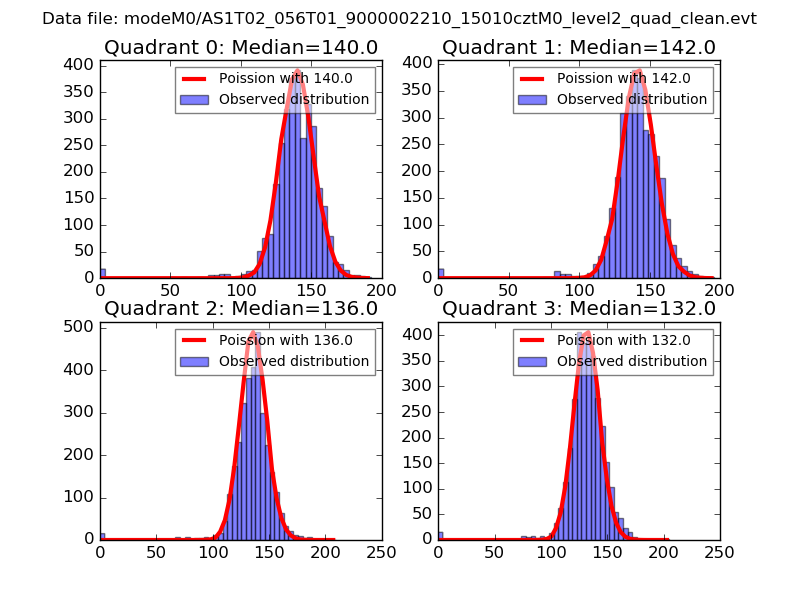

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

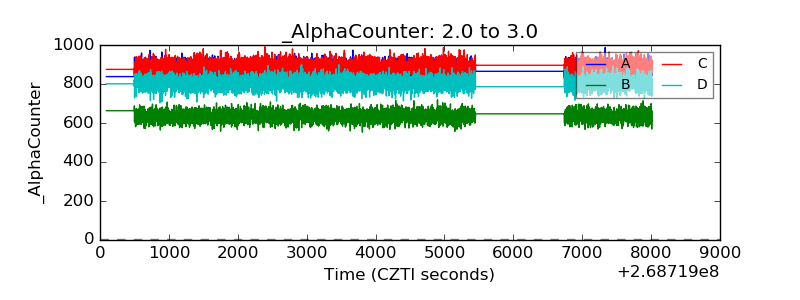

| Alpha Counter |  |

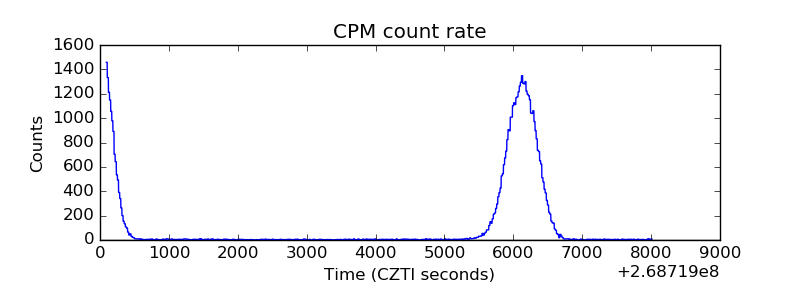

| _CPM_Rate |  |

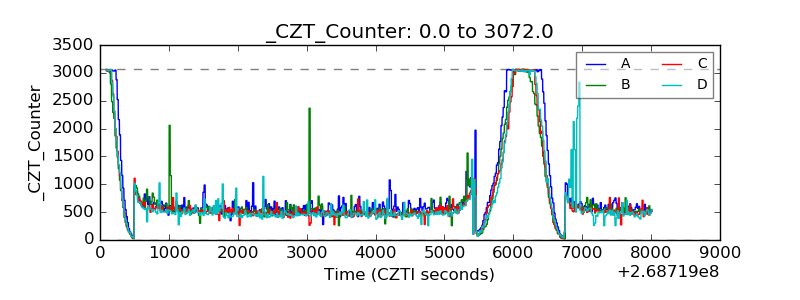

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

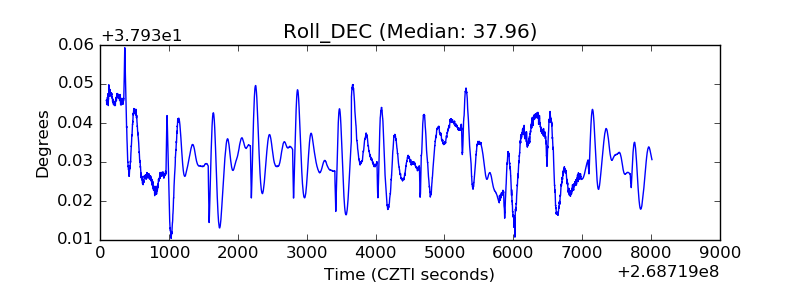

| _Roll_DEC |  |
| _Roll_RA |  |

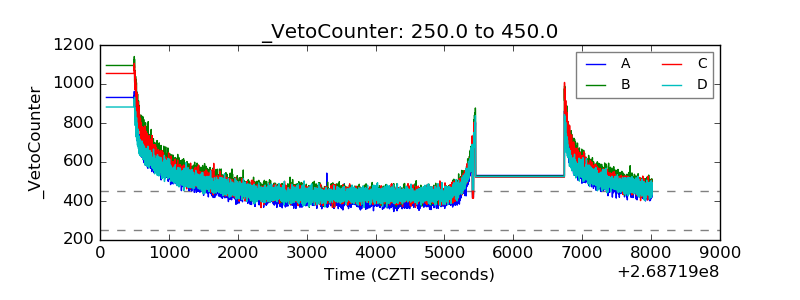

| Veto Counter |  |
