| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15015cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15015cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,469,760 | 97,133,760 |
| Size | 527.8 MB | 92.6 MB |
| Events in quadrant A | 4,585,841 | 606,460 |
| Events in quadrant B | 4,285,055 | 612,119 |
| Events in quadrant C | 3,742,429 | 601,433 |
| Events in quadrant D | 3,624,653 | 584,443 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18793 | 3 |
| B | 0 | 17685 | 2 |
| C | 0 | 16000 | 2 |
| D | 0 | 16340 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7717 | 379 | 4.911235% |
| B | 7717 | 436 | 5.649864% |
| C | 7717 | 216 | 2.799015% |
| D | 7717 | 246 | 3.187767% |

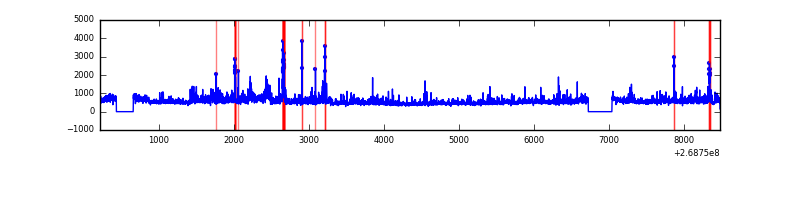

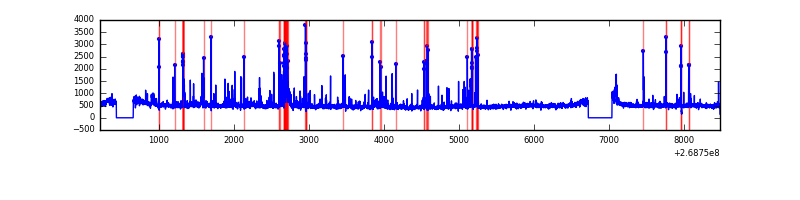

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8258 | 7719 | 41 | 41 | 0.50% | 0.53% |  |
| B | 8258 | 7718 | 77 | 77 | 0.93% | 1.00% |  |
| C | 8258 | 7720 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8258 | 7720 | 31 | 31 | 0.38% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 228529 | 1213.16 | 929 | 908 | 187.6 |
| A | 15 | 239 | 223873 | 1188.35 | 929 | 908 | 187.6 |
| A | 1 | 178 | 118622 | 627.39 | 929 | 908 | 187.6 |
| B | 3 | 64 | 290318 | 1633.58 | 924 | 900 | 177.2 |
| B | 0 | 229 | 189986 | 1067.27 | 924 | 900 | 177.2 |
| B | 0 | 245 | 83507 | 466.26 | 924 | 900 | 177.2 |
| C | 3 | 233 | 236894 | 1135.5 | 898 | 898 | 207.8 |
| C | 13 | 61 | 6545 | 27.17 | 898 | 898 | 207.8 |
| C | 8 | 222 | 4142 | 15.61 | 898 | 898 | 207.8 |
| D | 13 | 172 | 86876 | 395.4 | 901 | 872 | 217.5 |
| D | 7 | 38 | 46731 | 210.84 | 901 | 872 | 217.5 |
| D | 2 | 234 | 29887 | 133.4 | 901 | 872 | 217.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

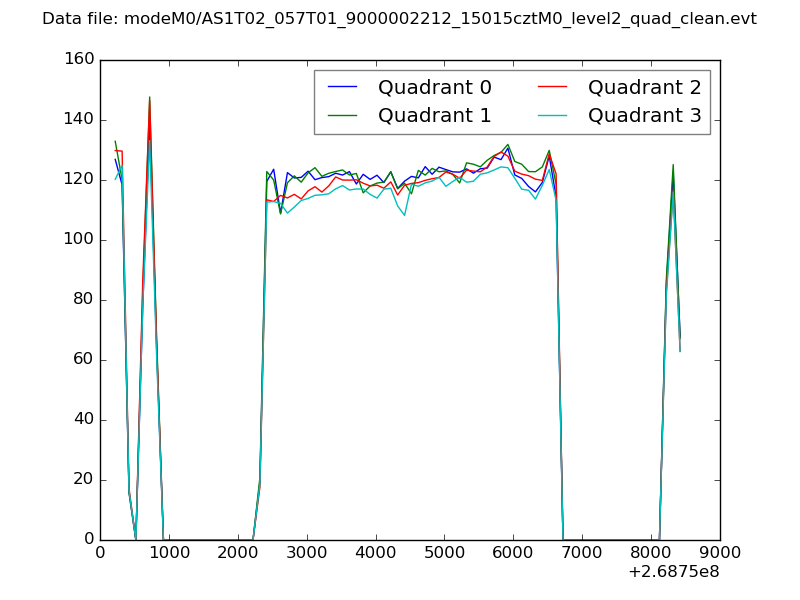

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

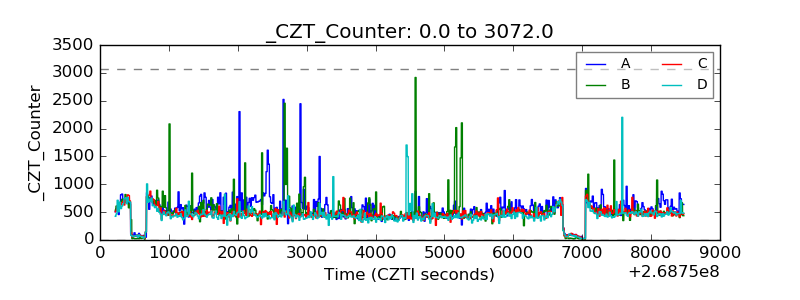

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

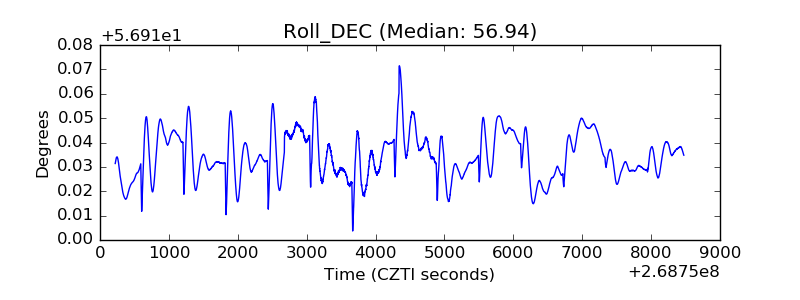

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

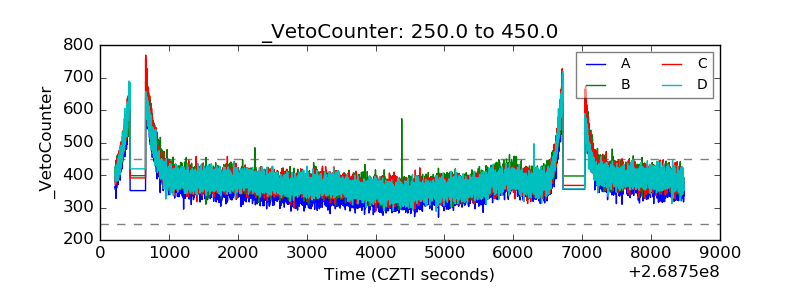

| Veto Counter |  |
