| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15019cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15019cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,589,760 | 106,505,280 |
| Size | 447.8 MB | 101.6 MB |
| Events in quadrant A | 3,709,291 | 689,786 |
| Events in quadrant B | 3,625,545 | 703,118 |
| Events in quadrant C | 3,230,615 | 690,774 |
| Events in quadrant D | 3,192,599 | 666,515 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15703 | 3 |
| B | 0 | 15333 | 2 |
| C | 0 | 14188 | 2 |
| D | 0 | 14522 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6824 | 59 | 0.864596% |
| B | 6824 | 154 | 2.256741% |
| C | 6824 | 54 | 0.791325% |
| D | 6824 | 86 | 1.260258% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8650 | 6827 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8650 | 6826 | 71 | 71 | 0.82% | 1.04% |  |
| C | 8650 | 6827 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8650 | 6827 | 17 | 17 | 0.20% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 192380 | 1175.46 | 807 | 789 | 163.0 |
| A | 12 | 189 | 134291 | 819.07 | 807 | 789 | 163.0 |
| A | 1 | 178 | 102055 | 621.29 | 807 | 789 | 163.0 |
| B | 3 | 64 | 278557 | 1827.81 | 808 | 789 | 152.0 |
| B | 0 | 229 | 89218 | 581.89 | 808 | 789 | 152.0 |
| B | 4 | 173 | 59876 | 388.81 | 808 | 789 | 152.0 |
| C | 3 | 233 | 121667 | 660.31 | 792 | 794 | 183.1 |
| C | 0 | 207 | 13323 | 68.44 | 792 | 794 | 183.1 |
| C | 13 | 61 | 5632 | 26.43 | 792 | 794 | 183.1 |
| D | 15 | 0 | 86665 | 449.53 | 786 | 762 | 191.1 |
| D | 12 | 222 | 34208 | 175.02 | 786 | 762 | 191.1 |
| D | 2 | 120 | 25126 | 127.5 | 786 | 762 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

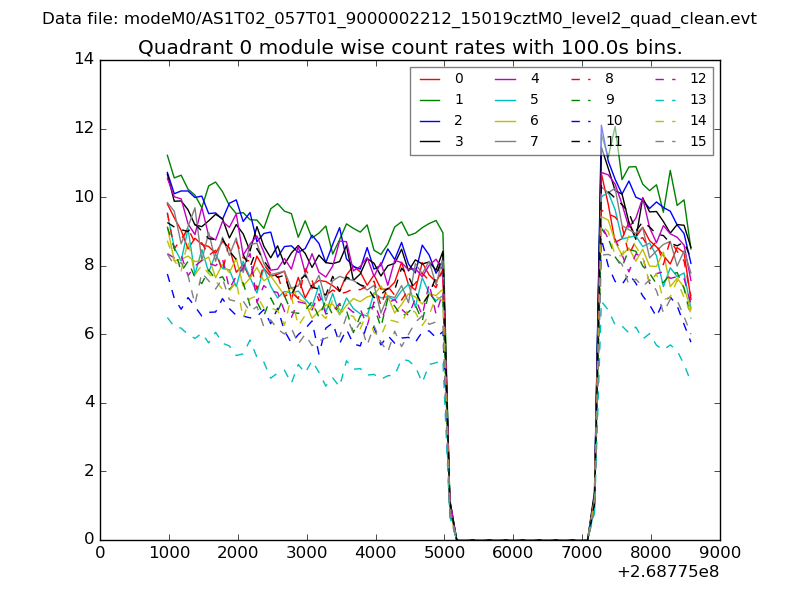

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

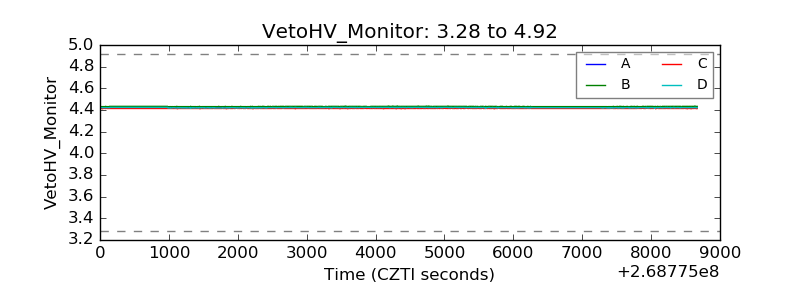

| Veto HV Monitor |  |
| Veto LLD |  |

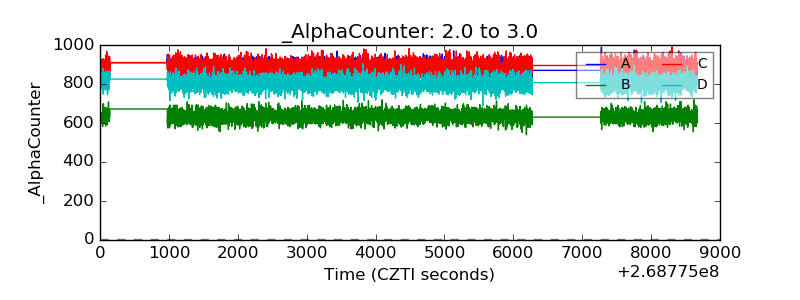

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

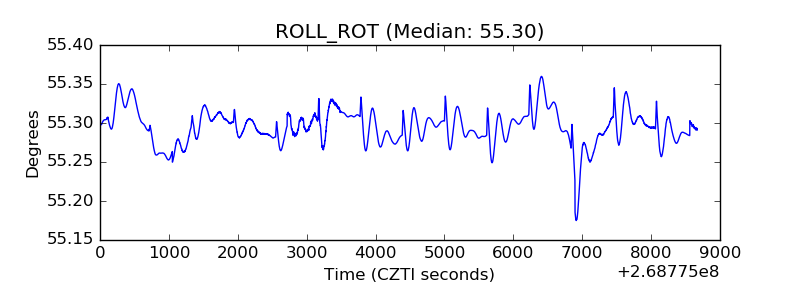

| _ROLL_ROT |  |
