| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15022cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15022cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,789,440 | 99,872,640 |
| Size | 502.4 MB | 95.2 MB |
| Events in quadrant A | 3,550,414 | 653,774 |
| Events in quadrant B | 3,620,304 | 666,923 |
| Events in quadrant C | 4,247,778 | 647,884 |
| Events in quadrant D | 4,101,190 | 609,170 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14803 | 3 |
| B | 0 | 15014 | 2 |
| C | 0 | 16921 | 2 |
| D | 0 | 16791 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 49 | 0.765147% |
| B | 6404 | 164 | 2.560899% |
| C | 6404 | 221 | 3.450968% |
| D | 6404 | 284 | 4.434728% |

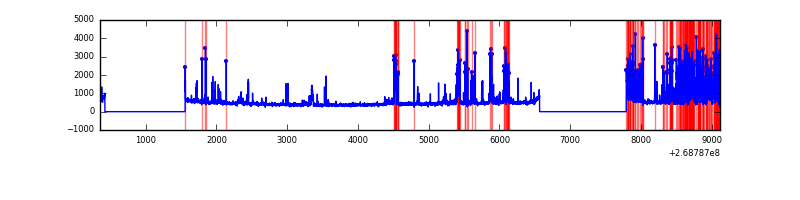

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8765 | 6407 | 3 | 3 | 0.03% | 0.05% |  |
| B | 8765 | 6406 | 85 | 85 | 0.97% | 1.33% |  |
| C | 8765 | 6406 | 149 | 149 | 1.70% | 2.33% |  |
| D | 8765 | 6407 | 243 | 243 | 2.77% | 3.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 213923 | 1378.01 | 773 | 757 | 154.7 |
| A | 1 | 178 | 116217 | 746.39 | 773 | 757 | 154.7 |
| A | 1 | 161 | 100217 | 642.96 | 773 | 757 | 154.7 |
| B | 3 | 64 | 418738 | 2891.88 | 774 | 755 | 144.5 |
| B | 0 | 229 | 133052 | 915.32 | 774 | 755 | 144.5 |
| B | 3 | 209 | 33298 | 225.15 | 774 | 755 | 144.5 |
| C | 9 | 236 | 1202149 | 7004.87 | 748 | 753 | 171.5 |
| C | 3 | 233 | 103992 | 601.95 | 748 | 753 | 171.5 |
| C | 0 | 207 | 24453 | 138.19 | 748 | 753 | 171.5 |
| D | 2 | 136 | 808009 | 4572.24 | 734 | 712 | 176.6 |
| D | 2 | 33 | 323025 | 1825.47 | 734 | 712 | 176.6 |
| D | 7 | 223 | 110367 | 621.05 | 734 | 712 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

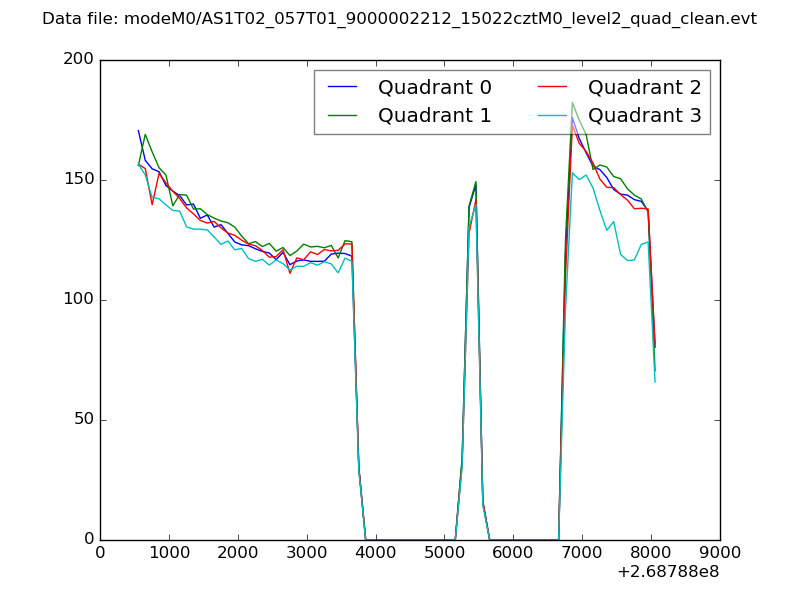

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

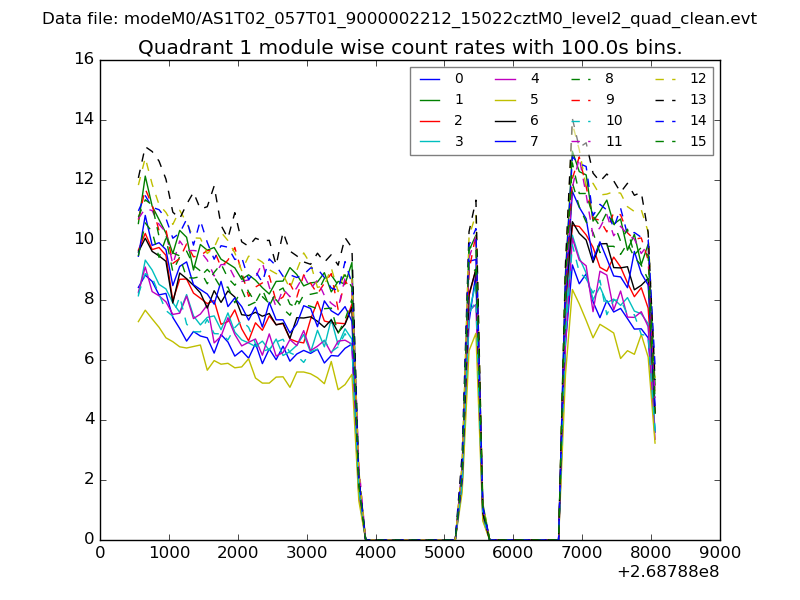

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

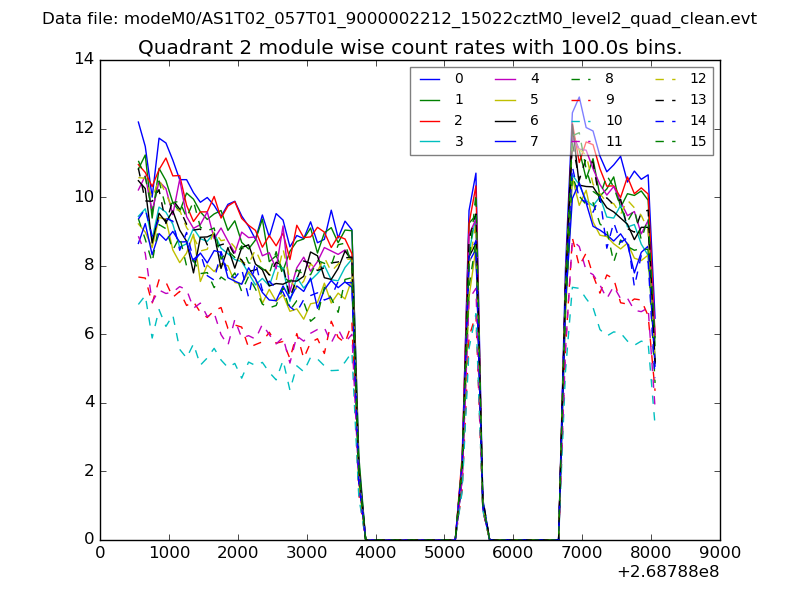

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

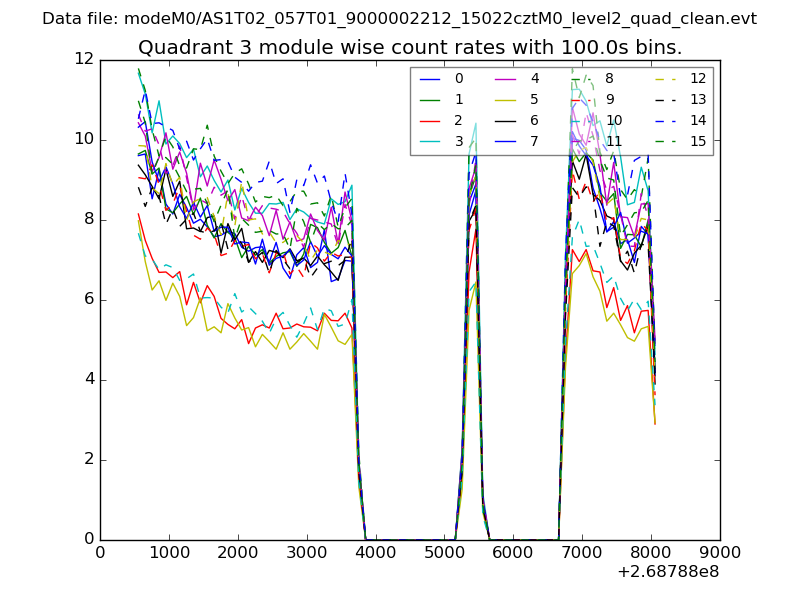

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

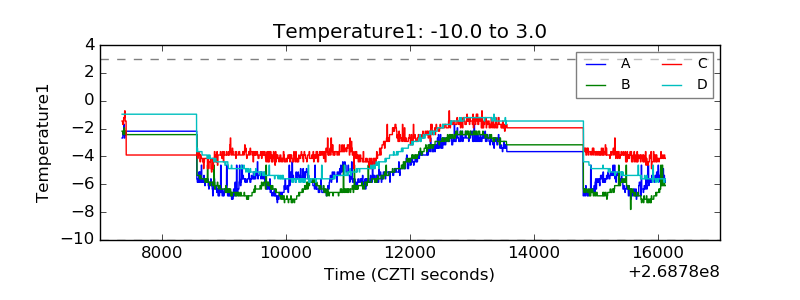

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

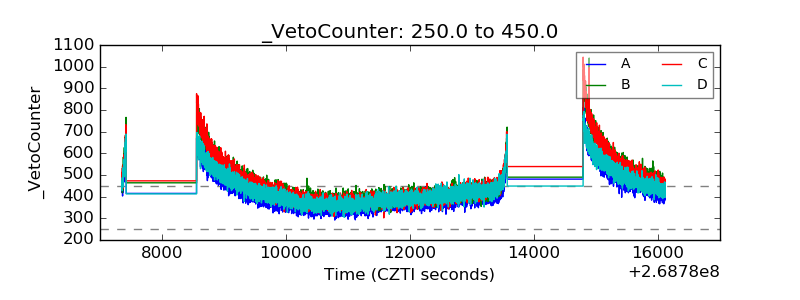

| Veto Counter |  |
