| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15028cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15028cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,394,240 | 89,749,440 |
| Size | 477.2 MB | 85.6 MB |
| Events in quadrant A | 3,717,727 | 559,060 |
| Events in quadrant B | 4,182,517 | 565,330 |
| Events in quadrant C | 3,457,357 | 554,194 |
| Events in quadrant D | 3,305,757 | 535,890 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15723 | 2 |
| B | 0 | 17105 | 1 |
| C | 0 | 14876 | 1 |
| D | 0 | 15041 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7228 | 176 | 2.434975% |
| B | 7228 | 311 | 4.302712% |
| C | 7228 | 136 | 1.881572% |
| D | 7228 | 118 | 1.632540% |

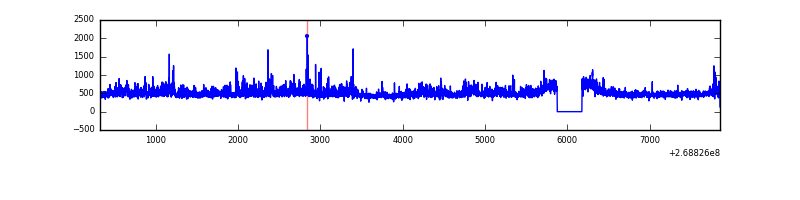

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7532 | 7232 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7532 | 7232 | 97 | 97 | 1.29% | 1.34% |  |
| C | 7532 | 7232 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7532 | 7232 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 127877 | 741.92 | 850 | 832 | 171.2 |
| A | 12 | 189 | 100129 | 579.88 | 850 | 832 | 171.2 |
| A | 1 | 178 | 69187 | 399.18 | 850 | 832 | 171.2 |
| B | 10 | 16 | 698872 | 4329.18 | 845 | 823 | 161.2 |
| B | 3 | 209 | 65062 | 398.4 | 845 | 823 | 161.2 |
| B | 0 | 229 | 55673 | 340.17 | 845 | 823 | 161.2 |
| C | 3 | 233 | 265295 | 1394.11 | 817 | 819 | 189.7 |
| C | 13 | 61 | 5875 | 26.65 | 817 | 819 | 189.7 |
| C | 14 | 234 | 4184 | 17.74 | 817 | 819 | 189.7 |
| D | 2 | 136 | 66121 | 329.31 | 820 | 794 | 198.4 |
| D | 13 | 249 | 28998 | 142.17 | 820 | 794 | 198.4 |
| D | 2 | 234 | 27166 | 132.94 | 820 | 794 | 198.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

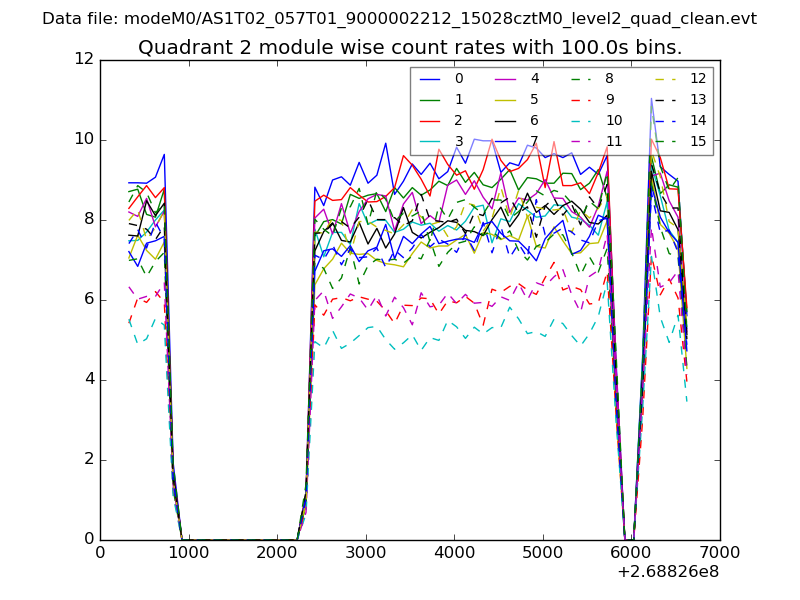

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

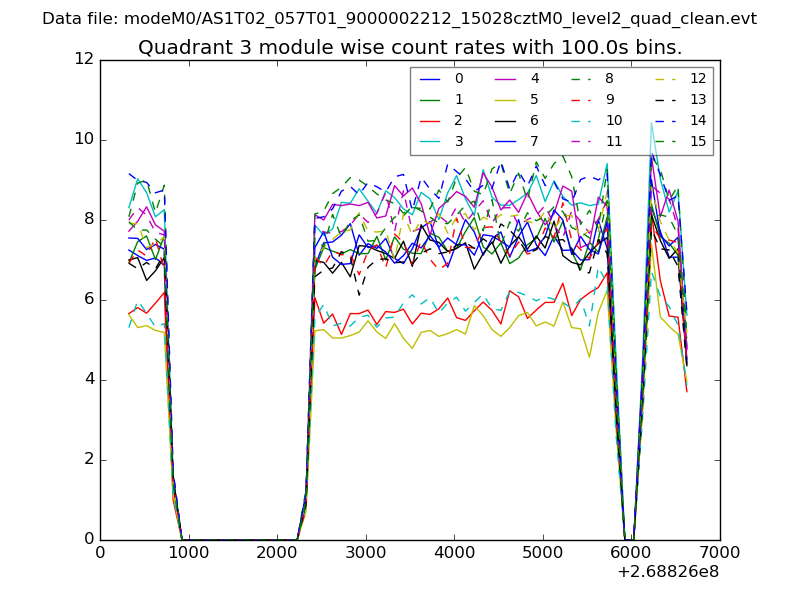

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

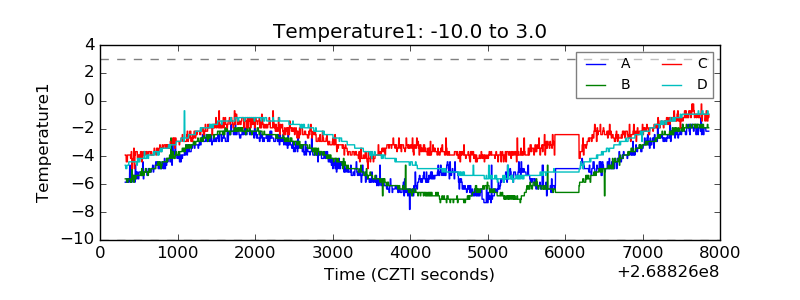

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

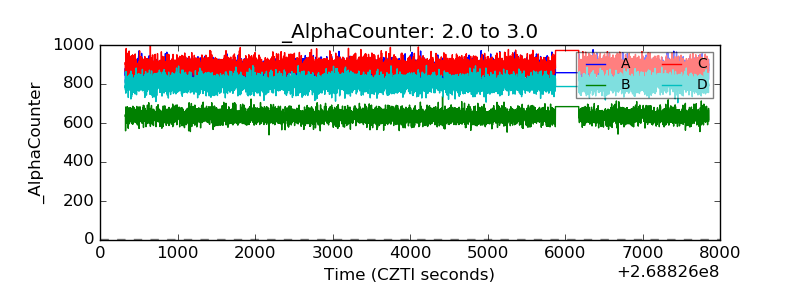

| Alpha Counter |  |

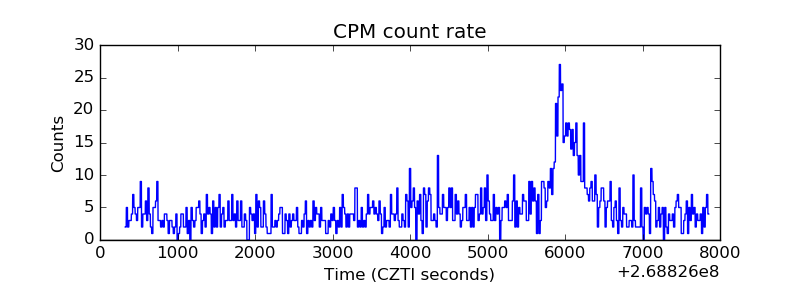

| _CPM_Rate |  |

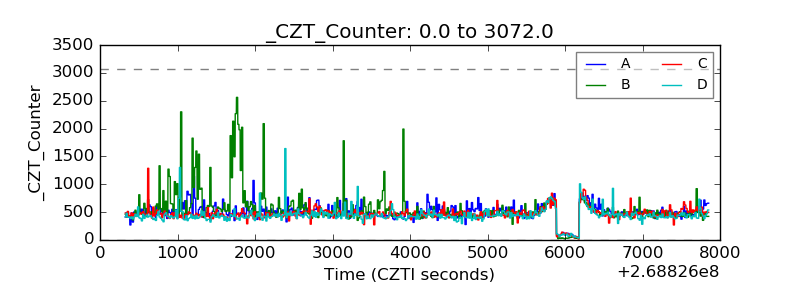

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

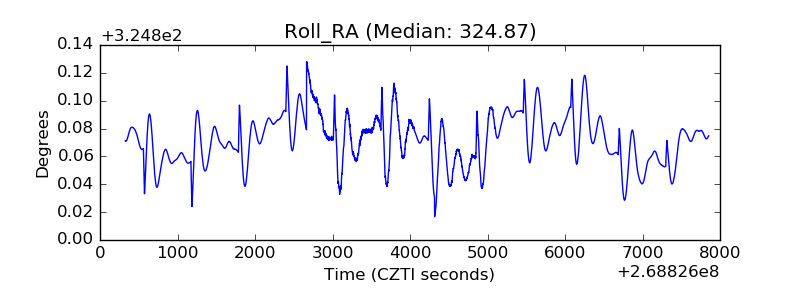

| _Roll_RA |  |
| Veto Counter |  |
