| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15029cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15029cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,471,360 | 88,908,480 |
| Size | 495.4 MB | 84.8 MB |
| Events in quadrant A | 3,921,255 | 546,724 |
| Events in quadrant B | 3,697,011 | 553,295 |
| Events in quadrant C | 3,931,823 | 538,053 |
| Events in quadrant D | 3,665,398 | 525,021 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16551 | 2 |
| B | 0 | 15942 | 1 |
| C | 0 | 16100 | 1 |
| D | 0 | 16377 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7606 | 192 | 2.524323% |
| B | 7606 | 157 | 2.064160% |
| C | 7606 | 137 | 1.801210% |
| D | 7606 | 132 | 1.735472% |

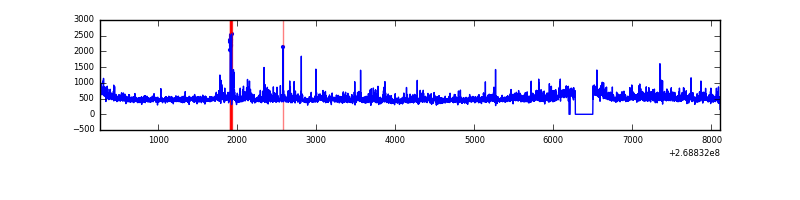

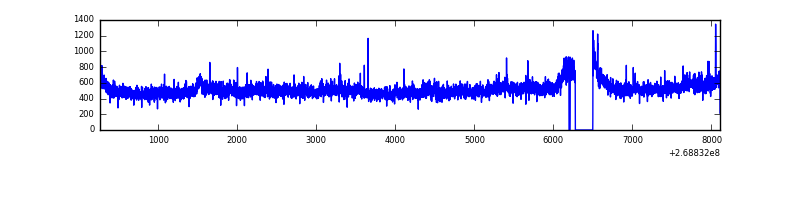

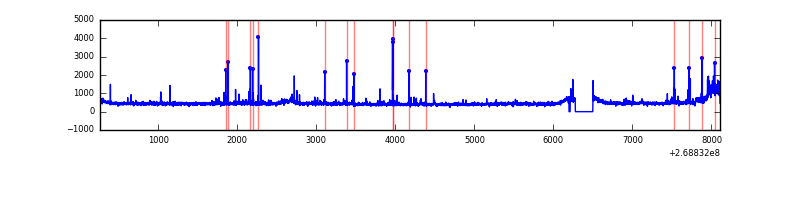

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7847 | 7611 | 15 | 15 | 0.19% | 0.20% |  |
| B | 7847 | 7610 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7847 | 7610 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7847 | 7611 | 16 | 16 | 0.20% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 134523 | 728.43 | 900 | 878 | 183.5 |
| A | 12 | 189 | 71557 | 385.23 | 900 | 878 | 183.5 |
| A | 1 | 178 | 68472 | 368.42 | 900 | 878 | 183.5 |
| B | 0 | 229 | 36651 | 206.18 | 899 | 874 | 173.5 |
| B | 4 | 173 | 33440 | 187.68 | 899 | 874 | 173.5 |
| B | 10 | 245 | 30595 | 171.28 | 899 | 874 | 173.5 |
| C | 3 | 233 | 544923 | 2737.17 | 863 | 864 | 198.8 |
| C | 3 | 232 | 9967 | 45.8 | 863 | 864 | 198.8 |
| C | 3 | 234 | 7932 | 35.56 | 863 | 864 | 198.8 |
| D | 12 | 235 | 187806 | 890.18 | 868 | 842 | 210.0 |
| D | 2 | 120 | 51039 | 239.0 | 868 | 842 | 210.0 |
| D | 2 | 136 | 38683 | 180.17 | 868 | 842 | 210.0 |

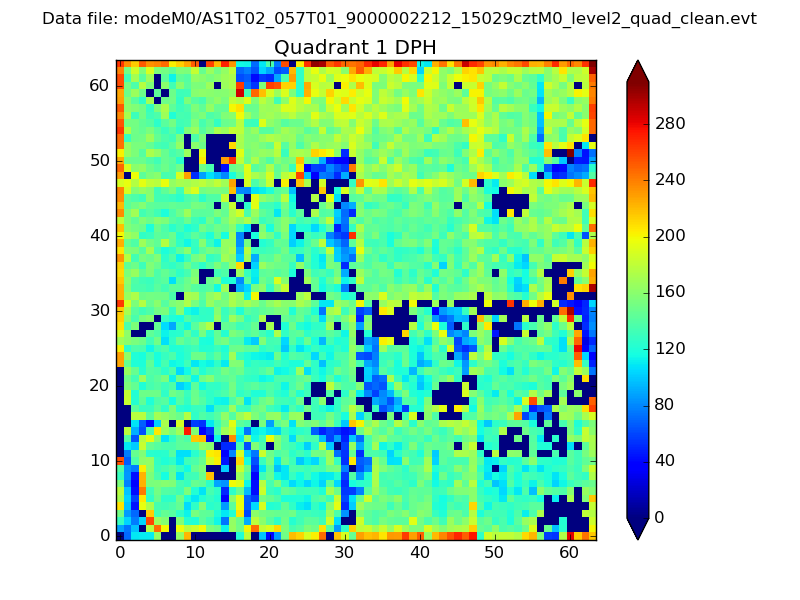

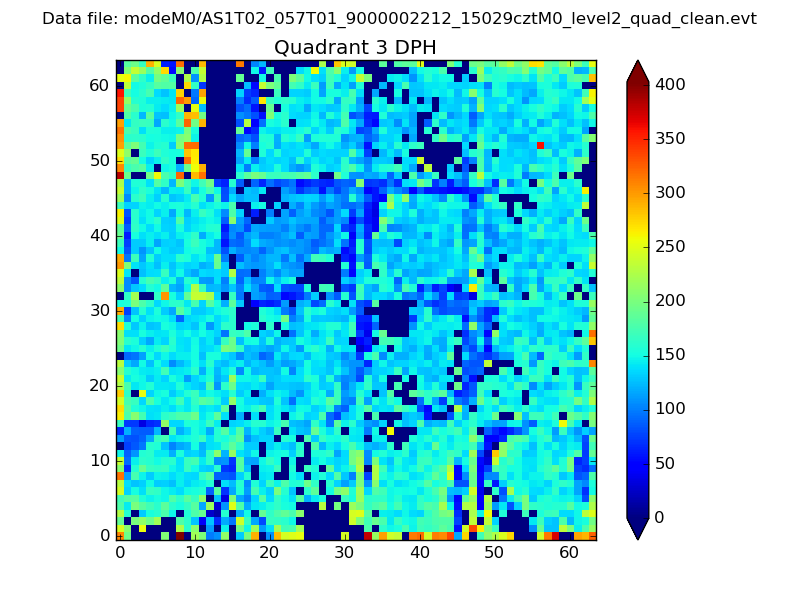

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

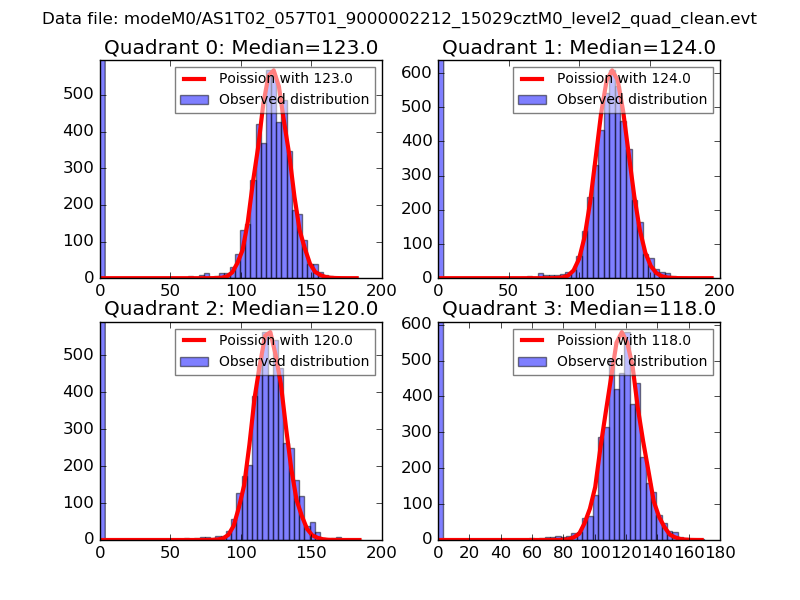

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

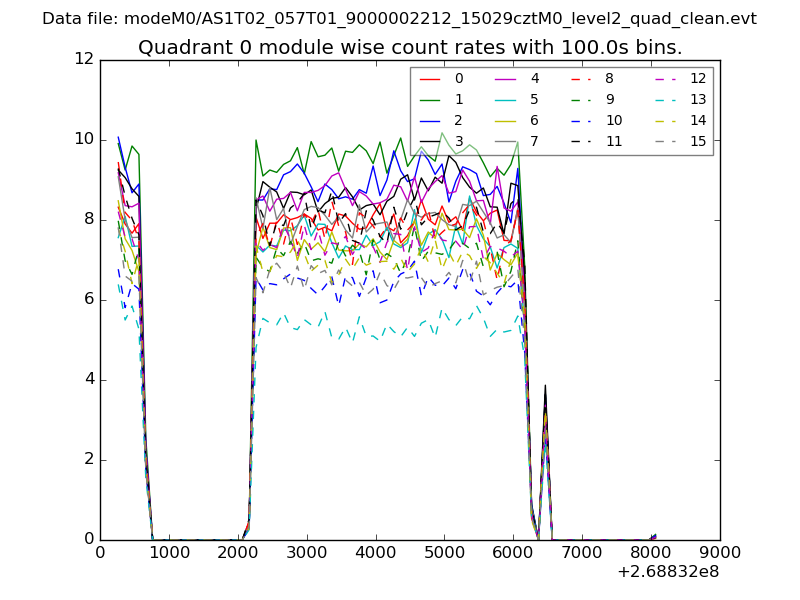

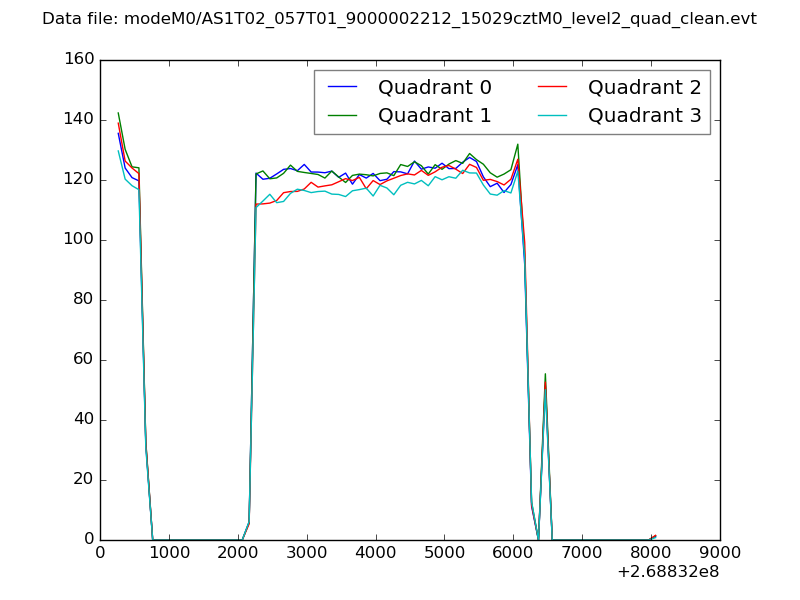

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

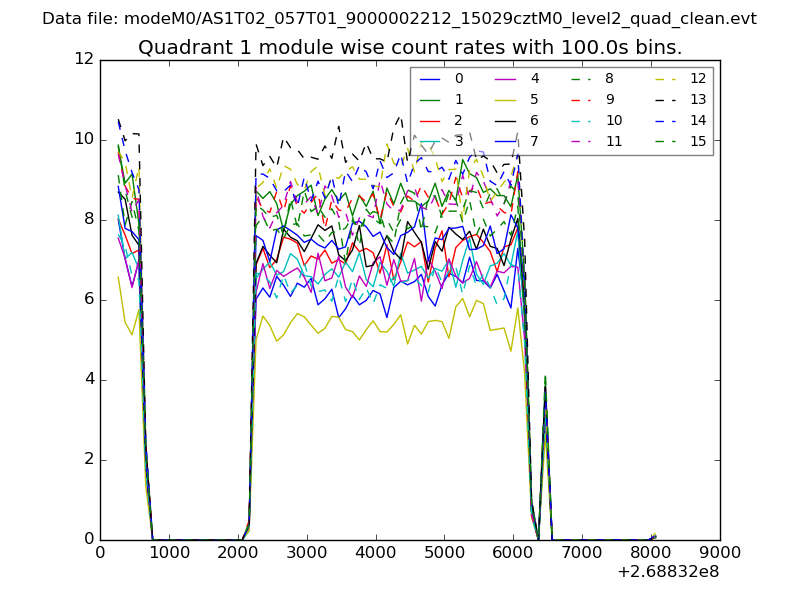

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

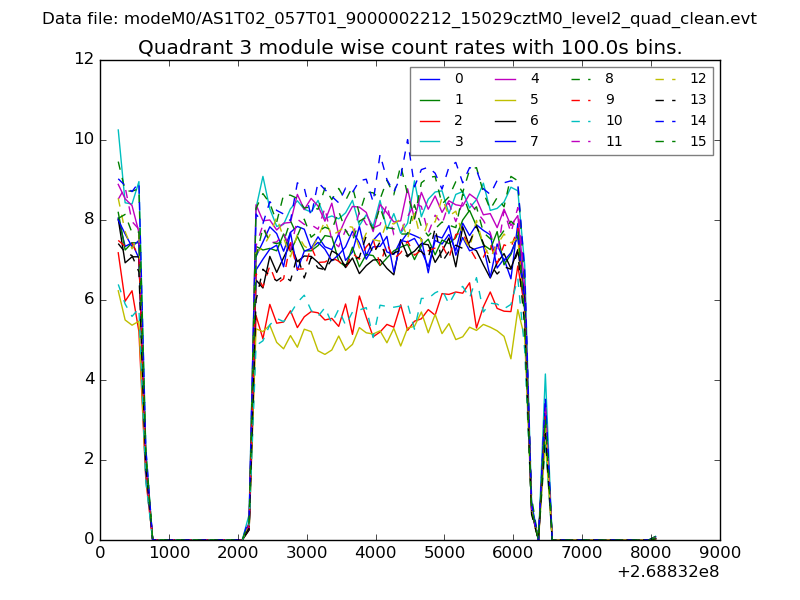

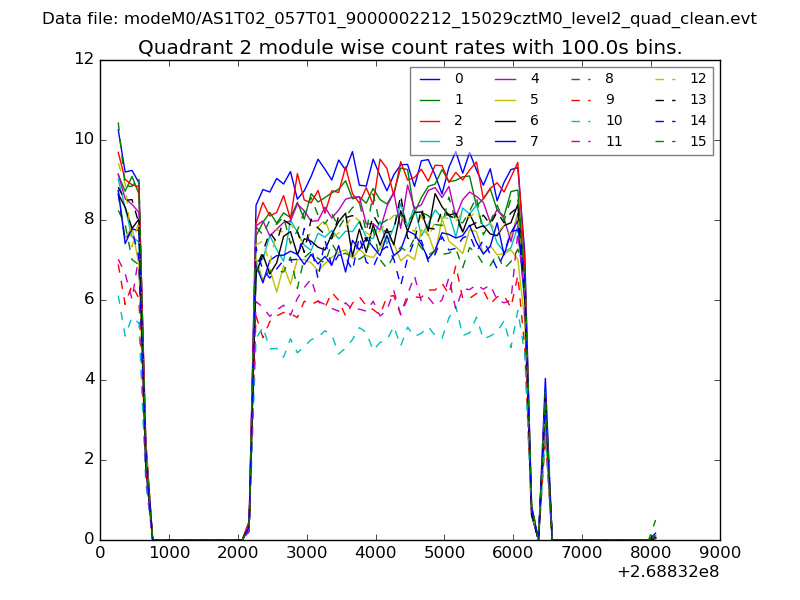

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

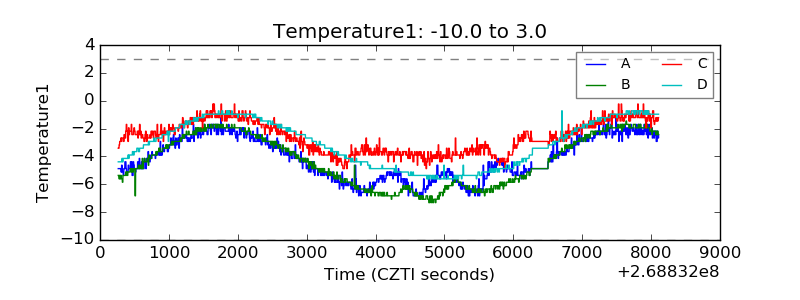

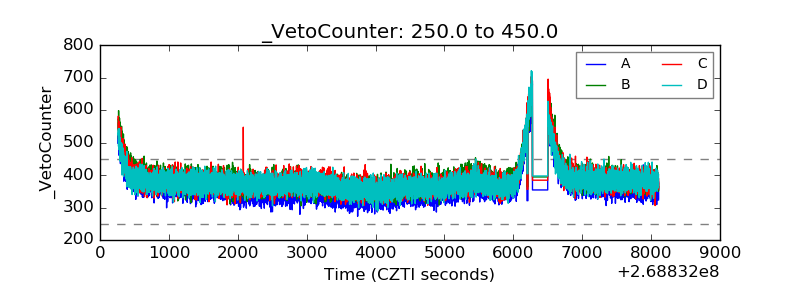

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

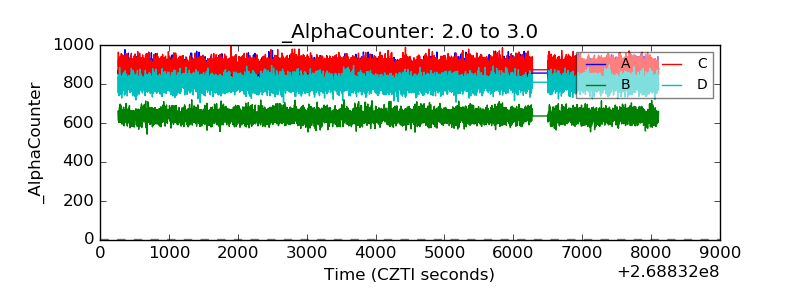

| Alpha Counter |  |

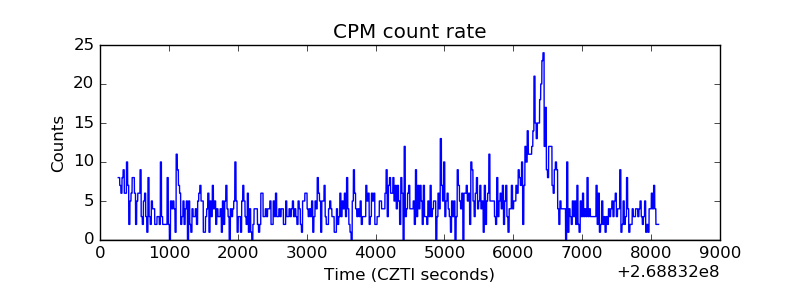

| _CPM_Rate |  |

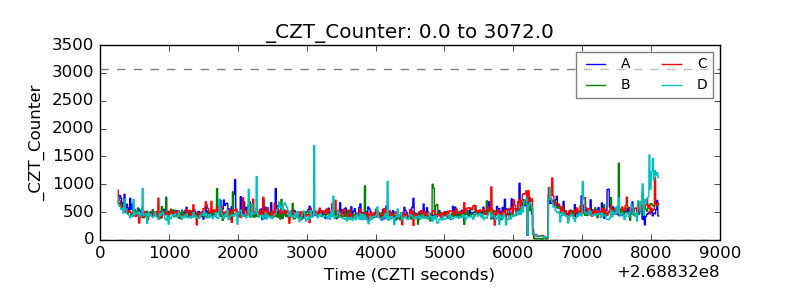

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

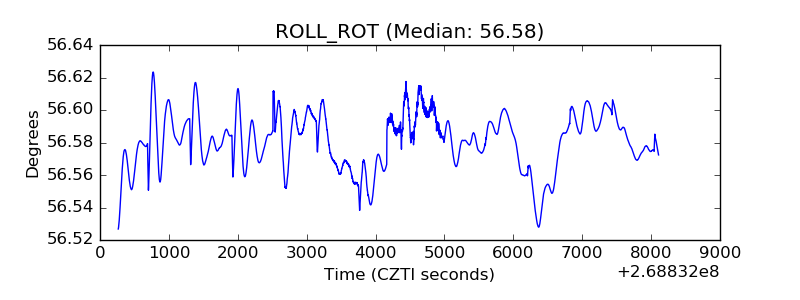

| _ROLL_ROT |  |

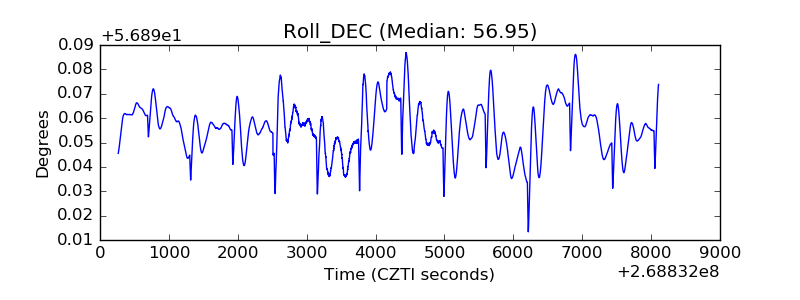

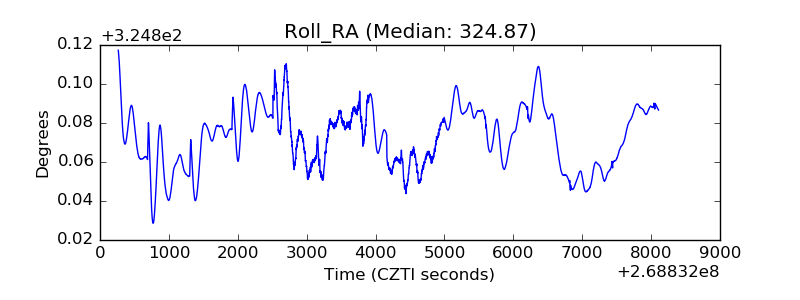

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
