| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_057T01_9000002212_15030cztM0_level2.evt | modeM0/AS1T02_057T01_9000002212_15030cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,841,280 | 41,765,760 |
| Size | 270.7 MB | 39.8 MB |
| Events in quadrant A | 1,893,018 | 258,577 |
| Events in quadrant B | 2,436,337 | 249,562 |
| Events in quadrant C | 2,034,382 | 249,204 |
| Events in quadrant D | 1,978,763 | 244,199 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8110 | 1 |
| B | 0 | 9711 | 1 |
| C | 0 | 8323 | 1 |
| D | 0 | 8431 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3720 | 123 | 3.306452% |
| B | 3720 | 242 | 6.505376% |
| C | 3720 | 98 | 2.634409% |
| D | 3720 | 108 | 2.903226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

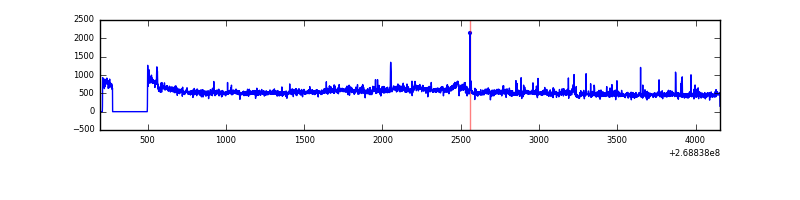

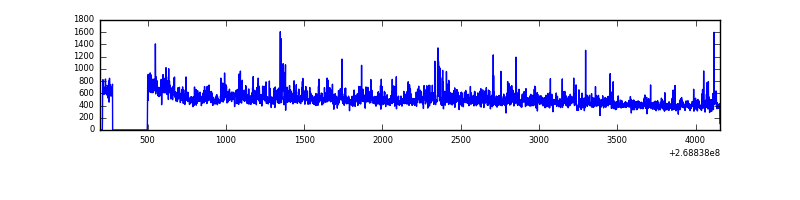

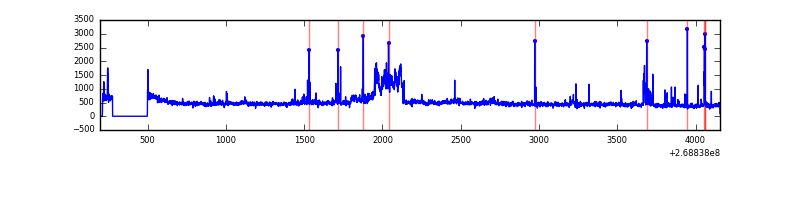

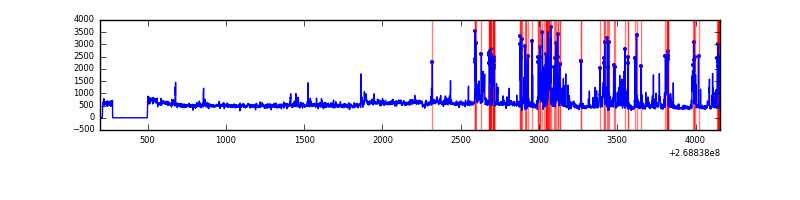

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3961 | 3725 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3961 | 3724 | 99 | 99 | 2.50% | 2.66% |  |
| C | 3961 | 3724 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3961 | 3725 | 10 | 10 | 0.25% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 80191 | 884.88 | 437 | 425 | 90.1 |
| A | 1 | 178 | 42367 | 465.28 | 437 | 425 | 90.1 |
| A | 1 | 161 | 36892 | 404.54 | 437 | 425 | 90.1 |
| B | 3 | 64 | 537716 | 6425.36 | 429 | 417 | 83.6 |
| B | 10 | 245 | 141192 | 1683.48 | 429 | 417 | 83.6 |
| B | 3 | 209 | 24856 | 292.26 | 429 | 417 | 83.6 |
| C | 3 | 233 | 376607 | 3836.01 | 421 | 421 | 98.1 |
| C | 3 | 232 | 6145 | 58.37 | 421 | 421 | 98.1 |
| C | 3 | 234 | 5263 | 49.37 | 421 | 421 | 98.1 |
| D | 12 | 235 | 237544 | 2285.51 | 425 | 411 | 103.8 |
| D | 2 | 120 | 37152 | 354.11 | 425 | 411 | 103.8 |
| D | 7 | 223 | 32264 | 307.0 | 425 | 411 | 103.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
