| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T03_9000002214_15034cztM0_level2.evt | modeM0/AS1A04_218T03_9000002214_15034cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,959,040 | 99,270,720 |
| Size | 438.7 MB | 94.7 MB |
| Events in quadrant A | 3,536,095 | 638,827 |
| Events in quadrant B | 3,321,610 | 651,932 |
| Events in quadrant C | 3,431,639 | 640,383 |
| Events in quadrant D | 3,193,284 | 616,207 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14719 | 3 |
| B | 0 | 14063 | 2 |
| C | 0 | 14117 | 2 |
| D | 0 | 14029 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6583 | 17 | 0.258241% |
| B | 6583 | 46 | 0.698770% |
| C | 6583 | 21 | 0.319003% |
| D | 6583 | 68 | 1.032964% |

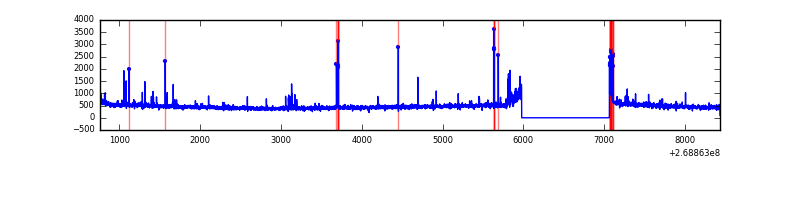

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6585 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7669 | 6585 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7669 | 6585 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7669 | 6585 | 30 | 30 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 212872 | 1292.99 | 806 | 787 | 164.0 |
| A | 1 | 162 | 74850 | 451.53 | 806 | 787 | 164.0 |
| A | 12 | 189 | 48998 | 293.92 | 806 | 787 | 164.0 |
| B | 10 | 16 | 59719 | 378.98 | 809 | 788 | 155.5 |
| B | 4 | 173 | 33031 | 207.35 | 809 | 788 | 155.5 |
| B | 3 | 209 | 26419 | 164.83 | 809 | 788 | 155.5 |
| C | 3 | 233 | 341856 | 1844.74 | 792 | 797 | 184.9 |
| C | 13 | 61 | 5743 | 26.75 | 792 | 797 | 184.9 |
| C | 3 | 232 | 2689 | 10.23 | 792 | 797 | 184.9 |
| D | 2 | 136 | 111848 | 580.85 | 785 | 765 | 191.2 |
| D | 10 | 70 | 40253 | 206.48 | 785 | 765 | 191.2 |
| D | 13 | 172 | 29307 | 149.25 | 785 | 765 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

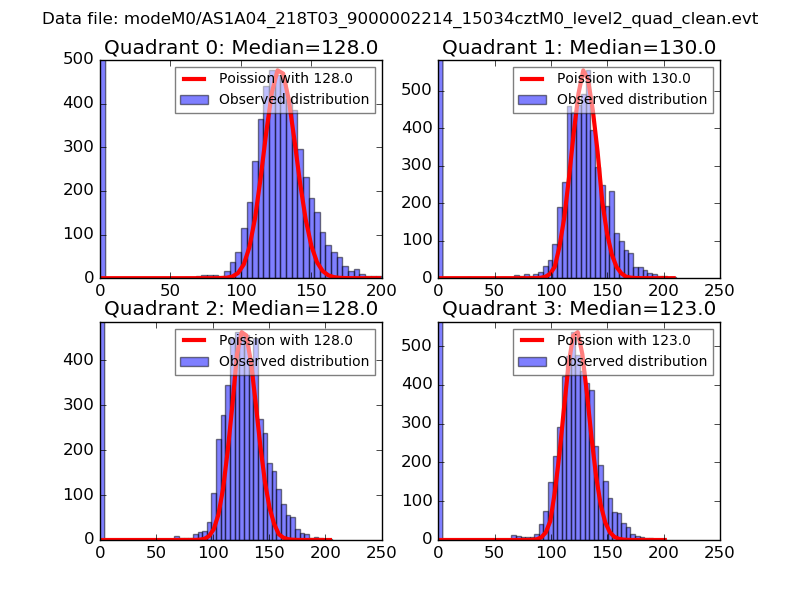

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

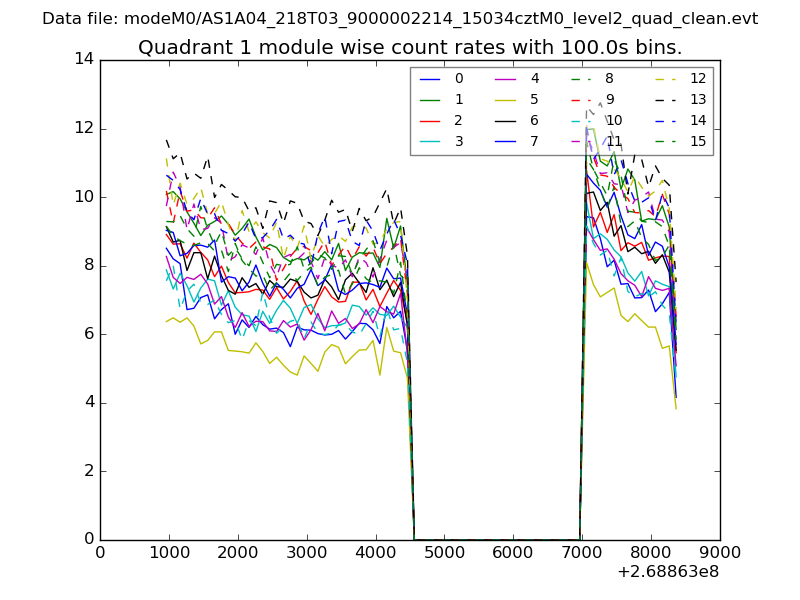

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

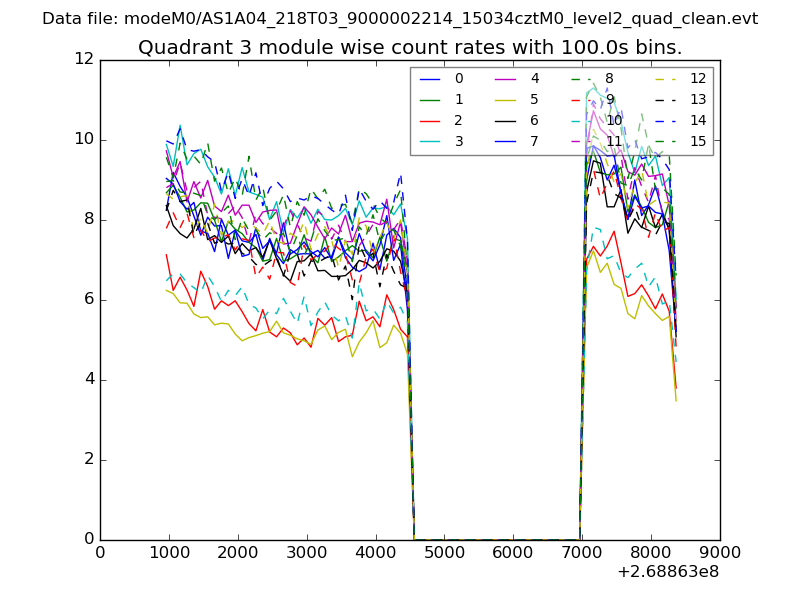

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

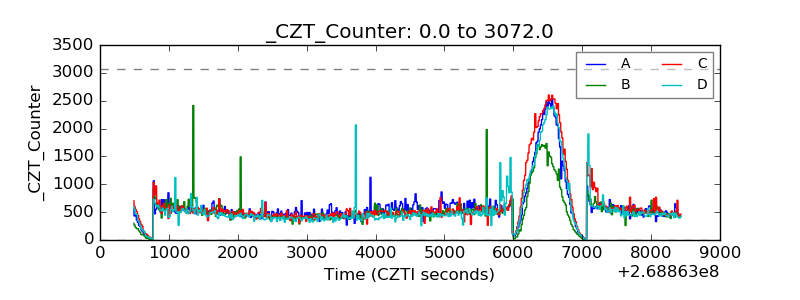

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

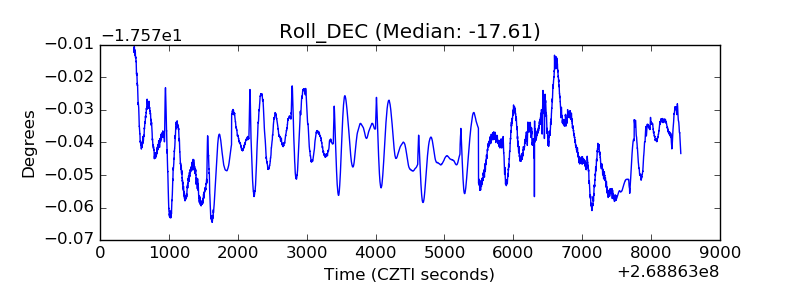

| _Roll_DEC |  |

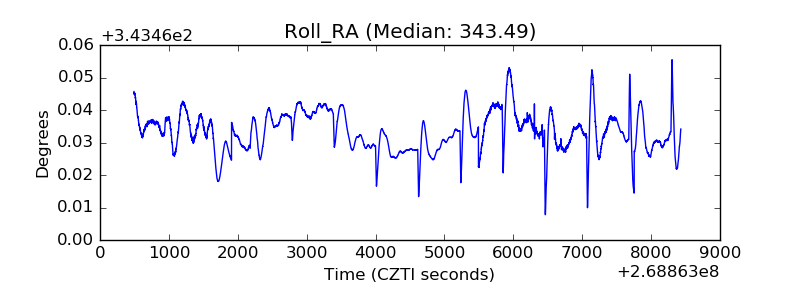

| _Roll_RA |  |
| Veto Counter |  |
