| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_060T01_9000002216_15038cztM0_level2.evt | modeM0/AS1T02_060T01_9000002216_15038cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,087,360 | 91,143,360 |
| Size | 423.5 MB | 86.9 MB |
| Events in quadrant A | 3,364,063 | 589,045 |
| Events in quadrant B | 3,227,986 | 610,678 |
| Events in quadrant C | 3,428,692 | 581,196 |
| Events in quadrant D | 3,010,384 | 549,547 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13701 | 3 |
| B | 0 | 13233 | 2 |
| C | 0 | 13923 | 2 |
| D | 0 | 12916 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6159 | 31 | 0.503328% |
| B | 6159 | 57 | 0.925475% |
| C | 6159 | 26 | 0.422146% |
| D | 6159 | 20 | 0.324728% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7470 | 6161 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7470 | 6161 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7470 | 6161 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7470 | 6161 | 7 | 7 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 77498 | 469.22 | 814 | 801 | 163.5 |
| A | 12 | 189 | 62444 | 377.12 | 814 | 801 | 163.5 |
| A | 1 | 178 | 36773 | 220.07 | 814 | 801 | 163.5 |
| B | 3 | 64 | 26354 | 164.23 | 816 | 799 | 155.6 |
| B | 12 | 111 | 17807 | 109.3 | 816 | 799 | 155.6 |
| B | 11 | 111 | 15239 | 92.8 | 816 | 799 | 155.6 |
| C | 3 | 233 | 363351 | 1995.17 | 785 | 792 | 181.7 |
| C | 13 | 61 | 5749 | 27.28 | 785 | 792 | 181.7 |
| C | 3 | 232 | 2662 | 10.29 | 785 | 792 | 181.7 |
| D | 13 | 249 | 29710 | 153.86 | 779 | 759 | 188.2 |
| D | 10 | 70 | 29386 | 152.14 | 779 | 759 | 188.2 |
| D | 2 | 234 | 20025 | 102.39 | 779 | 759 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

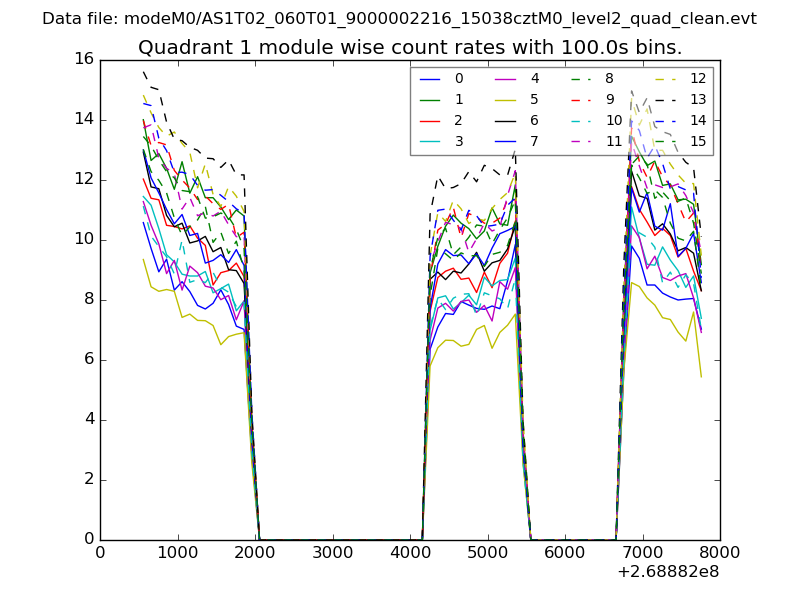

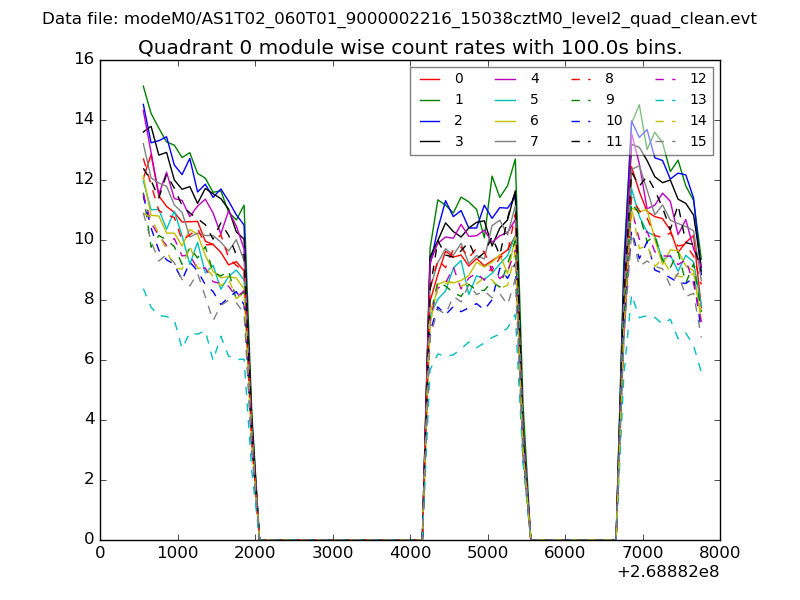

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
