| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_060T01_9000002216_15049cztM0_level2.evt | modeM0/AS1T02_060T01_9000002216_15049cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,465,600 | 90,912,960 |
| Size | 426.7 MB | 86.7 MB |
| Events in quadrant A | 3,163,645 | 580,422 |
| Events in quadrant B | 3,362,920 | 597,461 |
| Events in quadrant C | 3,581,308 | 576,208 |
| Events in quadrant D | 3,009,827 | 553,653 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13631 | 2 |
| B | 0 | 14020 | 1 |
| C | 0 | 14692 | 1 |
| D | 0 | 13361 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6384 | 45 | 0.704887% |
| B | 6384 | 75 | 1.174812% |
| C | 6384 | 46 | 0.720551% |
| D | 6384 | 49 | 0.767544% |

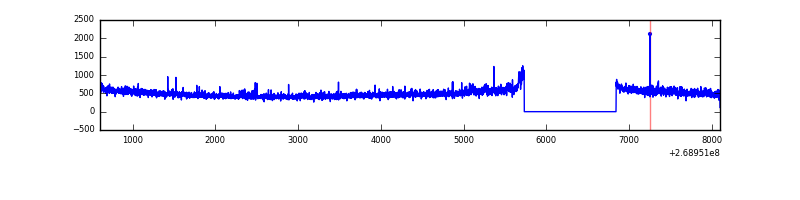

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 6385 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7495 | 6385 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7495 | 6385 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7495 | 6385 | 7 | 7 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 47726 | 292.32 | 790 | 774 | 160.6 |
| A | 1 | 162 | 29998 | 181.95 | 790 | 774 | 160.6 |
| A | 15 | 239 | 17338 | 103.12 | 790 | 774 | 160.6 |
| B | 10 | 16 | 187168 | 1225.65 | 793 | 774 | 152.1 |
| B | 3 | 64 | 49776 | 322.22 | 793 | 774 | 152.1 |
| B | 4 | 173 | 18436 | 116.14 | 793 | 774 | 152.1 |
| C | 3 | 233 | 450109 | 2508.64 | 771 | 778 | 179.1 |
| C | 7 | 247 | 124817 | 692.52 | 771 | 778 | 179.1 |
| C | 13 | 61 | 5596 | 26.9 | 771 | 778 | 179.1 |
| D | 10 | 70 | 71010 | 378.13 | 768 | 745 | 185.8 |
| D | 2 | 234 | 20283 | 105.14 | 768 | 745 | 185.8 |
| D | 2 | 136 | 18303 | 94.49 | 768 | 745 | 185.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

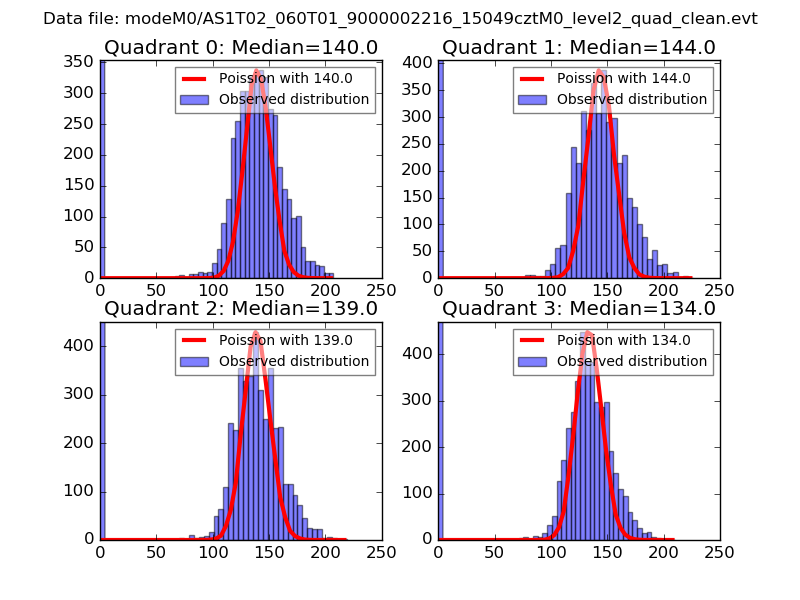

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

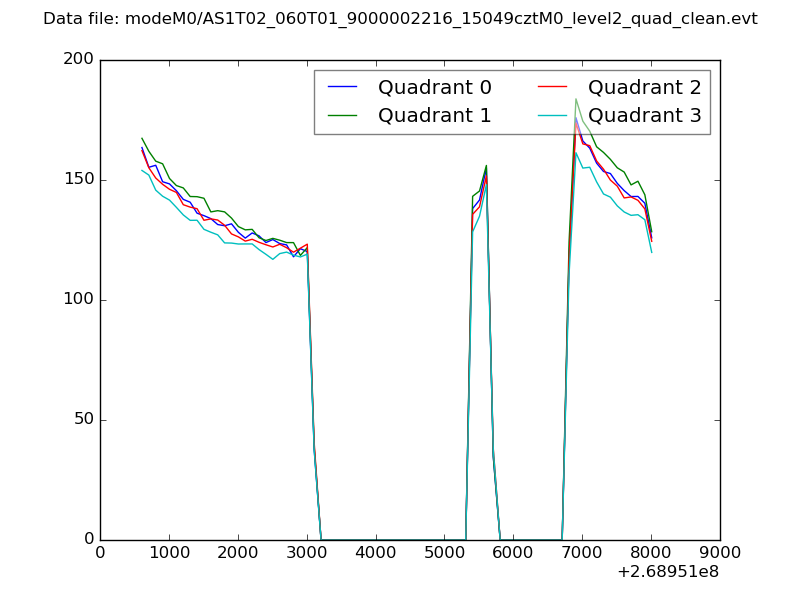

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

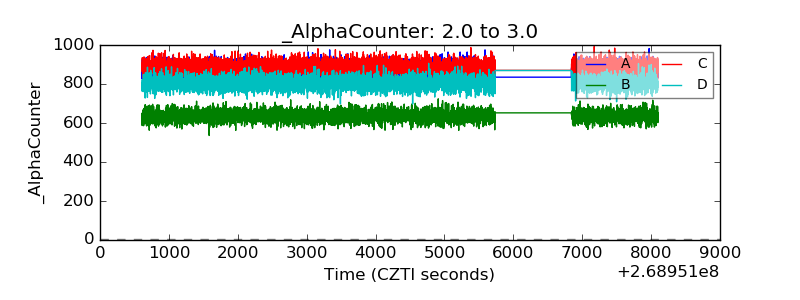

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

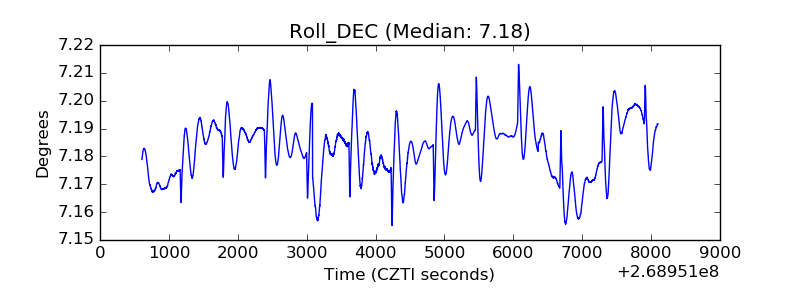

| _Roll_DEC |  |

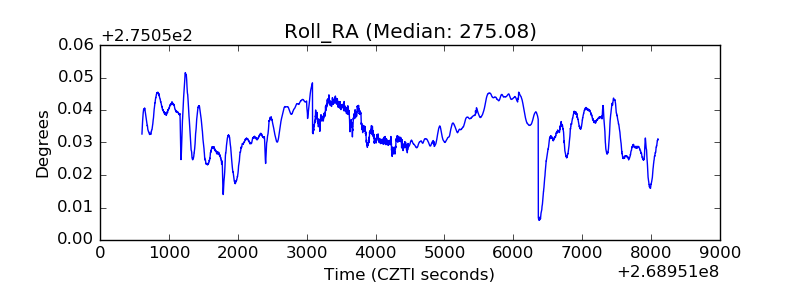

| _Roll_RA |  |

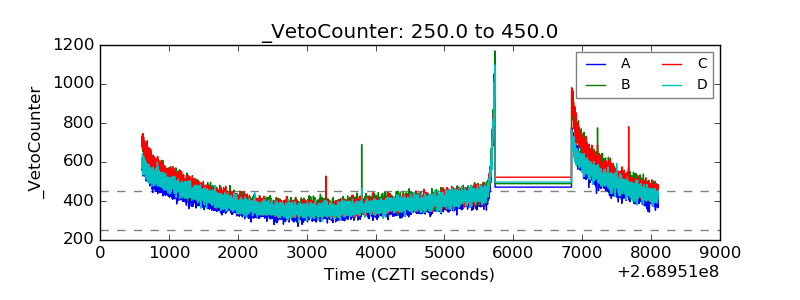

| Veto Counter |  |
