| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_060T01_9000002216_15055cztM0_level2.evt | modeM0/AS1T02_060T01_9000002216_15055cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,858,560 | 71,458,560 |
| Size | 493.9 MB | 68.1 MB |
| Events in quadrant A | 3,443,595 | 434,737 |
| Events in quadrant B | 4,000,938 | 444,801 |
| Events in quadrant C | 3,840,860 | 428,542 |
| Events in quadrant D | 3,962,879 | 407,778 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14052 | 3 |
| B | 0 | 15902 | 2 |
| C | 0 | 15558 | 2 |
| D | 0 | 15979 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 53 | 0.825674% |
| B | 6419 | 216 | 3.365010% |
| C | 6419 | 23 | 0.358311% |
| D | 6419 | 183 | 2.850911% |

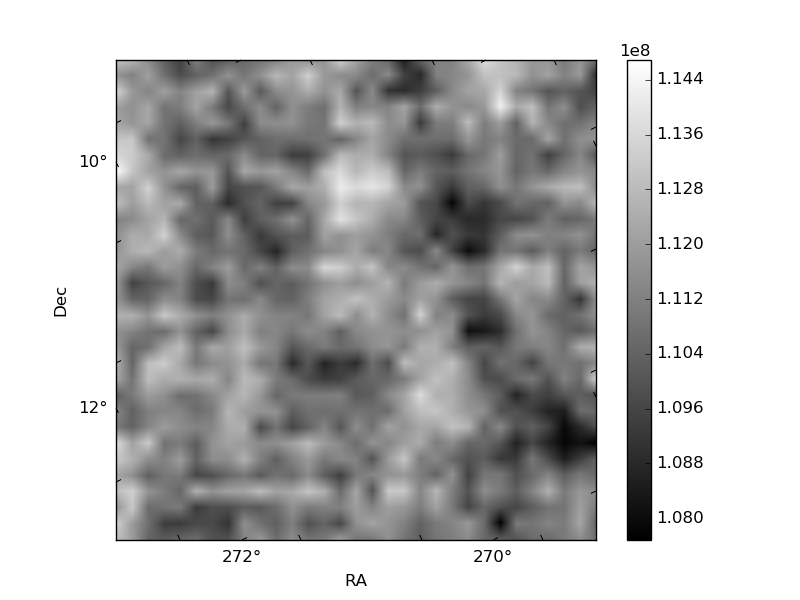

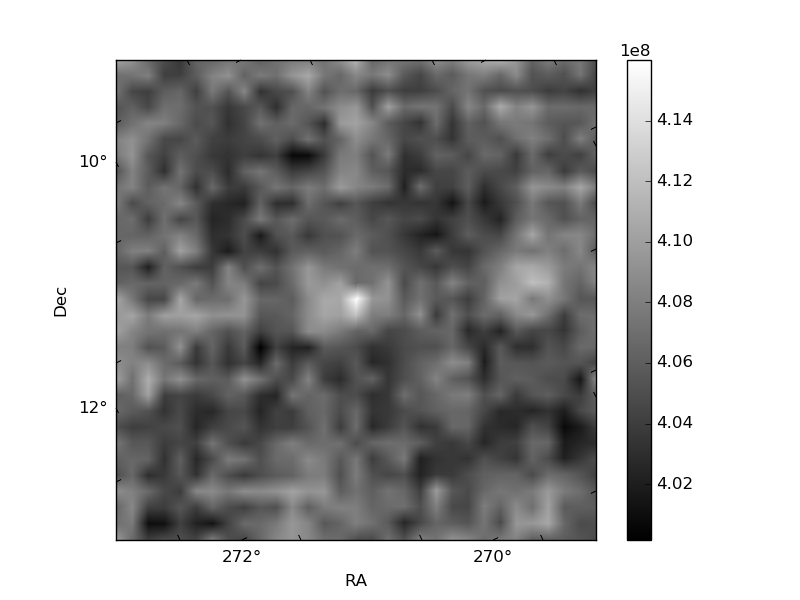

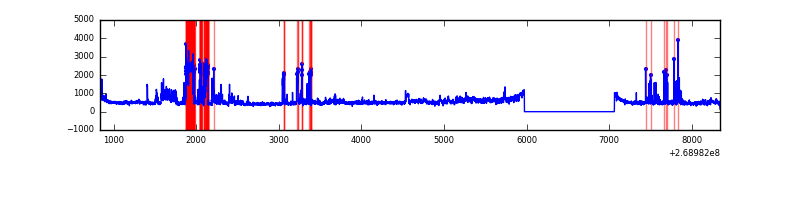

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

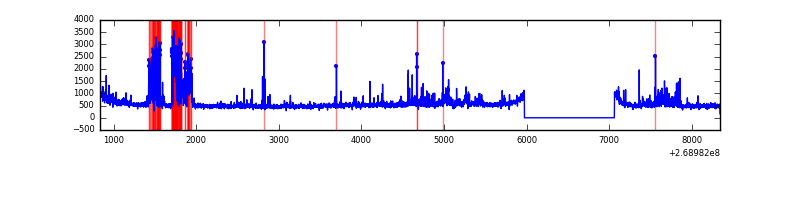

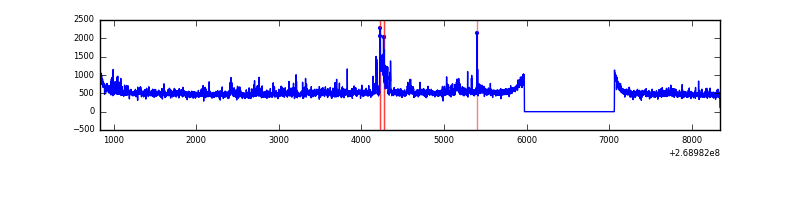

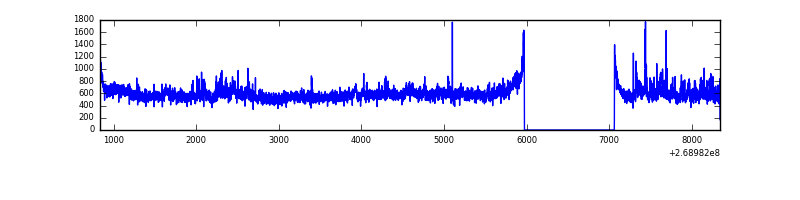

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6421 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7510 | 6421 | 120 | 120 | 1.60% | 1.87% |  |
| C | 7510 | 6421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7510 | 6420 | 170 | 170 | 2.26% | 2.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 164904 | 997.84 | 815 | 797 | 164.5 |
| A | 1 | 162 | 65856 | 395.59 | 815 | 797 | 164.5 |
| A | 1 | 178 | 28320 | 167.35 | 815 | 797 | 164.5 |
| B | 10 | 16 | 589620 | 3795.01 | 810 | 790 | 155.2 |
| B | 10 | 245 | 153200 | 982.28 | 810 | 790 | 155.2 |
| B | 3 | 209 | 37858 | 238.9 | 810 | 790 | 155.2 |
| C | 3 | 233 | 779193 | 4288.62 | 784 | 792 | 181.5 |
| C | 13 | 61 | 5606 | 26.52 | 784 | 792 | 181.5 |
| C | 14 | 234 | 2988 | 12.1 | 784 | 792 | 181.5 |
| D | 7 | 223 | 575528 | 3068.67 | 769 | 749 | 187.3 |
| D | 13 | 249 | 441211 | 2351.57 | 769 | 749 | 187.3 |
| D | 13 | 104 | 25118 | 130.1 | 769 | 749 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

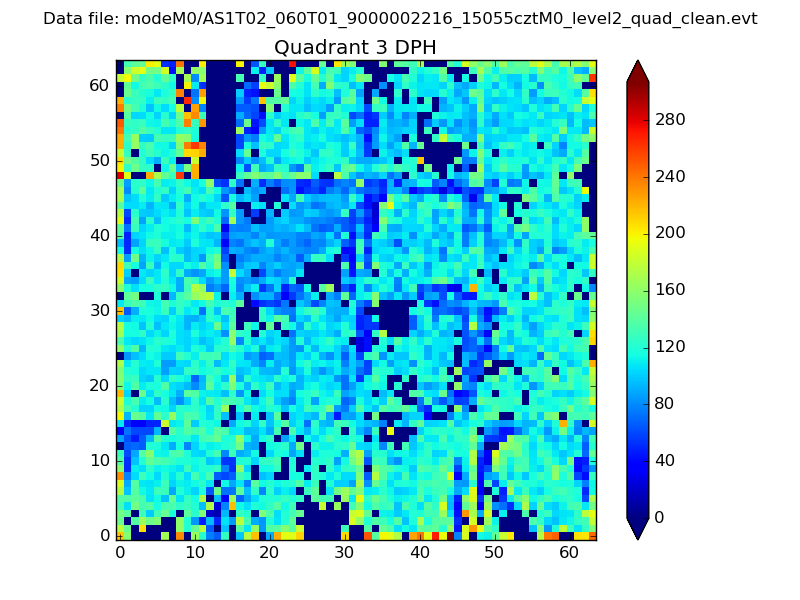

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

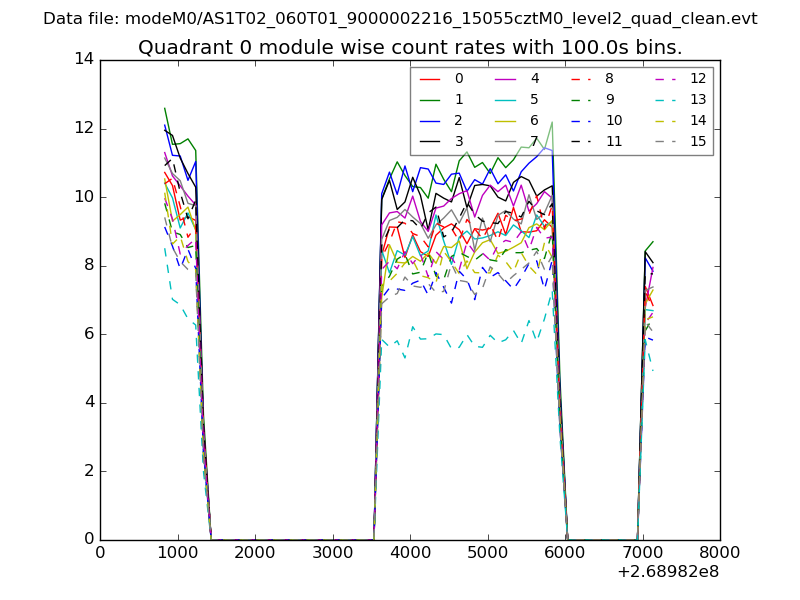

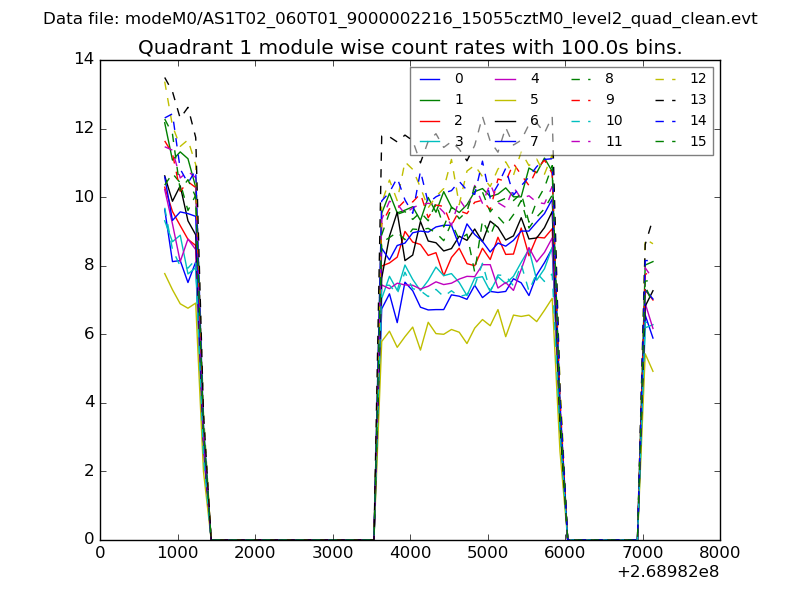

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

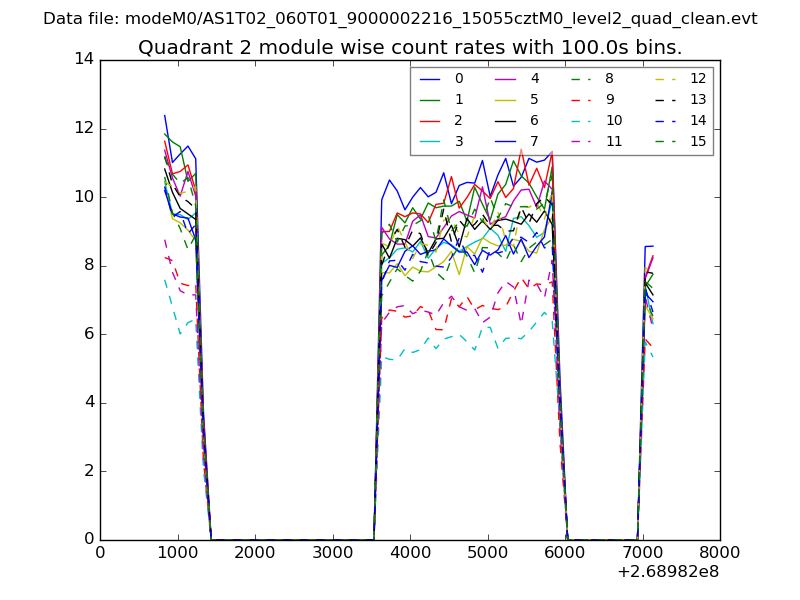

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

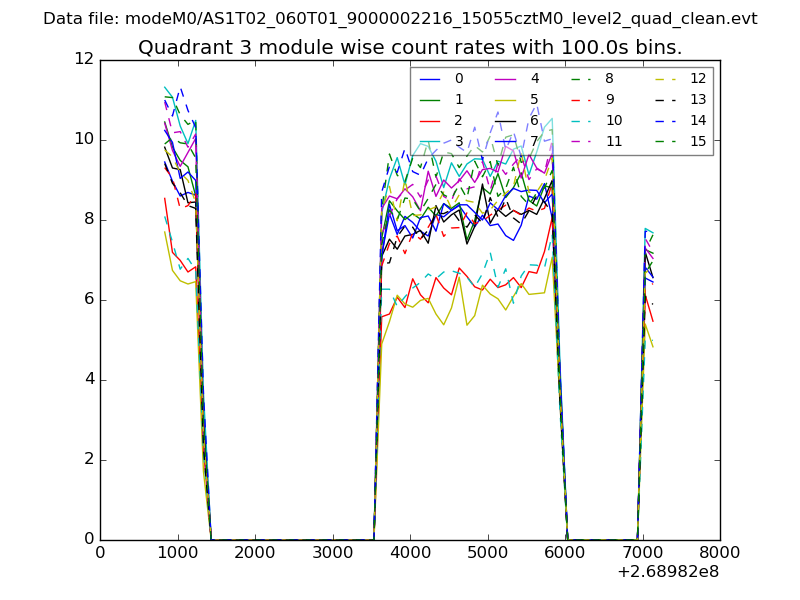

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

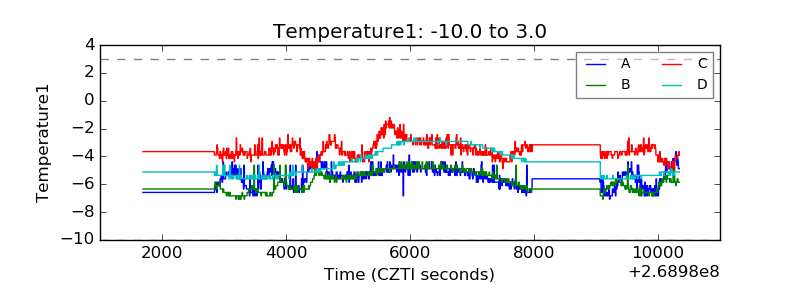

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

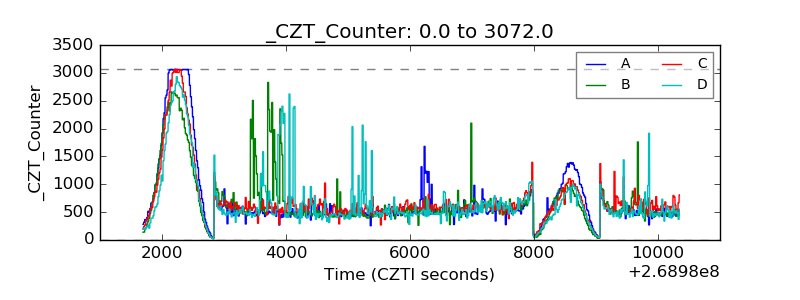

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

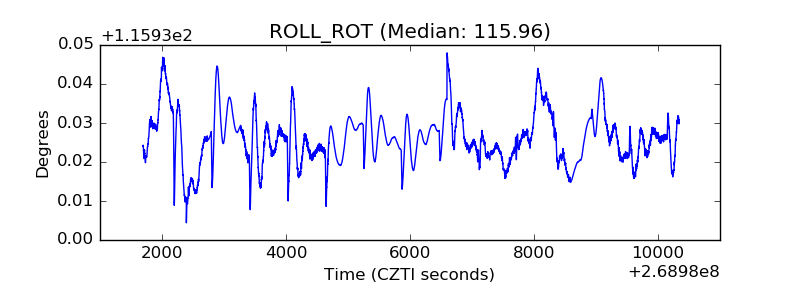

| _ROLL_ROT |  |

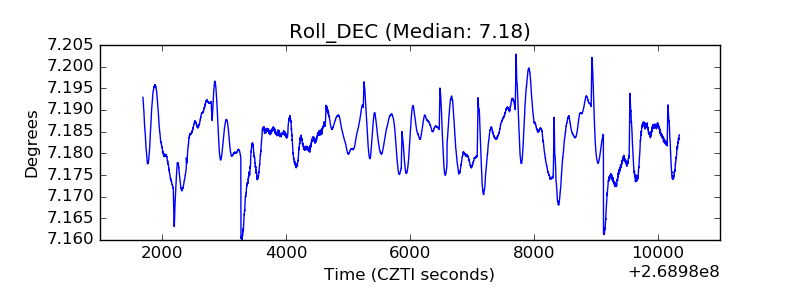

| _Roll_DEC |  |

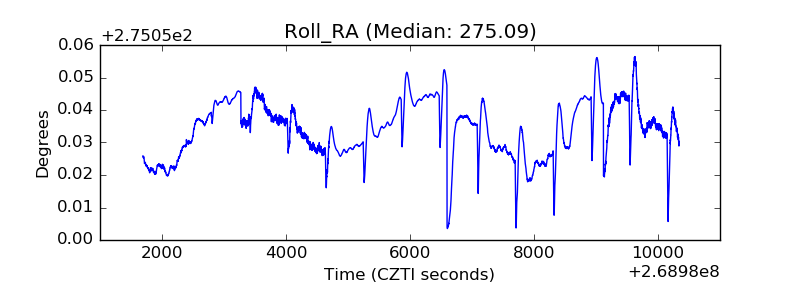

| _Roll_RA |  |

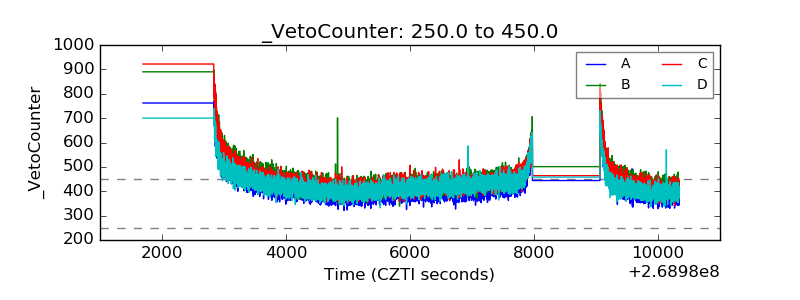

| Veto Counter |  |
