| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_060T01_9000002216_15072cztM0_level2.evt | modeM0/AS1T02_060T01_9000002216_15072cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,844,160 | 91,359,360 |
| Size | 622.6 MB | 87.1 MB |
| Events in quadrant A | 4,089,424 | 553,789 |
| Events in quadrant B | 4,177,041 | 564,998 |
| Events in quadrant C | 6,841,909 | 534,976 |
| Events in quadrant D | 4,092,121 | 527,555 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17644 | 4 |
| B | 0 | 17737 | 3 |
| C | 0 | 26498 | 3 |
| D | 0 | 18112 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8428 | 310 | 3.678215% |
| B | 8428 | 330 | 3.915520% |
| C | 8428 | 547 | 6.490271% |
| D | 8428 | 241 | 2.859516% |

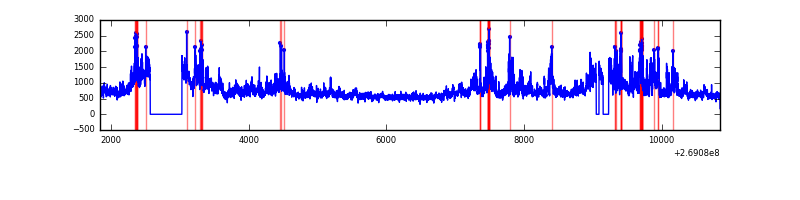

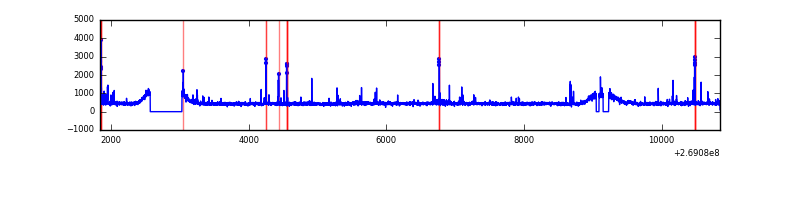

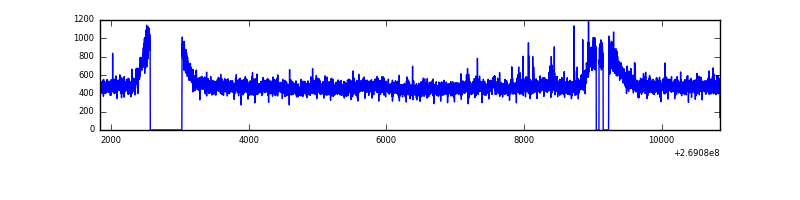

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9009 | 8430 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9009 | 8431 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9009 | 8430 | 62 | 62 | 0.69% | 0.74% |  |
| D | 9009 | 8431 | 24 | 24 | 0.27% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9198 | 38.08 | 1060 | 1037 | 214.3 |
| A | 3 | 137 | 7773 | 31.43 | 1060 | 1037 | 214.3 |
| A | 12 | 194 | 7661 | 30.9 | 1060 | 1037 | 214.3 |
| B | 3 | 64 | 37306 | 174.86 | 1054 | 1027 | 207.5 |
| B | 12 | 111 | 26092 | 120.81 | 1054 | 1027 | 207.5 |
| B | 11 | 111 | 22363 | 102.84 | 1054 | 1027 | 207.5 |
| C | 3 | 233 | 2908673 | 12410.39 | 1001 | 1006 | 234.3 |
| C | 3 | 232 | 16845 | 67.6 | 1001 | 1006 | 234.3 |
| C | 3 | 234 | 15580 | 62.2 | 1001 | 1006 | 234.3 |
| D | 13 | 249 | 88350 | 348.77 | 1022 | 990 | 250.5 |
| D | 9 | 1 | 50592 | 198.03 | 1022 | 990 | 250.5 |
| D | 13 | 104 | 48970 | 191.55 | 1022 | 990 | 250.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

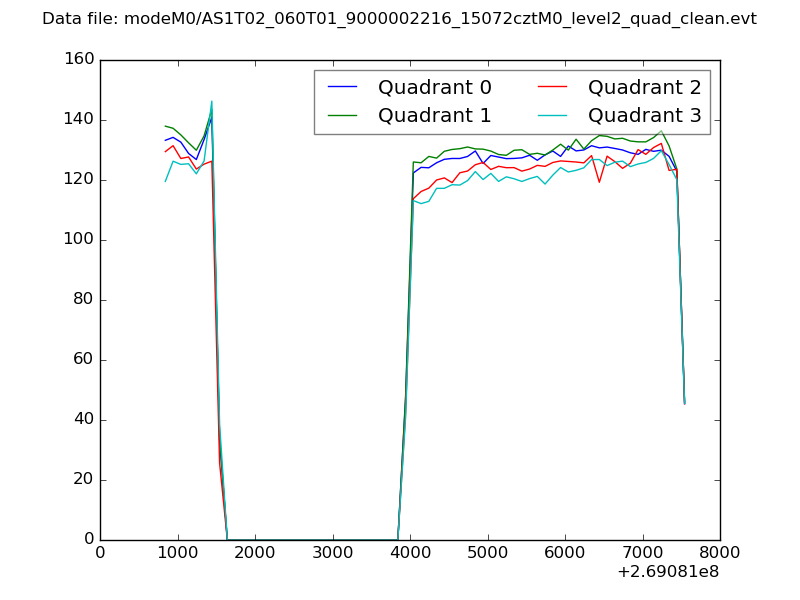

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

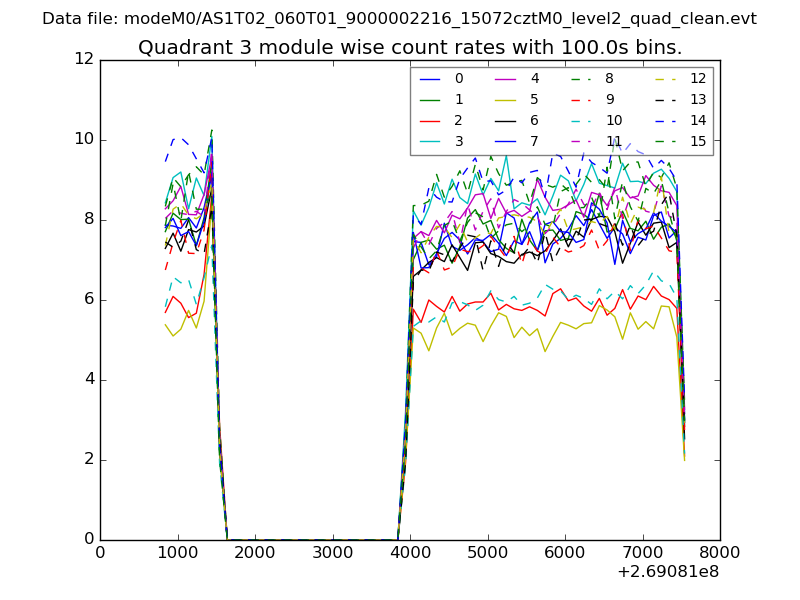

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

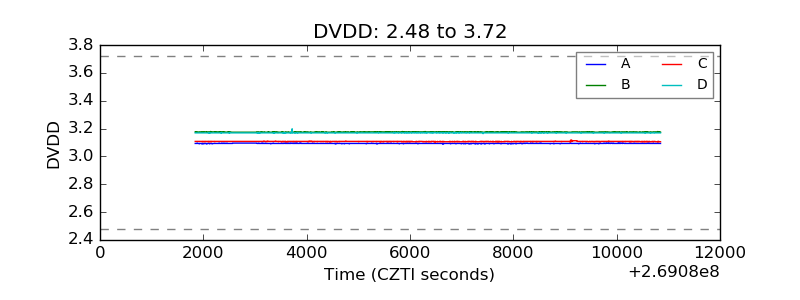

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

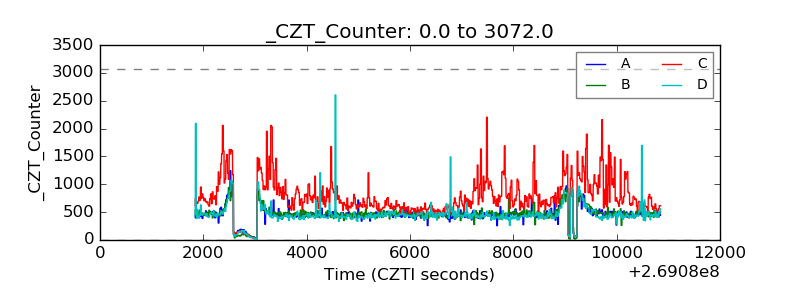

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

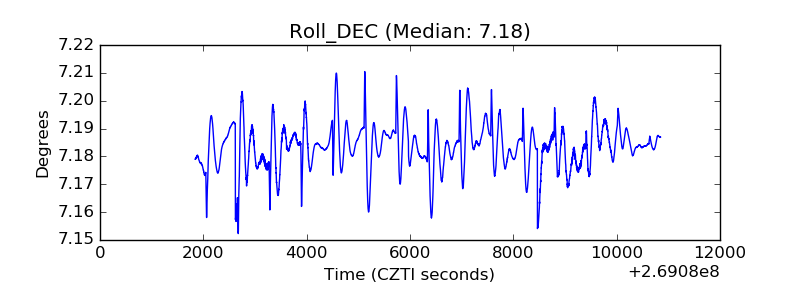

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
