| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_065T01_9000002218_15083cztM0_level2.evt | modeM0/AS1T02_065T01_9000002218_15083cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,351,040 | 72,475,200 |
| Size | 425.7 MB | 69.1 MB |
| Events in quadrant A | 3,088,923 | 451,606 |
| Events in quadrant B | 3,178,508 | 459,234 |
| Events in quadrant C | 3,850,595 | 436,036 |
| Events in quadrant D | 2,984,055 | 420,247 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12790 | 3 |
| B | 0 | 12974 | 2 |
| C | 0 | 15498 | 2 |
| D | 0 | 12927 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6121 | 70 | 1.143604% |
| B | 6121 | 100 | 1.633720% |
| C | 6121 | 56 | 0.914883% |
| D | 6121 | 33 | 0.539128% |

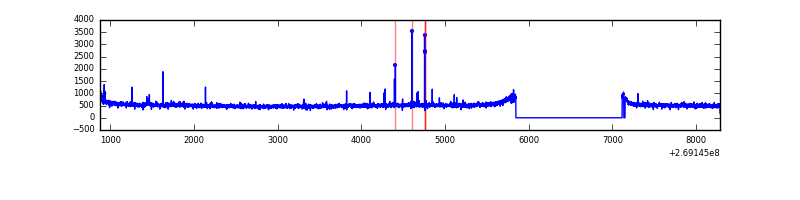

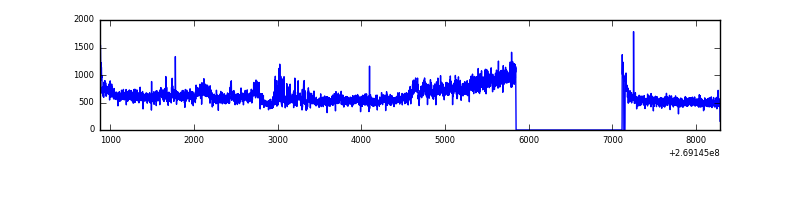

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7412 | 6129 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7412 | 6128 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7412 | 6129 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7412 | 6129 | 11 | 11 | 0.15% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 33230 | 204.41 | 794 | 780 | 158.7 |
| A | 0 | 226 | 6981 | 39.06 | 794 | 780 | 158.7 |
| A | 12 | 194 | 5730 | 31.18 | 794 | 780 | 158.7 |
| B | 3 | 64 | 48350 | 315.99 | 794 | 775 | 150.6 |
| B | 12 | 111 | 17469 | 110.88 | 794 | 775 | 150.6 |
| B | 11 | 111 | 15263 | 96.23 | 794 | 775 | 150.6 |
| C | 3 | 233 | 750732 | 4273.84 | 762 | 768 | 175.5 |
| C | 3 | 9 | 123926 | 701.84 | 762 | 768 | 175.5 |
| C | 7 | 247 | 8224 | 42.49 | 762 | 768 | 175.5 |
| D | 13 | 249 | 57980 | 310.79 | 756 | 734 | 184.2 |
| D | 13 | 104 | 27282 | 144.13 | 756 | 734 | 184.2 |
| D | 2 | 234 | 20077 | 105.02 | 756 | 734 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

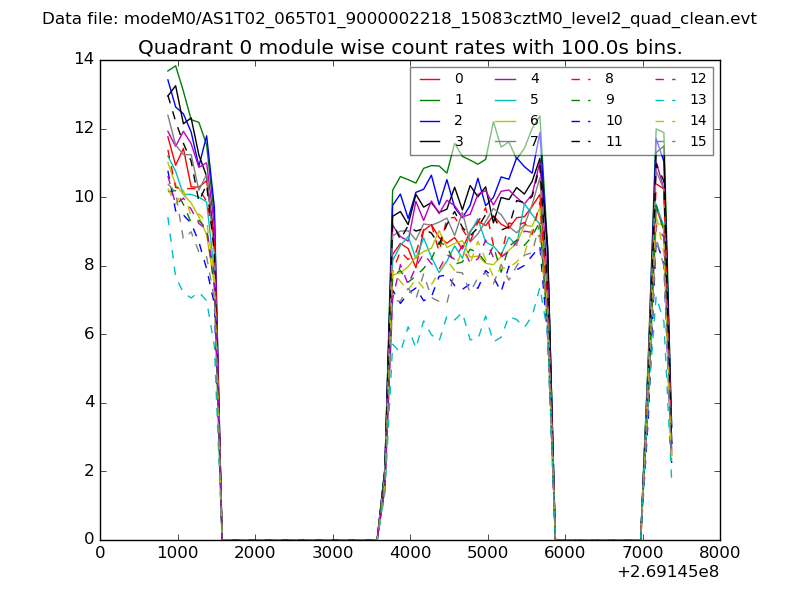

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

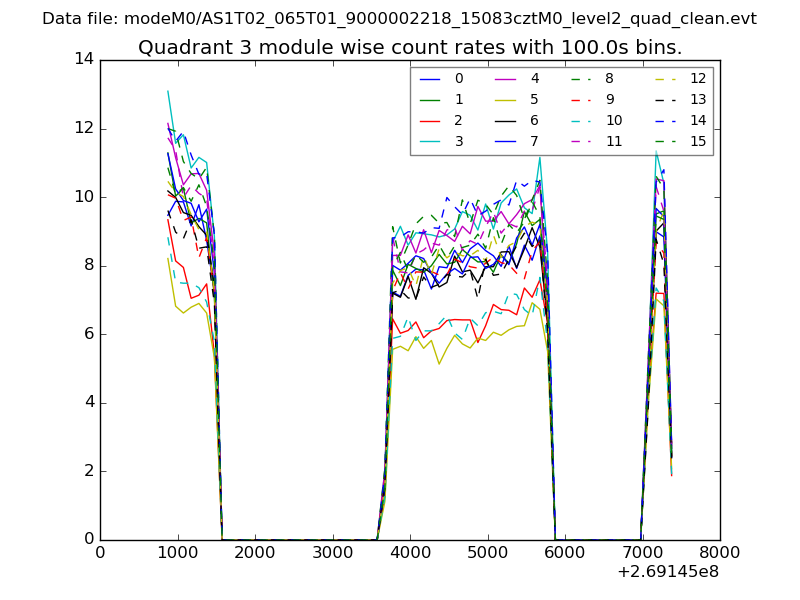

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

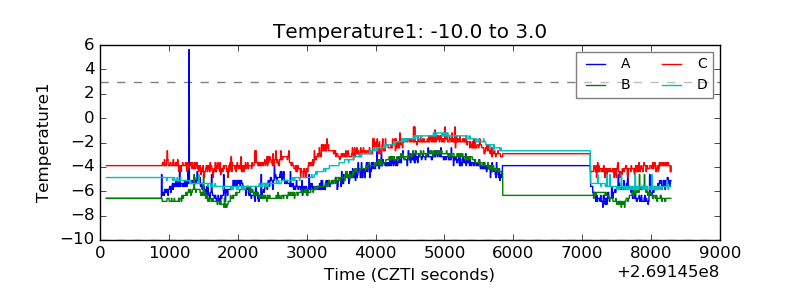

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

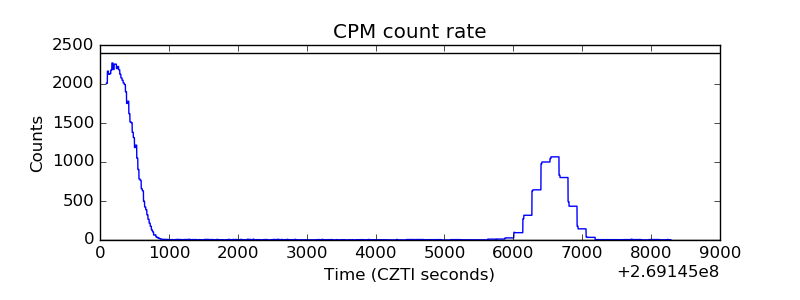

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

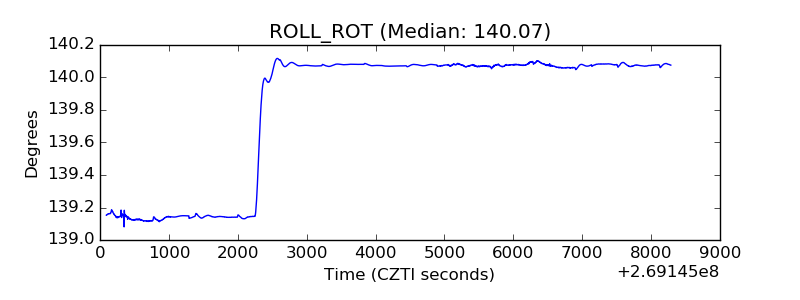

| _ROLL_ROT |  |
| _Roll_DEC |  |

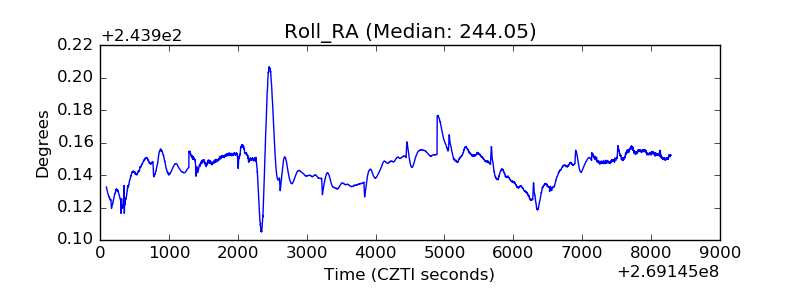

| _Roll_RA |  |
| Veto Counter |  |
