| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_065T01_9000002218_15085cztM0_level2.evt | modeM0/AS1T02_065T01_9000002218_15085cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,522,560 | 83,960,640 |
| Size | 487.8 MB | 80.1 MB |
| Events in quadrant A | 3,587,163 | 516,274 |
| Events in quadrant B | 3,896,082 | 517,641 |
| Events in quadrant C | 4,017,985 | 505,091 |
| Events in quadrant D | 3,491,196 | 492,021 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15376 | 3 |
| B | 0 | 16082 | 2 |
| C | 0 | 16192 | 2 |
| D | 0 | 15554 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7341 | 217 | 2.956001% |
| B | 7341 | 319 | 4.345457% |
| C | 7341 | 163 | 2.220406% |
| D | 7341 | 166 | 2.261272% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8997 | 7342 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8997 | 7342 | 37 | 37 | 0.41% | 0.50% |  |
| C | 8997 | 7343 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8997 | 7343 | 11 | 11 | 0.12% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 11239 | 54.75 | 927 | 907 | 188.7 |
| A | 0 | 253 | 9627 | 46.21 | 927 | 907 | 188.7 |
| A | 0 | 226 | 8092 | 38.07 | 927 | 907 | 188.7 |
| B | 10 | 245 | 138848 | 771.12 | 918 | 894 | 178.9 |
| B | 3 | 64 | 112291 | 622.68 | 918 | 894 | 178.9 |
| B | 3 | 209 | 23252 | 124.97 | 918 | 894 | 178.9 |
| C | 3 | 233 | 488051 | 2331.53 | 898 | 902 | 208.9 |
| C | 3 | 9 | 17786 | 80.81 | 898 | 902 | 208.9 |
| C | 7 | 247 | 12039 | 53.3 | 898 | 902 | 208.9 |
| D | 13 | 172 | 28470 | 126.39 | 896 | 870 | 218.4 |
| D | 13 | 104 | 24991 | 110.46 | 896 | 870 | 218.4 |
| D | 2 | 234 | 23414 | 103.24 | 896 | 870 | 218.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

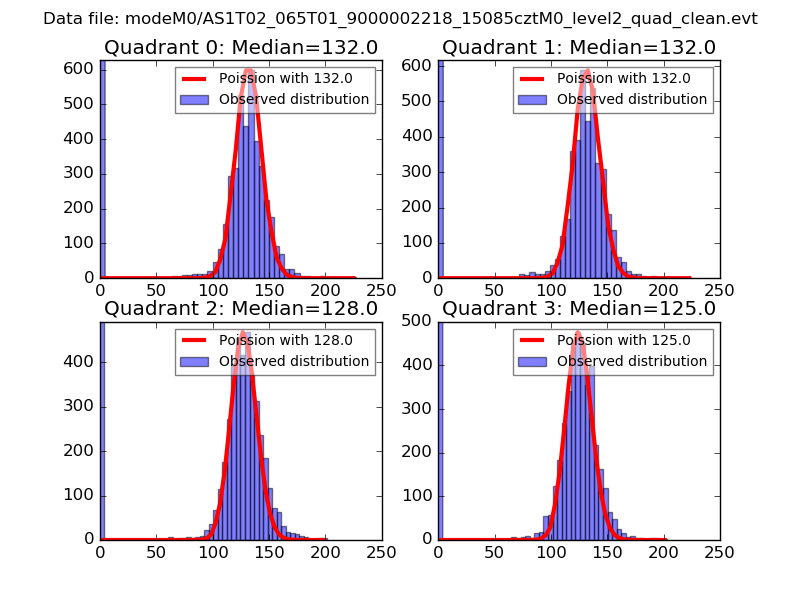

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

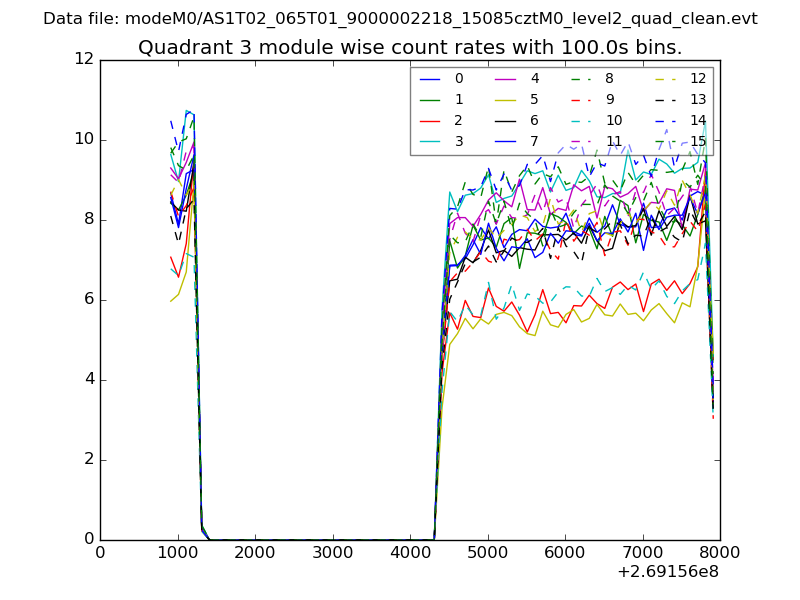

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

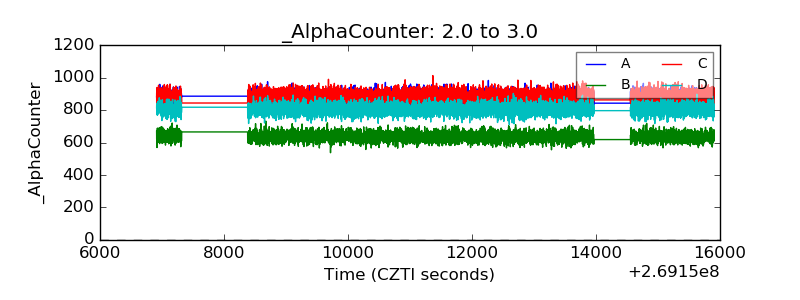

| Alpha Counter |  |

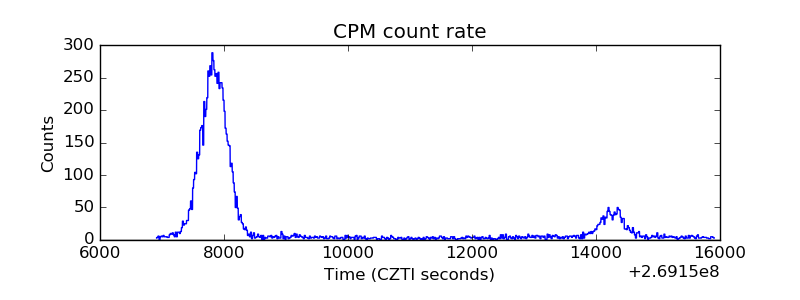

| _CPM_Rate |  |

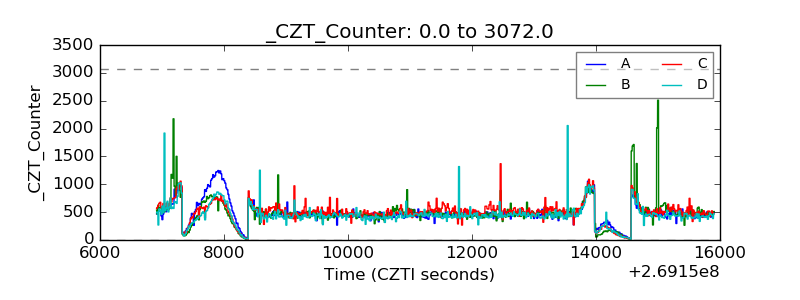

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

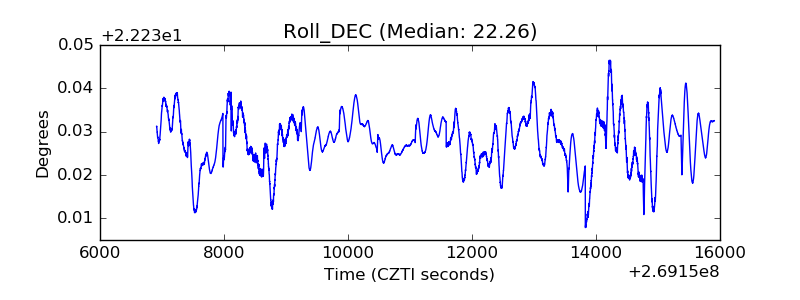

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
