| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T03_9000002224_15114cztM0_level2.evt | modeM0/AS1A04_130T03_9000002224_15114cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,401,600 | 93,507,840 |
| Size | 496.3 MB | 89.2 MB |
| Events in quadrant A | 3,382,865 | 590,149 |
| Events in quadrant B | 4,439,565 | 591,475 |
| Events in quadrant C | 3,936,824 | 588,666 |
| Events in quadrant D | 3,518,564 | 566,407 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14616 | 3 |
| B | 0 | 17500 | 2 |
| C | 0 | 15632 | 2 |
| D | 0 | 15299 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7107 | 132 | 1.857324% |
| B | 7107 | 445 | 6.261432% |
| C | 7107 | 133 | 1.871394% |
| D | 7107 | 135 | 1.899536% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

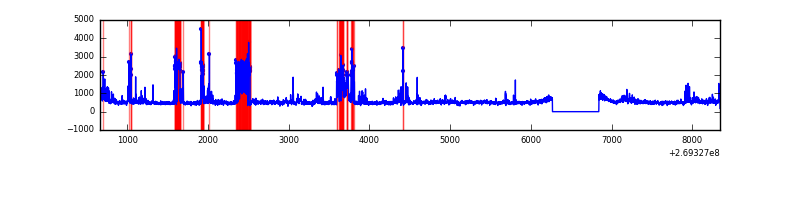

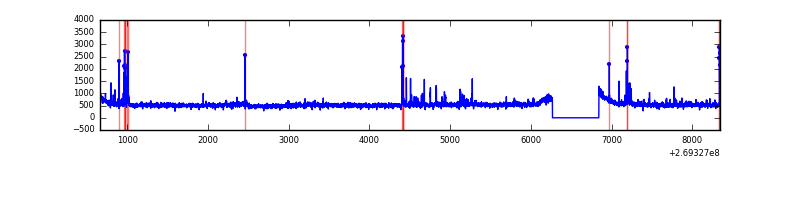

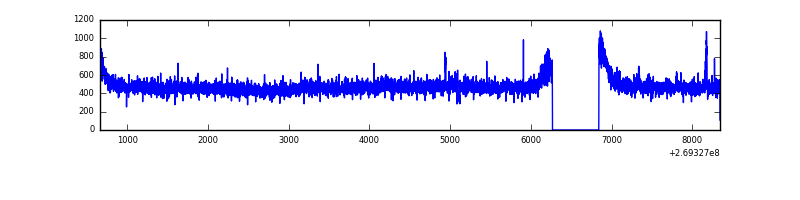

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7683 | 7108 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7683 | 7108 | 211 | 211 | 2.75% | 2.97% |  |
| C | 7682 | 7108 | 19 | 19 | 0.25% | 0.27% |  |
| D | 7683 | 7108 | 19 | 19 | 0.25% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 22994 | 126.03 | 869 | 852 | 175.7 |
| A | 8 | 6 | 8428 | 43.12 | 869 | 852 | 175.7 |
| A | 15 | 239 | 8145 | 41.51 | 869 | 852 | 175.7 |
| B | 10 | 245 | 873403 | 5395.71 | 848 | 825 | 161.7 |
| B | 3 | 64 | 152220 | 936.17 | 848 | 825 | 161.7 |
| B | 0 | 197 | 35606 | 215.07 | 848 | 825 | 161.7 |
| C | 3 | 233 | 450512 | 2294.23 | 848 | 850 | 196.0 |
| C | 4 | 254 | 164668 | 835.82 | 848 | 850 | 196.0 |
| C | 7 | 247 | 8201 | 37.5 | 848 | 850 | 196.0 |
| D | 2 | 14 | 160963 | 764.23 | 853 | 827 | 209.5 |
| D | 7 | 223 | 33763 | 157.18 | 853 | 827 | 209.5 |
| D | 0 | 11 | 28656 | 132.81 | 853 | 827 | 209.5 |

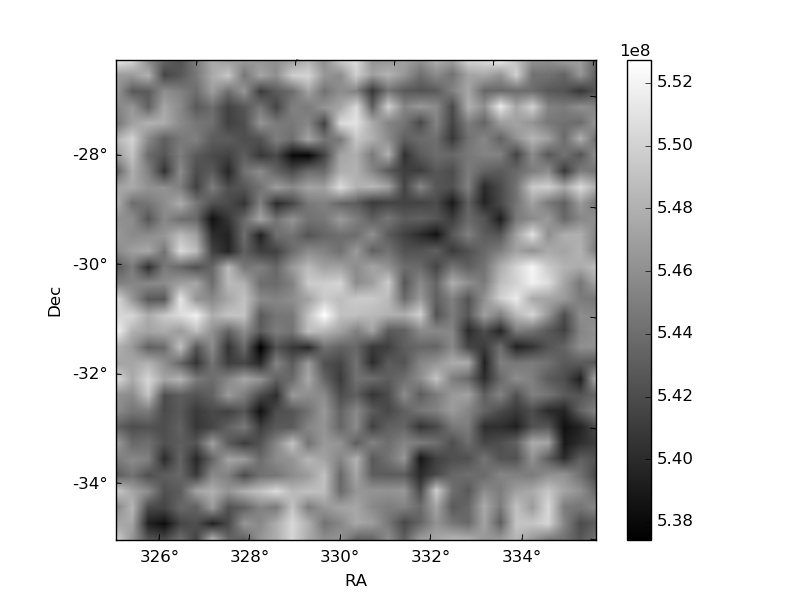

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

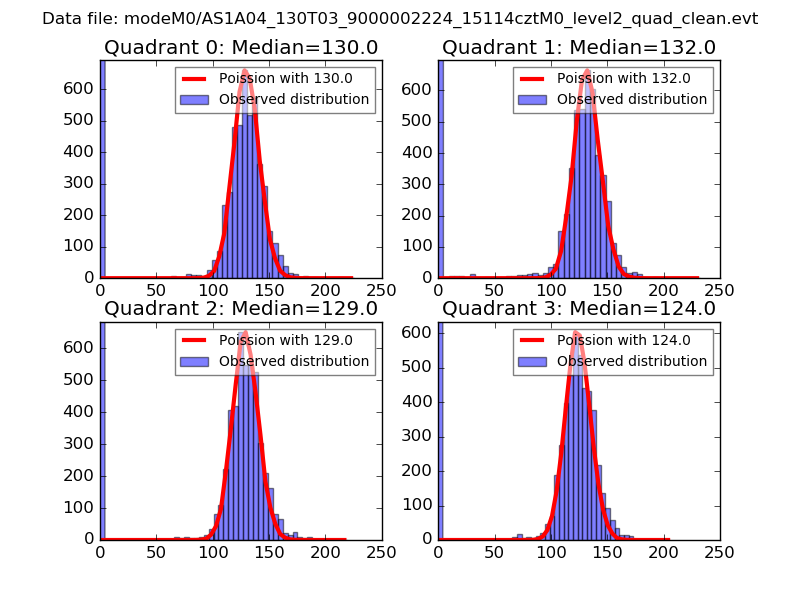

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

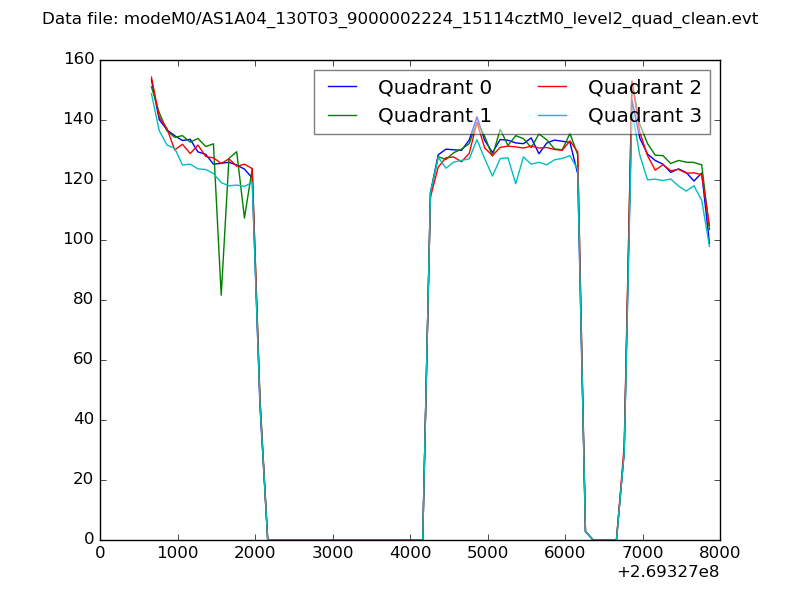

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

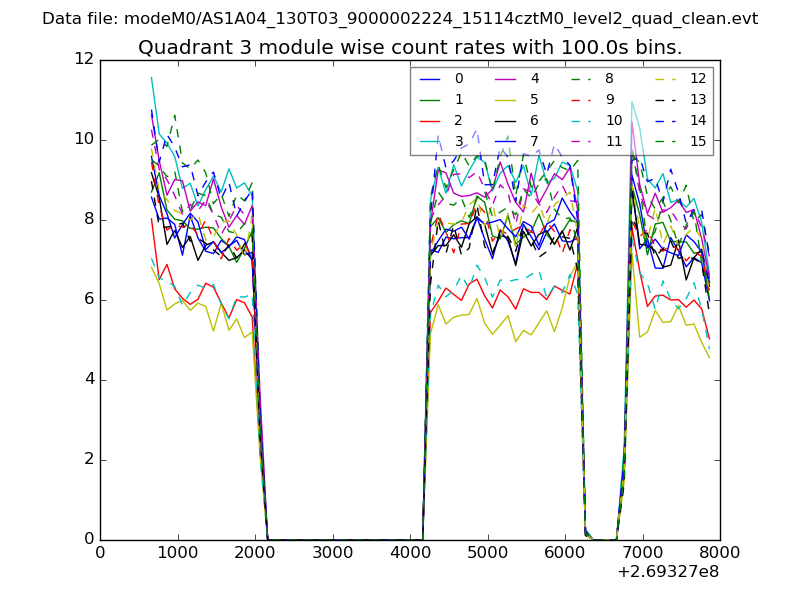

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

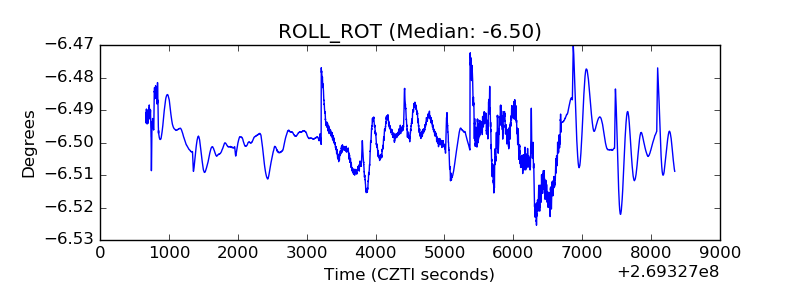

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
