| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_148T03_9000002222_15107cztM0_level2.evt | modeM0/AS1A04_148T03_9000002222_15107cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,494,720 | 95,486,400 |
| Size | 482.1 MB | 91.1 MB |
| Events in quadrant A | 3,167,863 | 617,411 |
| Events in quadrant B | 4,157,734 | 621,610 |
| Events in quadrant C | 4,480,335 | 605,725 |
| Events in quadrant D | 3,068,610 | 600,379 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13747 | 3 |
| B | 0 | 16804 | 2 |
| C | 0 | 17730 | 2 |
| D | 0 | 13708 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 67 | 1.046711% |
| B | 6401 | 260 | 4.061865% |
| C | 6401 | 350 | 5.467896% |
| D | 6401 | 60 | 0.937354% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

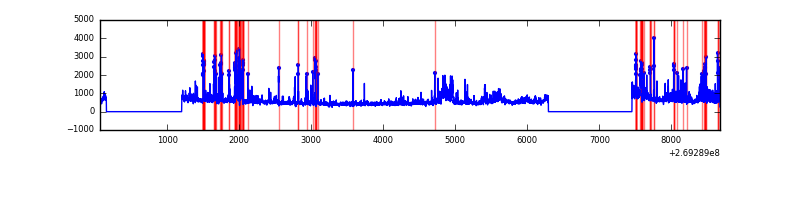

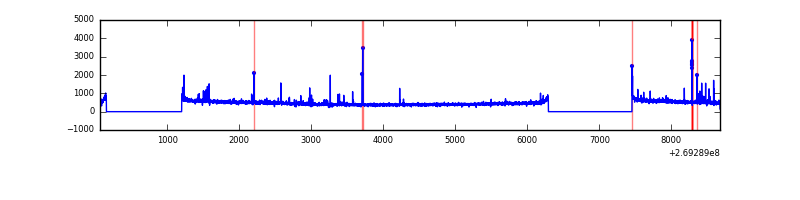

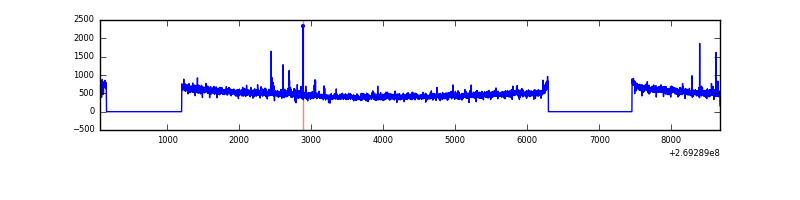

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8607 | 6402 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8607 | 6403 | 116 | 116 | 1.35% | 1.81% |  |
| C | 8607 | 6402 | 190 | 190 | 2.21% | 2.97% |  |
| D | 8607 | 6402 | 11 | 11 | 0.13% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 86299 | 534.05 | 795 | 777 | 160.1 |
| A | 9 | 143 | 10730 | 62.15 | 795 | 777 | 160.1 |
| A | 13 | 248 | 7694 | 43.19 | 795 | 777 | 160.1 |
| B | 3 | 64 | 581235 | 3942.72 | 789 | 770 | 147.2 |
| B | 10 | 245 | 318475 | 2157.96 | 789 | 770 | 147.2 |
| B | 3 | 209 | 35901 | 238.62 | 789 | 770 | 147.2 |
| C | 4 | 254 | 1010597 | 5763.21 | 766 | 771 | 175.2 |
| C | 3 | 233 | 464065 | 2644.08 | 766 | 771 | 175.2 |
| C | 4 | 238 | 12543 | 67.18 | 766 | 771 | 175.2 |
| D | 9 | 1 | 31952 | 164.33 | 779 | 754 | 189.8 |
| D | 2 | 120 | 28132 | 144.21 | 779 | 754 | 189.8 |
| D | 2 | 234 | 26547 | 135.86 | 779 | 754 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

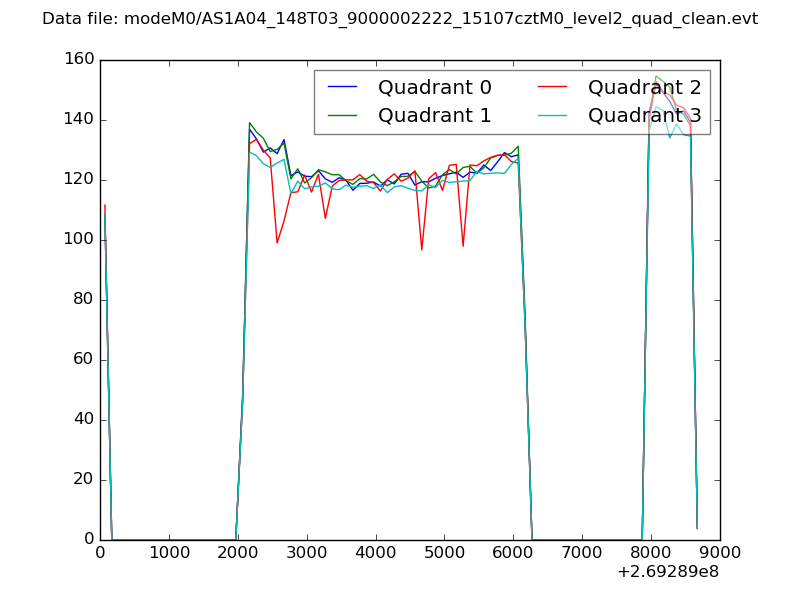

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

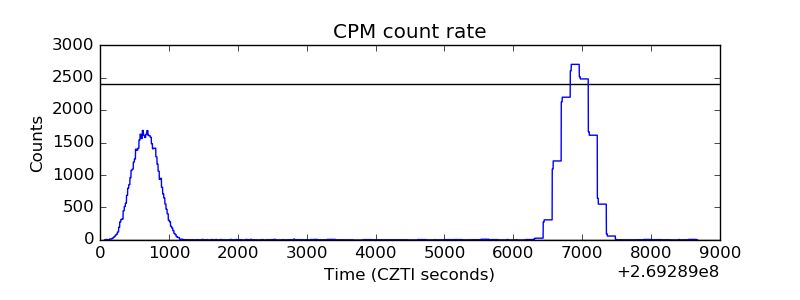

| _CPM_Rate |  |

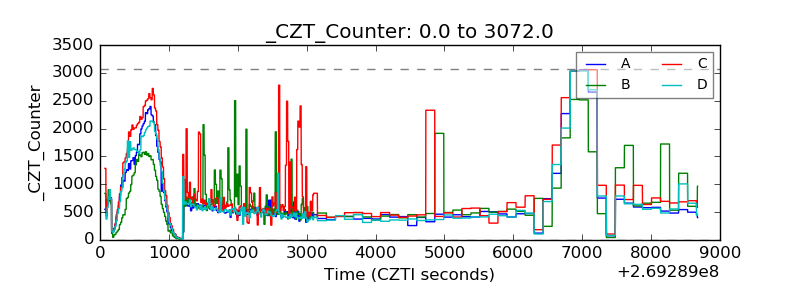

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

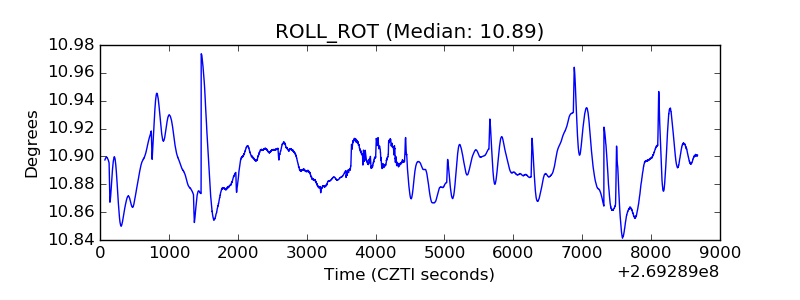

| _ROLL_ROT |  |
| _Roll_DEC |  |

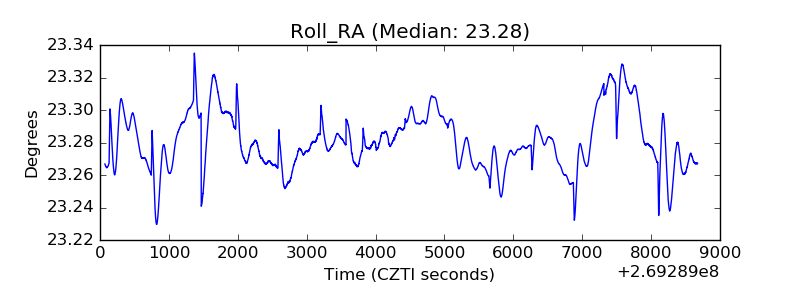

| _Roll_RA |  |
| Veto Counter |  |
