| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_046T09_9000002226_15127cztM0_level2.evt | modeM0/AS1G08_046T09_9000002226_15127cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,791,360 | 81,887,040 |
| Size | 448.0 MB | 78.1 MB |
| Events in quadrant A | 3,212,208 | 515,214 |
| Events in quadrant B | 3,655,679 | 513,308 |
| Events in quadrant C | 3,719,806 | 504,184 |
| Events in quadrant D | 3,189,568 | 484,480 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13752 | 3 |
| B | 0 | 15006 | 2 |
| C | 0 | 15062 | 2 |
| D | 0 | 14178 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6633 | 29 | 0.437208% |
| B | 6633 | 190 | 2.864466% |
| C | 6633 | 27 | 0.407056% |
| D | 6633 | 51 | 0.768883% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7854 | 6635 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7854 | 6635 | 111 | 111 | 1.41% | 1.67% |  |
| C | 7854 | 6635 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7854 | 6635 | 46 | 46 | 0.59% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 48730 | 292.84 | 811 | 795 | 163.7 |
| A | 9 | 143 | 27411 | 162.6 | 811 | 795 | 163.7 |
| A | 13 | 248 | 9385 | 52.48 | 811 | 795 | 163.7 |
| B | 10 | 245 | 396485 | 2636.42 | 808 | 789 | 150.1 |
| B | 3 | 64 | 48764 | 319.64 | 808 | 789 | 150.1 |
| B | 12 | 111 | 17733 | 112.89 | 808 | 789 | 150.1 |
| C | 3 | 233 | 631547 | 3491.9 | 786 | 792 | 180.6 |
| C | 0 | 207 | 22371 | 119.46 | 786 | 792 | 180.6 |
| C | 13 | 61 | 5601 | 26.62 | 786 | 792 | 180.6 |
| D | 2 | 33 | 188744 | 997.75 | 777 | 755 | 188.4 |
| D | 1 | 255 | 23111 | 118.65 | 777 | 755 | 188.4 |
| D | 2 | 234 | 22561 | 115.73 | 777 | 755 | 188.4 |

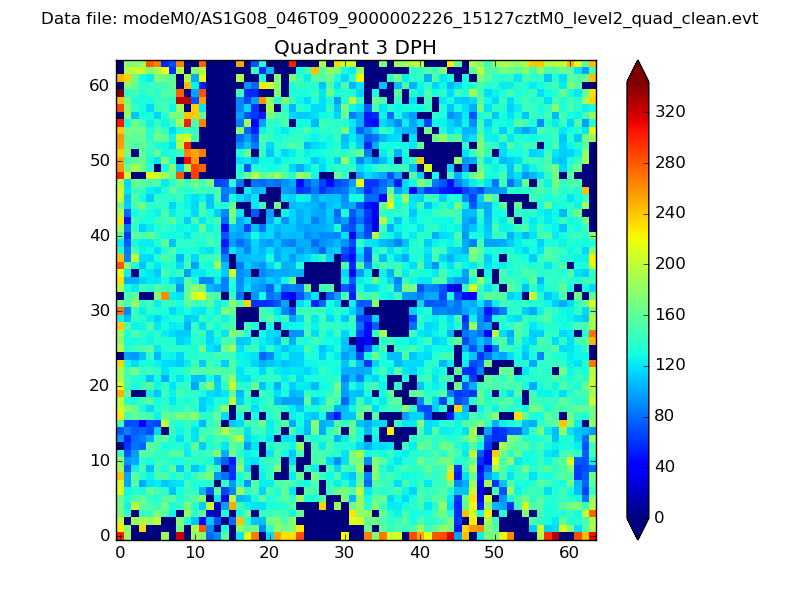

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

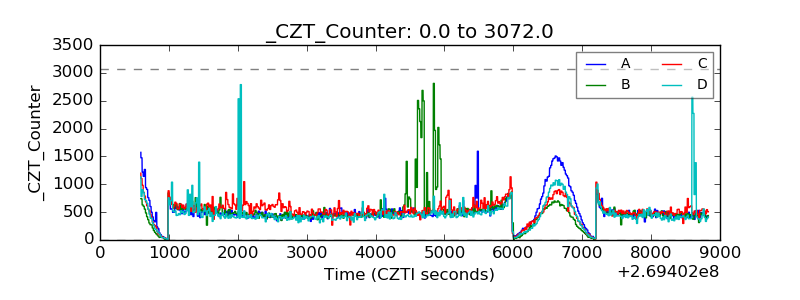

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

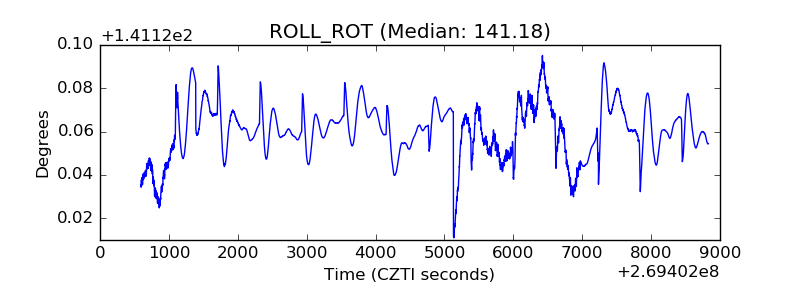

| _ROLL_ROT |  |

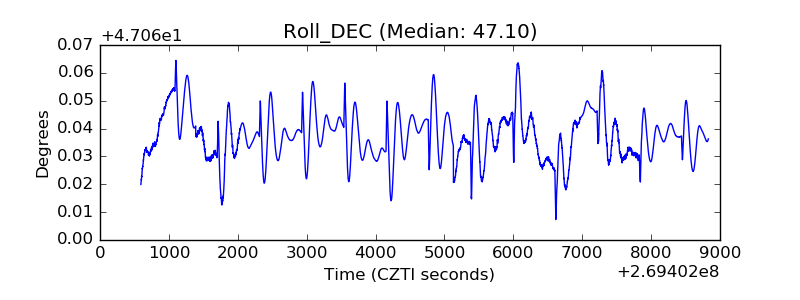

| _Roll_DEC |  |

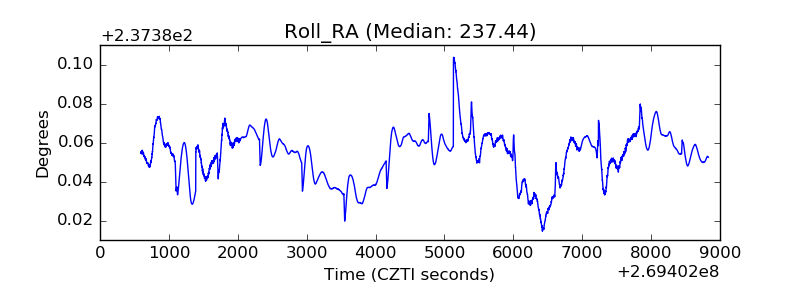

| _Roll_RA |  |

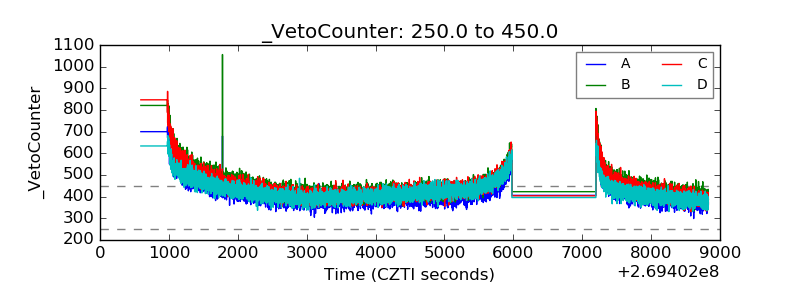

| Veto Counter |  |
