| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_046T09_9000002226_15130cztM0_level2.evt | modeM0/AS1G08_046T09_9000002226_15130cztM0_level2_quad_clean.evt |
| Size (bytes) | 231,295,680 | 33,255,360 |
| Size | 220.6 MB | 31.7 MB |
| Events in quadrant A | 1,536,521 | 194,716 |
| Events in quadrant B | 1,632,297 | 198,381 |
| Events in quadrant C | 2,098,263 | 194,484 |
| Events in quadrant D | 1,516,108 | 189,290 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6739 | 2 |
| B | 0 | 6922 | 2 |
| C | 0 | 8294 | 2 |
| D | 0 | 6790 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3225 | 155 | 4.806202% |
| B | 3225 | 178 | 5.519380% |
| C | 3225 | 167 | 5.178295% |
| D | 3225 | 112 | 3.472868% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

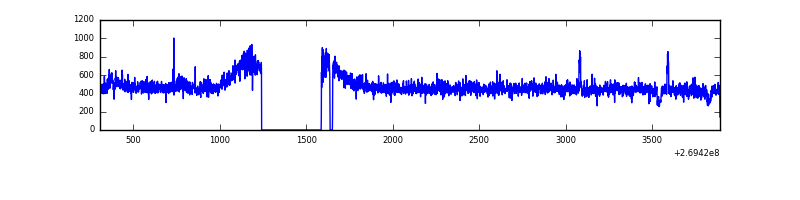

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3586 | 3227 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3586 | 3227 | 3 | 3 | 0.08% | 0.09% |  |
| C | 3586 | 3227 | 12 | 12 | 0.33% | 0.37% |  |
| D | 3586 | 3227 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 16738 | 199.69 | 394 | 384 | 81.9 |
| A | 0 | 226 | 3488 | 37.9 | 394 | 384 | 81.9 |
| A | 12 | 194 | 2883 | 30.51 | 394 | 384 | 81.9 |
| B | 3 | 209 | 37644 | 478.97 | 396 | 384 | 77.8 |
| B | 0 | 214 | 17012 | 213.75 | 396 | 384 | 77.8 |
| B | 3 | 64 | 16323 | 204.89 | 396 | 384 | 77.8 |
| C | 3 | 233 | 602130 | 6667.63 | 382 | 382 | 90.2 |
| C | 14 | 234 | 2952 | 28.48 | 382 | 382 | 90.2 |
| C | 13 | 61 | 2859 | 27.45 | 382 | 382 | 90.2 |
| D | 8 | 195 | 24240 | 255.37 | 382 | 368 | 93.5 |
| D | 1 | 255 | 18890 | 198.14 | 382 | 368 | 93.5 |
| D | 2 | 234 | 10893 | 112.59 | 382 | 368 | 93.5 |

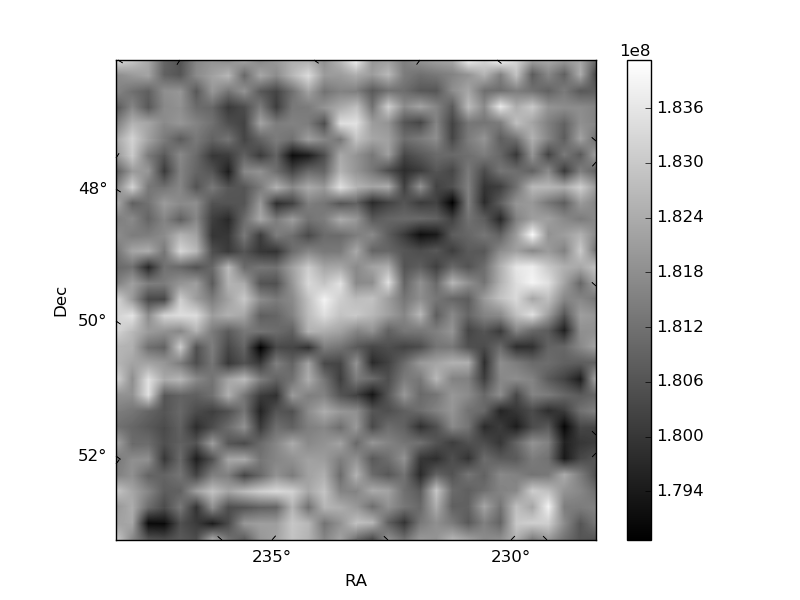

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

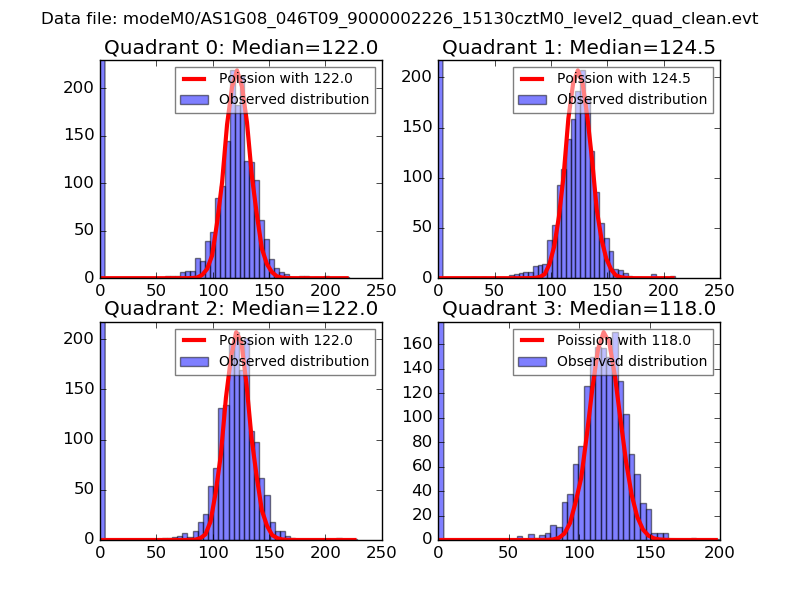

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

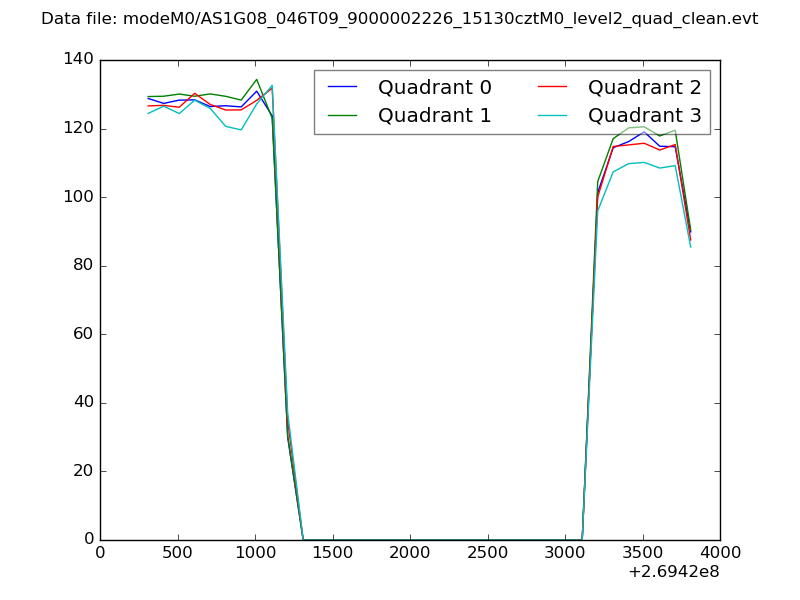

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

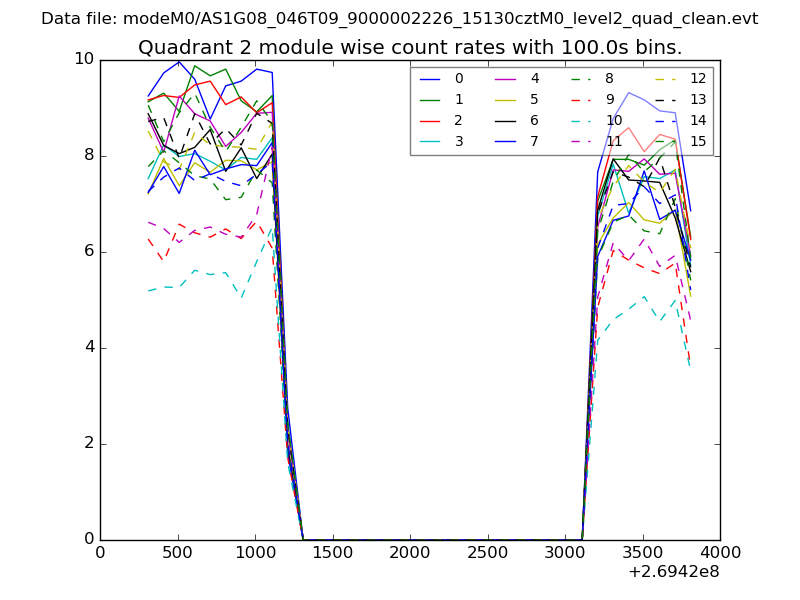

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

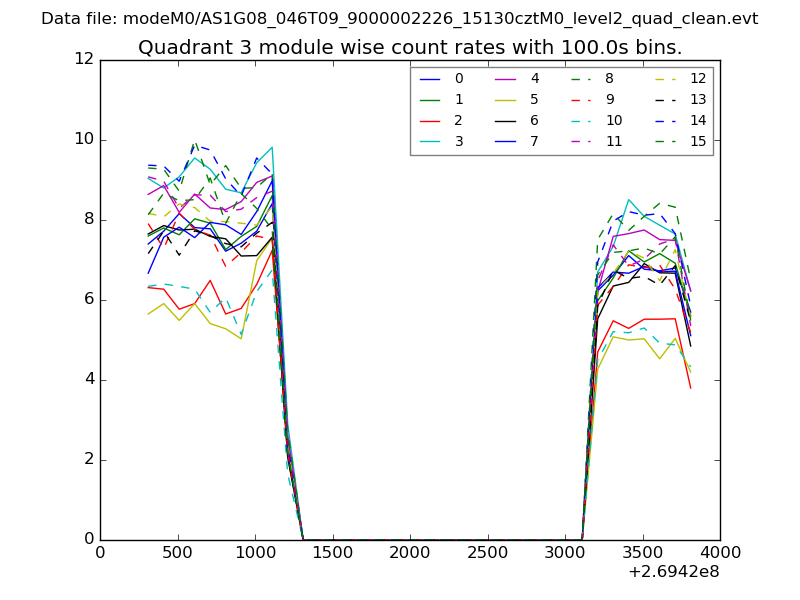

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

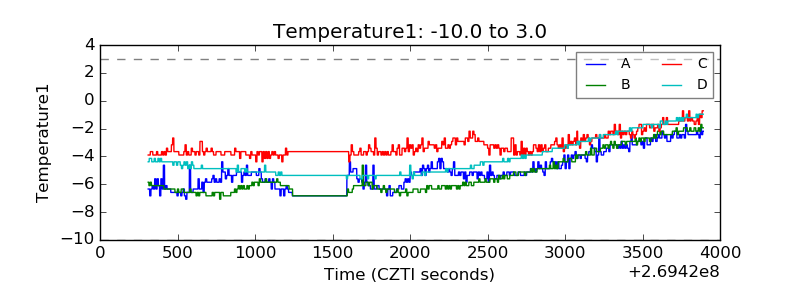

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

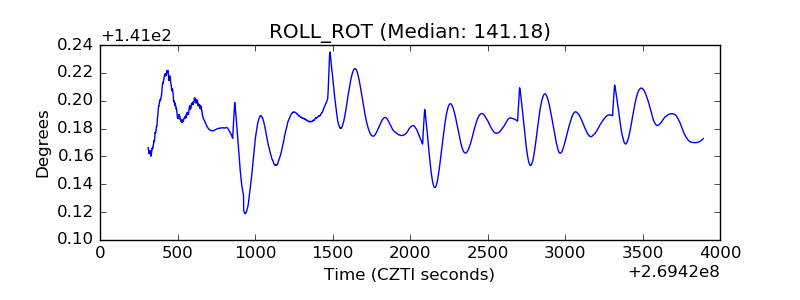

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
