| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T03_9000002232_15139cztM0_level2.evt | modeM0/AS1A04_218T03_9000002232_15139cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,425,600 | 102,974,400 |
| Size | 482.0 MB | 98.2 MB |
| Events in quadrant A | 3,236,565 | 694,829 |
| Events in quadrant B | 3,250,903 | 720,059 |
| Events in quadrant C | 3,231,165 | 708,214 |
| Events in quadrant D | 5,168,590 | 563,675 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13490 | 3 |
| B | 0 | 13553 | 2 |
| C | 0 | 13407 | 2 |
| D | 0 | 19404 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 46 | 0.744216% |
| B | 6181 | 74 | 1.197217% |
| C | 6181 | 29 | 0.469180% |
| D | 6181 | 962 | 15.563825% |

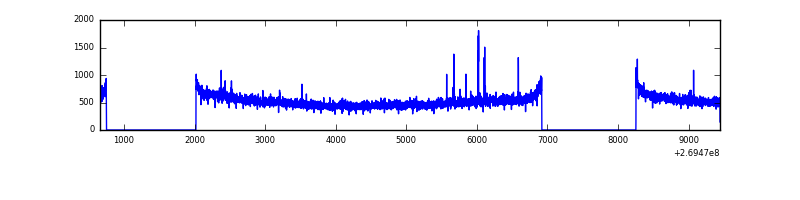

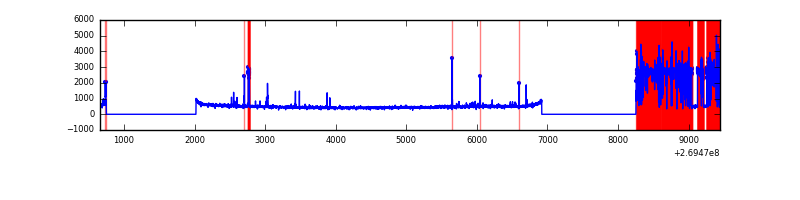

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8787 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8787 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8787 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8787 | 6184 | 877 | 877 | 9.98% | 14.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 79827 | 482.1 | 815 | 799 | 163.9 |
| A | 1 | 162 | 13732 | 78.9 | 815 | 799 | 163.9 |
| A | 0 | 226 | 7211 | 39.12 | 815 | 799 | 163.9 |
| B | 12 | 111 | 17475 | 108.87 | 823 | 805 | 153.1 |
| B | 3 | 64 | 17128 | 106.6 | 823 | 805 | 153.1 |
| B | 11 | 111 | 15001 | 92.71 | 823 | 805 | 153.1 |
| C | 3 | 233 | 72709 | 386.49 | 810 | 818 | 186.0 |
| C | 13 | 61 | 5750 | 26.51 | 810 | 818 | 186.0 |
| C | 7 | 247 | 2422 | 8.62 | 810 | 818 | 186.0 |
| D | 7 | 223 | 2339030 | 13424.3 | 719 | 700 | 174.2 |
| D | 13 | 172 | 54920 | 311.28 | 719 | 700 | 174.2 |
| D | 2 | 234 | 18861 | 104.26 | 719 | 700 | 174.2 |

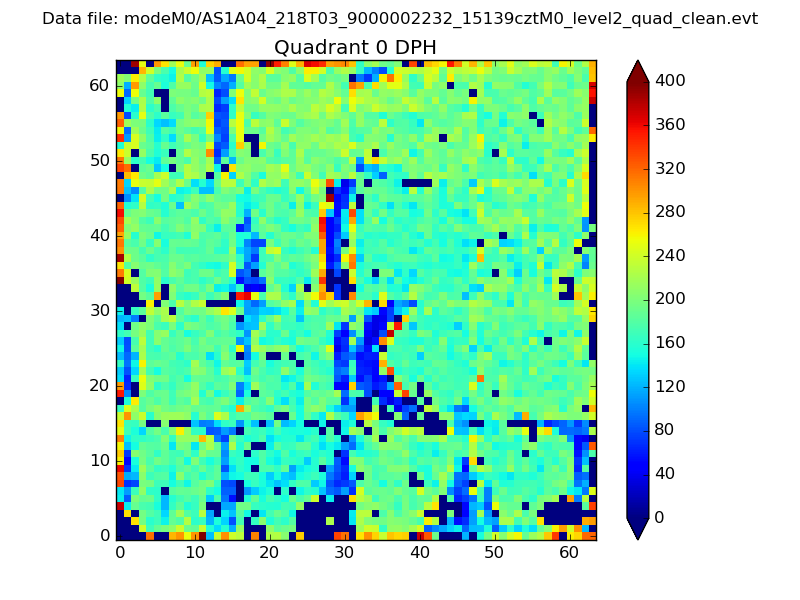

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

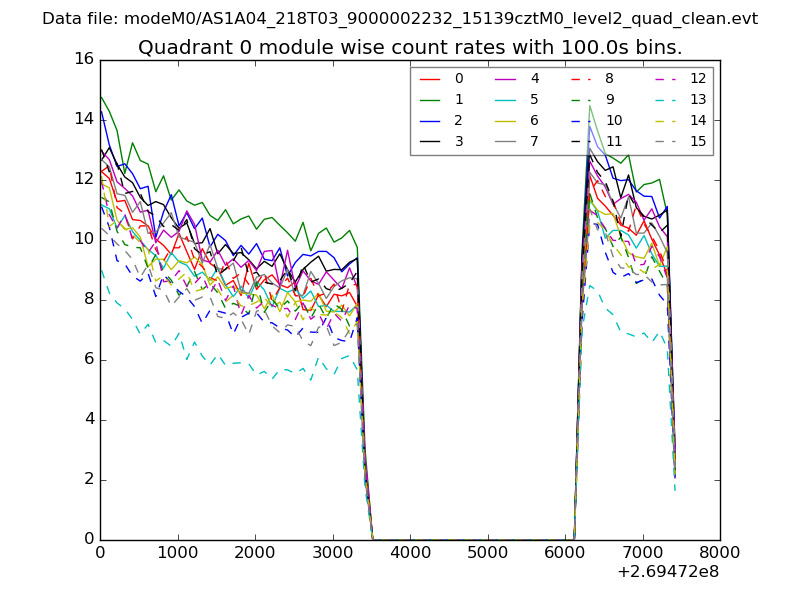

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

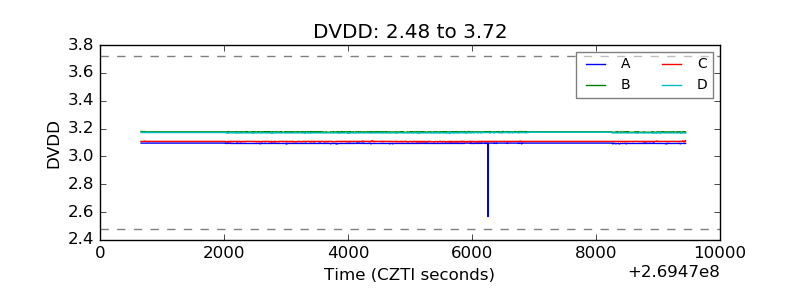

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

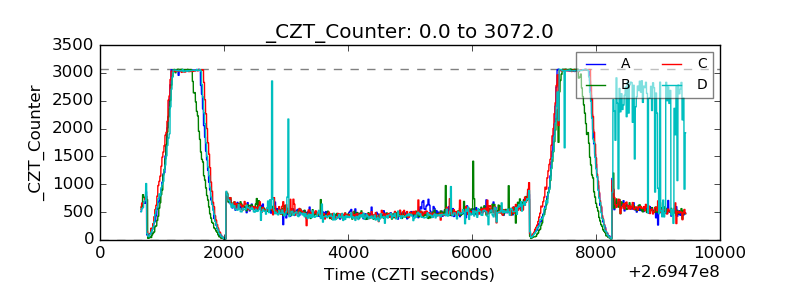

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

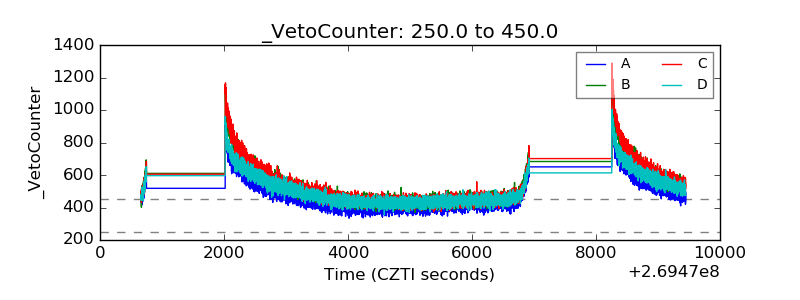

| Veto Counter |  |
