| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T03_9000002232_15140cztM0_level2.evt | modeM0/AS1A04_218T03_9000002232_15140cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,071,040 | 94,032,000 |
| Size | 495.0 MB | 89.7 MB |
| Events in quadrant A | 3,185,901 | 634,241 |
| Events in quadrant B | 3,156,135 | 655,860 |
| Events in quadrant C | 3,104,890 | 646,629 |
| Events in quadrant D | 5,863,664 | 488,969 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13125 | 3 |
| B | 0 | 13044 | 2 |
| C | 0 | 12868 | 2 |
| D | 0 | 21276 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6037 | 28 | 0.463807% |
| B | 6037 | 47 | 0.778532% |
| C | 6037 | 23 | 0.380984% |
| D | 6037 | 1158 | 19.181713% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7413 | 6039 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7413 | 6039 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7413 | 6039 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7413 | 6039 | 1090 | 1090 | 14.70% | 18.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 103883 | 644.76 | 793 | 779 | 159.9 |
| A | 1 | 162 | 21146 | 127.36 | 793 | 779 | 159.9 |
| A | 0 | 226 | 6972 | 38.73 | 793 | 779 | 159.9 |
| B | 12 | 111 | 16733 | 107.61 | 798 | 780 | 148.2 |
| B | 0 | 205 | 16372 | 105.18 | 798 | 780 | 148.2 |
| B | 11 | 111 | 14696 | 93.87 | 798 | 780 | 148.2 |
| C | 3 | 233 | 43144 | 235.77 | 785 | 791 | 179.6 |
| C | 13 | 61 | 5529 | 26.38 | 785 | 791 | 179.6 |
| C | 7 | 247 | 2536 | 9.71 | 785 | 791 | 179.6 |
| D | 7 | 223 | 3169026 | 18878.49 | 686 | 668 | 167.8 |
| D | 10 | 70 | 64807 | 382.17 | 686 | 668 | 167.8 |
| D | 2 | 234 | 19005 | 109.26 | 686 | 668 | 167.8 |

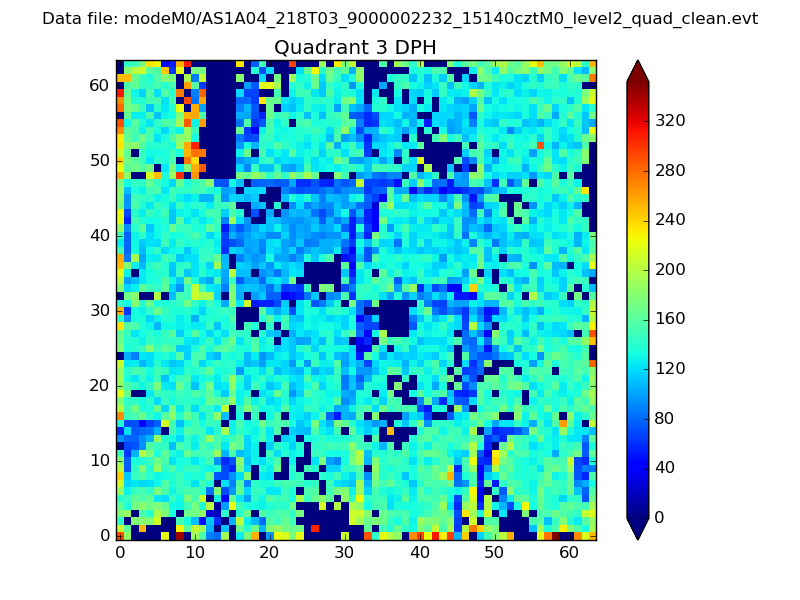

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

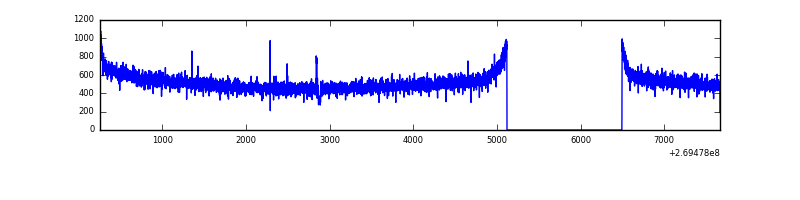

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

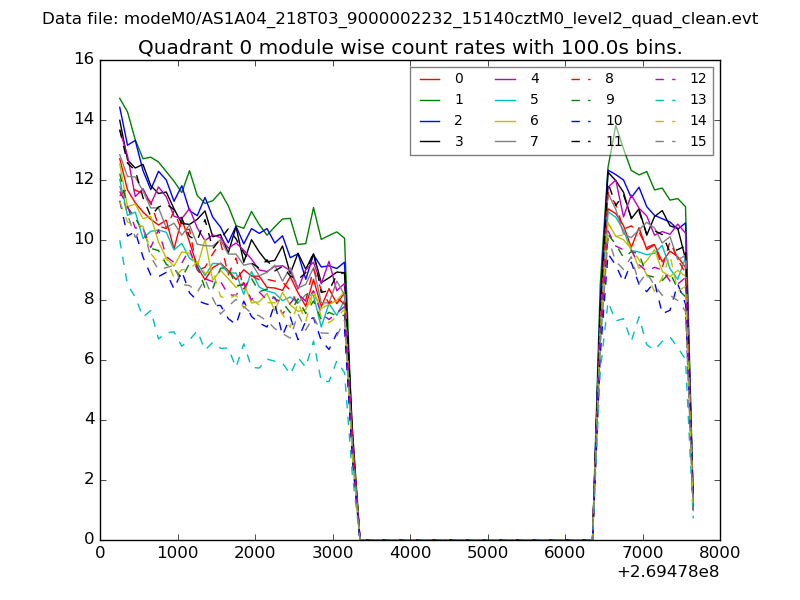

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

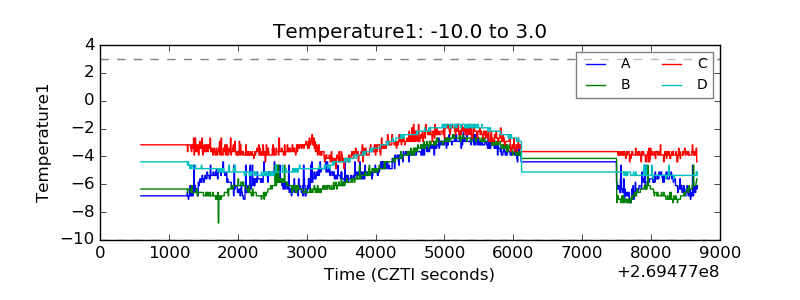

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

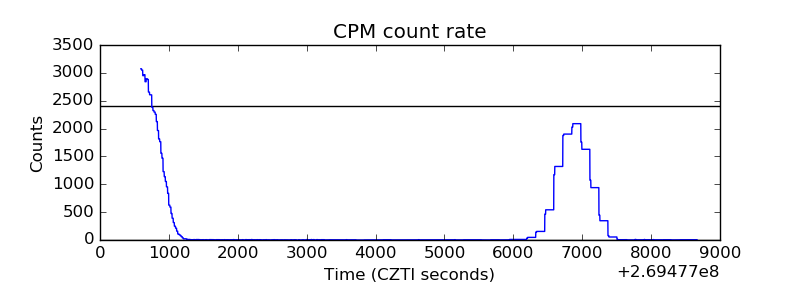

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

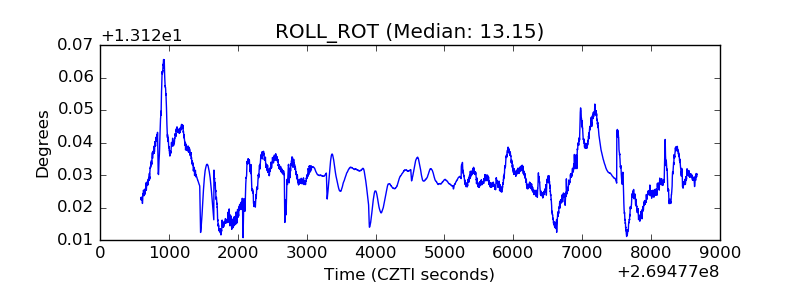

| _ROLL_ROT |  |

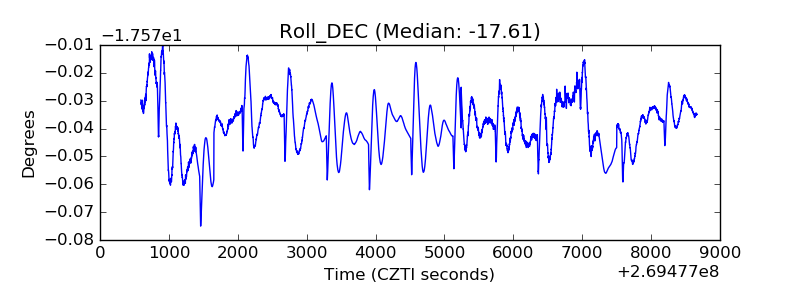

| _Roll_DEC |  |

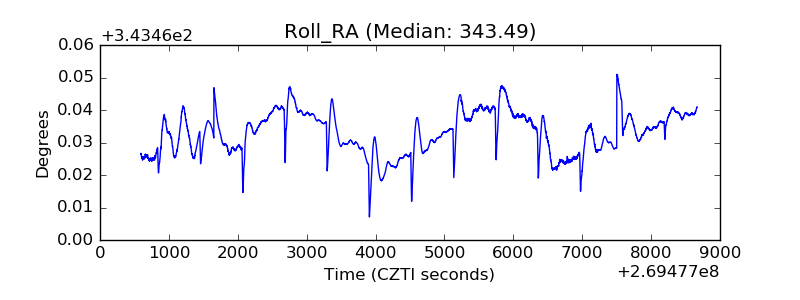

| _Roll_RA |  |
| Veto Counter |  |
