| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T03_9000002232_15145cztM0_level2.evt | modeM0/AS1A04_218T03_9000002232_15145cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,532,800 | 81,878,400 |
| Size | 489.7 MB | 78.1 MB |
| Events in quadrant A | 3,876,184 | 494,887 |
| Events in quadrant B | 3,843,199 | 507,211 |
| Events in quadrant C | 3,470,597 | 501,283 |
| Events in quadrant D | 3,880,305 | 481,329 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15818 | 2 |
| B | 0 | 15864 | 1 |
| C | 0 | 14833 | 1 |
| D | 0 | 16357 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7099 | 221 | 3.113115% |
| B | 7099 | 332 | 4.676715% |
| C | 7099 | 147 | 2.070714% |
| D | 7099 | 176 | 2.479222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7205 | 7100 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7205 | 7101 | 93 | 93 | 1.29% | 1.31% |  |
| C | 7205 | 7101 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7205 | 7101 | 13 | 13 | 0.18% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 526948 | 2952.01 | 866 | 846 | 178.2 |
| A | 12 | 189 | 13748 | 72.39 | 866 | 846 | 178.2 |
| A | 0 | 226 | 7871 | 39.42 | 866 | 846 | 178.2 |
| B | 3 | 64 | 290007 | 1742.37 | 853 | 828 | 166.0 |
| B | 10 | 245 | 47899 | 283.61 | 853 | 828 | 166.0 |
| B | 10 | 246 | 45518 | 269.27 | 853 | 828 | 166.0 |
| C | 3 | 233 | 156429 | 782.5 | 846 | 849 | 198.8 |
| C | 3 | 9 | 11120 | 51.66 | 846 | 849 | 198.8 |
| C | 13 | 61 | 6071 | 26.26 | 846 | 849 | 198.8 |
| D | 7 | 223 | 493920 | 2345.6 | 851 | 825 | 210.2 |
| D | 10 | 70 | 60533 | 284.02 | 851 | 825 | 210.2 |
| D | 2 | 16 | 59020 | 276.83 | 851 | 825 | 210.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

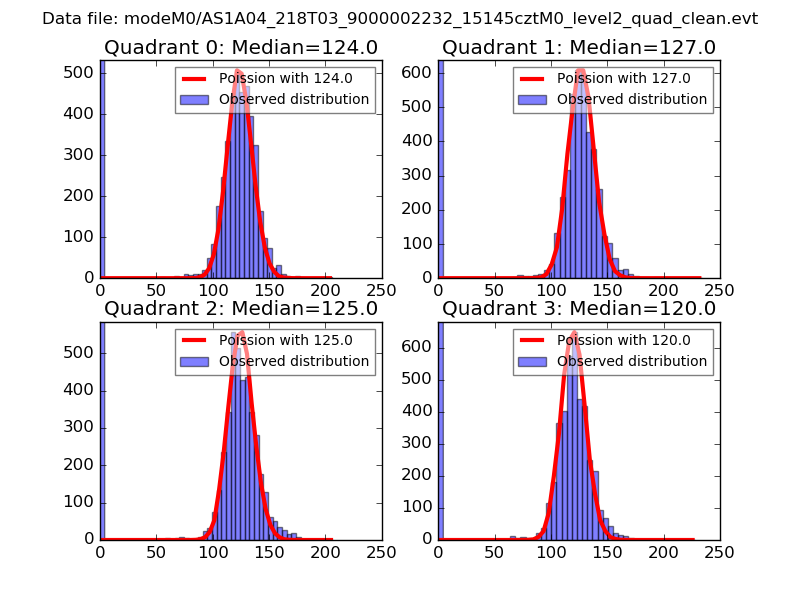

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

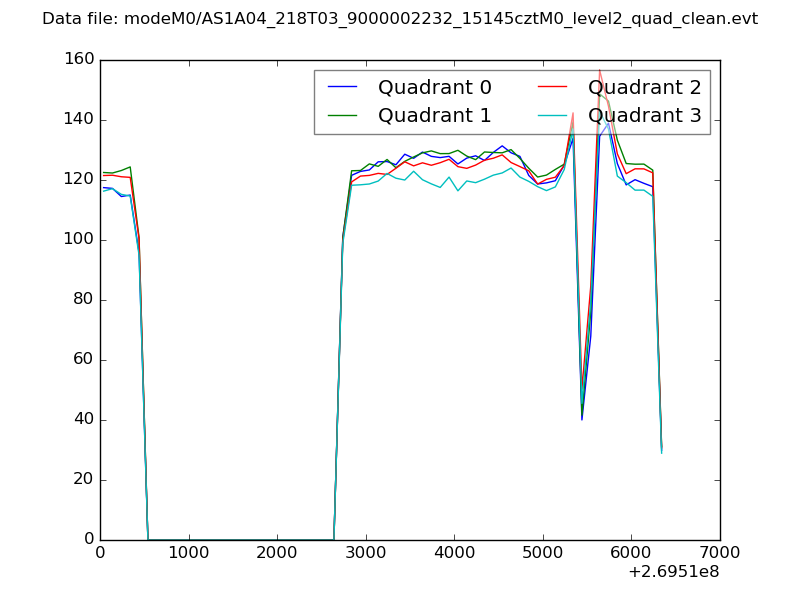

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

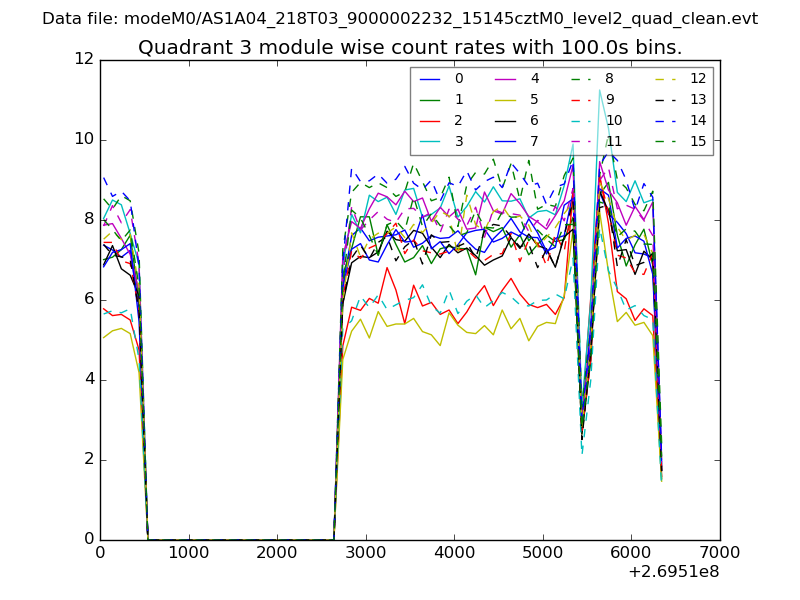

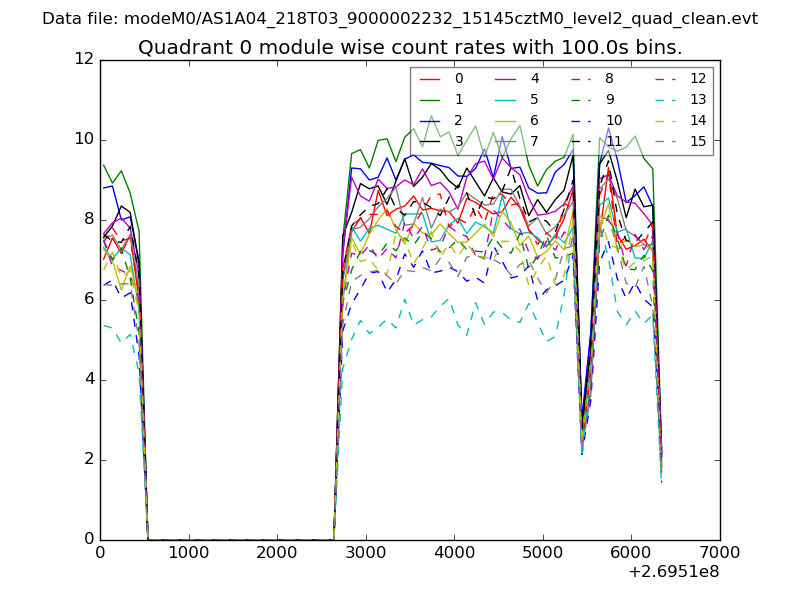

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

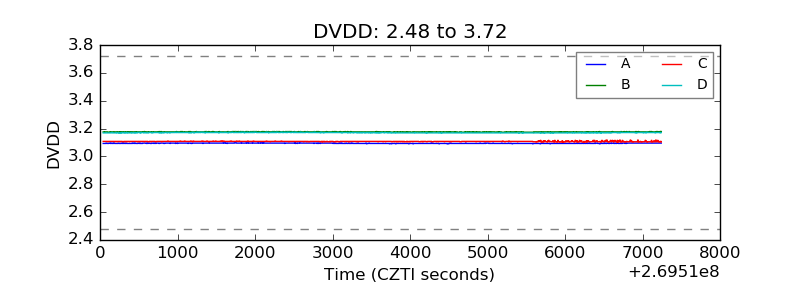

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

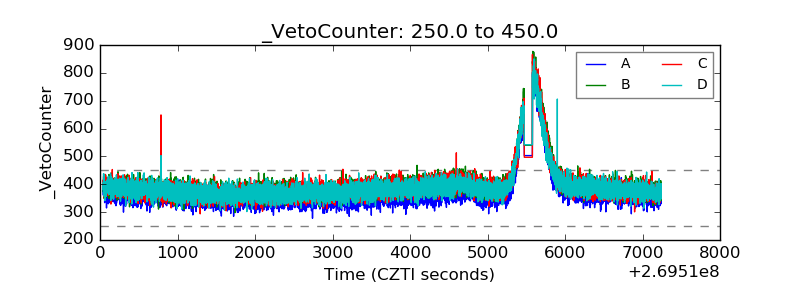

| Veto Counter |  |
