| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_015T03_9000002230_15133cztM0_level2.evt | modeM0/AS1C03_015T03_9000002230_15133cztM0_level2_quad_clean.evt |
| Size (bytes) | 320,664,960 | 82,632,960 |
| Size | 305.8 MB | 78.8 MB |
| Events in quadrant A | 2,165,274 | 550,743 |
| Events in quadrant B | 2,359,578 | 558,485 |
| Events in quadrant C | 2,641,927 | 543,562 |
| Events in quadrant D | 2,230,411 | 525,990 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 94 | 0 |
| B | 0 | 94 | 0 |
| C | 0 | 94 | 0 |
| D | 0 | 94 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9507 | 2 |
| B | 0 | 9879 | 1 |
| C | 0 | 10719 | 1 |
| D | 0 | 9840 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4606 | 45 | 0.976987% |
| B | 4606 | 57 | 1.237516% |
| C | 4606 | 45 | 0.976987% |
| D | 4606 | 87 | 1.888841% |

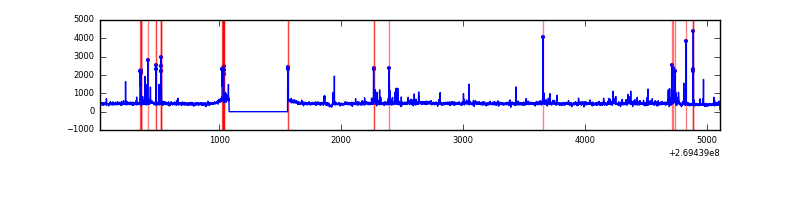

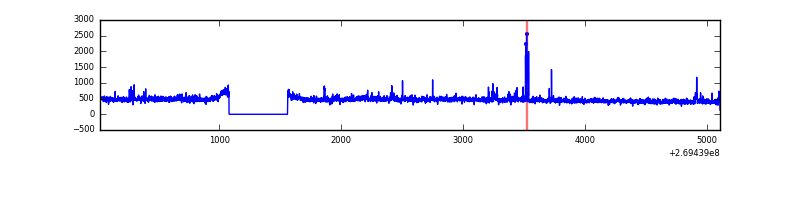

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5087 | 4608 | 2 | 2 | 0.04% | 0.04% |  |
| B | 5087 | 4607 | 17 | 17 | 0.33% | 0.37% |  |
| C | 5087 | 4608 | 4 | 4 | 0.08% | 0.09% |  |
| D | 5087 | 4608 | 35 | 35 | 0.69% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 55713 | 505.46 | 536 | 524 | 109.2 |
| A | 9 | 143 | 25103 | 225.11 | 536 | 524 | 109.2 |
| A | 15 | 239 | 10177 | 88.41 | 536 | 524 | 109.2 |
| B | 3 | 64 | 154816 | 1504.66 | 535 | 523 | 102.5 |
| B | 0 | 230 | 20172 | 191.62 | 535 | 523 | 102.5 |
| B | 0 | 190 | 12135 | 113.24 | 535 | 523 | 102.5 |
| C | 3 | 233 | 610869 | 5082.63 | 517 | 519 | 120.1 |
| C | 0 | 207 | 12572 | 100.37 | 517 | 519 | 120.1 |
| C | 13 | 61 | 3641 | 26.0 | 517 | 519 | 120.1 |
| D | 10 | 70 | 91860 | 713.23 | 518 | 500 | 128.1 |
| D | 7 | 38 | 65871 | 510.34 | 518 | 500 | 128.1 |
| D | 12 | 233 | 35771 | 275.35 | 518 | 500 | 128.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

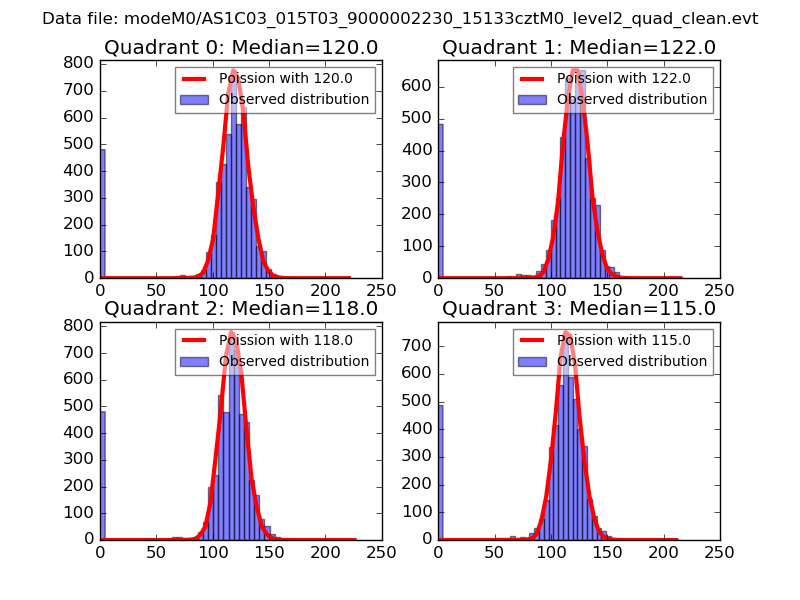

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

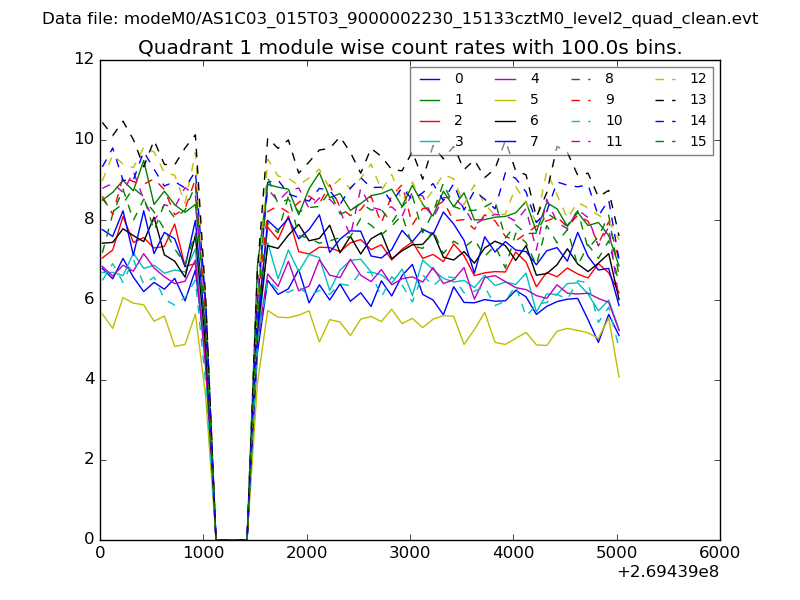

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

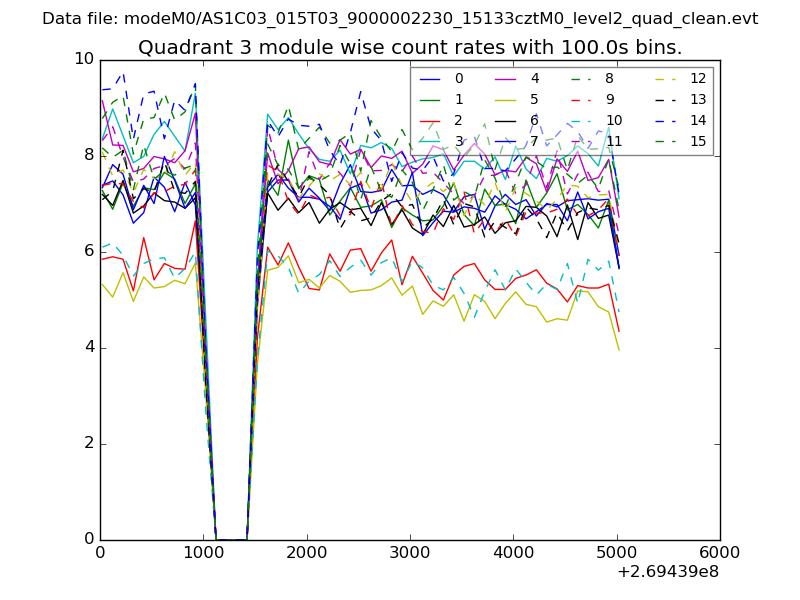

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

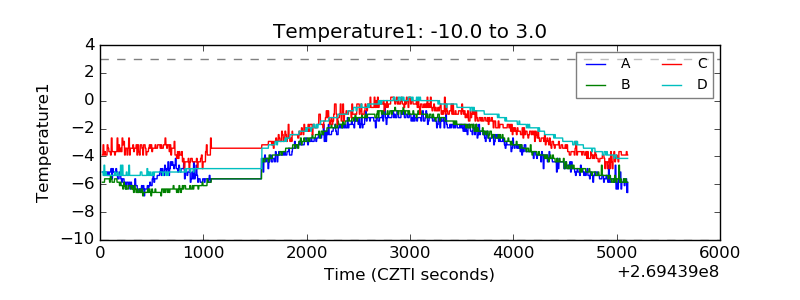

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

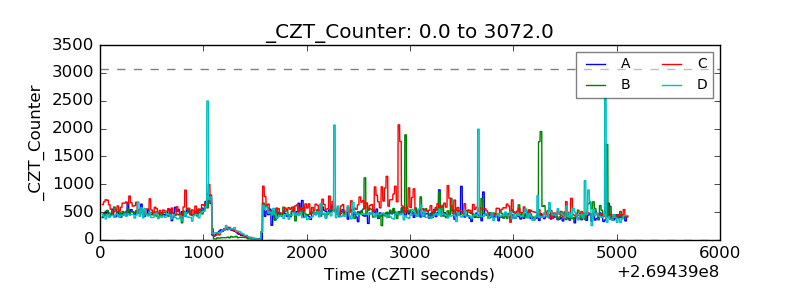

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

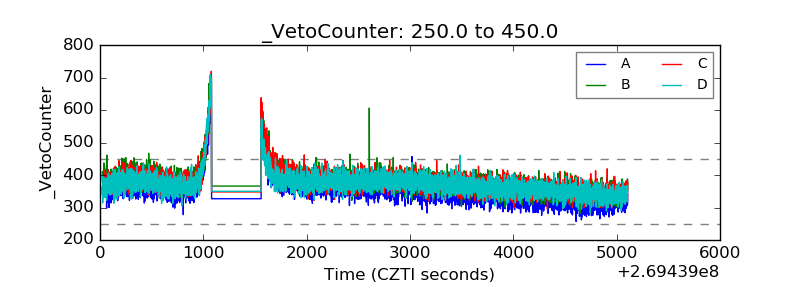

| Veto Counter |  |
