| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_061T03_9000002228_15133cztM0_level2.evt | modeM0/AS1G08_061T03_9000002228_15133cztM0_level2_quad_clean.evt |
| Size (bytes) | 300,942,720 | 40,380,480 |
| Size | 287.0 MB | 38.5 MB |
| Events in quadrant A | 2,082,941 | 236,546 |
| Events in quadrant B | 2,318,153 | 233,129 |
| Events in quadrant C | 2,441,836 | 231,750 |
| Events in quadrant D | 1,986,138 | 226,639 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8950 | 1 |
| B | 0 | 9542 | 1 |
| C | 0 | 9853 | 1 |
| D | 0 | 8859 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4171 | 142 | 3.404459% |
| B | 4171 | 202 | 4.842963% |
| C | 4171 | 100 | 2.397507% |
| D | 4171 | 91 | 2.181731% |

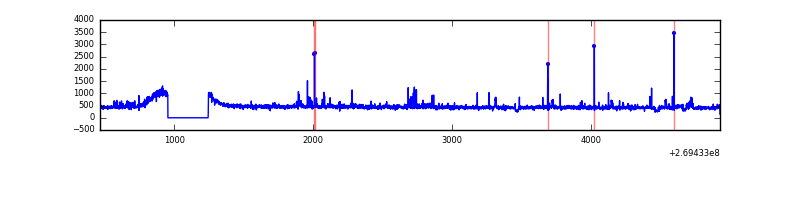

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4462 | 4172 | 20 | 20 | 0.45% | 0.48% |  |
| B | 4462 | 4172 | 78 | 78 | 1.75% | 1.87% |  |
| C | 4462 | 4172 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4462 | 4172 | 5 | 5 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 86671 | 805.48 | 514 | 502 | 107.0 |
| A | 12 | 189 | 17510 | 158.99 | 514 | 502 | 107.0 |
| A | 0 | 226 | 4515 | 37.51 | 514 | 502 | 107.0 |
| B | 3 | 64 | 246384 | 2439.0 | 508 | 493 | 100.8 |
| B | 4 | 48 | 41435 | 406.11 | 508 | 493 | 100.8 |
| B | 0 | 197 | 14717 | 141.09 | 508 | 493 | 100.8 |
| C | 3 | 233 | 499156 | 4252.81 | 494 | 497 | 117.3 |
| C | 10 | 22 | 5130 | 39.51 | 494 | 497 | 117.3 |
| C | 8 | 128 | 4140 | 31.07 | 494 | 497 | 117.3 |
| D | 2 | 234 | 17531 | 136.91 | 500 | 486 | 124.5 |
| D | 5 | 222 | 15806 | 123.05 | 500 | 486 | 124.5 |
| D | 7 | 223 | 13552 | 104.95 | 500 | 486 | 124.5 |

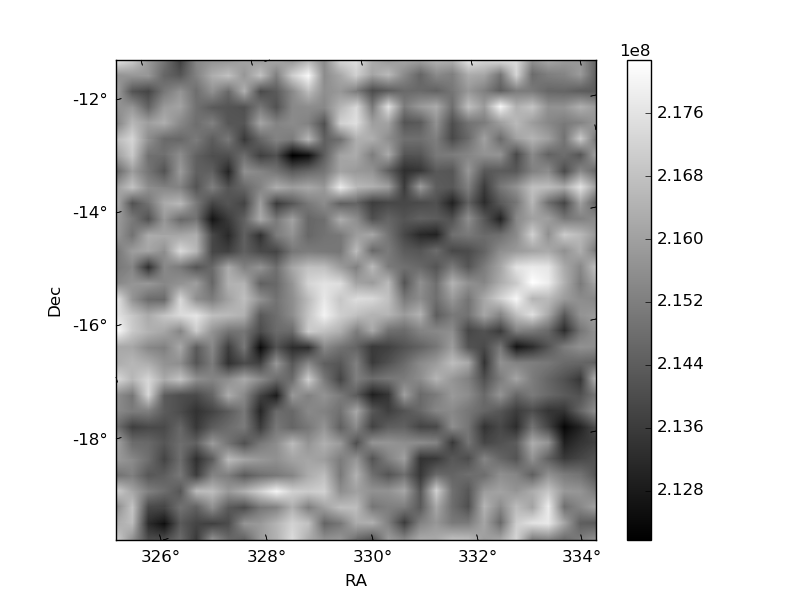

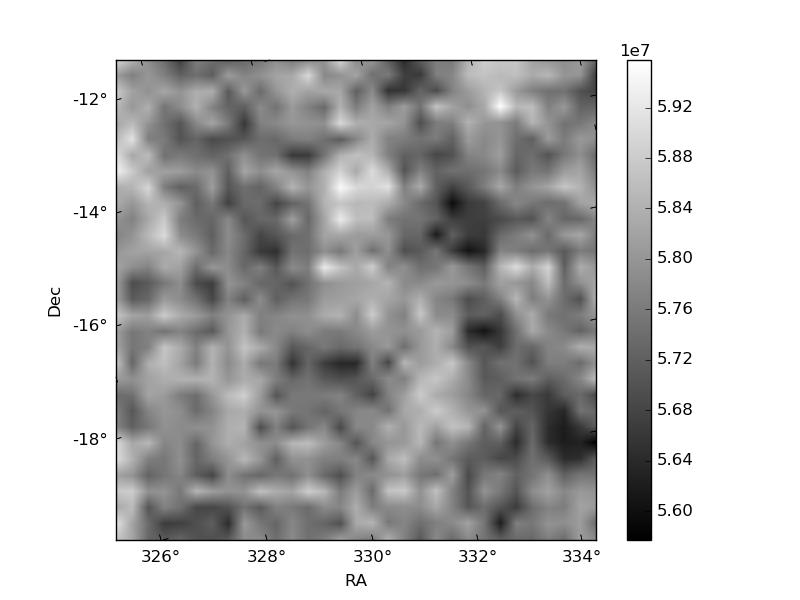

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

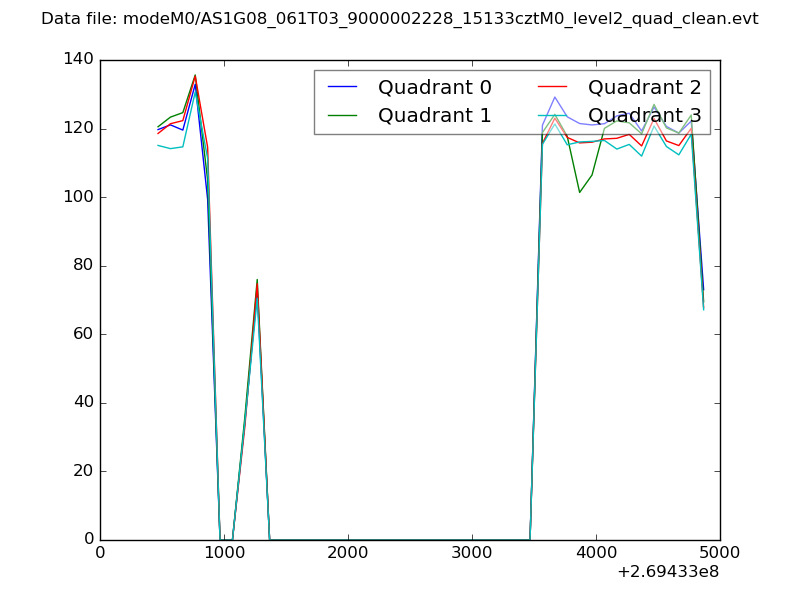

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

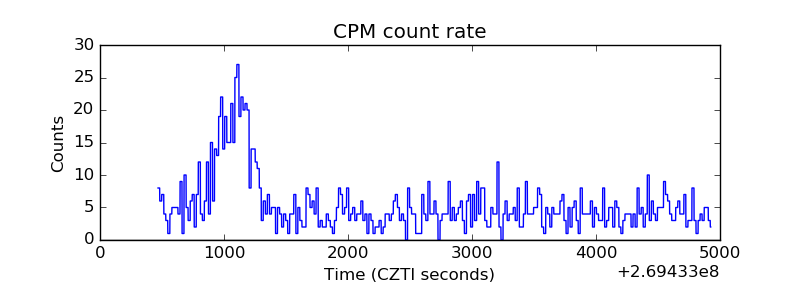

| _CPM_Rate |  |

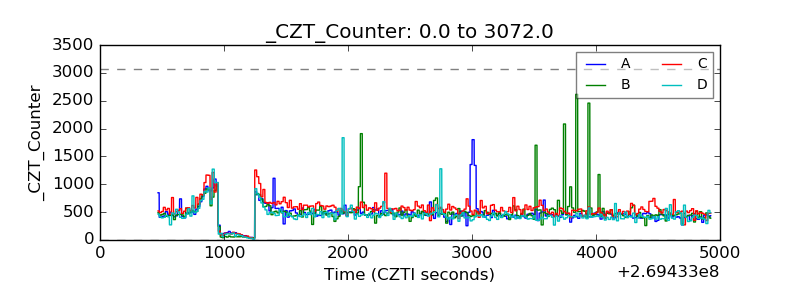

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

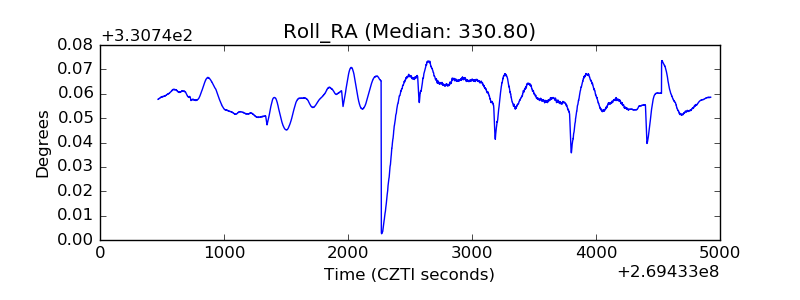

| _Roll_RA |  |

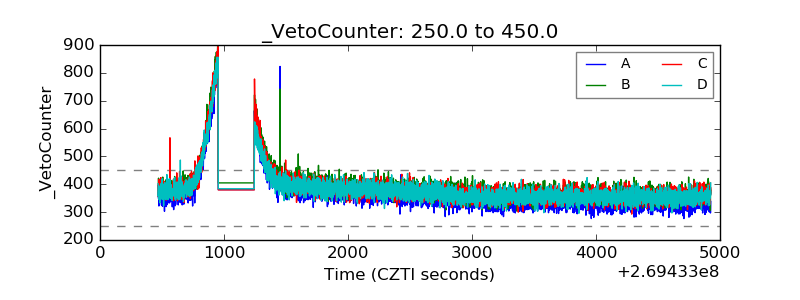

| Veto Counter |  |
