| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T08_9000002236_15164cztM0_level2.evt | modeM0/AS1A04_218T08_9000002236_15164cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,419,912,000 | 289,293,120 |
| Size | 1.3 GB | 275.9 MB |
| Events in quadrant A | 10,342,655 | 1,850,862 |
| Events in quadrant B | 9,859,453 | 1,858,159 |
| Events in quadrant C | 12,022,501 | 1,875,031 |
| Events in quadrant D | 9,439,758 | 1,814,476 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 404 | 0 |
| B | 0 | 404 | 0 |
| C | 0 | 404 | 0 |
| D | 0 | 404 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43856 | 5 |
| B | 0 | 42535 | 4 |
| C | 0 | 49186 | 4 |
| D | 0 | 41548 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19805 | 294 | 1.484474% |
| B | 19805 | 418 | 2.110578% |
| C | 19805 | 237 | 1.196668% |
| D | 19805 | 249 | 1.257258% |

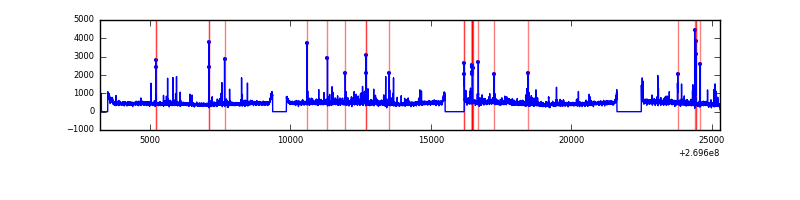

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22071 | 19807 | 2 | 2 | 0.01% | 0.01% |  |
| B | 22071 | 19806 | 84 | 84 | 0.38% | 0.42% |  |
| C | 22071 | 19807 | 1 | 1 | 0.00% | 0.01% |  |
| D | 22071 | 19806 | 28 | 28 | 0.13% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1425099 | 3079.62 | 2302 | 2250 | 462.0 |
| A | 12 | 189 | 44905 | 92.32 | 2302 | 2250 | 462.0 |
| A | 13 | 248 | 30015 | 60.09 | 2302 | 2250 | 462.0 |
| B | 3 | 64 | 512988 | 1166.61 | 2309 | 2243 | 437.8 |
| B | 4 | 48 | 105531 | 235.92 | 2309 | 2243 | 437.8 |
| B | 0 | 230 | 86320 | 192.04 | 2309 | 2243 | 437.8 |
| C | 3 | 233 | 3179658 | 6120.73 | 2255 | 2270 | 519.1 |
| C | 3 | 9 | 18831 | 31.9 | 2255 | 2270 | 519.1 |
| C | 13 | 61 | 16107 | 26.65 | 2255 | 2270 | 519.1 |
| D | 2 | 16 | 536736 | 980.8 | 2256 | 2186 | 545.0 |
| D | 2 | 120 | 83430 | 149.07 | 2256 | 2186 | 545.0 |
| D | 2 | 234 | 80057 | 142.88 | 2256 | 2186 | 545.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

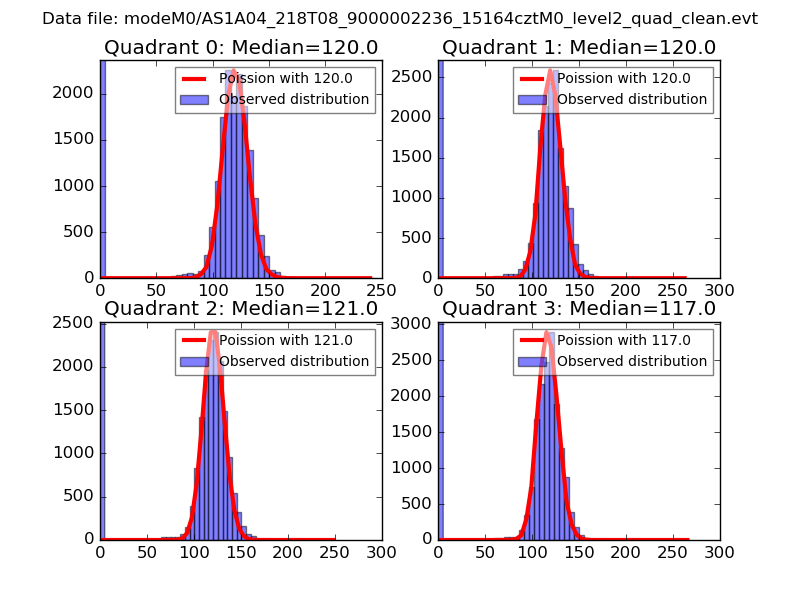

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

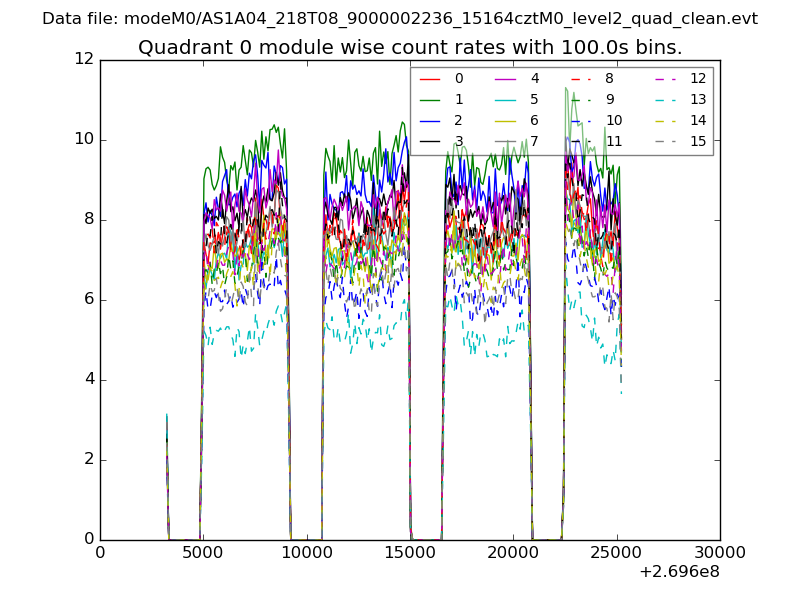

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

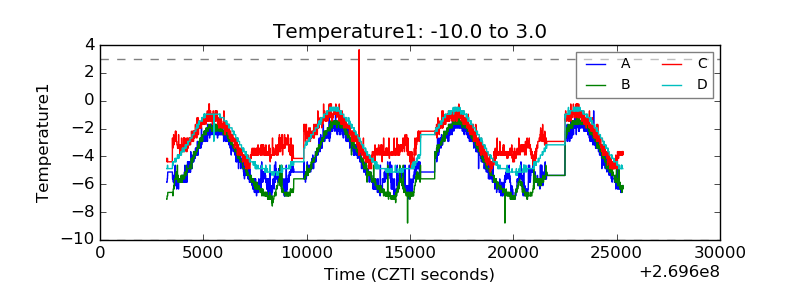

| Temperature 1 |  |
| Veto HV Monitor |  |

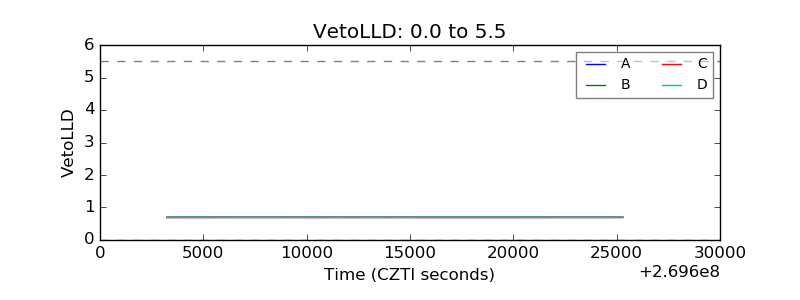

| Veto LLD |  |

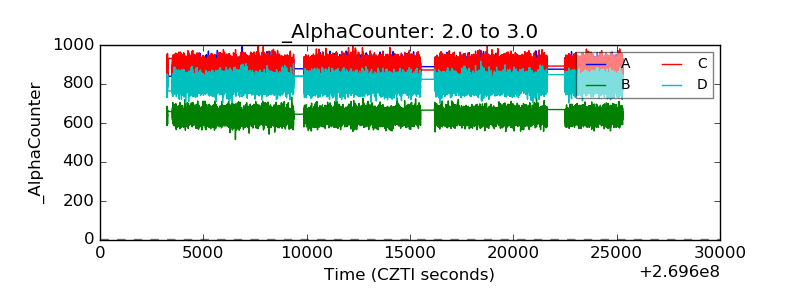

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

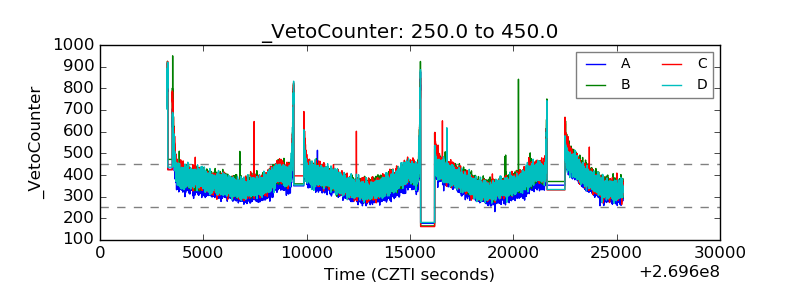

| Veto Counter |  |
