| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_105T01_9000002248_15220cztM0_level2.evt | modeM0/AS1A04_105T01_9000002248_15220cztM0_level2_quad_clean.evt |
| Size (bytes) | 290,168,640 | 15,232,320 |
| Size | 276.7 MB | 14.5 MB |
| Events in quadrant A | 2,522,001 | 70,250 |
| Events in quadrant B | 3,280,388 | 68,146 |
| Events in quadrant C | 1,480,231 | 78,557 |
| Events in quadrant D | 1,344,850 | 74,744 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9109 | 2 |
| B | 0 | 11314 | 1 |
| C | 0 | 5850 | 1 |
| D | 0 | 5571 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2343 | 369 | 15.749040% |
| B | 2343 | 1012 | 43.192488% |
| C | 2343 | 96 | 4.097311% |
| D | 2343 | 100 | 4.268032% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2819 | 2344 | 200 | 200 | 7.09% | 8.53% |  |
| B | 2819 | 2344 | 683 | 683 | 24.23% | 29.14% |  |
| C | 2819 | 2344 | 8 | 8 | 0.28% | 0.34% |  |
| D | 2819 | 2344 | 28 | 28 | 0.99% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 1395780 | 23152.1 | 287 | 280 | 60.3 |
| A | 12 | 189 | 18899 | 308.9 | 287 | 280 | 60.3 |
| A | 0 | 226 | 2415 | 35.42 | 287 | 280 | 60.3 |
| B | 3 | 112 | 2345093 | 49882.67 | 231 | 224 | 47.0 |
| B | 10 | 245 | 10223 | 212.71 | 231 | 224 | 47.0 |
| B | 3 | 64 | 7780 | 160.74 | 231 | 224 | 47.0 |
| C | 3 | 233 | 209338 | 2994.48 | 290 | 291 | 69.8 |
| C | 4 | 254 | 124190 | 1774.78 | 290 | 291 | 69.8 |
| C | 7 | 247 | 8807 | 121.99 | 290 | 291 | 69.8 |
| D | 2 | 33 | 246080 | 3407.37 | 287 | 277 | 72.1 |
| D | 13 | 104 | 12075 | 163.55 | 287 | 277 | 72.1 |
| D | 2 | 234 | 7249 | 96.65 | 287 | 277 | 72.1 |

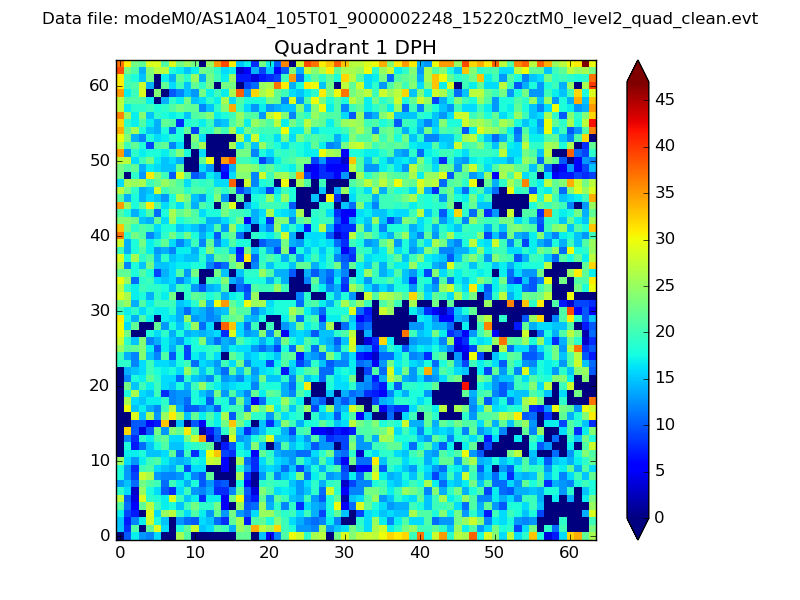

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

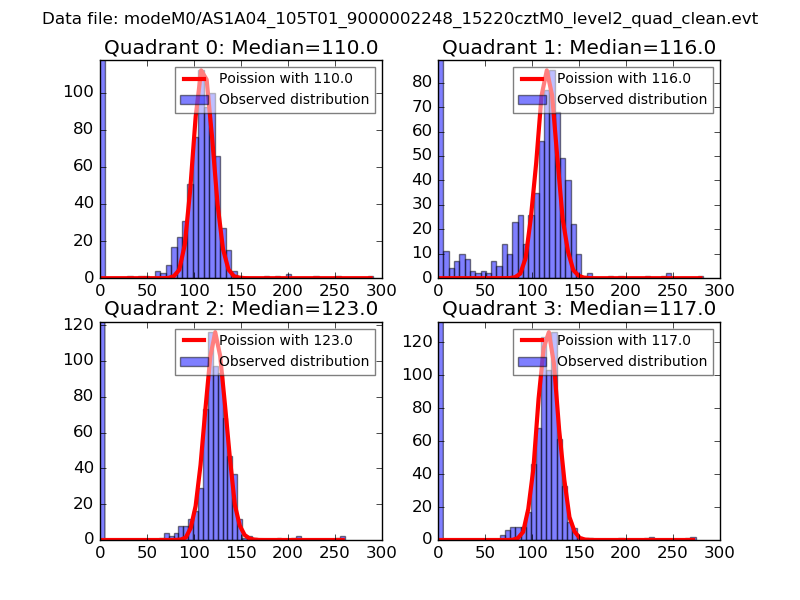

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

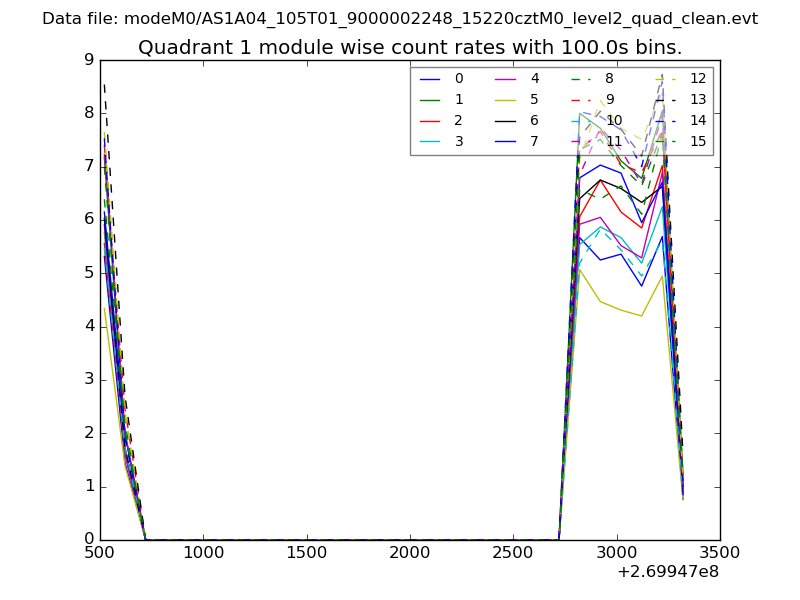

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

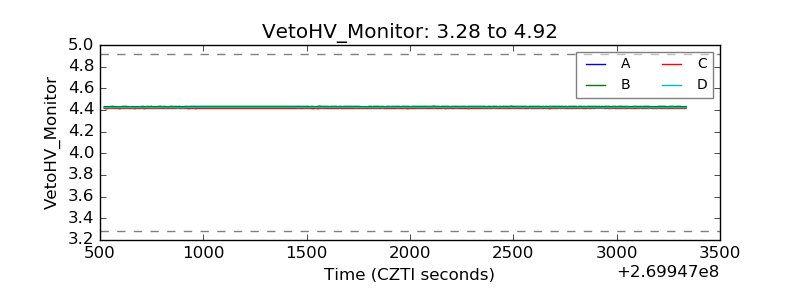

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

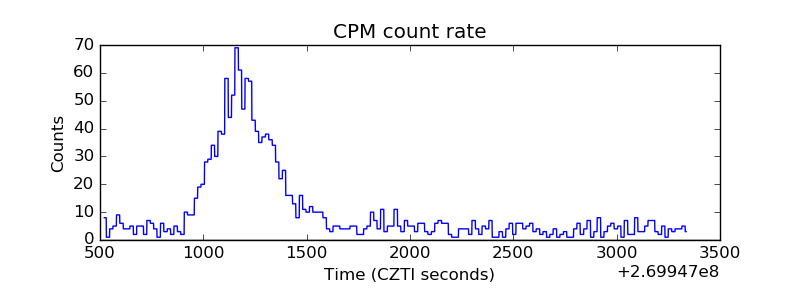

| _CPM_Rate |  |

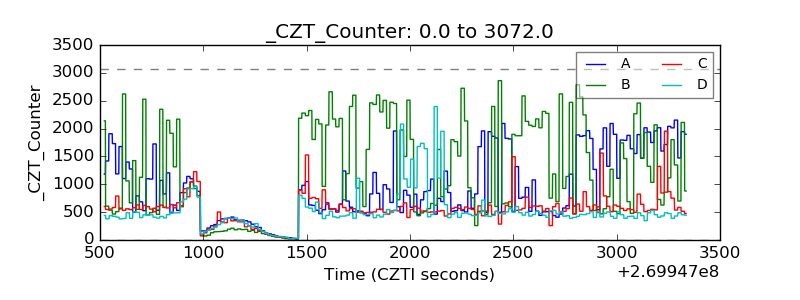

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
