| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_105T01_9000002248_15225cztM0_level2.evt | modeM0/AS1A04_105T01_9000002248_15225cztM0_level2_quad_clean.evt |
| Size (bytes) | 621,705,600 | 103,515,840 |
| Size | 592.9 MB | 98.7 MB |
| Events in quadrant A | 5,102,331 | 693,083 |
| Events in quadrant B | 5,493,003 | 656,919 |
| Events in quadrant C | 4,535,813 | 677,932 |
| Events in quadrant D | 3,260,077 | 655,913 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19877 | 3 |
| B | 0 | 20666 | 2 |
| C | 0 | 18221 | 2 |
| D | 0 | 14012 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6469 | 345 | 5.333127% |
| B | 6469 | 736 | 11.377338% |
| C | 6469 | 50 | 0.772917% |
| D | 6469 | 60 | 0.927500% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6470 | 181 | 181 | 2.34% | 2.80% |  |
| B | 7735 | 6471 | 500 | 500 | 6.46% | 7.73% |  |
| C | 7735 | 6471 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7735 | 6470 | 20 | 20 | 0.26% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 1641034 | 9769.96 | 833 | 817 | 167.9 |
| A | 12 | 189 | 203194 | 1205.46 | 833 | 817 | 167.9 |
| A | 9 | 143 | 40267 | 234.98 | 833 | 817 | 167.9 |
| B | 3 | 112 | 1667826 | 11025.09 | 804 | 786 | 151.2 |
| B | 3 | 64 | 198493 | 1307.55 | 804 | 786 | 151.2 |
| B | 7 | 220 | 150171 | 987.97 | 804 | 786 | 151.2 |
| C | 3 | 233 | 1347383 | 7326.21 | 799 | 806 | 183.8 |
| C | 7 | 247 | 50791 | 271.95 | 799 | 806 | 183.8 |
| C | 4 | 254 | 20344 | 106.3 | 799 | 806 | 183.8 |
| D | 7 | 38 | 83087 | 419.59 | 808 | 786 | 196.1 |
| D | 2 | 120 | 26608 | 131.65 | 808 | 786 | 196.1 |
| D | 2 | 234 | 25477 | 125.88 | 808 | 786 | 196.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

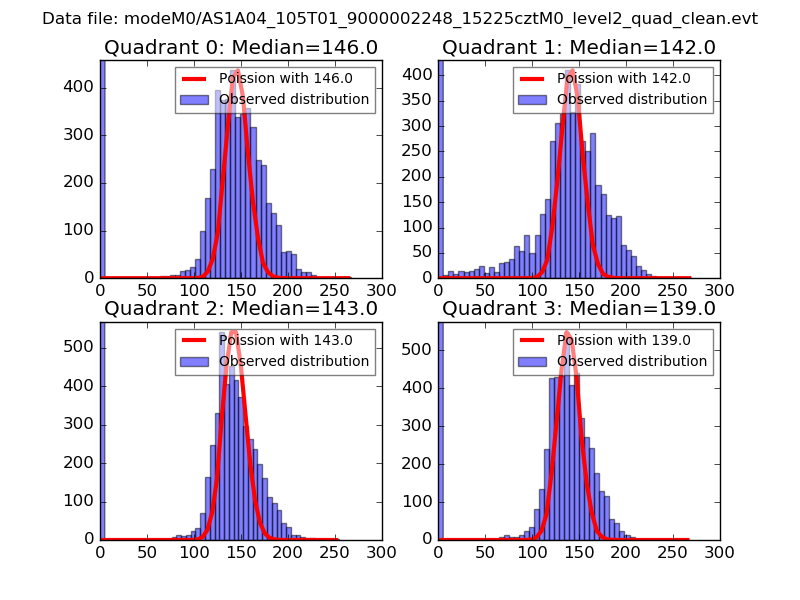

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

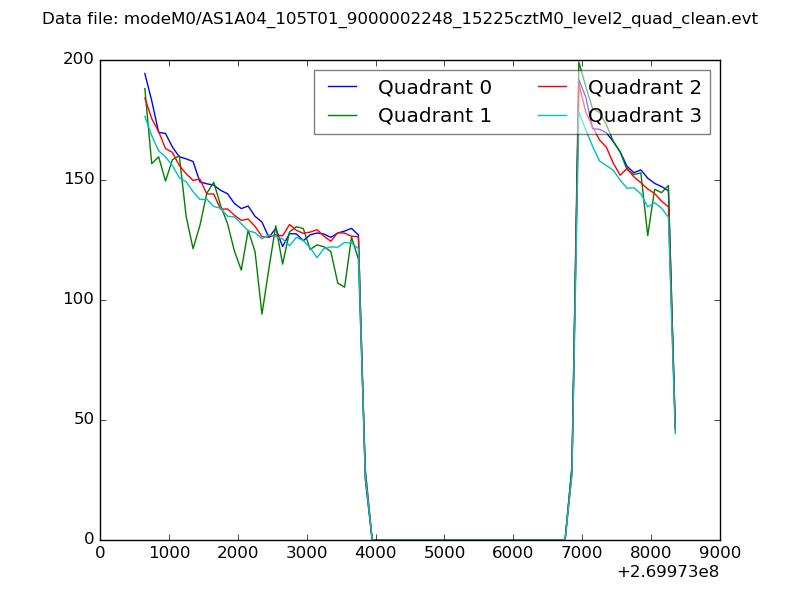

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

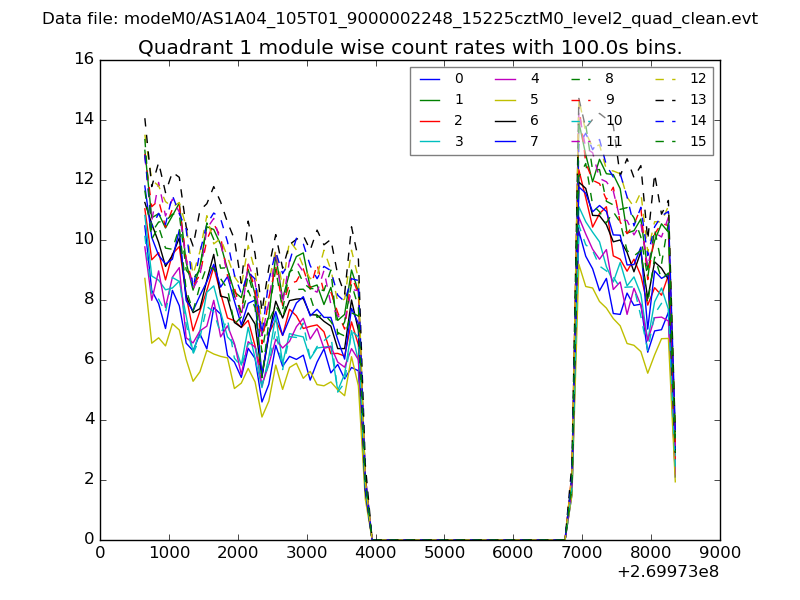

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

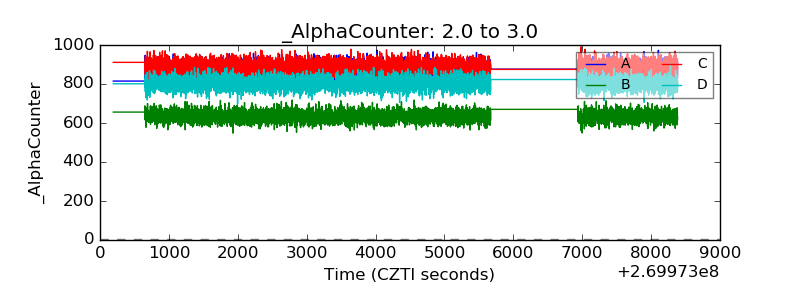

| Alpha Counter |  |

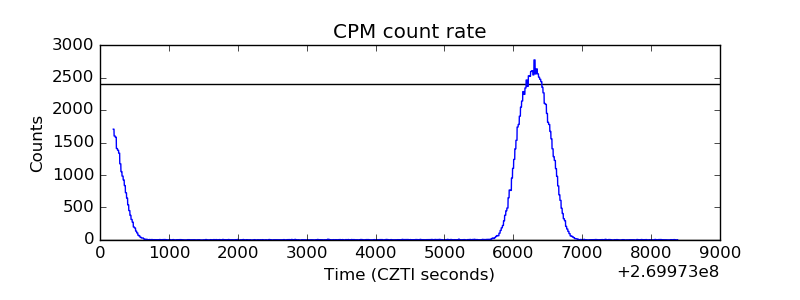

| _CPM_Rate |  |

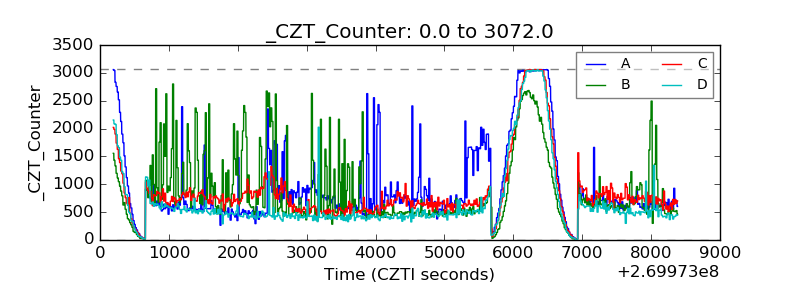

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

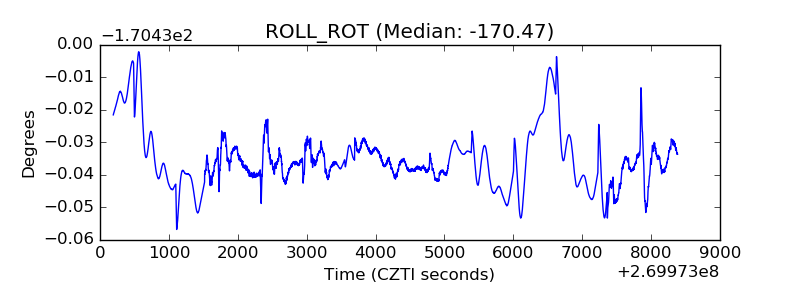

| _ROLL_ROT |  |
| _Roll_DEC |  |

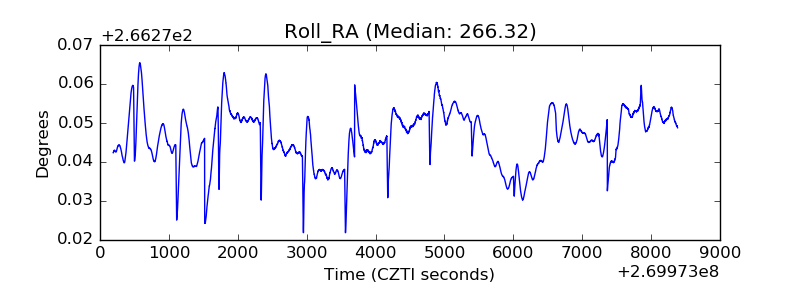

| _Roll_RA |  |
| Veto Counter |  |
