| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_072T01_9000002250_15241cztM0_level2.evt | modeM0/AS1T02_072T01_9000002250_15241cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,310,400 | 130,112,640 |
| Size | 499.1 MB | 124.1 MB |
| Events in quadrant A | 3,144,932 | 901,034 |
| Events in quadrant B | 4,204,887 | 893,822 |
| Events in quadrant C | 3,971,575 | 878,103 |
| Events in quadrant D | 4,111,381 | 839,533 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13237 | 3 |
| B | 0 | 16537 | 2 |
| C | 0 | 15743 | 2 |
| D | 0 | 16419 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6136 | 55 | 0.896349% |
| B | 6136 | 361 | 5.883312% |
| C | 6136 | 175 | 2.852021% |
| D | 6136 | 150 | 2.444589% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7497 | 6127 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7497 | 6127 | 215 | 215 | 2.87% | 3.51% |  |
| C | 7497 | 6127 | 117 | 117 | 1.56% | 1.91% |  |
| D | 7497 | 6127 | 90 | 90 | 1.20% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 95831 | 608.93 | 784 | 769 | 156.1 |
| A | 15 | 239 | 10878 | 64.75 | 784 | 769 | 156.1 |
| A | 15 | 233 | 10828 | 64.43 | 784 | 769 | 156.1 |
| B | 10 | 16 | 854284 | 6083.28 | 772 | 755 | 140.3 |
| B | 3 | 64 | 143143 | 1014.83 | 772 | 755 | 140.3 |
| B | 0 | 229 | 76073 | 536.81 | 772 | 755 | 140.3 |
| C | 4 | 254 | 656075 | 3856.27 | 749 | 755 | 169.9 |
| C | 3 | 233 | 363700 | 2135.77 | 749 | 755 | 169.9 |
| C | 10 | 22 | 21368 | 121.3 | 749 | 755 | 169.9 |
| D | 2 | 16 | 805806 | 4491.24 | 748 | 727 | 179.3 |
| D | 7 | 38 | 135365 | 751.1 | 748 | 727 | 179.3 |
| D | 13 | 172 | 73488 | 405.91 | 748 | 727 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

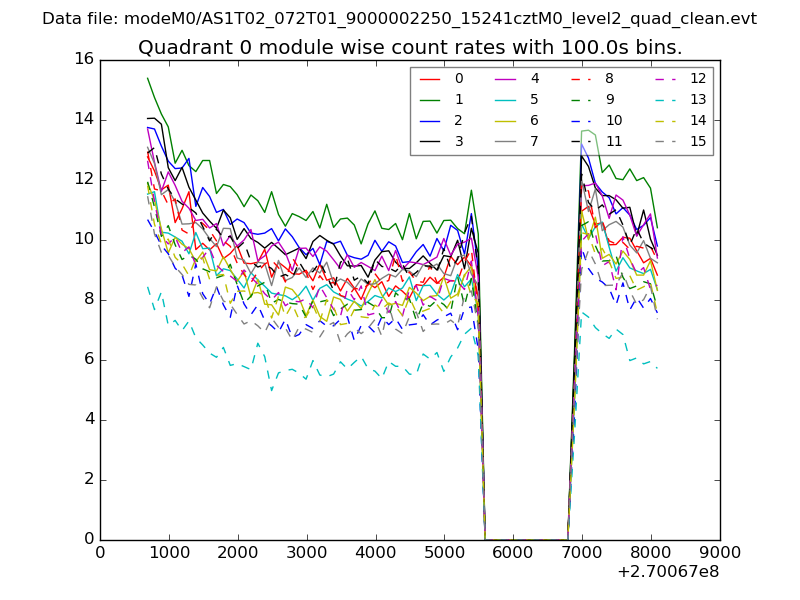

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

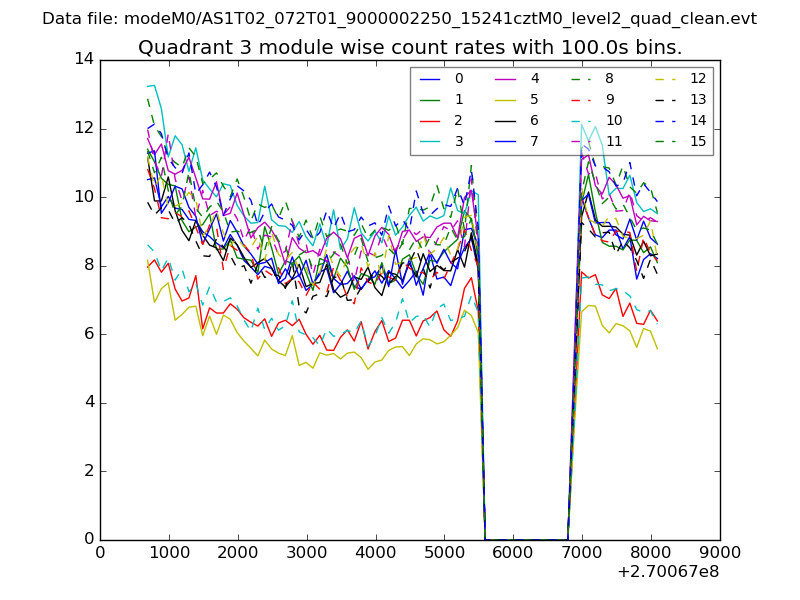

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
