| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_072T01_9000002250_15242cztM0_level2.evt | modeM0/AS1T02_072T01_9000002250_15242cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,664,000 | 127,071,360 |
| Size | 457.4 MB | 121.2 MB |
| Events in quadrant A | 3,070,431 | 866,655 |
| Events in quadrant B | 3,419,778 | 879,900 |
| Events in quadrant C | 3,859,266 | 857,386 |
| Events in quadrant D | 3,762,203 | 817,787 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12963 | 3 |
| B | 0 | 14014 | 2 |
| C | 0 | 15377 | 2 |
| D | 0 | 15329 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6118 | 24 | 0.392285% |
| B | 6118 | 98 | 1.601831% |
| C | 6118 | 108 | 1.765283% |
| D | 6118 | 96 | 1.569140% |

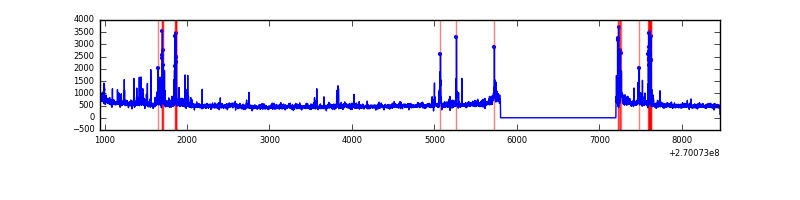

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 6120 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7519 | 6120 | 41 | 41 | 0.55% | 0.67% |  |
| C | 7519 | 6120 | 72 | 72 | 0.96% | 1.18% |  |
| D | 7519 | 6120 | 68 | 68 | 0.90% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 92071 | 609.28 | 754 | 739 | 149.9 |
| A | 13 | 248 | 40360 | 264.31 | 754 | 739 | 149.9 |
| A | 15 | 233 | 28063 | 182.28 | 754 | 739 | 149.9 |
| B | 10 | 16 | 255759 | 1826.47 | 757 | 738 | 139.6 |
| B | 0 | 229 | 55933 | 395.31 | 757 | 738 | 139.6 |
| B | 0 | 205 | 45465 | 320.34 | 757 | 738 | 139.6 |
| C | 4 | 254 | 526993 | 3166.38 | 732 | 735 | 166.2 |
| C | 3 | 233 | 455176 | 2734.27 | 732 | 735 | 166.2 |
| C | 7 | 247 | 21070 | 122.35 | 732 | 735 | 166.2 |
| D | 2 | 16 | 502466 | 2852.19 | 728 | 706 | 175.9 |
| D | 2 | 136 | 293990 | 1667.14 | 728 | 706 | 175.9 |
| D | 7 | 38 | 89812 | 506.51 | 728 | 706 | 175.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

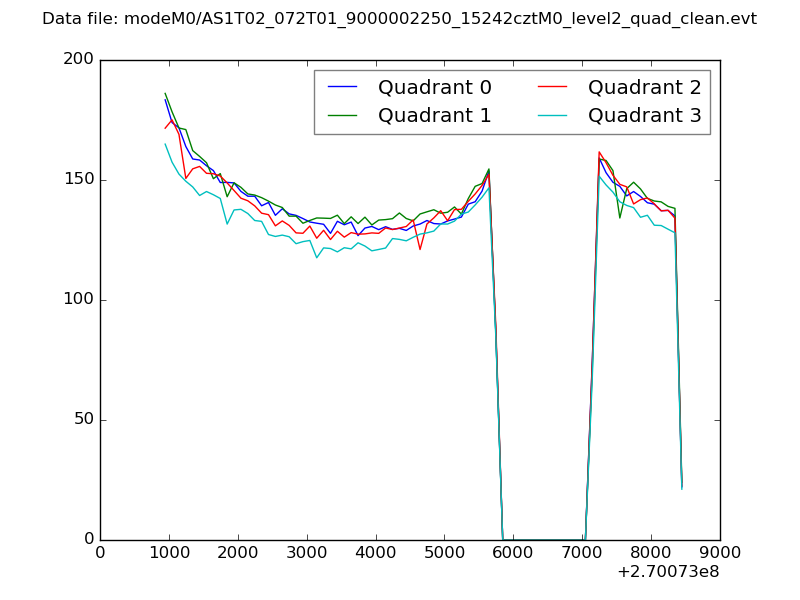

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

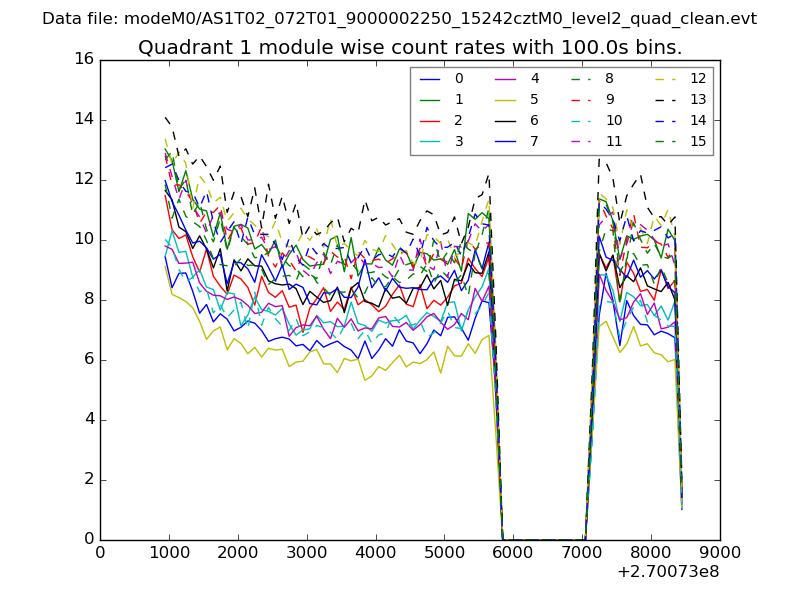

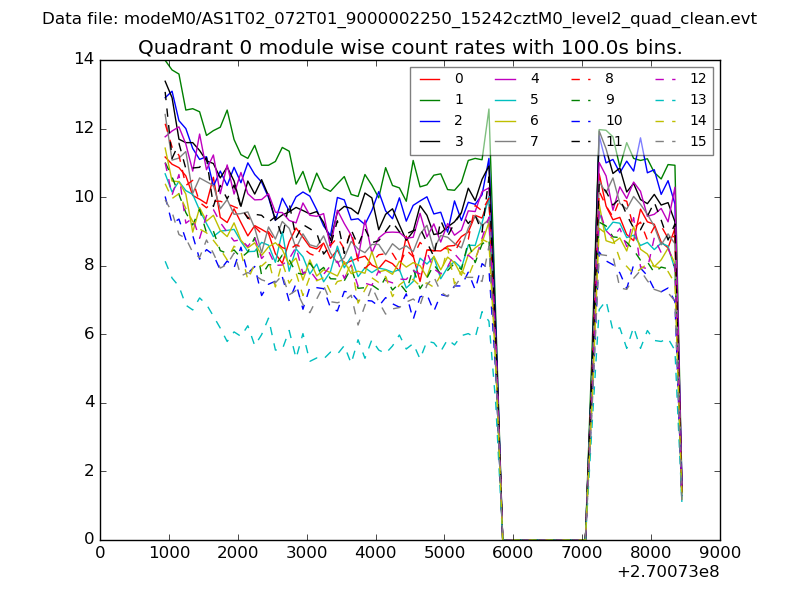

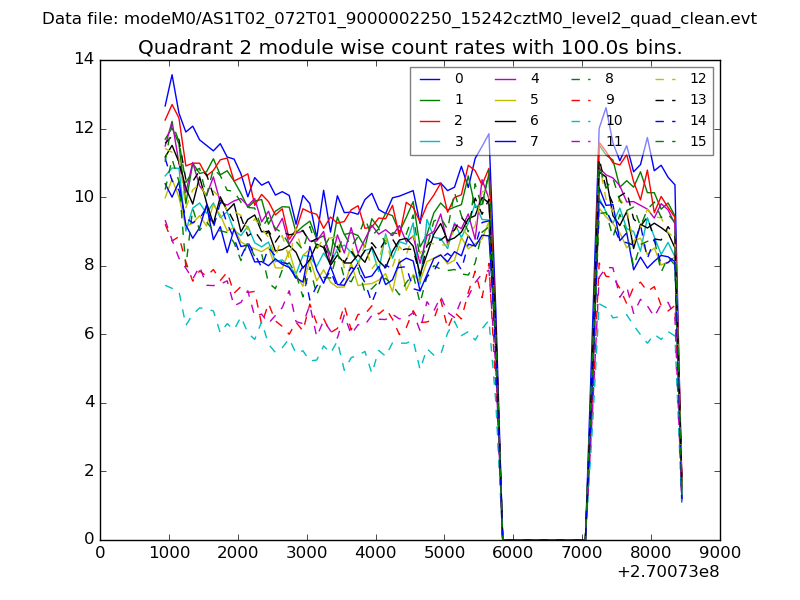

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

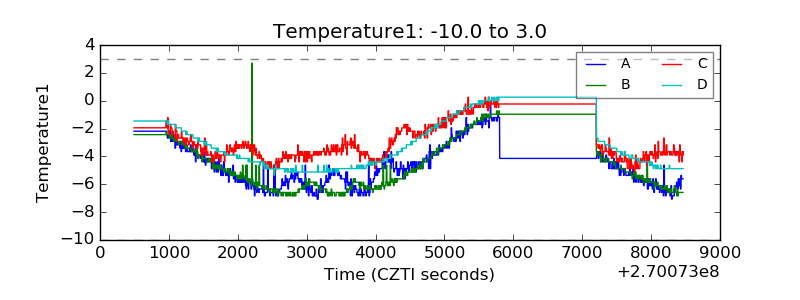

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

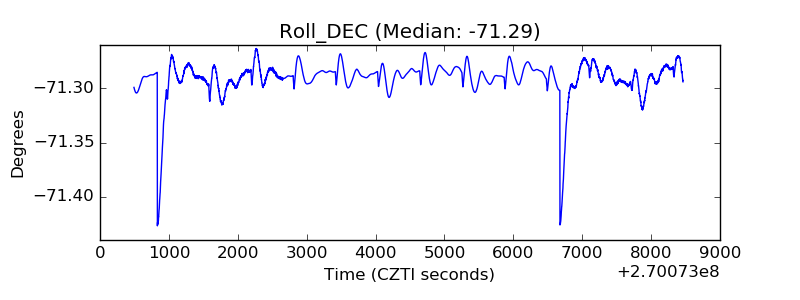

| _Roll_DEC |  |
| _Roll_RA |  |

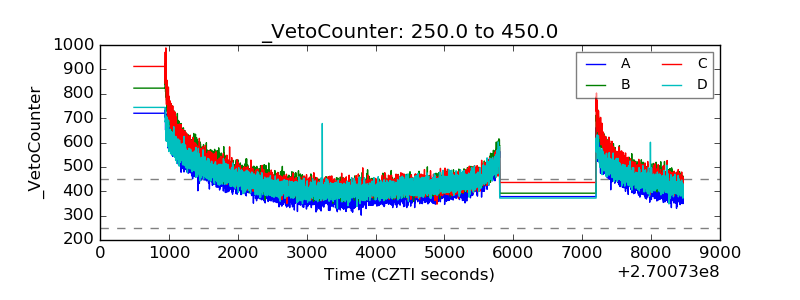

| Veto Counter |  |
