| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_072T01_9000002250_15244cztM0_level2.evt | modeM0/AS1T02_072T01_9000002250_15244cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,849,280 | 132,252,480 |
| Size | 546.3 MB | 126.1 MB |
| Events in quadrant A | 3,584,466 | 895,483 |
| Events in quadrant B | 3,733,010 | 911,226 |
| Events in quadrant C | 6,204,178 | 838,526 |
| Events in quadrant D | 3,348,352 | 868,496 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15318 | 3 |
| B | 0 | 15890 | 2 |
| C | 0 | 22910 | 2 |
| D | 0 | 15039 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7054 | 29 | 0.411114% |
| B | 7054 | 110 | 1.559399% |
| C | 7054 | 1090 | 15.452226% |
| D | 7054 | 46 | 0.652112% |

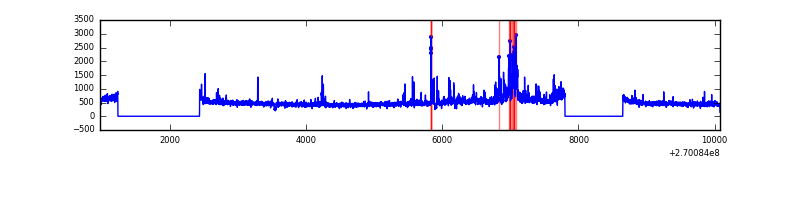

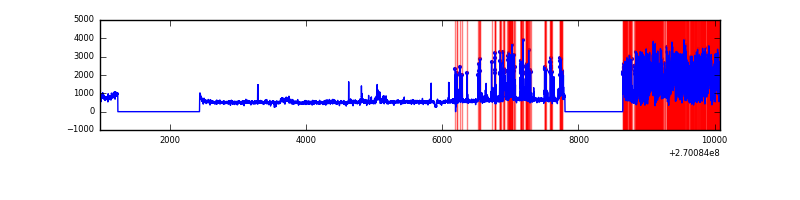

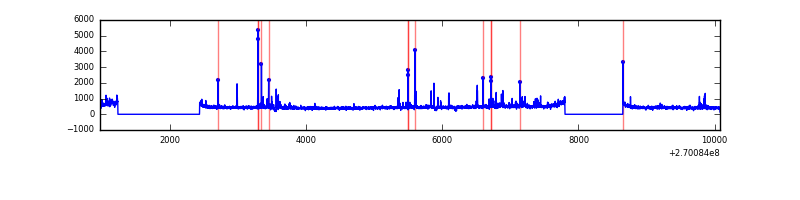

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9105 | 7056 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9105 | 7057 | 19 | 19 | 0.21% | 0.27% |  |
| C | 9104 | 7055 | 720 | 720 | 7.91% | 10.21% |  |
| D | 9105 | 7057 | 13 | 13 | 0.14% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 257298 | 1538.17 | 828 | 810 | 166.7 |
| A | 12 | 189 | 111594 | 664.38 | 828 | 810 | 166.7 |
| A | 9 | 143 | 15181 | 86.18 | 828 | 810 | 166.7 |
| B | 3 | 64 | 259764 | 1647.17 | 836 | 812 | 157.2 |
| B | 10 | 16 | 55320 | 346.72 | 836 | 812 | 157.2 |
| B | 0 | 189 | 48267 | 301.86 | 836 | 812 | 157.2 |
| C | 4 | 254 | 2494721 | 14255.0 | 765 | 768 | 175.0 |
| C | 3 | 233 | 712501 | 4068.14 | 765 | 768 | 175.0 |
| C | 7 | 247 | 8805 | 45.94 | 765 | 768 | 175.0 |
| D | 2 | 16 | 83539 | 422.84 | 811 | 789 | 195.7 |
| D | 2 | 136 | 61032 | 307.83 | 811 | 789 | 195.7 |
| D | 2 | 33 | 35278 | 176.23 | 811 | 789 | 195.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

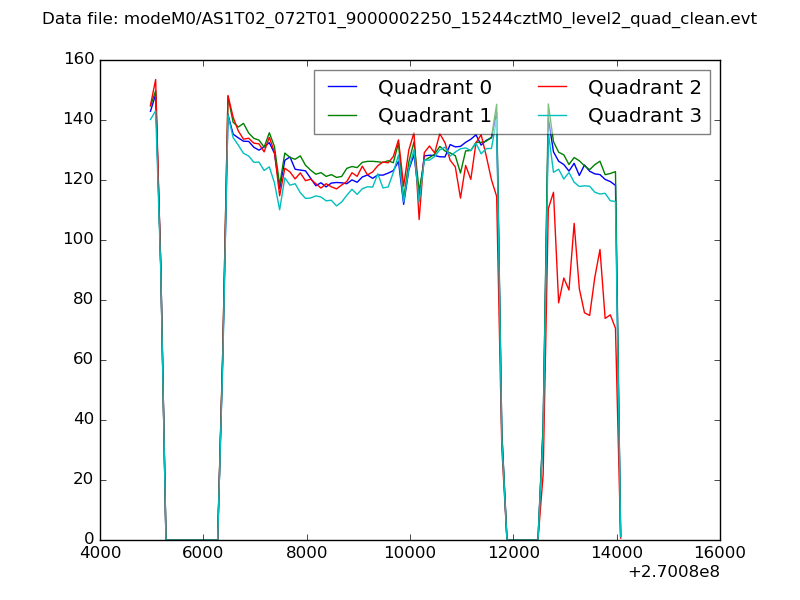

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

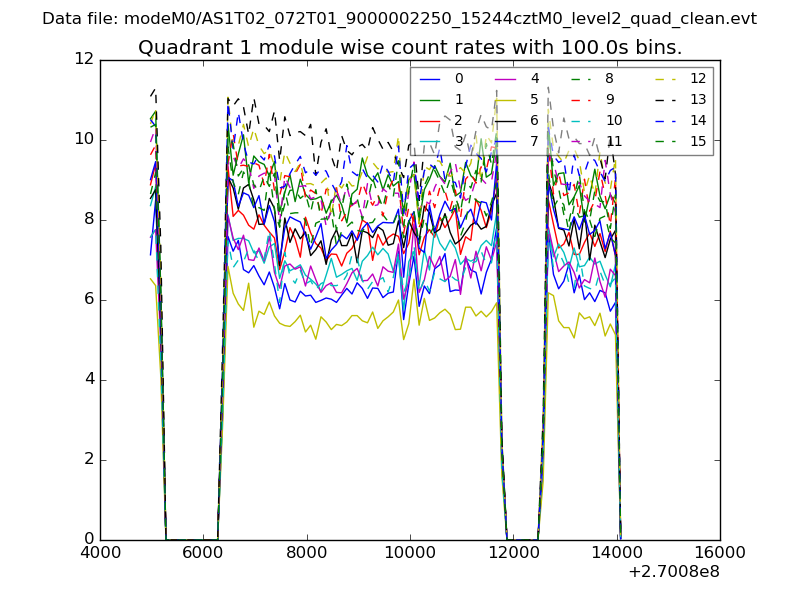

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

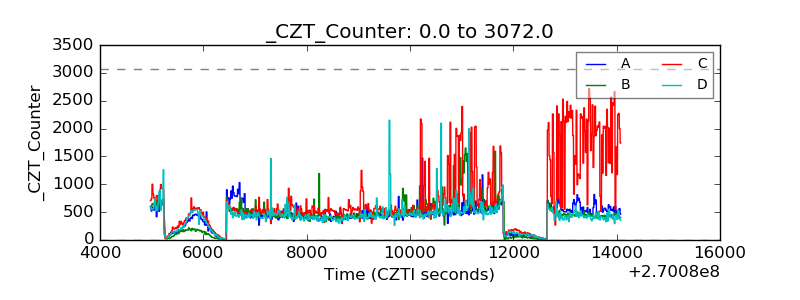

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

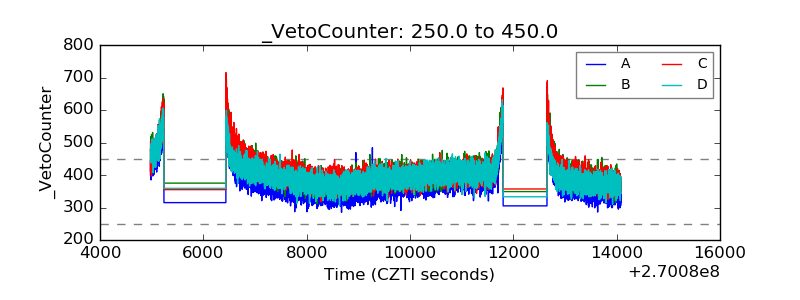

| Veto Counter |  |
