| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_073T01_9000002252_15260cztM0_level2.evt | modeM0/AS1T02_073T01_9000002252_15260cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,612,480 | 90,135,360 |
| Size | 435.5 MB | 86.0 MB |
| Events in quadrant A | 3,161,618 | 575,031 |
| Events in quadrant B | 3,364,512 | 583,020 |
| Events in quadrant C | 3,805,551 | 566,237 |
| Events in quadrant D | 3,051,932 | 548,701 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13771 | 3 |
| B | 0 | 14277 | 3 |
| C | 0 | 15428 | 3 |
| D | 0 | 13818 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 75 | 1.146614% |
| B | 6541 | 153 | 2.339092% |
| C | 6541 | 188 | 2.874178% |
| D | 6541 | 50 | 0.764409% |

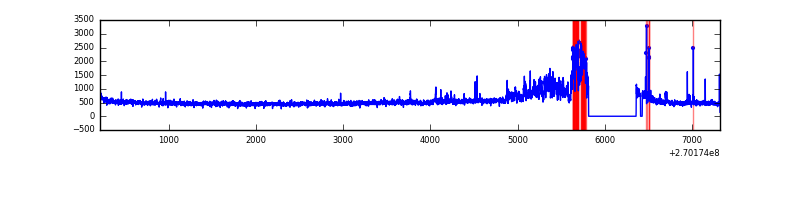

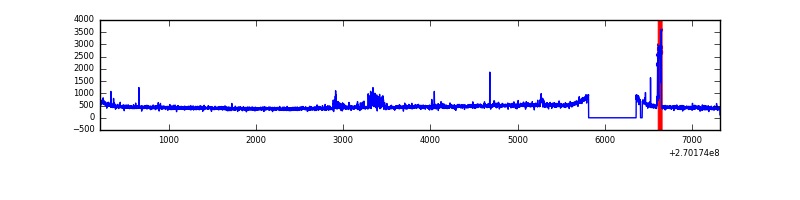

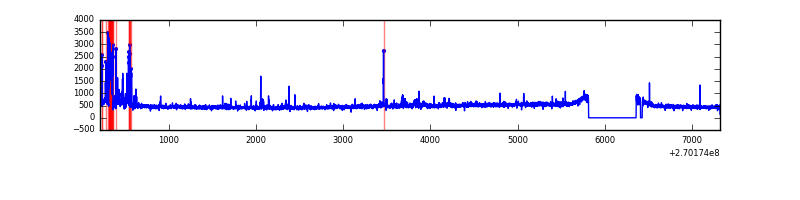

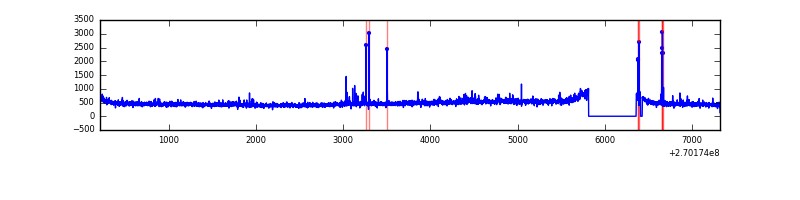

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7107 | 6544 | 10 | 10 | 0.14% | 0.15% |  |
| B | 7107 | 6544 | 32 | 32 | 0.45% | 0.49% |  |
| C | 7107 | 6544 | 69 | 69 | 0.97% | 1.05% |  |
| D | 7107 | 6544 | 30 | 30 | 0.42% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 74147 | 459.24 | 788 | 772 | 159.8 |
| A | 9 | 143 | 59560 | 367.95 | 788 | 772 | 159.8 |
| A | 0 | 226 | 6742 | 37.37 | 788 | 772 | 159.8 |
| B | 10 | 16 | 209409 | 1377.15 | 787 | 768 | 151.5 |
| B | 4 | 48 | 41315 | 267.63 | 787 | 768 | 151.5 |
| B | 12 | 111 | 18339 | 115.98 | 787 | 768 | 151.5 |
| C | 3 | 233 | 755247 | 4282.69 | 762 | 767 | 176.2 |
| C | 0 | 207 | 44225 | 246.68 | 762 | 767 | 176.2 |
| C | 4 | 254 | 30831 | 170.65 | 762 | 767 | 176.2 |
| D | 2 | 33 | 89364 | 476.35 | 763 | 740 | 186.0 |
| D | 2 | 136 | 61408 | 326.09 | 763 | 740 | 186.0 |
| D | 2 | 234 | 23506 | 122.37 | 763 | 740 | 186.0 |

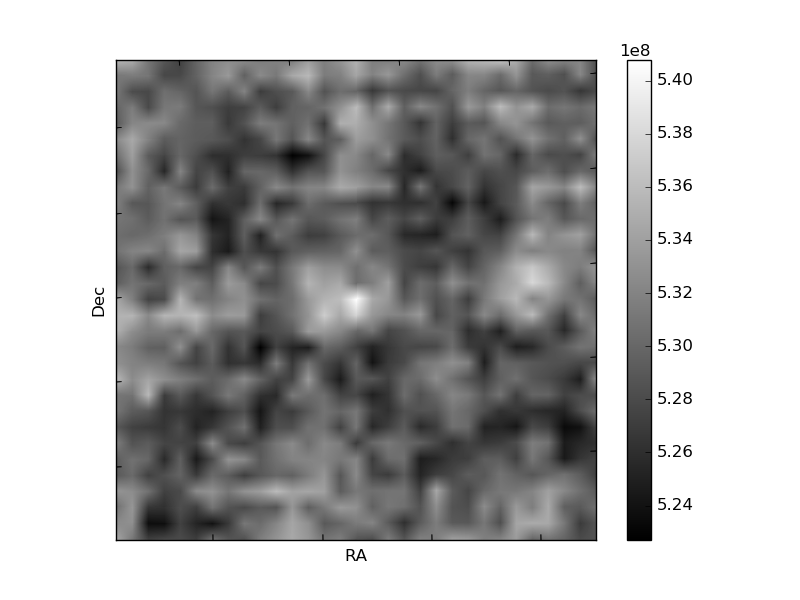

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

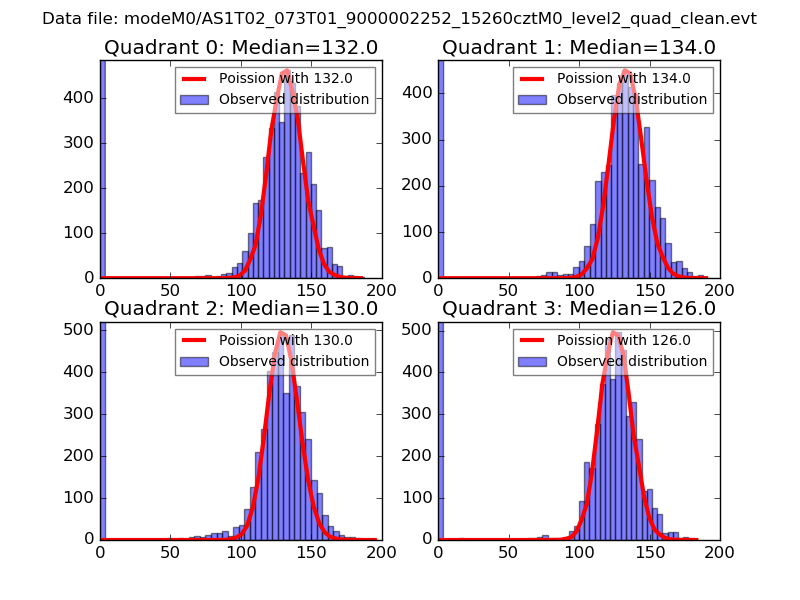

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

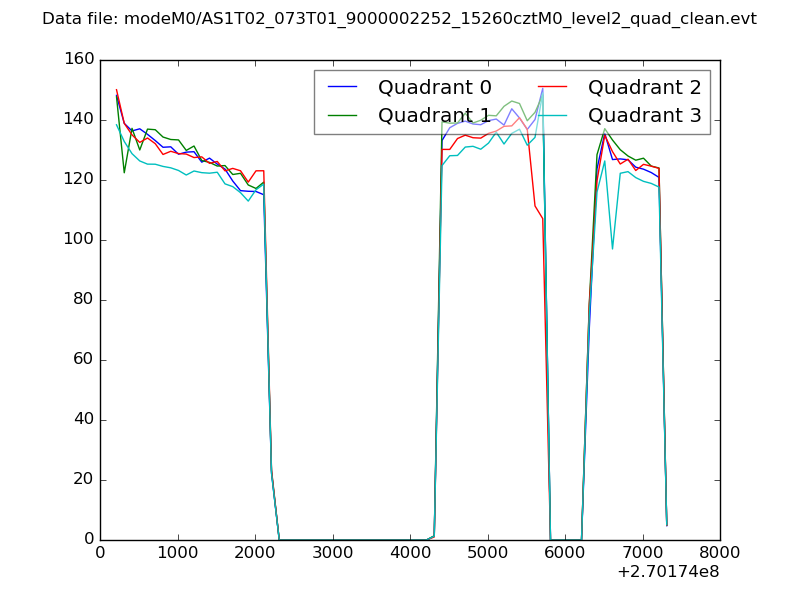

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

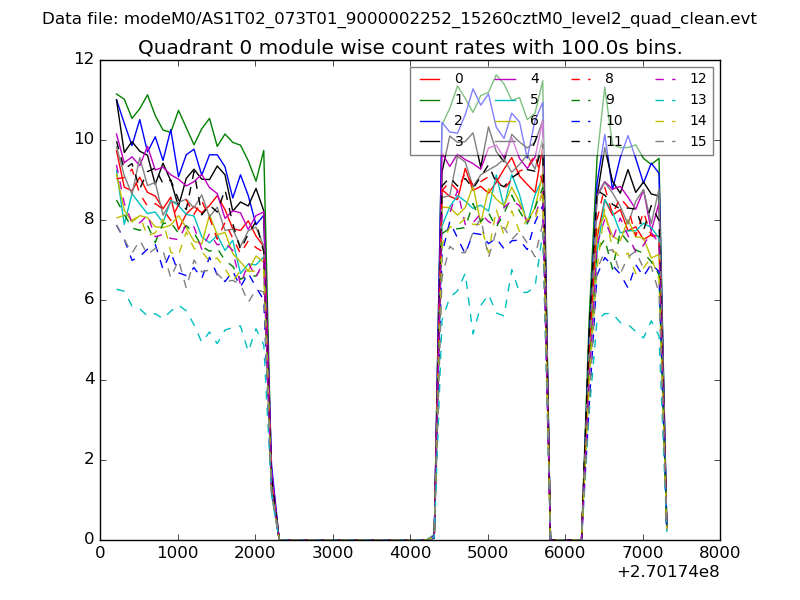

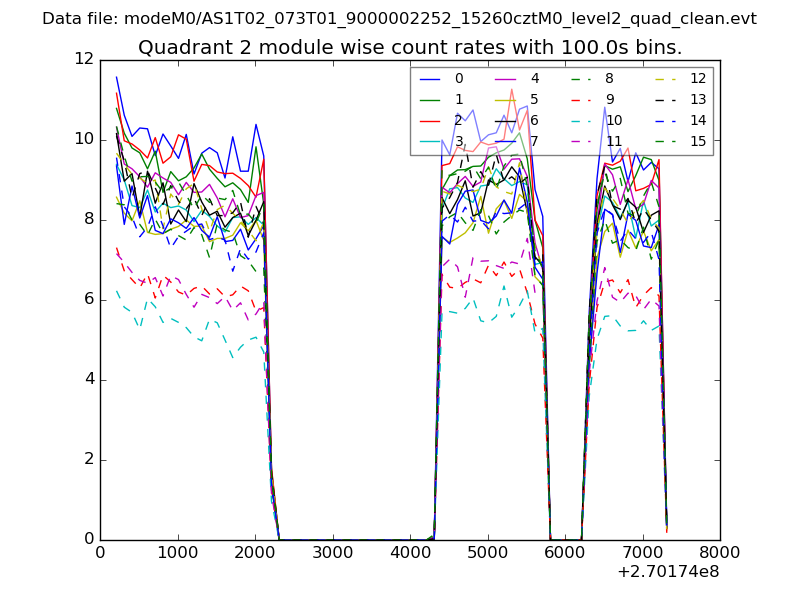

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

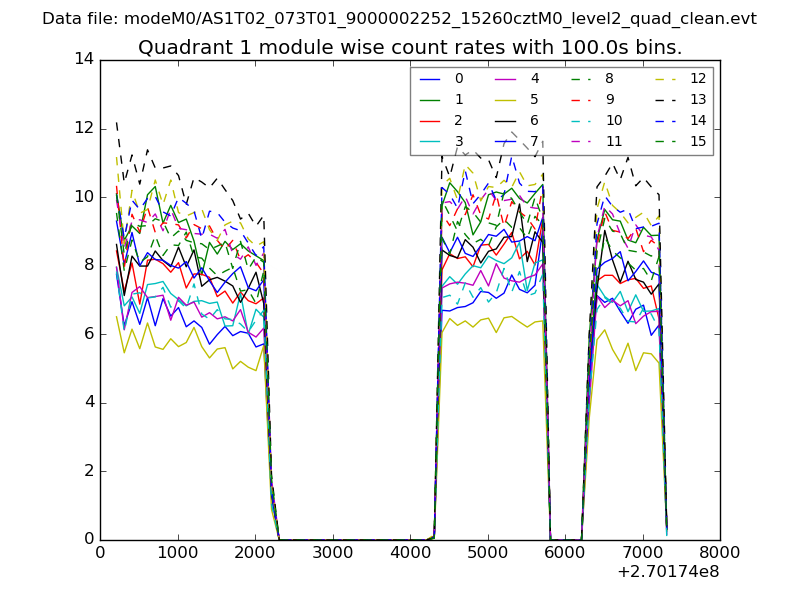

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

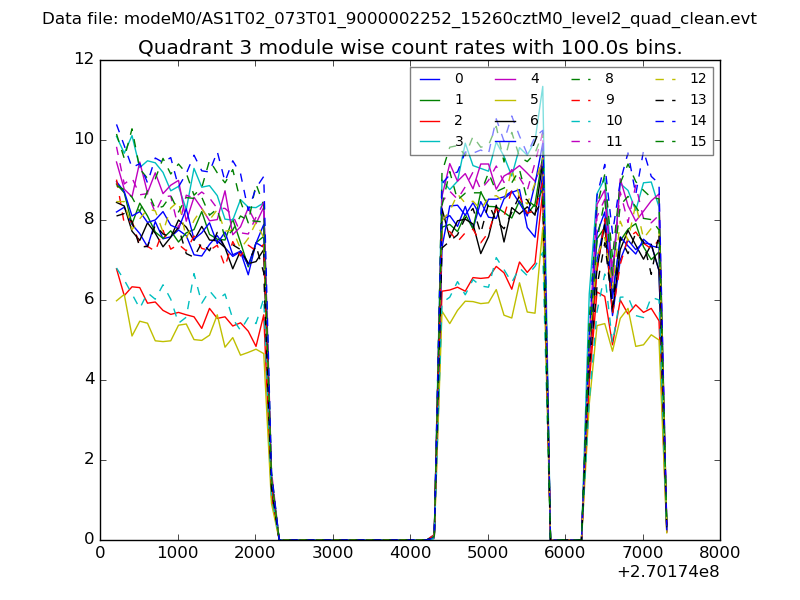

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

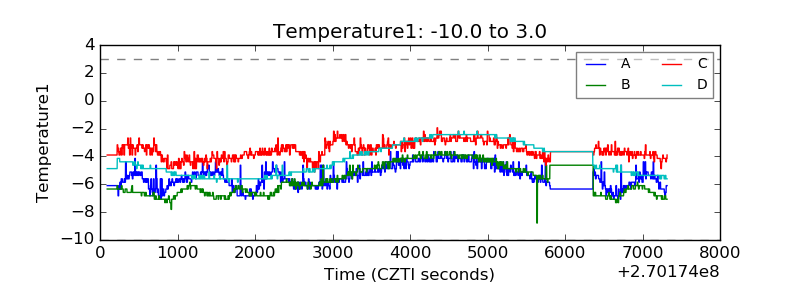

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

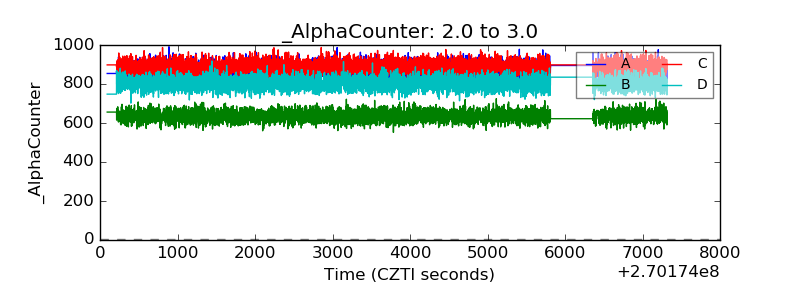

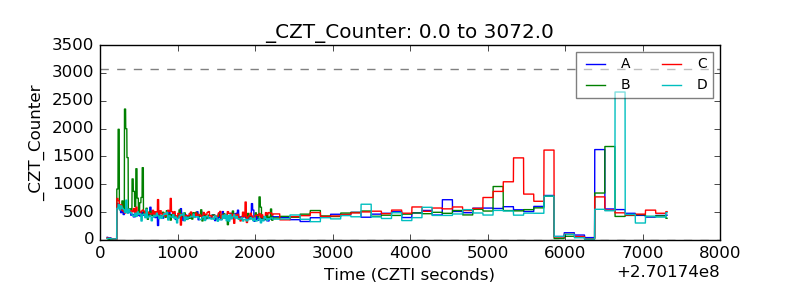

| Alpha Counter |  |

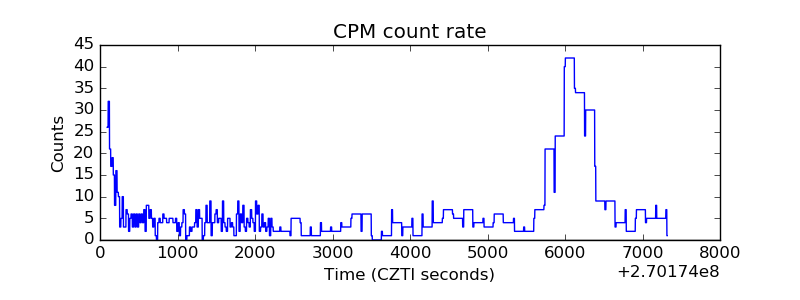

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

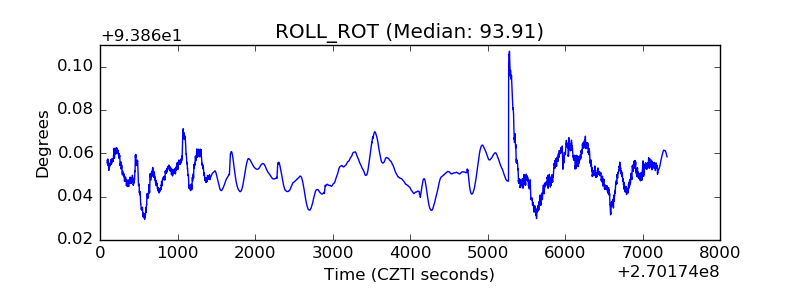

| _ROLL_ROT |  |

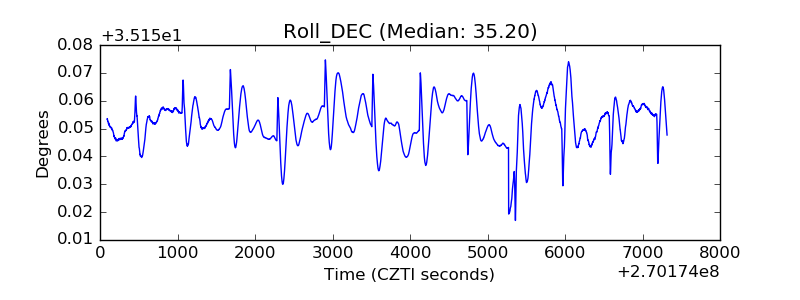

| _Roll_DEC |  |

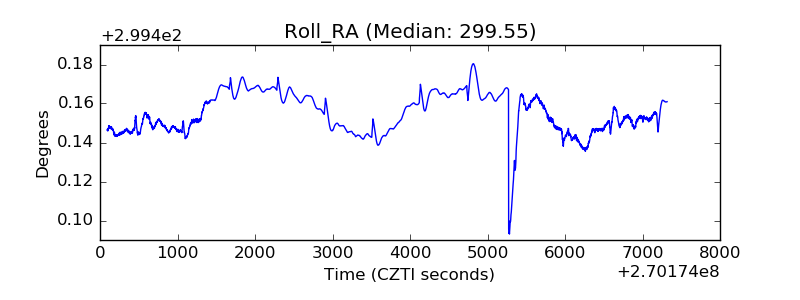

| _Roll_RA |  |

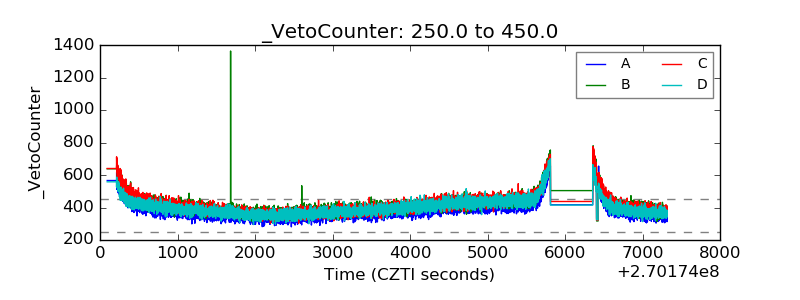

| Veto Counter |  |
