| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_207T01_9000002254_15273cztM0_level2.evt | modeM0/AS1A04_207T01_9000002254_15273cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,926,720 | 98,631,360 |
| Size | 508.2 MB | 94.1 MB |
| Events in quadrant A | 3,441,289 | 632,881 |
| Events in quadrant B | 4,702,406 | 630,080 |
| Events in quadrant C | 3,744,770 | 633,808 |
| Events in quadrant D | 3,776,394 | 602,461 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14904 | 3 |
| B | 0 | 18569 | 2 |
| C | 0 | 15346 | 2 |
| D | 0 | 16190 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7002 | 44 | 0.628392% |
| B | 7002 | 286 | 4.084547% |
| C | 7002 | 47 | 0.671237% |
| D | 7002 | 166 | 2.370751% |

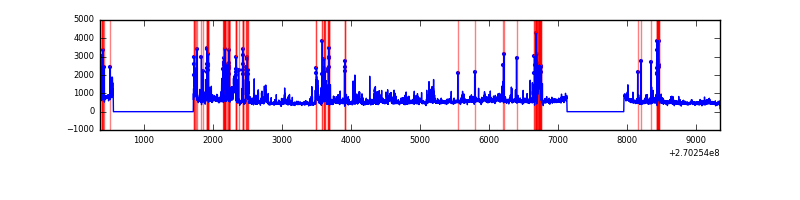

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8988 | 7005 | 4 | 4 | 0.04% | 0.06% |  |
| B | 8988 | 7005 | 148 | 148 | 1.65% | 2.11% |  |
| C | 8988 | 7005 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8988 | 7005 | 132 | 132 | 1.47% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 114985 | 645.36 | 852 | 835 | 176.9 |
| A | 9 | 143 | 46739 | 259.52 | 852 | 835 | 176.9 |
| A | 0 | 226 | 7473 | 37.53 | 852 | 835 | 176.9 |
| B | 10 | 16 | 1074204 | 6634.87 | 847 | 825 | 161.8 |
| B | 0 | 219 | 91799 | 562.34 | 847 | 825 | 161.8 |
| B | 0 | 189 | 54924 | 334.4 | 847 | 825 | 161.8 |
| C | 3 | 233 | 514179 | 2669.95 | 825 | 829 | 192.3 |
| C | 4 | 254 | 9235 | 43.72 | 825 | 829 | 192.3 |
| C | 10 | 22 | 8421 | 39.49 | 825 | 829 | 192.3 |
| D | 2 | 33 | 472469 | 2366.39 | 814 | 787 | 199.3 |
| D | 7 | 38 | 85731 | 426.16 | 814 | 787 | 199.3 |
| D | 5 | 222 | 50459 | 249.2 | 814 | 787 | 199.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

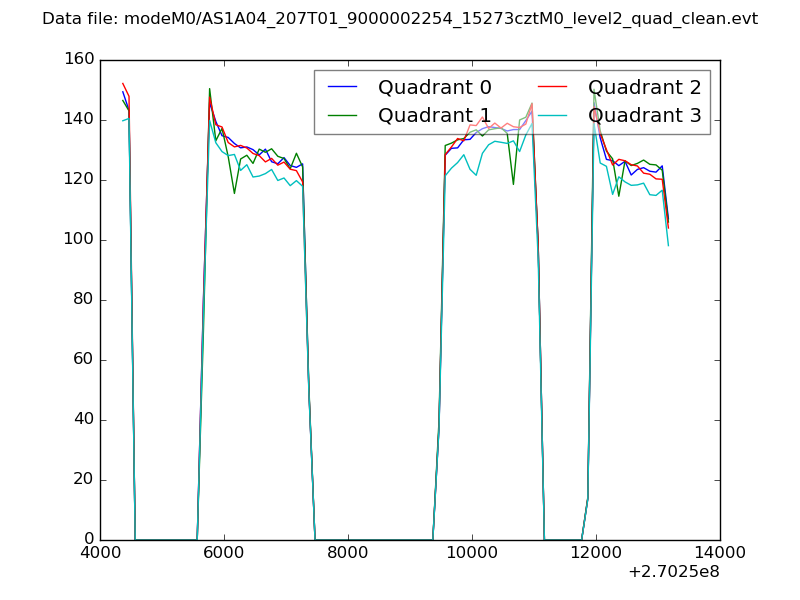

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

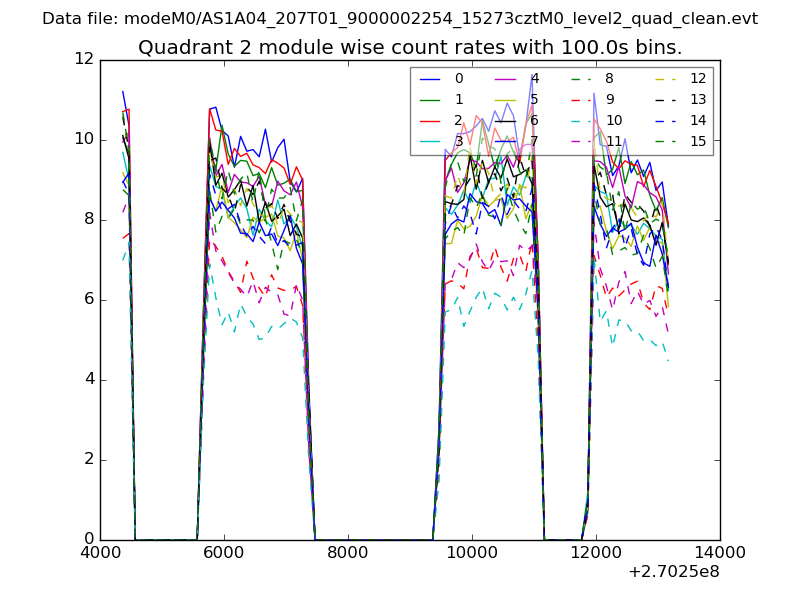

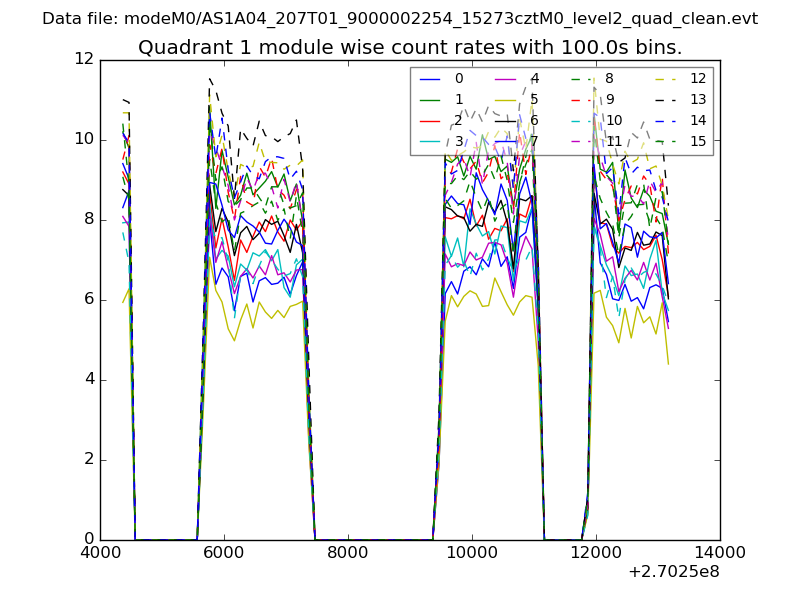

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

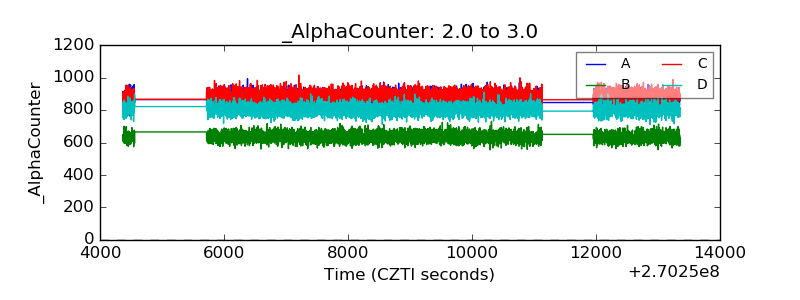

| Alpha Counter |  |
| _CPM_Rate |  |

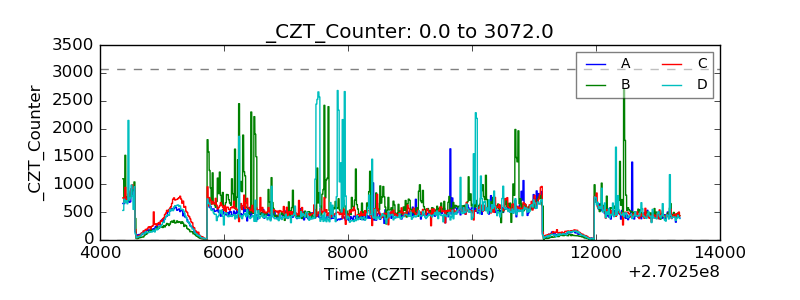

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

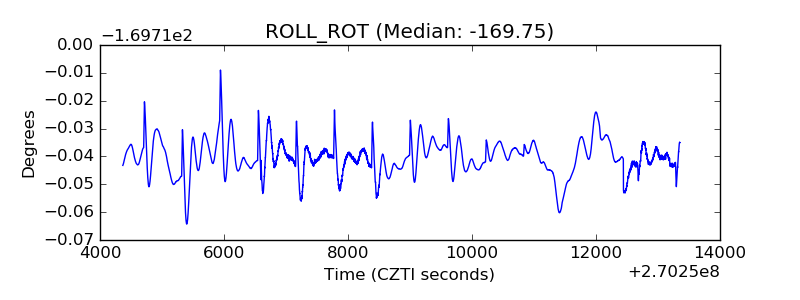

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
