| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_207T01_9000002254_15275cztM0_level2.evt | modeM0/AS1A04_207T01_9000002254_15275cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,792,960 | 99,141,120 |
| Size | 527.2 MB | 94.5 MB |
| Events in quadrant A | 3,934,054 | 616,156 |
| Events in quadrant B | 4,147,004 | 623,421 |
| Events in quadrant C | 4,192,951 | 617,246 |
| Events in quadrant D | 3,922,017 | 586,964 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17078 | 3 |
| B | 0 | 17371 | 2 |
| C | 0 | 17143 | 2 |
| D | 0 | 17558 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8036 | 110 | 1.368840% |
| B | 8036 | 177 | 2.202588% |
| C | 8036 | 83 | 1.032852% |
| D | 8036 | 161 | 2.003484% |

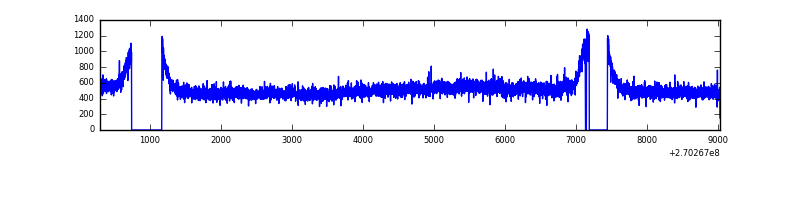

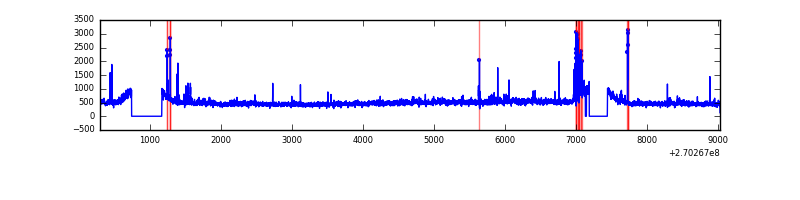

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8732 | 8040 | 9 | 9 | 0.10% | 0.11% |  |
| B | 8732 | 8040 | 22 | 22 | 0.25% | 0.27% |  |
| C | 8732 | 8040 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8732 | 8040 | 56 | 56 | 0.64% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 103672 | 519.27 | 967 | 946 | 197.8 |
| A | 4 | 2 | 49561 | 245.74 | 967 | 946 | 197.8 |
| A | 9 | 143 | 49086 | 243.34 | 967 | 946 | 197.8 |
| B | 0 | 219 | 103904 | 548.48 | 972 | 947 | 187.7 |
| B | 0 | 197 | 65502 | 343.9 | 972 | 947 | 187.7 |
| B | 0 | 189 | 38389 | 199.46 | 972 | 947 | 187.7 |
| C | 3 | 233 | 502422 | 2269.03 | 942 | 945 | 221.0 |
| C | 8 | 128 | 11094 | 45.92 | 942 | 945 | 221.0 |
| C | 13 | 61 | 6875 | 26.83 | 942 | 945 | 221.0 |
| D | 2 | 33 | 205347 | 888.78 | 934 | 904 | 230.0 |
| D | 7 | 38 | 110417 | 476.09 | 934 | 904 | 230.0 |
| D | 2 | 234 | 33153 | 140.2 | 934 | 904 | 230.0 |

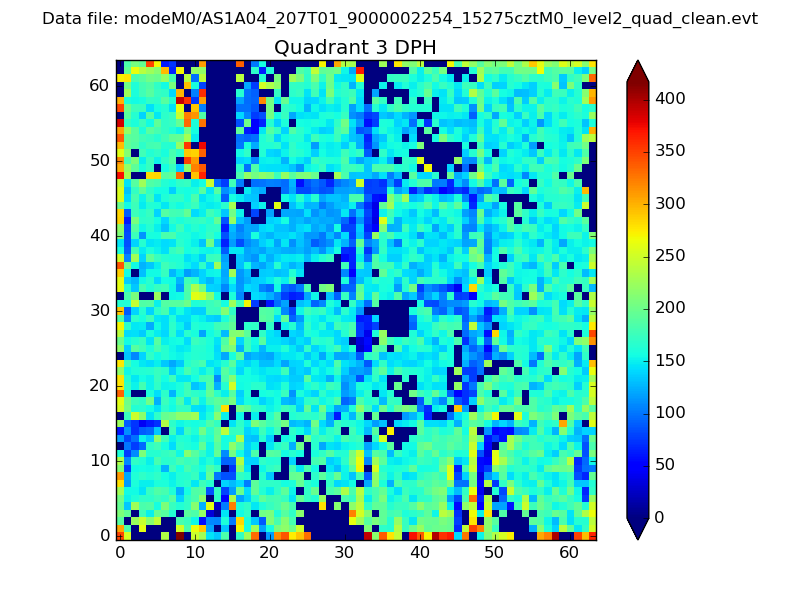

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

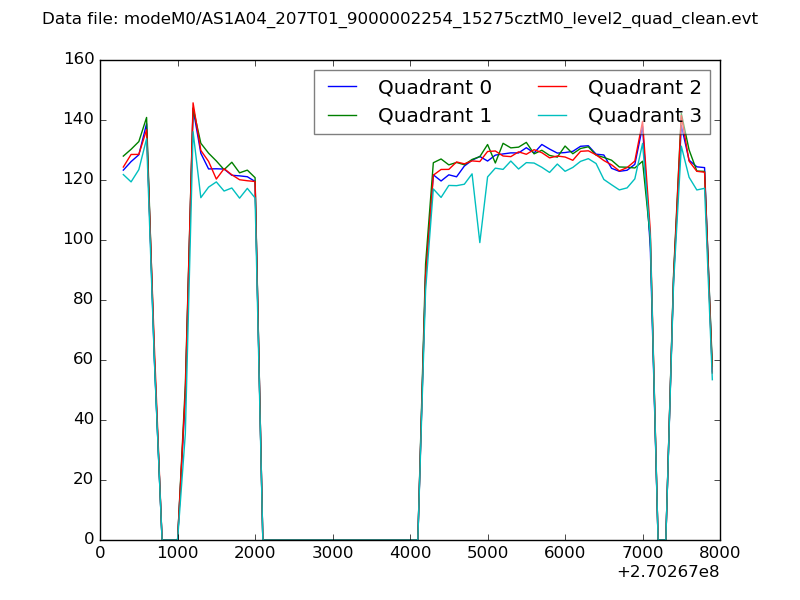

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

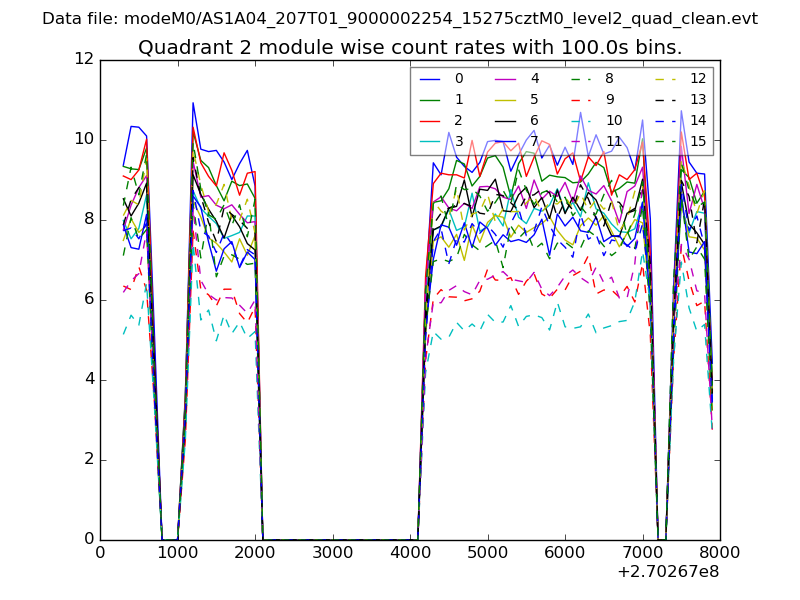

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

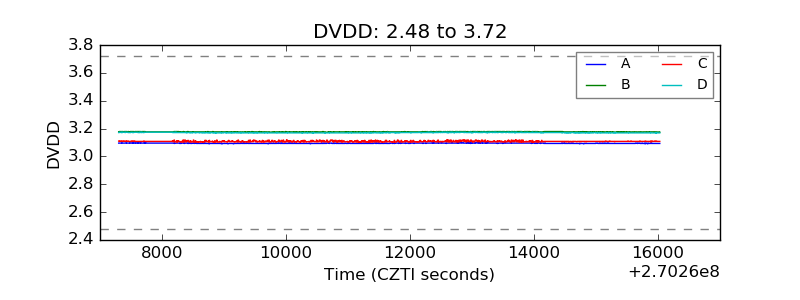

| D_VDD |  |

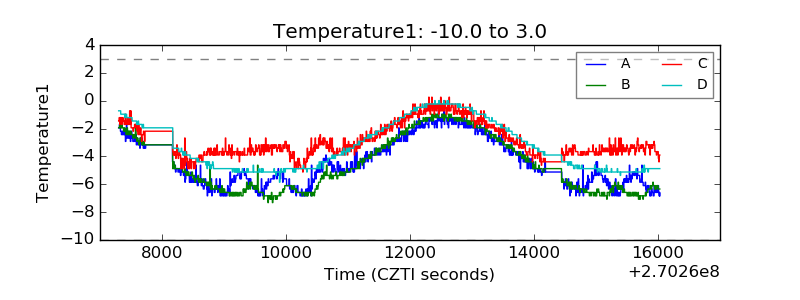

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

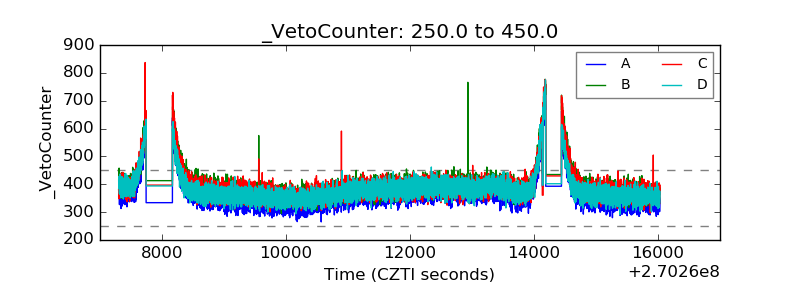

| Veto Counter |  |
