| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_223T01_9000002258_15289cztM0_level2.evt | modeM0/AS1A04_223T01_9000002258_15289cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,912,640 | 94,129,920 |
| Size | 460.5 MB | 89.8 MB |
| Events in quadrant A | 3,413,346 | 588,535 |
| Events in quadrant B | 3,790,871 | 597,906 |
| Events in quadrant C | 3,552,773 | 587,315 |
| Events in quadrant D | 3,363,556 | 560,177 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15187 | 3 |
| B | 0 | 15995 | 2 |
| C | 0 | 15341 | 2 |
| D | 0 | 15309 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7419 | 30 | 0.404367% |
| B | 7419 | 74 | 0.997439% |
| C | 7419 | 18 | 0.242620% |
| D | 7419 | 29 | 0.390888% |

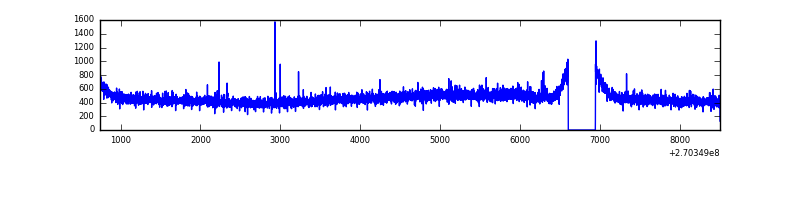

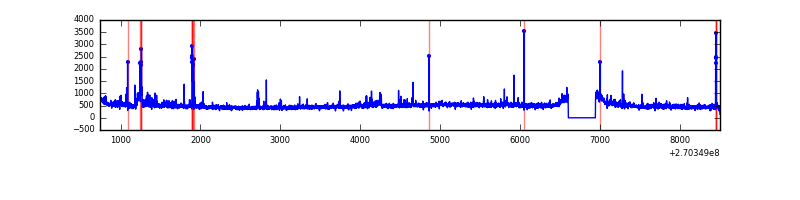

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7760 | 7421 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7760 | 7421 | 18 | 18 | 0.23% | 0.24% |  |
| C | 7760 | 7421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7760 | 7421 | 8 | 8 | 0.10% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 13156 | 67.85 | 884 | 864 | 181.2 |
| A | 0 | 226 | 7925 | 38.97 | 884 | 864 | 181.2 |
| A | 12 | 194 | 6500 | 31.11 | 884 | 864 | 181.2 |
| B | 10 | 16 | 68523 | 395.23 | 886 | 864 | 171.2 |
| B | 3 | 64 | 64166 | 369.78 | 886 | 864 | 171.2 |
| B | 0 | 229 | 43820 | 250.93 | 886 | 864 | 171.2 |
| C | 3 | 233 | 216878 | 1081.44 | 855 | 859 | 199.8 |
| C | 13 | 61 | 6054 | 26.01 | 855 | 859 | 199.8 |
| C | 7 | 247 | 2784 | 9.64 | 855 | 859 | 199.8 |
| D | 7 | 38 | 46940 | 220.81 | 852 | 828 | 208.8 |
| D | 2 | 152 | 33830 | 158.03 | 852 | 828 | 208.8 |
| D | 2 | 234 | 30386 | 141.54 | 852 | 828 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

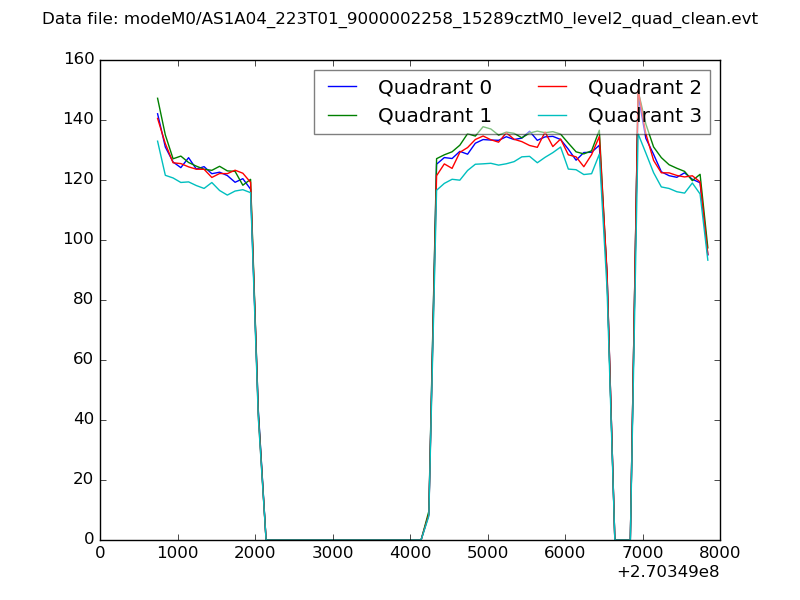

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

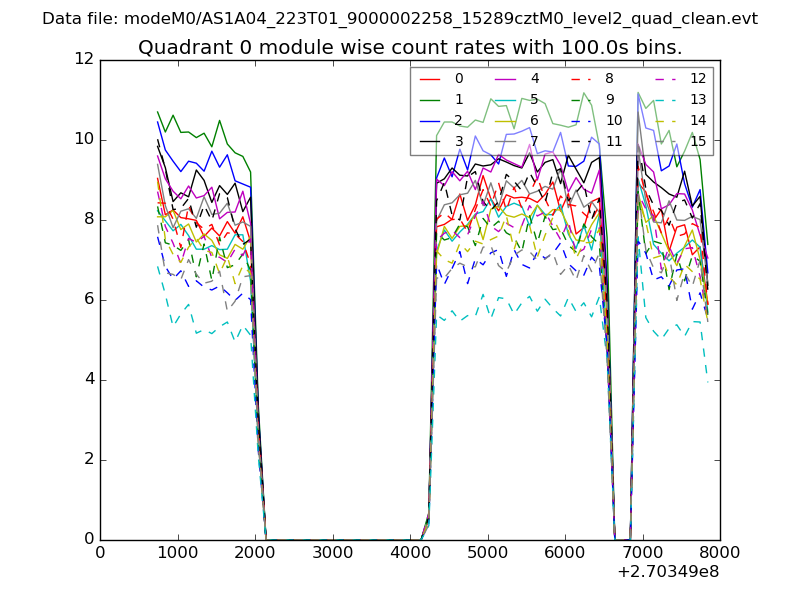

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

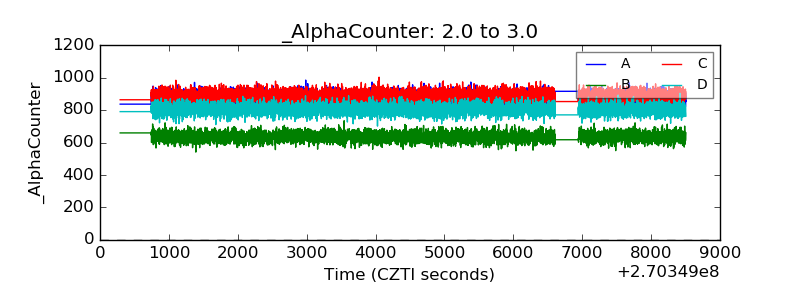

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

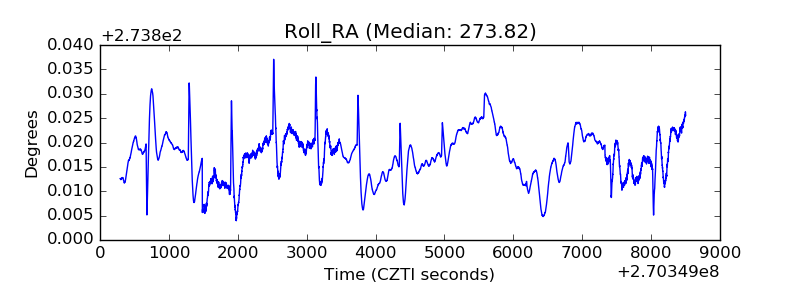

| _Roll_RA |  |
| Veto Counter |  |
