| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_073T01_9000002260_15308cztM0_level2.evt | modeM0/AS1T02_073T01_9000002260_15308cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,953,920 | 75,277,440 |
| Size | 437.7 MB | 71.8 MB |
| Events in quadrant A | 3,356,095 | 453,670 |
| Events in quadrant B | 3,411,592 | 458,619 |
| Events in quadrant C | 3,442,165 | 445,457 |
| Events in quadrant D | 3,211,960 | 432,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14452 | 3 |
| B | 0 | 14533 | 2 |
| C | 0 | 14503 | 2 |
| D | 0 | 14468 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7025 | 133 | 1.893238% |
| B | 7025 | 151 | 2.149466% |
| C | 7025 | 94 | 1.338078% |
| D | 7025 | 104 | 1.480427% |

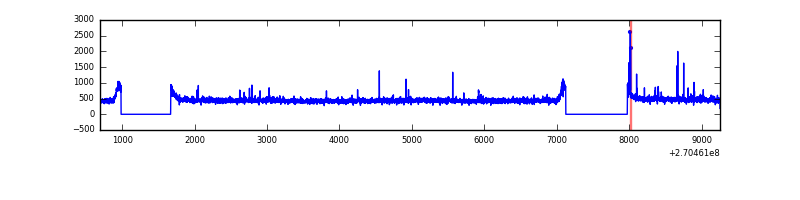

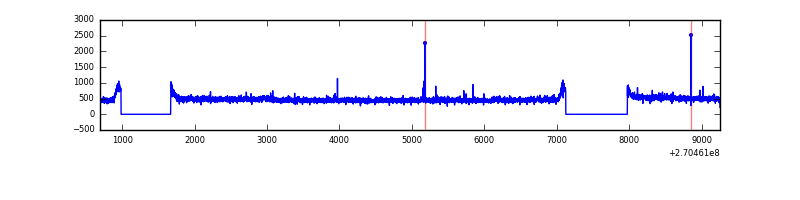

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8561 | 7026 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8561 | 7026 | 3 | 3 | 0.04% | 0.04% |  |
| C | 8561 | 7026 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8561 | 7026 | 2 | 2 | 0.02% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 16649 | 89.54 | 865 | 844 | 176.5 |
| A | 13 | 252 | 14198 | 75.65 | 865 | 844 | 176.5 |
| A | 0 | 226 | 7713 | 38.91 | 865 | 844 | 176.5 |
| B | 12 | 111 | 20554 | 116.98 | 862 | 837 | 168.6 |
| B | 0 | 189 | 19492 | 110.68 | 862 | 837 | 168.6 |
| B | 11 | 111 | 17634 | 99.65 | 862 | 837 | 168.6 |
| C | 3 | 233 | 190022 | 975.75 | 833 | 835 | 193.9 |
| C | 13 | 61 | 6014 | 26.71 | 833 | 835 | 193.9 |
| C | 7 | 247 | 2199 | 7.03 | 833 | 835 | 193.9 |
| D | 2 | 234 | 25183 | 118.46 | 835 | 809 | 205.8 |
| D | 13 | 104 | 15114 | 69.53 | 835 | 809 | 205.8 |
| D | 10 | 70 | 12187 | 55.3 | 835 | 809 | 205.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

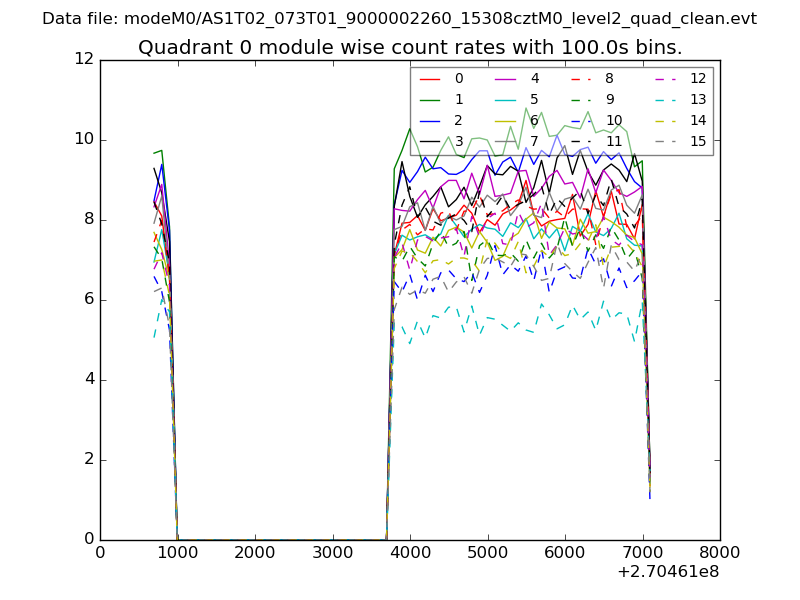

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

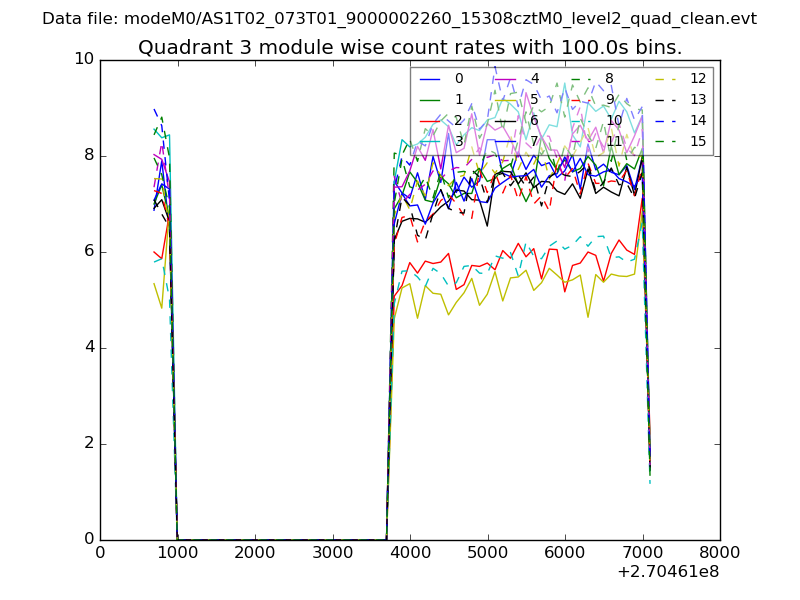

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

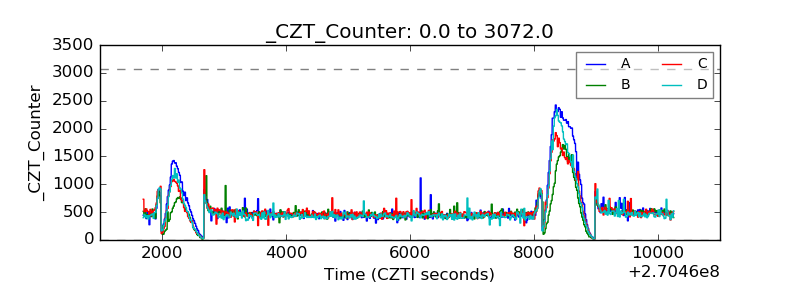

| CZT Counter |  |

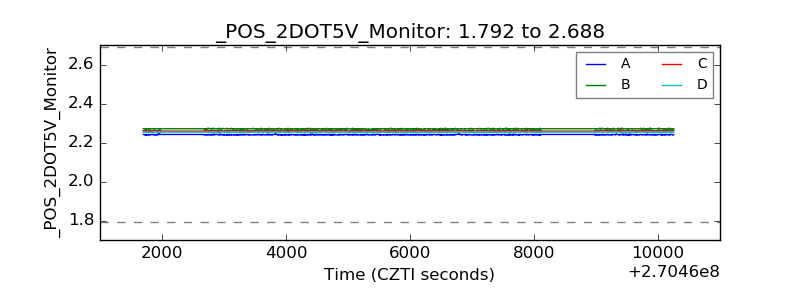

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

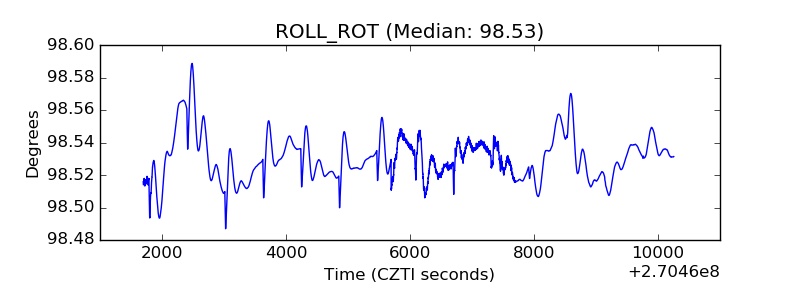

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

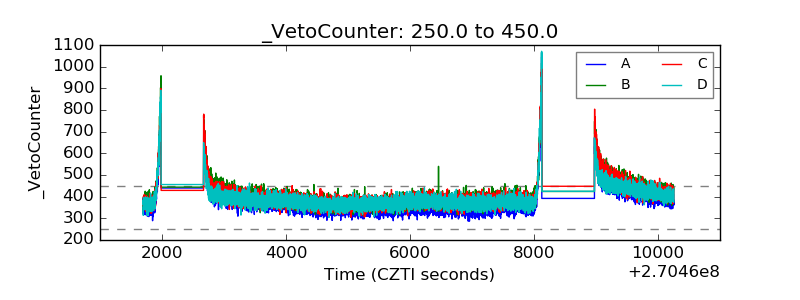

| Veto Counter |  |
