| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_073T01_9000002260_15316cztM0_level2.evt | modeM0/AS1T02_073T01_9000002260_15316cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,821,760 | 89,994,240 |
| Size | 458.5 MB | 85.8 MB |
| Events in quadrant A | 3,082,311 | 575,271 |
| Events in quadrant B | 3,157,471 | 588,771 |
| Events in quadrant C | 3,434,673 | 576,905 |
| Events in quadrant D | 4,443,843 | 529,115 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13599 | 3 |
| B | 0 | 13668 | 2 |
| C | 0 | 14140 | 2 |
| D | 0 | 17718 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6519 | 38 | 0.582911% |
| B | 6519 | 48 | 0.736309% |
| C | 6519 | 36 | 0.552232% |
| D | 6519 | 605 | 9.280565% |

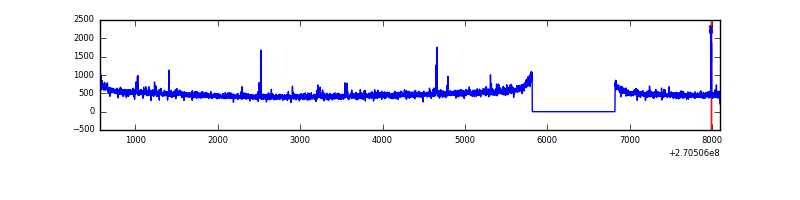

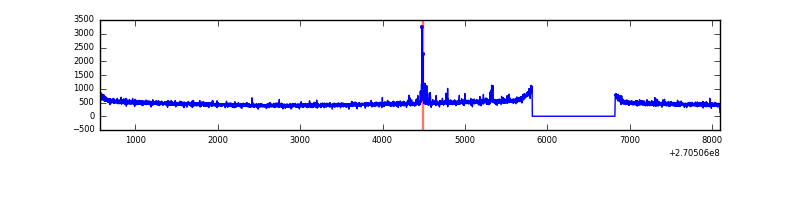

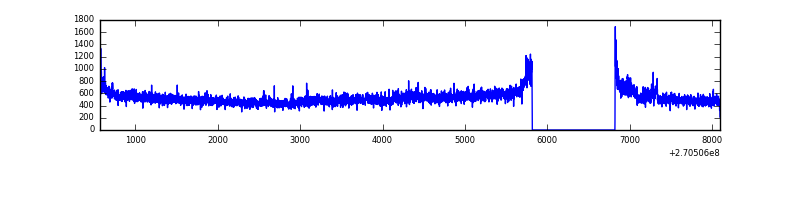

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6521 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7525 | 6521 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7525 | 6521 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7525 | 6521 | 467 | 467 | 6.21% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 40896 | 252.27 | 789 | 773 | 159.0 |
| A | 13 | 252 | 9212 | 53.06 | 789 | 773 | 159.0 |
| A | 0 | 226 | 6915 | 38.62 | 789 | 773 | 159.0 |
| B | 10 | 16 | 20199 | 128.84 | 791 | 770 | 150.8 |
| B | 0 | 189 | 20049 | 127.85 | 791 | 770 | 150.8 |
| B | 12 | 111 | 18111 | 115.0 | 791 | 770 | 150.8 |
| C | 3 | 233 | 369592 | 2057.66 | 775 | 781 | 179.2 |
| C | 7 | 221 | 43083 | 236.01 | 775 | 781 | 179.2 |
| C | 13 | 61 | 5352 | 25.5 | 775 | 781 | 179.2 |
| D | 13 | 122 | 1314307 | 7170.83 | 752 | 732 | 183.2 |
| D | 1 | 255 | 248146 | 1350.64 | 752 | 732 | 183.2 |
| D | 2 | 33 | 30023 | 159.9 | 752 | 732 | 183.2 |

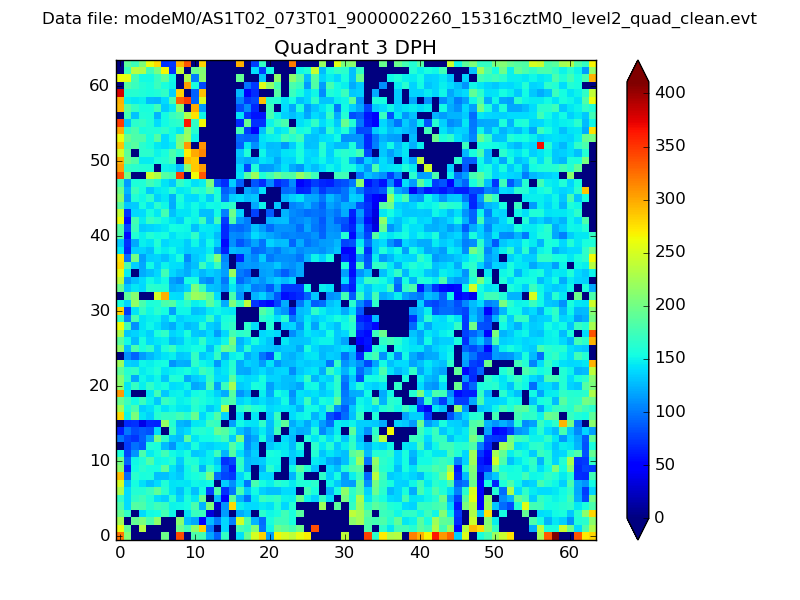

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

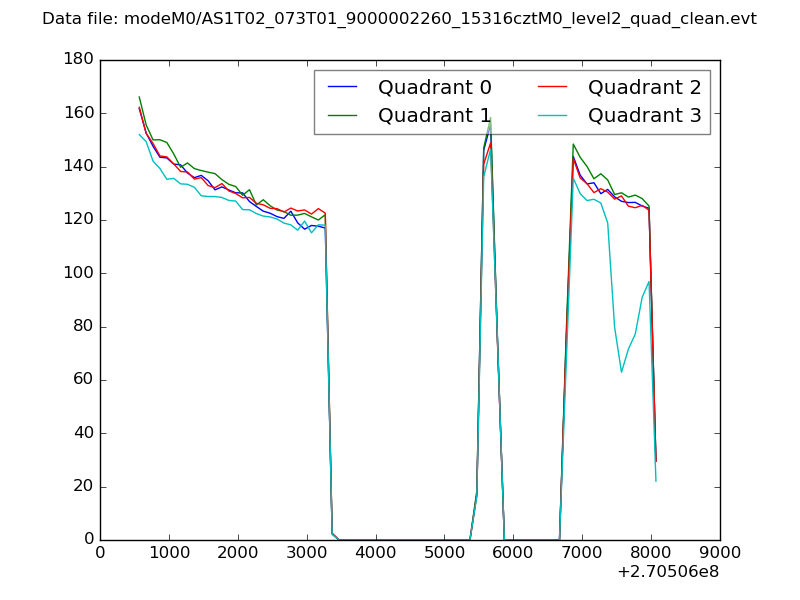

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

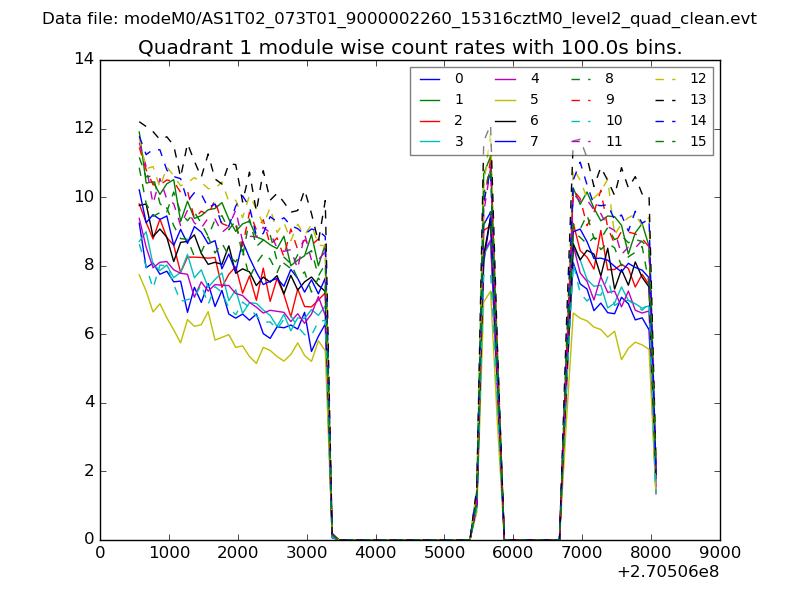

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

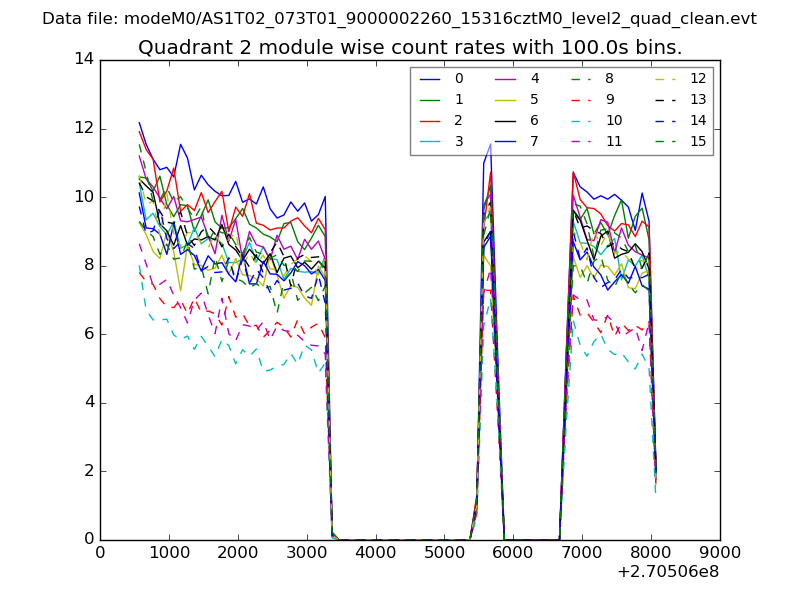

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

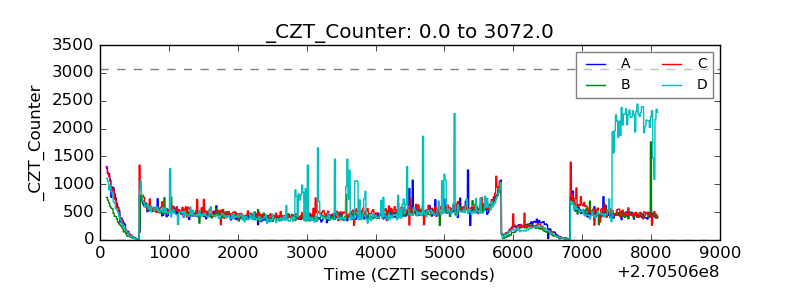

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
