| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_073T01_9000002260_15317cztM0_level2.evt | modeM0/AS1T02_073T01_9000002260_15317cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,197,760 | 98,904,960 |
| Size | 563.8 MB | 94.3 MB |
| Events in quadrant A | 3,313,288 | 639,830 |
| Events in quadrant B | 3,423,631 | 652,004 |
| Events in quadrant C | 3,654,165 | 636,294 |
| Events in quadrant D | 7,029,469 | 569,991 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14807 | 3 |
| B | 0 | 14975 | 2 |
| C | 0 | 15448 | 2 |
| D | 0 | 25893 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7143 | 51 | 0.713986% |
| B | 7143 | 73 | 1.021980% |
| C | 7143 | 45 | 0.629987% |
| D | 7143 | 1414 | 19.795604% |

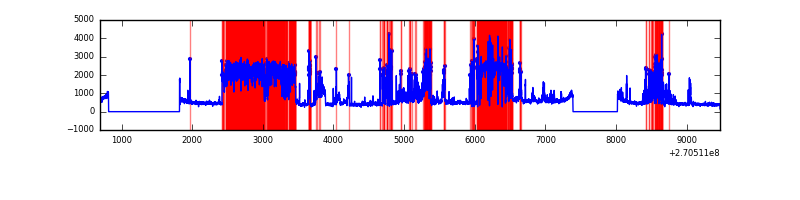

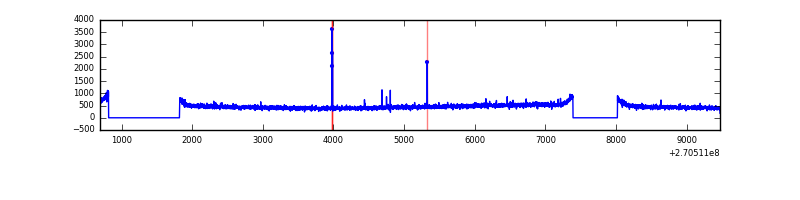

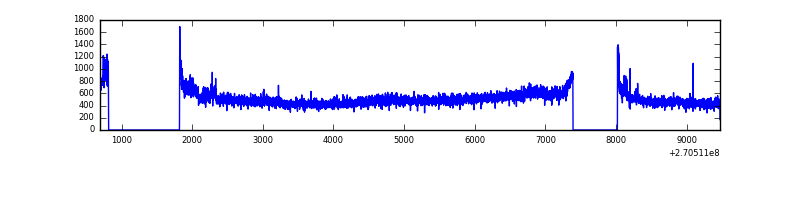

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8779 | 7146 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8779 | 7146 | 10 | 10 | 0.11% | 0.14% |  |
| C | 8779 | 7146 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8779 | 7146 | 1219 | 1219 | 13.89% | 17.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 22310 | 123.71 | 856 | 838 | 173.6 |
| A | 0 | 226 | 7465 | 38.18 | 856 | 838 | 173.6 |
| A | 12 | 194 | 6063 | 30.1 | 856 | 838 | 173.6 |
| B | 0 | 189 | 38220 | 225.21 | 859 | 836 | 166.0 |
| B | 12 | 111 | 19895 | 114.82 | 859 | 836 | 166.0 |
| B | 10 | 16 | 19586 | 112.95 | 859 | 836 | 166.0 |
| C | 3 | 233 | 381492 | 1956.09 | 837 | 843 | 194.6 |
| C | 7 | 221 | 7393 | 33.66 | 837 | 843 | 194.6 |
| C | 13 | 61 | 5720 | 25.06 | 837 | 843 | 194.6 |
| D | 13 | 122 | 3848957 | 20529.73 | 768 | 747 | 187.4 |
| D | 12 | 110 | 108717 | 576.01 | 768 | 747 | 187.4 |
| D | 2 | 33 | 69221 | 365.3 | 768 | 747 | 187.4 |

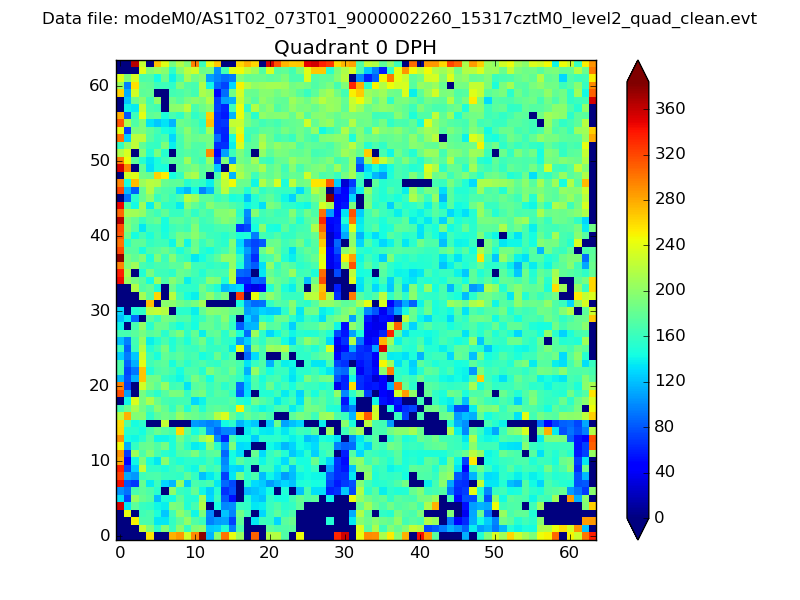

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

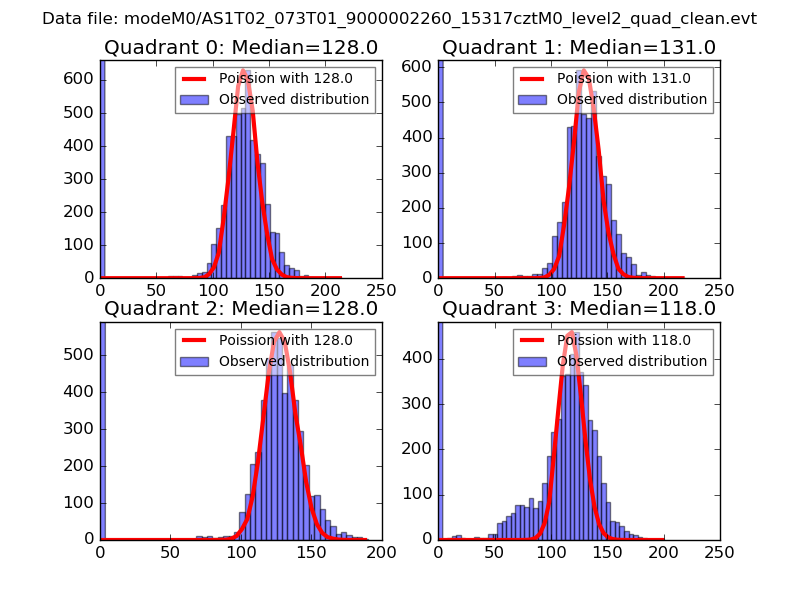

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

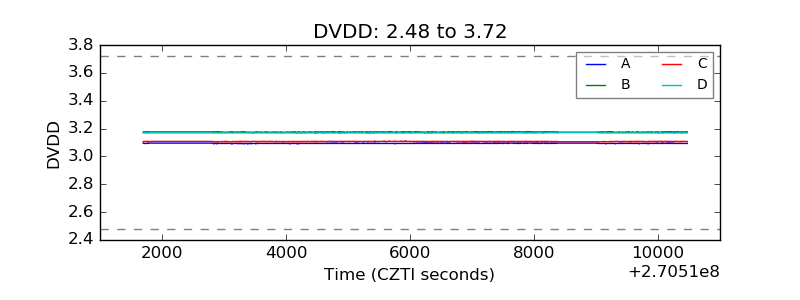

| D_VDD |  |

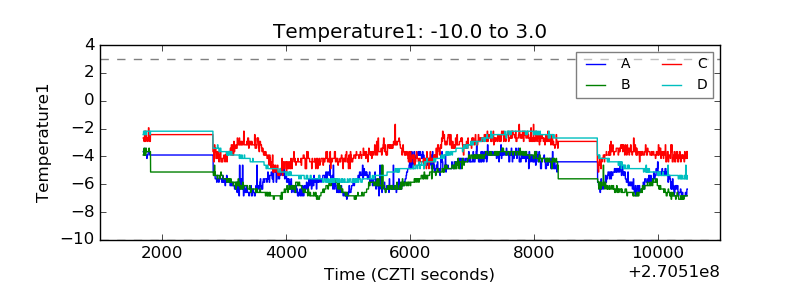

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

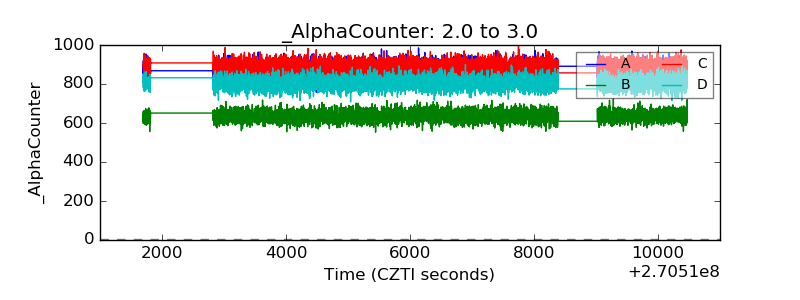

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
