| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_073T01_9000002260_15333cztM0_level2.evt | modeM0/AS1T02_073T01_9000002260_15333cztM0_level2_quad_clean.evt |
| Size (bytes) | 629,720,640 | 121,412,160 |
| Size | 600.5 MB | 115.8 MB |
| Events in quadrant A | 3,939,995 | 783,904 |
| Events in quadrant B | 4,228,321 | 796,035 |
| Events in quadrant C | 4,061,787 | 786,154 |
| Events in quadrant D | 6,271,412 | 727,139 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17477 | 3 |
| B | 0 | 18074 | 2 |
| C | 0 | 17594 | 2 |
| D | 0 | 24729 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8407 | 109 | 1.296539% |
| B | 8407 | 209 | 2.486024% |
| C | 8407 | 61 | 0.725586% |
| D | 8407 | 755 | 8.980611% |

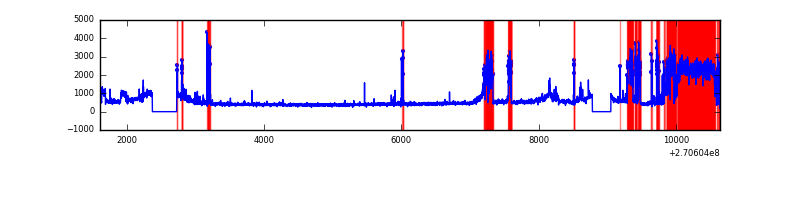

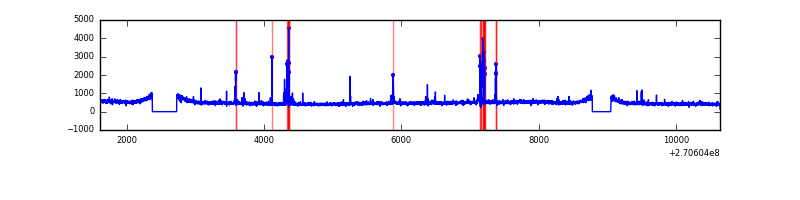

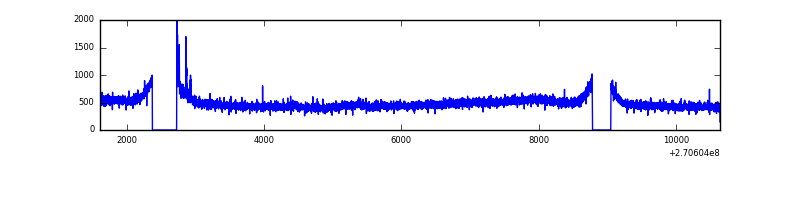

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9033 | 8410 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9033 | 8410 | 32 | 32 | 0.35% | 0.38% |  |
| C | 9033 | 8410 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9033 | 8410 | 801 | 801 | 8.87% | 9.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 19110 | 88.26 | 1015 | 993 | 205.3 |
| A | 2 | 79 | 17833 | 82.04 | 1015 | 993 | 205.3 |
| A | 0 | 226 | 8657 | 37.34 | 1015 | 993 | 205.3 |
| B | 10 | 16 | 140088 | 707.89 | 1014 | 986 | 196.5 |
| B | 3 | 64 | 85935 | 432.31 | 1014 | 986 | 196.5 |
| B | 0 | 189 | 39115 | 194.04 | 1014 | 986 | 196.5 |
| C | 3 | 233 | 161199 | 693.64 | 995 | 999 | 231.0 |
| C | 8 | 128 | 14901 | 60.19 | 995 | 999 | 231.0 |
| C | 8 | 112 | 7334 | 27.43 | 995 | 999 | 231.0 |
| D | 13 | 122 | 1897953 | 8082.5 | 971 | 942 | 234.7 |
| D | 2 | 33 | 651167 | 2770.38 | 971 | 942 | 234.7 |
| D | 10 | 70 | 34581 | 143.32 | 971 | 942 | 234.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

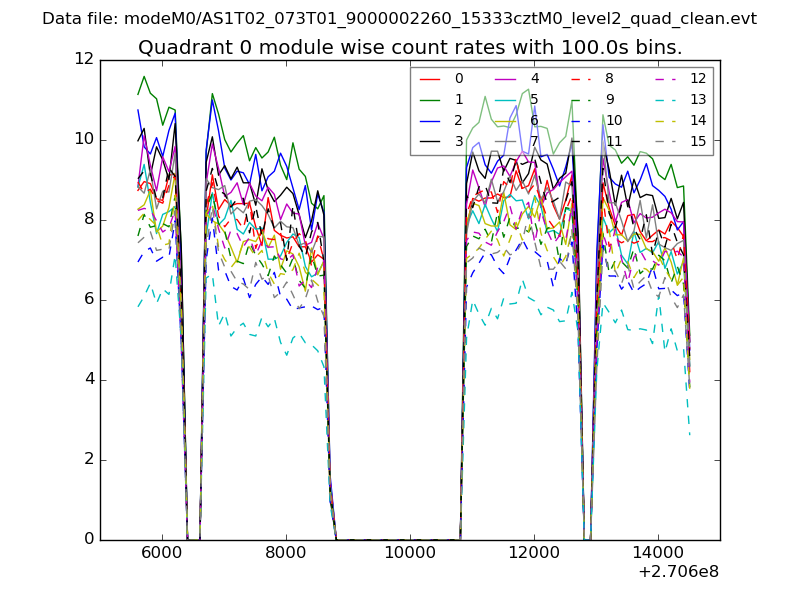

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

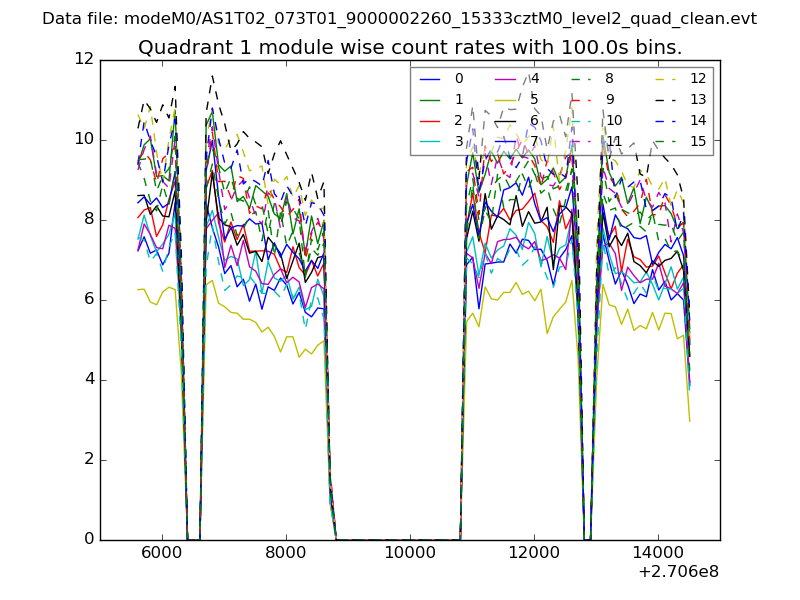

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

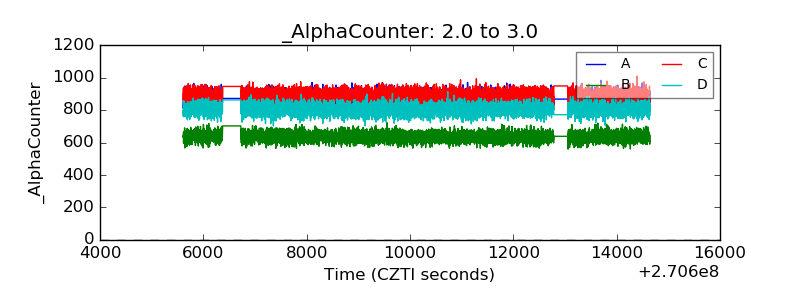

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

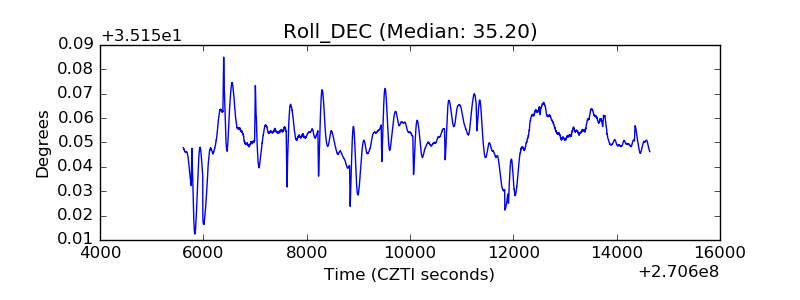

| _Roll_DEC |  |
| _Roll_RA |  |

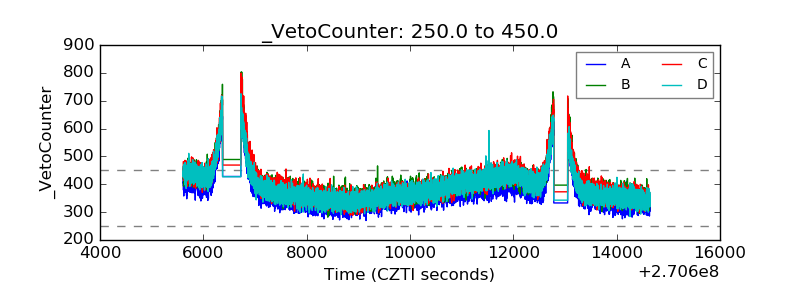

| Veto Counter |  |
