| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_126T01_9000002262_15355cztM0_level2.evt | modeM0/AS1A04_126T01_9000002262_15355cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,946,560 | 107,668,800 |
| Size | 461.5 MB | 102.7 MB |
| Events in quadrant A | 3,206,165 | 716,234 |
| Events in quadrant B | 3,632,856 | 715,981 |
| Events in quadrant C | 3,278,834 | 713,386 |
| Events in quadrant D | 4,109,258 | 674,147 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13752 | 3 |
| B | 0 | 14913 | 2 |
| C | 0 | 13826 | 2 |
| D | 0 | 16278 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6318 | 78 | 1.234568% |
| B | 6318 | 159 | 2.516619% |
| C | 6318 | 74 | 1.171257% |
| D | 6318 | 156 | 2.469136% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7523 | 6318 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7524 | 6319 | 56 | 56 | 0.74% | 0.89% |  |
| C | 7524 | 6319 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7524 | 6319 | 142 | 142 | 1.89% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 19668 | 113.12 | 825 | 810 | 166.7 |
| A | 4 | 2 | 9382 | 51.42 | 825 | 810 | 166.7 |
| A | 15 | 239 | 8837 | 48.15 | 825 | 810 | 166.7 |
| B | 10 | 16 | 303148 | 1979.28 | 814 | 798 | 152.8 |
| B | 0 | 189 | 41972 | 269.54 | 814 | 798 | 152.8 |
| B | 4 | 48 | 35546 | 227.47 | 814 | 798 | 152.8 |
| C | 3 | 233 | 194619 | 1084.69 | 789 | 795 | 178.7 |
| C | 13 | 61 | 5581 | 26.78 | 789 | 795 | 178.7 |
| C | 7 | 247 | 5229 | 24.81 | 789 | 795 | 178.7 |
| D | 1 | 20 | 600833 | 3116.26 | 794 | 772 | 192.6 |
| D | 2 | 33 | 282552 | 1463.35 | 794 | 772 | 192.6 |
| D | 7 | 38 | 103700 | 534.53 | 794 | 772 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

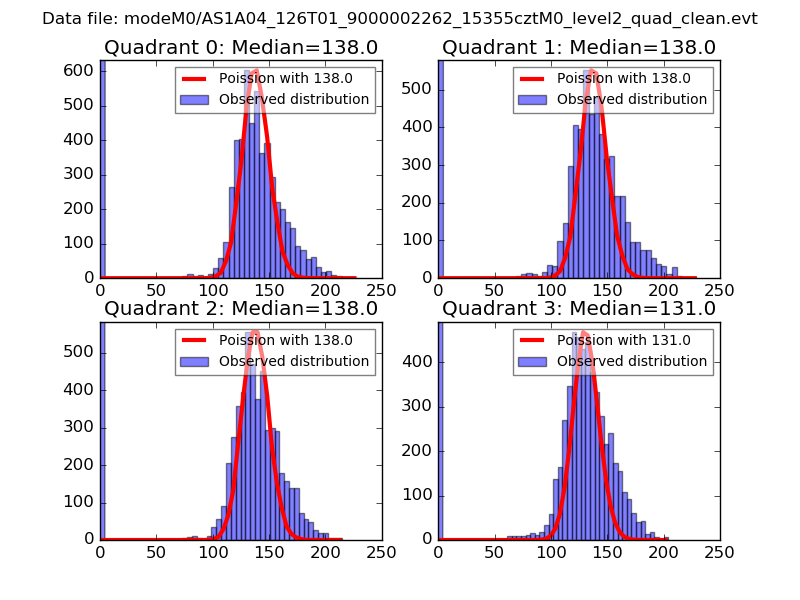

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

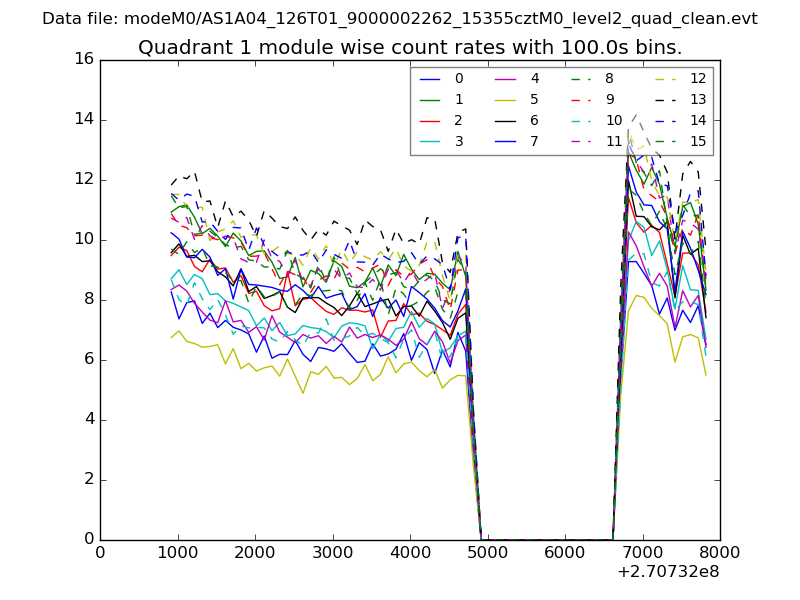

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

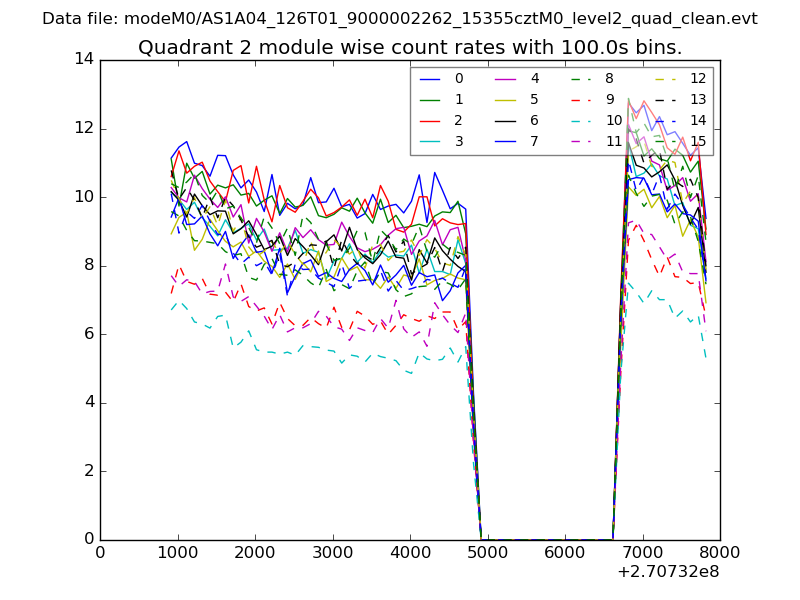

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

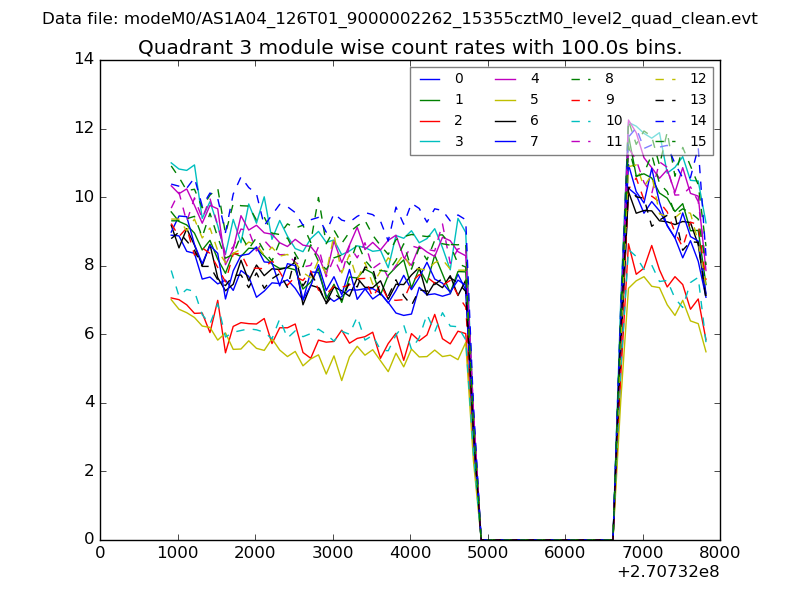

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

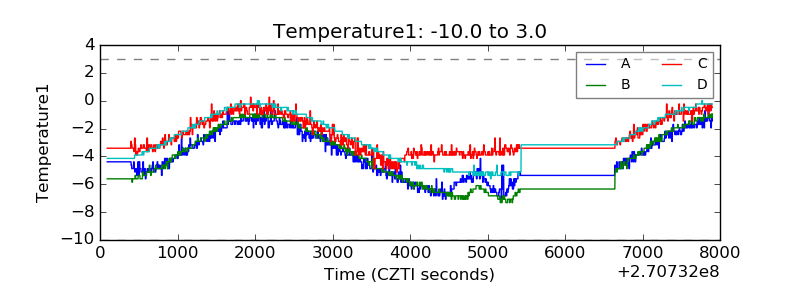

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

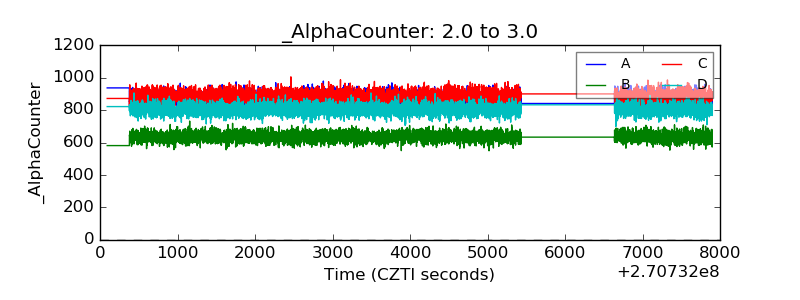

| Alpha Counter |  |
| _CPM_Rate |  |

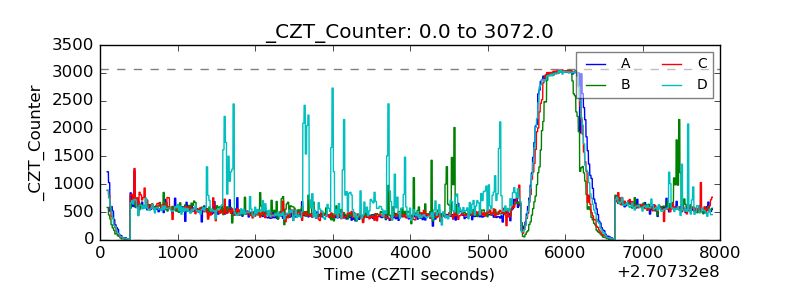

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
