| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_126T01_9000002262_15357cztM0_level2.evt | modeM0/AS1A04_126T01_9000002262_15357cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,122,240 | 110,750,400 |
| Size | 435.9 MB | 105.6 MB |
| Events in quadrant A | 3,194,120 | 743,978 |
| Events in quadrant B | 3,499,789 | 747,538 |
| Events in quadrant C | 3,403,362 | 725,217 |
| Events in quadrant D | 3,319,399 | 698,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13528 | 2 |
| B | 0 | 14411 | 1 |
| C | 0 | 13947 | 1 |
| D | 0 | 14062 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6290 | 103 | 1.637520% |
| B | 6290 | 124 | 1.971383% |
| C | 6290 | 65 | 1.033386% |
| D | 6290 | 99 | 1.573927% |

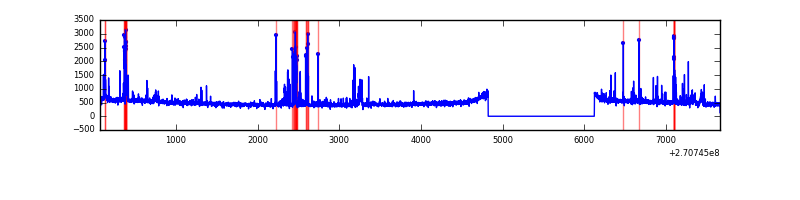

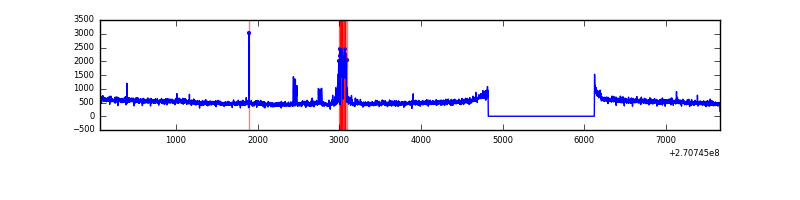

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6291 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7591 | 6291 | 27 | 27 | 0.36% | 0.43% |  |
| C | 7591 | 6292 | 26 | 26 | 0.34% | 0.41% |  |
| D | 7591 | 6292 | 45 | 45 | 0.59% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 44653 | 268.67 | 816 | 804 | 163.2 |
| A | 15 | 233 | 8346 | 46.21 | 816 | 804 | 163.2 |
| A | 0 | 226 | 7417 | 40.52 | 816 | 804 | 163.2 |
| B | 10 | 16 | 192571 | 1264.03 | 810 | 790 | 151.7 |
| B | 0 | 190 | 34508 | 222.23 | 810 | 790 | 151.7 |
| B | 0 | 219 | 29599 | 189.88 | 810 | 790 | 151.7 |
| C | 3 | 233 | 385046 | 2194.31 | 771 | 774 | 175.1 |
| C | 7 | 247 | 7645 | 39.24 | 771 | 774 | 175.1 |
| C | 13 | 61 | 5556 | 27.31 | 771 | 774 | 175.1 |
| D | 7 | 38 | 73469 | 380.68 | 781 | 759 | 191.0 |
| D | 2 | 33 | 70869 | 367.07 | 781 | 759 | 191.0 |
| D | 5 | 222 | 47605 | 245.27 | 781 | 759 | 191.0 |

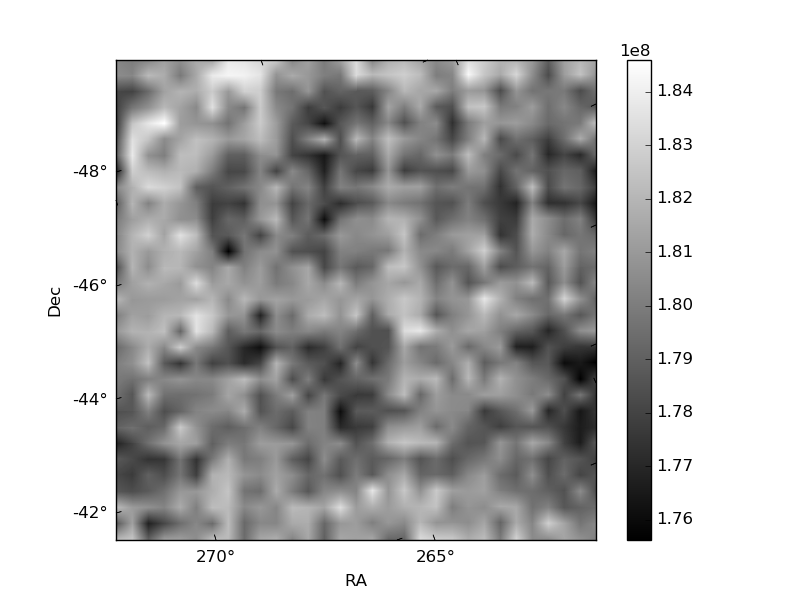

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

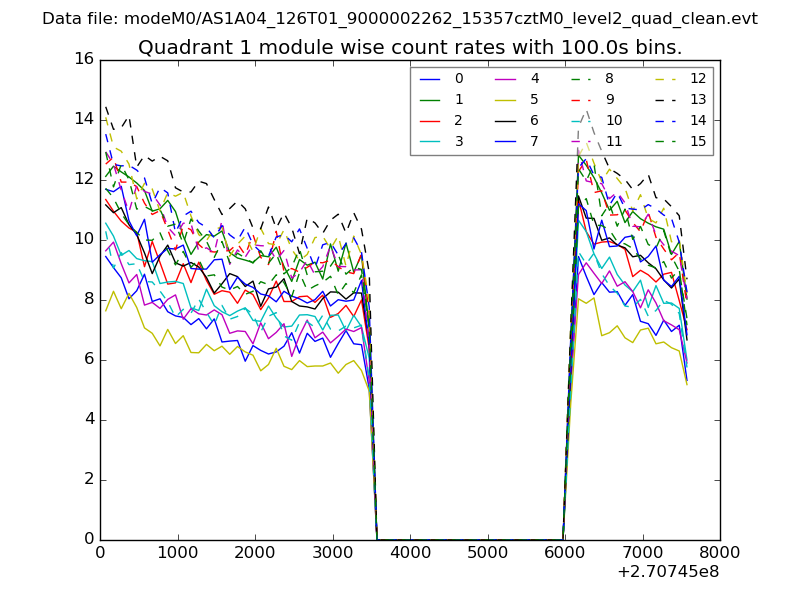

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

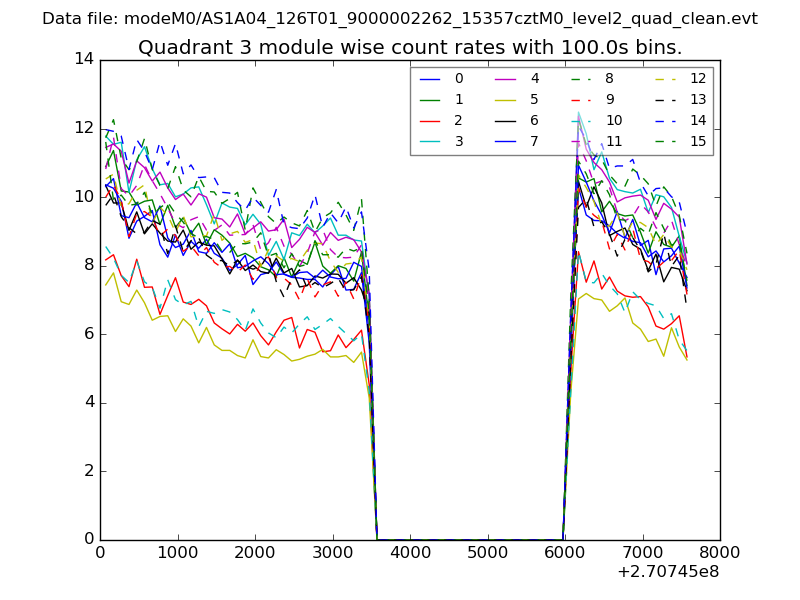

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

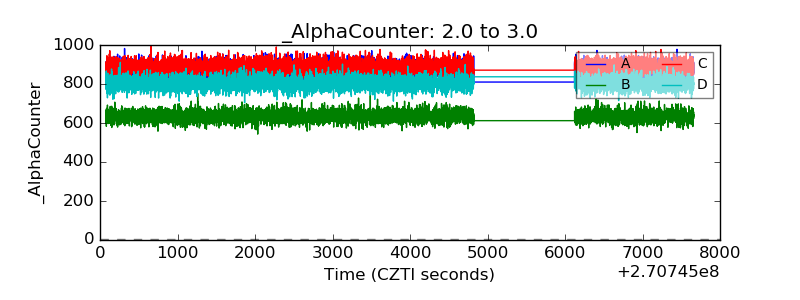

| Alpha Counter |  |
| _CPM_Rate |  |

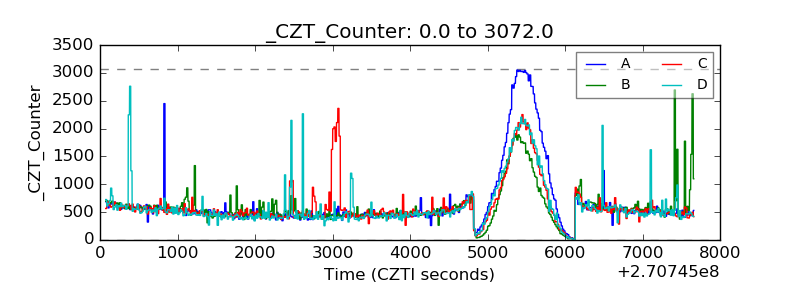

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

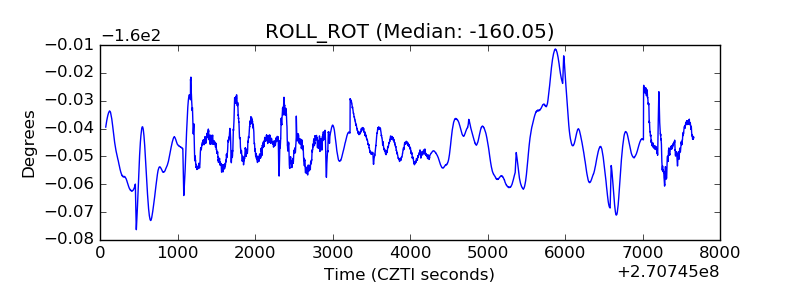

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
