| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_037T01_9000002264_15370cztM0_level2.evt | modeM0/AS1G08_037T01_9000002264_15370cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,859,520 | 97,545,600 |
| Size | 445.2 MB | 93.0 MB |
| Events in quadrant A | 3,179,556 | 649,813 |
| Events in quadrant B | 3,338,210 | 651,511 |
| Events in quadrant C | 3,783,147 | 627,244 |
| Events in quadrant D | 3,429,081 | 604,755 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13274 | 2 |
| B | 0 | 13711 | 1 |
| C | 0 | 15306 | 1 |
| D | 0 | 14008 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6021 | 77 | 1.278857% |
| B | 6021 | 100 | 1.660854% |
| C | 6021 | 63 | 1.046338% |
| D | 6021 | 117 | 1.943199% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7262 | 6022 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7262 | 6023 | 12 | 12 | 0.17% | 0.20% |  |
| C | 7262 | 6022 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7262 | 6022 | 57 | 57 | 0.78% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 27723 | 164.79 | 817 | 805 | 163.4 |
| A | 15 | 239 | 14491 | 83.78 | 817 | 805 | 163.4 |
| A | 0 | 226 | 7214 | 39.23 | 817 | 805 | 163.4 |
| B | 4 | 173 | 85502 | 561.99 | 801 | 784 | 150.7 |
| B | 0 | 229 | 34994 | 226.94 | 801 | 784 | 150.7 |
| B | 4 | 48 | 32896 | 213.02 | 801 | 784 | 150.7 |
| C | 3 | 233 | 764274 | 4319.78 | 774 | 779 | 176.7 |
| C | 13 | 61 | 5469 | 26.54 | 774 | 779 | 176.7 |
| C | 14 | 234 | 2715 | 10.95 | 774 | 779 | 176.7 |
| D | 2 | 33 | 180353 | 938.89 | 784 | 763 | 191.3 |
| D | 9 | 68 | 114899 | 596.7 | 784 | 763 | 191.3 |
| D | 10 | 70 | 65020 | 335.93 | 784 | 763 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

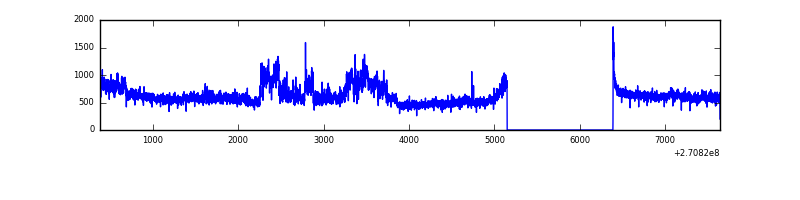

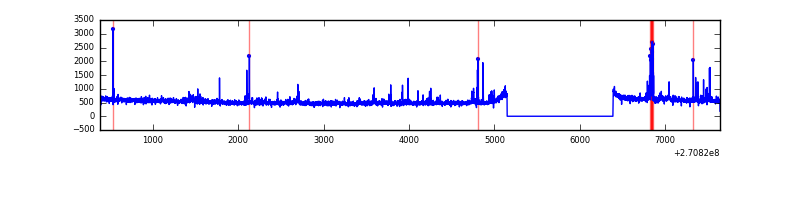

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

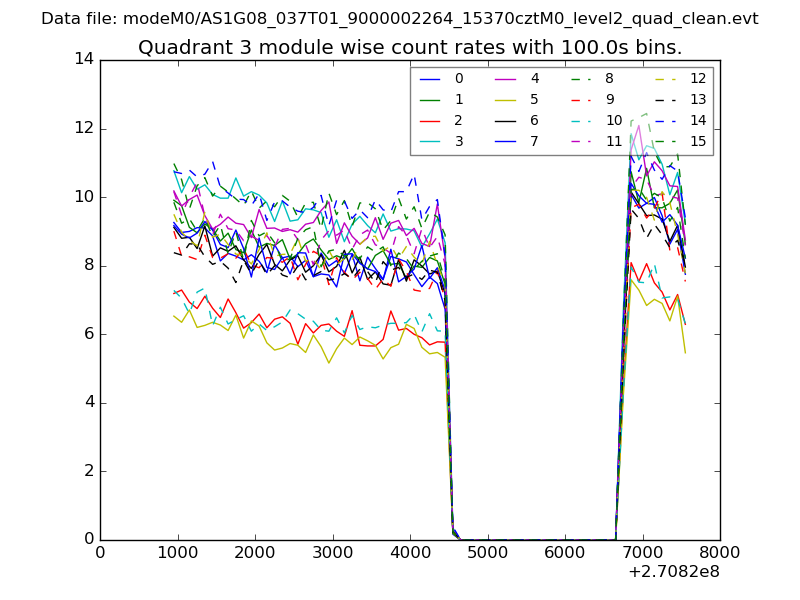

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

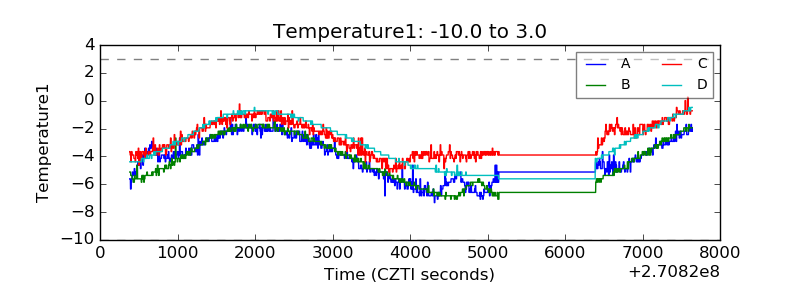

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

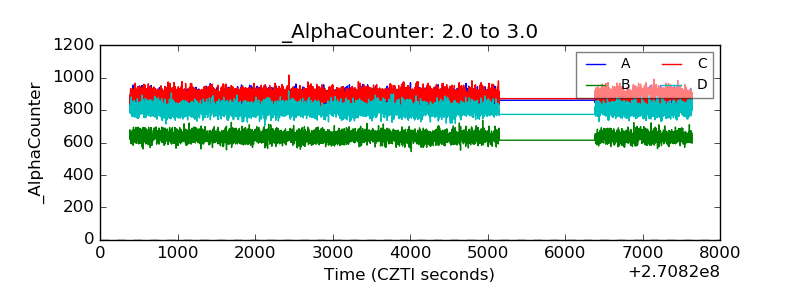

| Alpha Counter |  |
| _CPM_Rate |  |

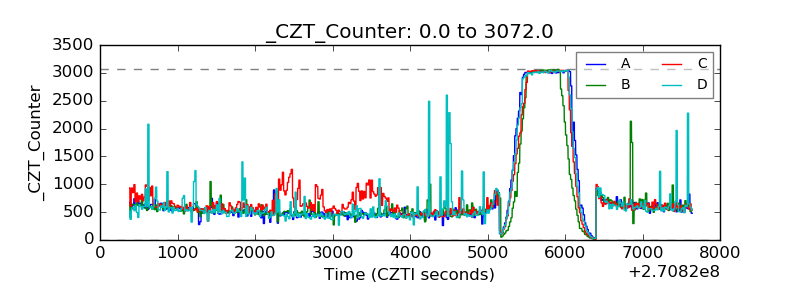

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

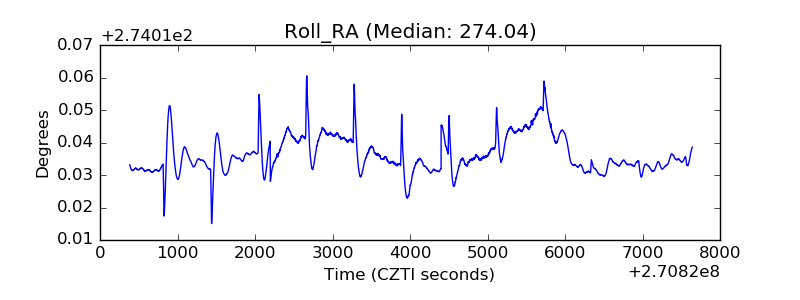

| _Roll_RA |  |
| Veto Counter |  |
