| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_001T01_9000002270_15388cztM0_level2.evt | modeM0/AS1C03_001T01_9000002270_15388cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,822,720 | 97,470,720 |
| Size | 615.9 MB | 93.0 MB |
| Events in quadrant A | 4,329,592 | 645,017 |
| Events in quadrant B | 6,250,556 | 607,528 |
| Events in quadrant C | 3,119,821 | 675,028 |
| Events in quadrant D | 5,433,827 | 585,026 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17066 | 2 |
| B | 0 | 22864 | 1 |
| C | 0 | 13290 | 1 |
| D | 0 | 20597 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 397 | 6.324677% |
| B | 6277 | 1046 | 16.664011% |
| C | 6277 | 32 | 0.509798% |
| D | 6277 | 1110 | 17.683607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

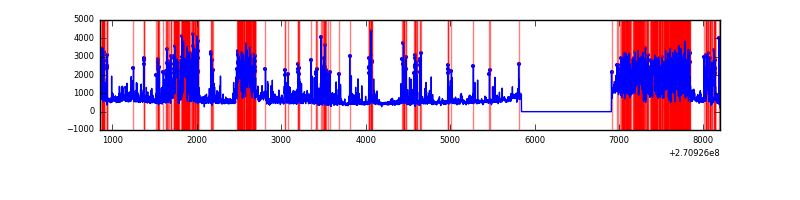

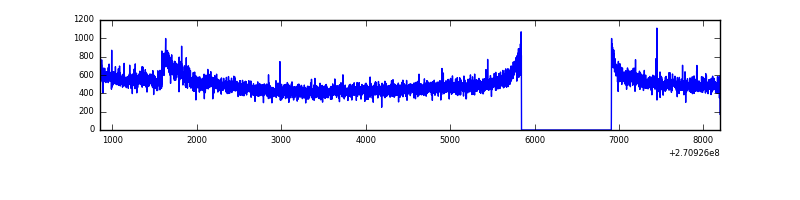

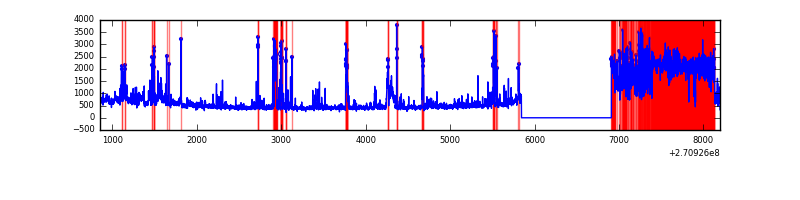

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7343 | 6279 | 288 | 288 | 3.92% | 4.59% |  |
| B | 7343 | 6279 | 779 | 779 | 10.61% | 12.41% |  |
| C | 7343 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7343 | 6279 | 789 | 789 | 10.74% | 12.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1073586 | 7412.49 | 720 | 704 | 144.7 |
| A | 14 | 237 | 451646 | 3115.53 | 720 | 704 | 144.7 |
| A | 9 | 143 | 21856 | 146.13 | 720 | 704 | 144.7 |
| B | 10 | 245 | 2784190 | 21418.65 | 694 | 677 | 130.0 |
| B | 8 | 3 | 200324 | 1536.25 | 694 | 677 | 130.0 |
| B | 10 | 16 | 85702 | 654.25 | 694 | 677 | 130.0 |
| C | 3 | 233 | 260099 | 1554.2 | 732 | 735 | 166.9 |
| C | 13 | 61 | 5439 | 28.19 | 732 | 735 | 166.9 |
| C | 7 | 247 | 2204 | 8.8 | 732 | 735 | 166.9 |
| D | 9 | 68 | 1436107 | 8645.93 | 683 | 664 | 166.0 |
| D | 13 | 122 | 597185 | 3592.95 | 683 | 664 | 166.0 |
| D | 7 | 38 | 249723 | 1500.13 | 683 | 664 | 166.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

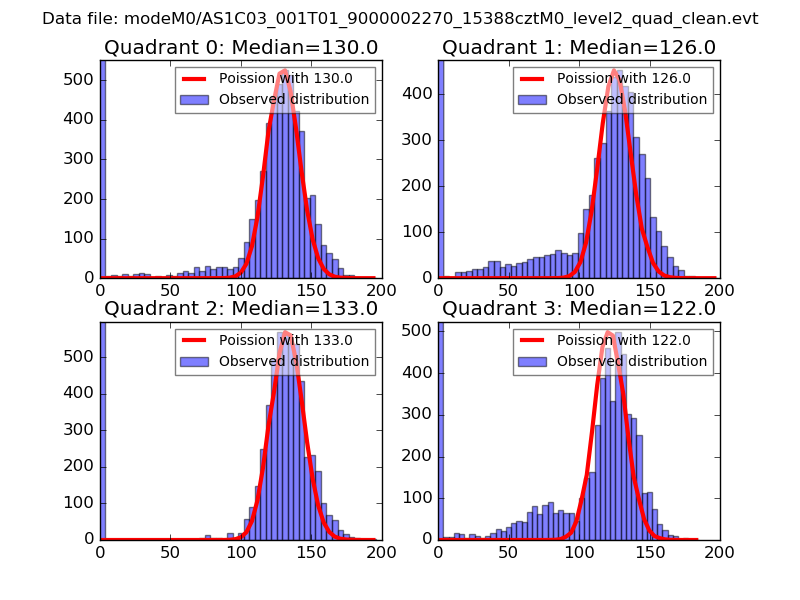

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

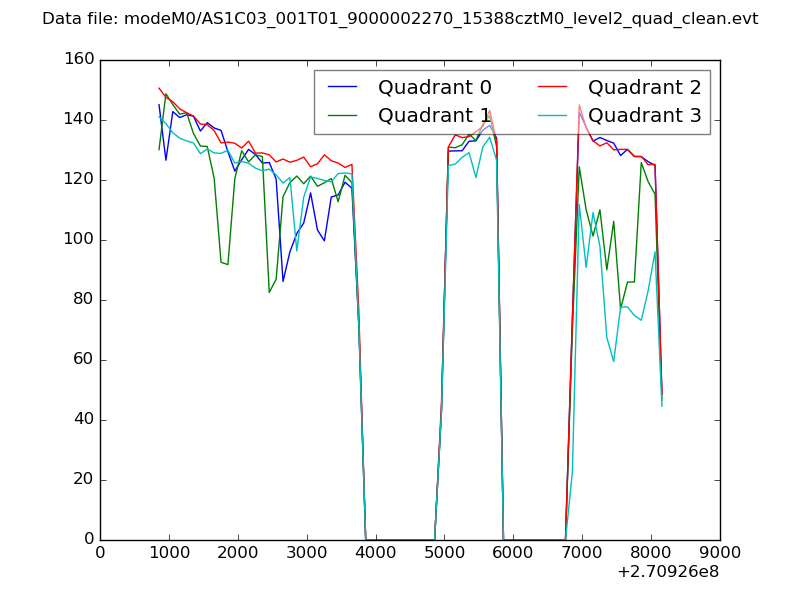

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

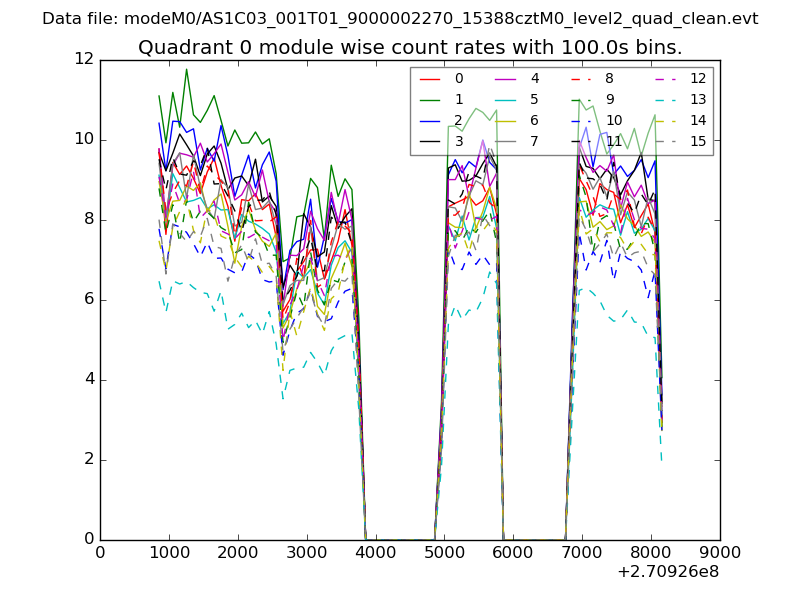

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
